4x16 Character LCD STN- Blue Display with White Side Backlight Arduino display

4x16 Character LCD STN- Blue Display with White Side Backlight Arduino display

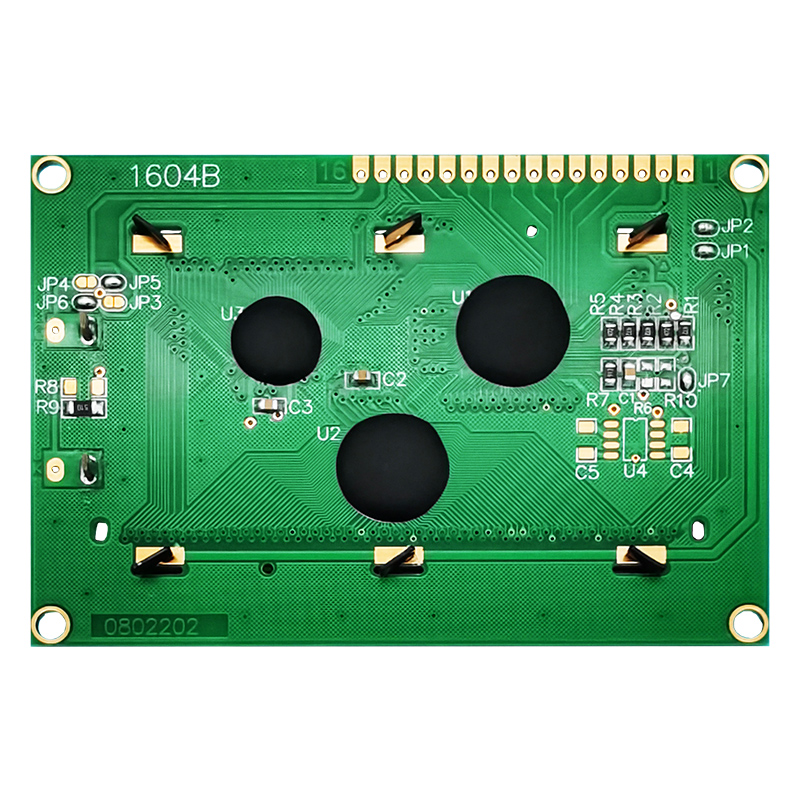

▶ Model: HTM1604B-25W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 4x16 characters

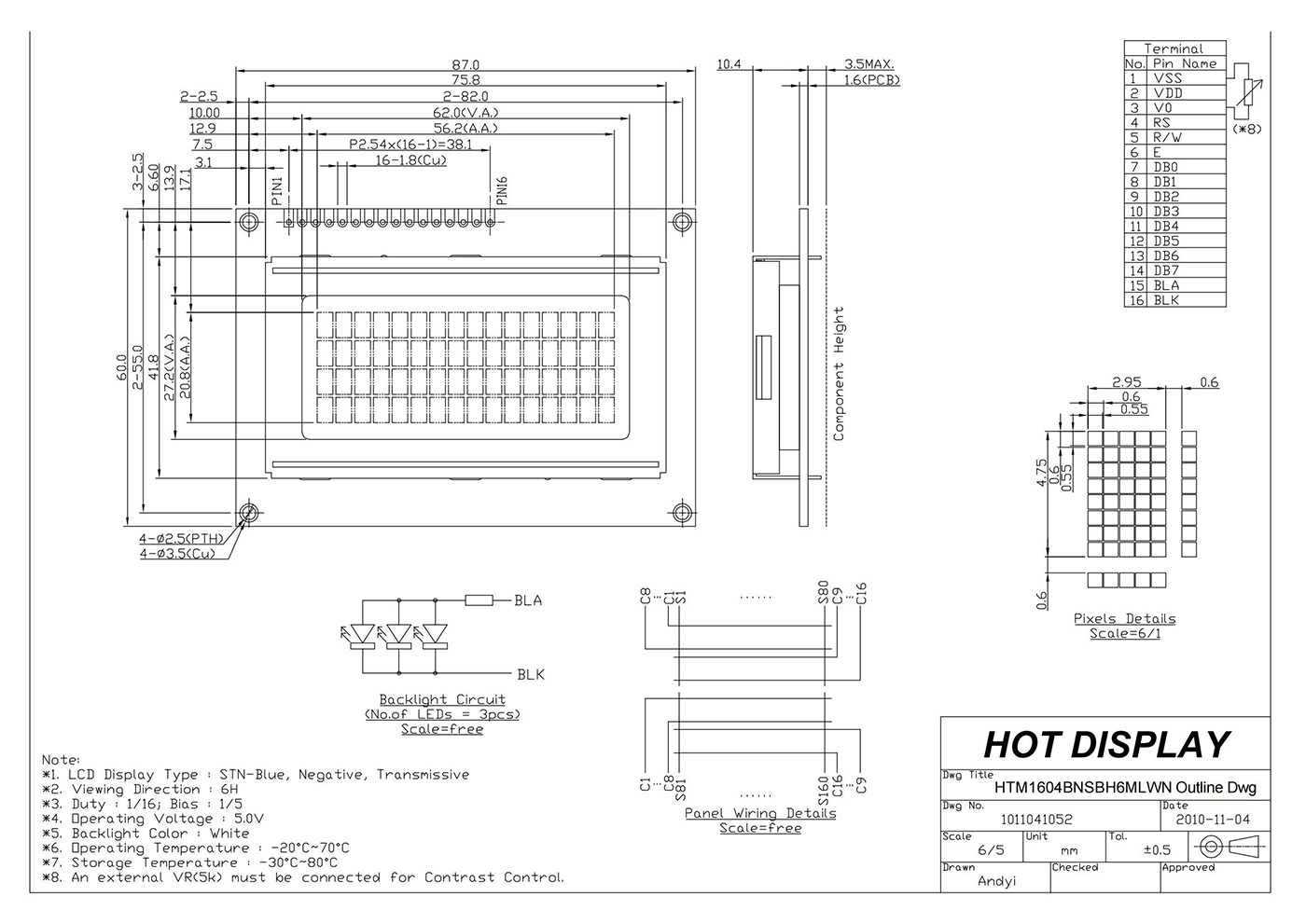

▶ Overall dimensions (mm): 87x60x10.4
▶ VA size (mm): 62x27.2
▶ AA size (mm): 56.2x20.8
▶ Point spacing mm: 0.6x0.6
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: white
▶ Connection method PIN number: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1604B-25W-A5P | 16x4 character display | Transmissive LCD display | Side white backlight | STN (-) negative blue display | Arduino display

This LCD monitor model is HTM1604B-25W-A5P and has the following features:

Number of characters and lines: 16 characters, 4 lines of characters.

Display effect: White pixels are displayed on a blue background.

Display Technology: Adopts transmissive LCD technology with backlight for improved visibility.

Operating Temperature Range: Broad operating temperature range, -20°C to 70°C.

Viewing angle: The best viewing angle is 6:00.

Voltage Requirements: 5V operating voltage, making it compatible with a variety of development boards, including the popular Arduino/C8051 development board.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Parameter Description	Unit
name	HTM1604B-25W-A5P
Number of dots	16 words × 4 lines	dots
Module size	87x60x10.4 (MAX)	mm
Visual (VA) area	62.0（W） × 27.2（H）	mm
Valid (AA) area	56.2（W） × 20.8（H）	mm
Point (pixel) spacing	0.60 × 0.60mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	White backlight
display mode	STN（-）
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
