Character LCD Module |5.0V Display 16X2 FSTN+ with RGB Backlight-Arduino

Character LCD Module |5.0V Display 16X2 FSTN+ with RGB Backlight-Arduino

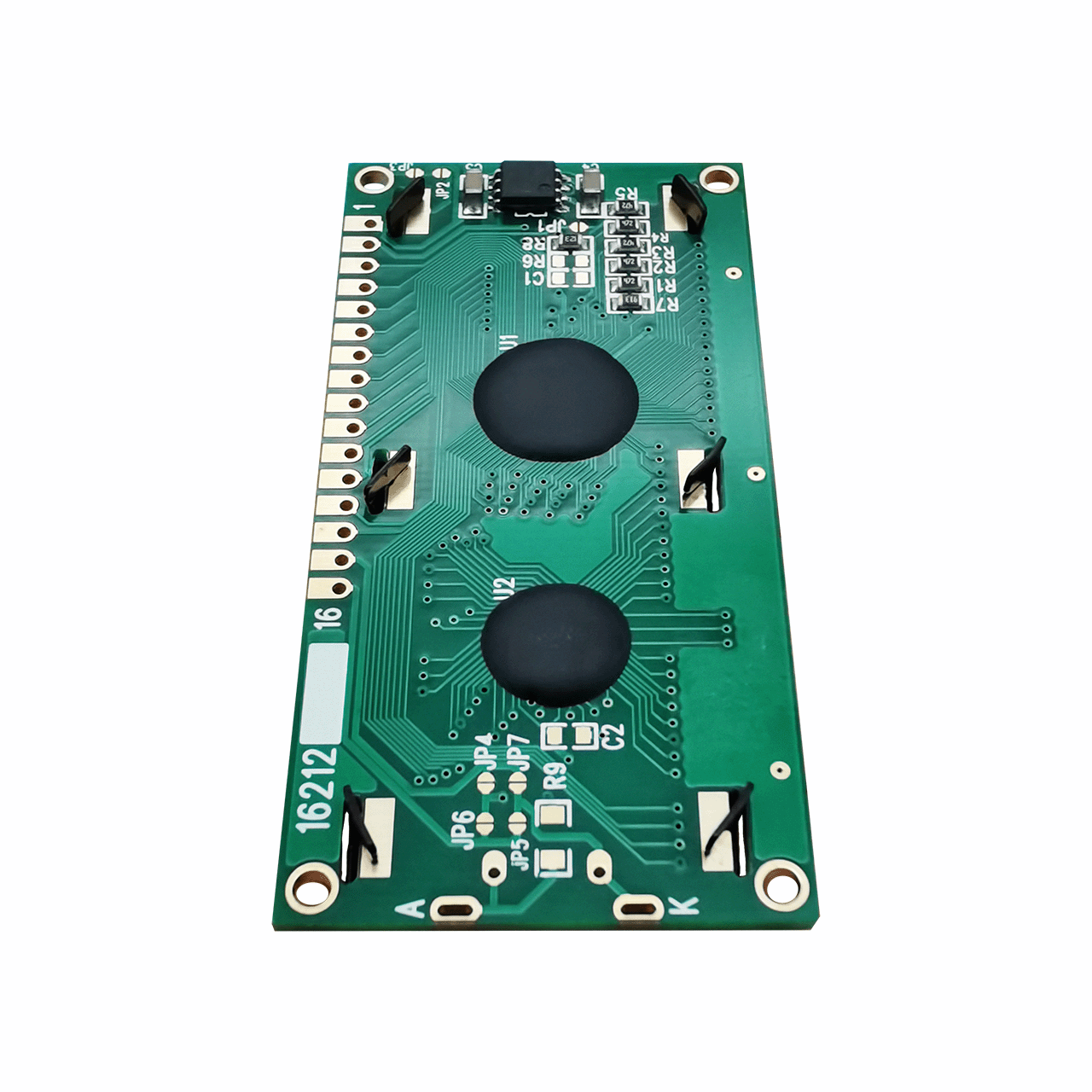

▶ Model: HTM1602-12-35S-A5P

▶ Type: Character LCD Module
▶ Display content: 16x2 characters

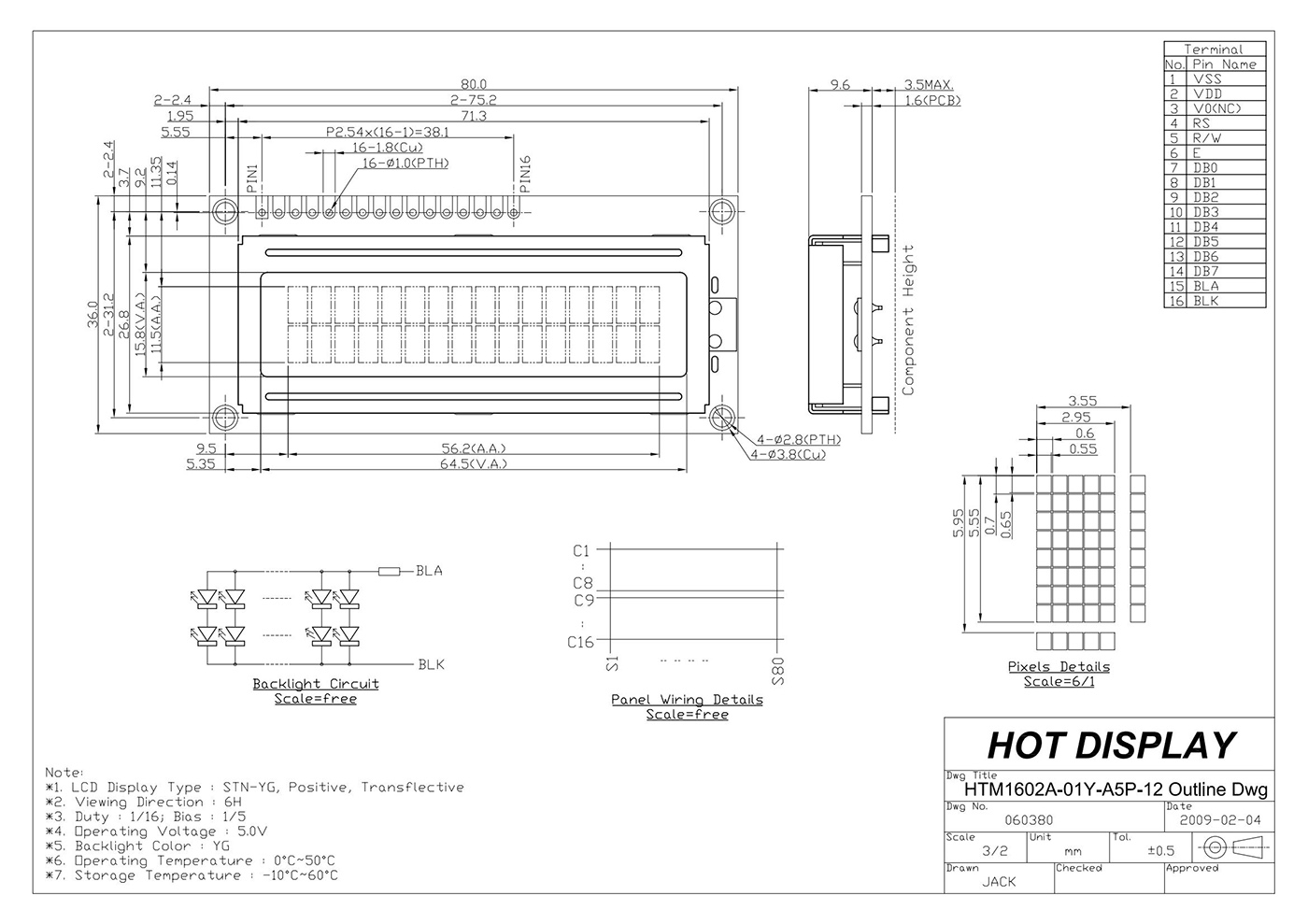

▶ Overall dimensions (mm): 72.0x36.0x10.1
▶ VA size (mm): 64.5x16.0
▶ AA size (mm): 56.2x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: red/green/blue light
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

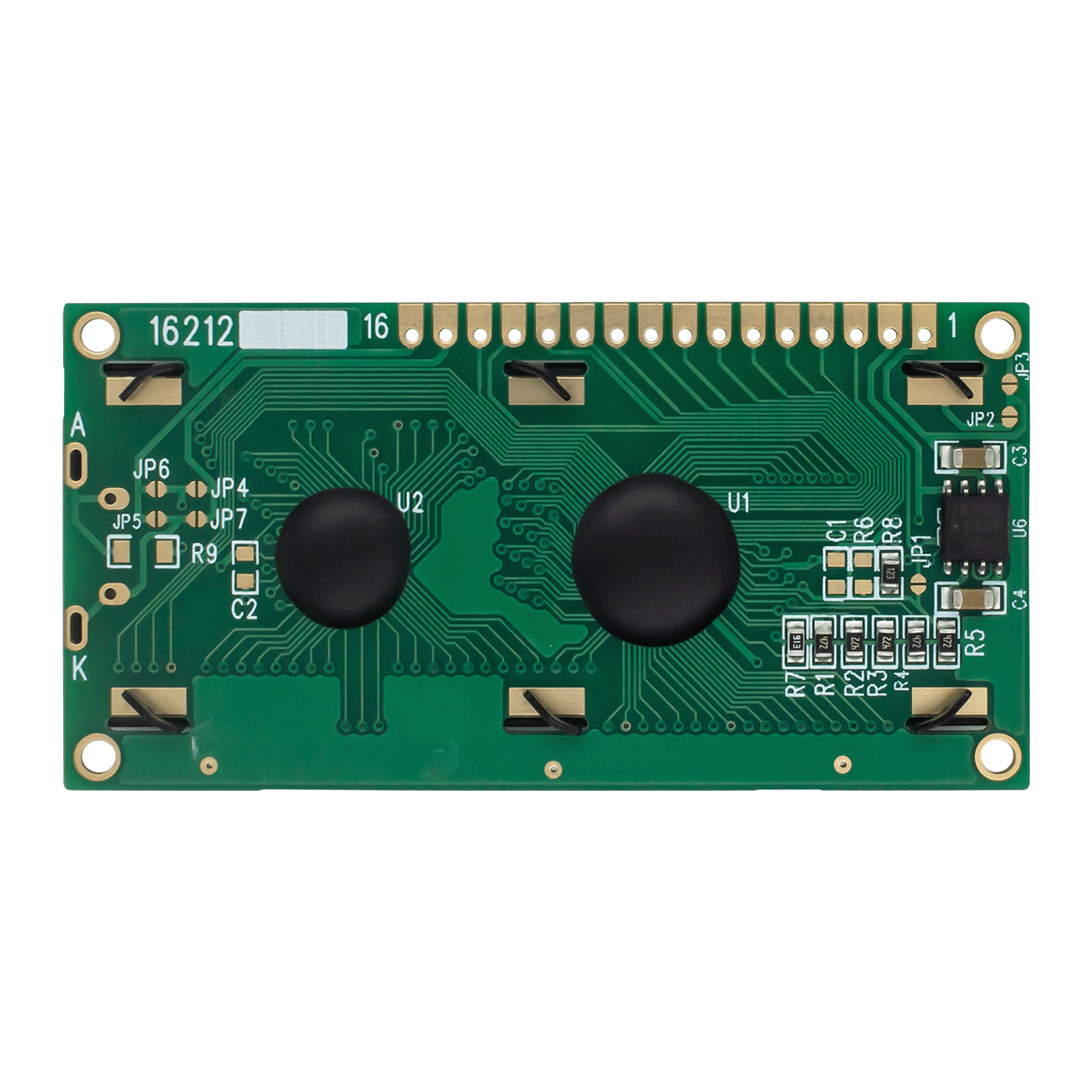

Character LCD Module |5.0V Display 16X2 FSTN+ with RGB Backlight-Arduino

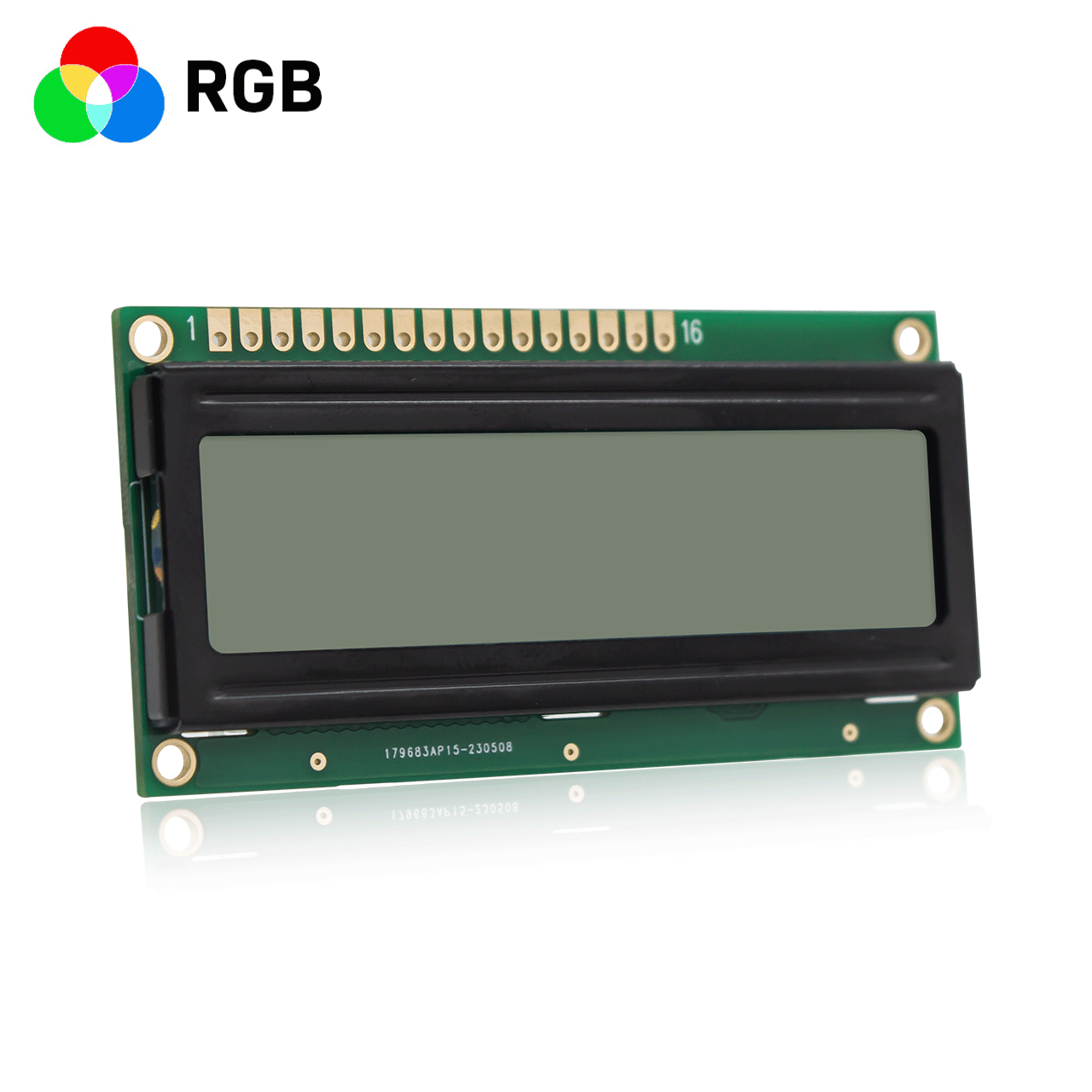

Character LCD Module,A 2x16 hot display LCD can display up to two lines of 32 characters, with each line displaying 16 dark pixel characters on a light gray background. Each RGB monitor has three built-in backlight colors, allowing you to choose between red, green, or blue backlight colors. You can also mix the intensity of these colors to create new custom colors.
Due to the integration of LED backlight, this cross shaped LCD screen can provide excellent visibility in ambient or low light conditions. Its working temperature range is -20 to 70 degrees Celsius. The optimal field of view for this Arduino compatible monitor is 6:00. The working voltage of the screen is 5V, which complies with RoHS standards.

Parameter	Parameter properties	unit
Model	HTM1602-12-35S-A5P
Number of lattice points	16x2 character	dots
External dimensions	72.0(W)x36.0(H)x10.1(T)	mm
Visible (VA) area	64.5x16.0	mm
Effective (AA) area	56.2x11.5mm	mm
Pixel size	0.55 × 0.65mm	mm
Point (pixel) spacing	0.60 × 0.70	mm
IC	ST7066U
supply voltage	5.00V	V
Backlight	Red green blue LED
mode	FSTN+
Duty driving mode	1/16 duty cycle
type	Character LCD
characteristic	Semi transparent reflective polarizer
