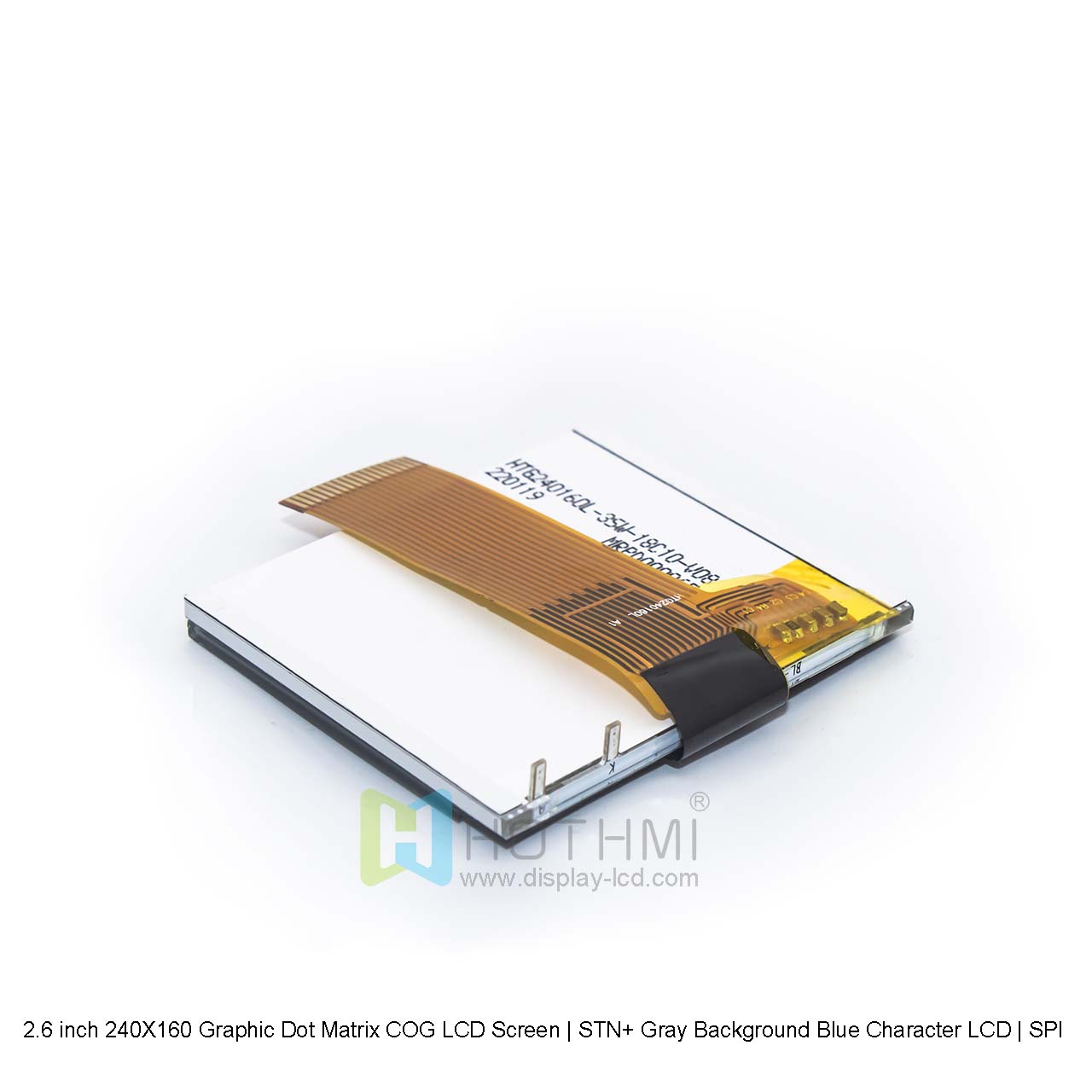

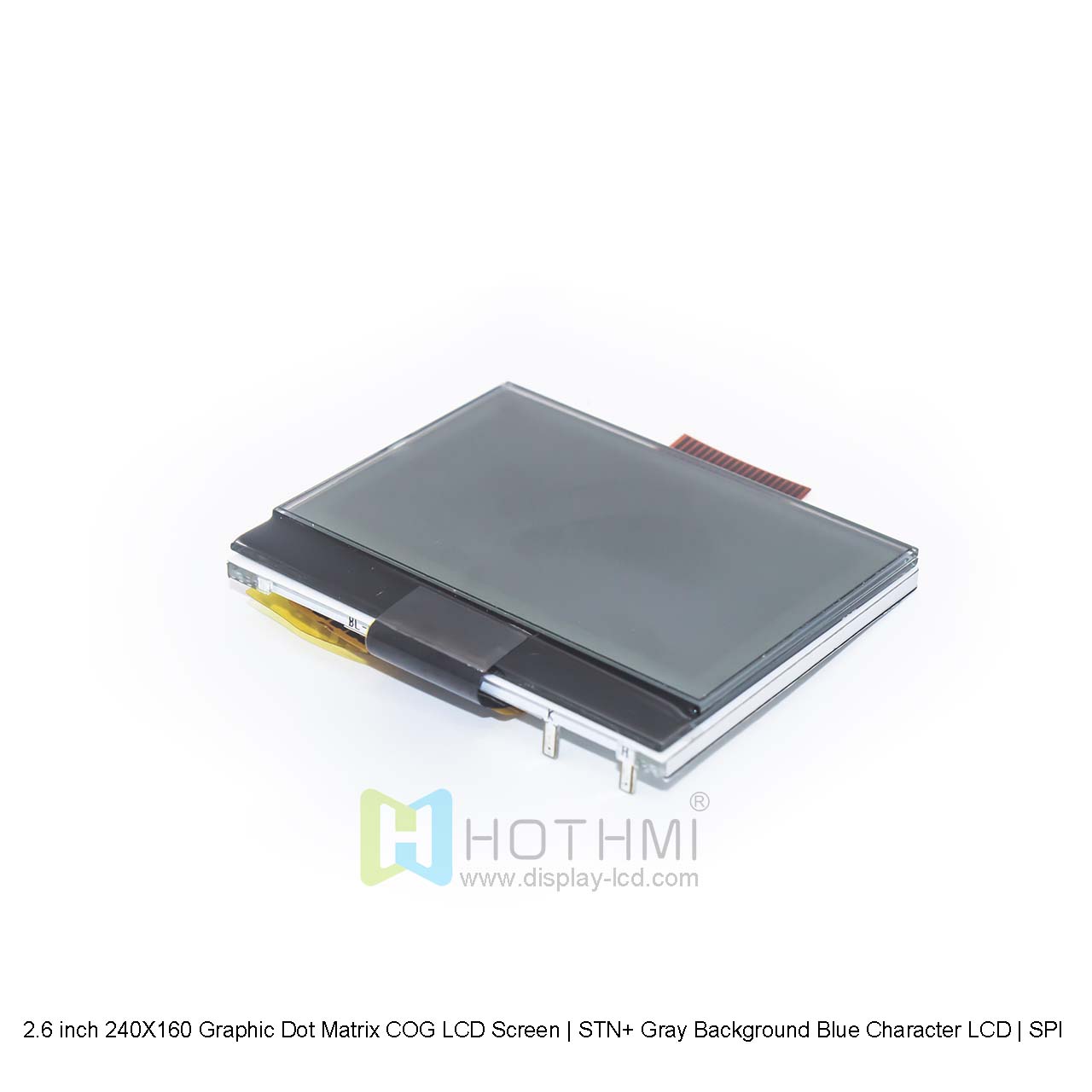

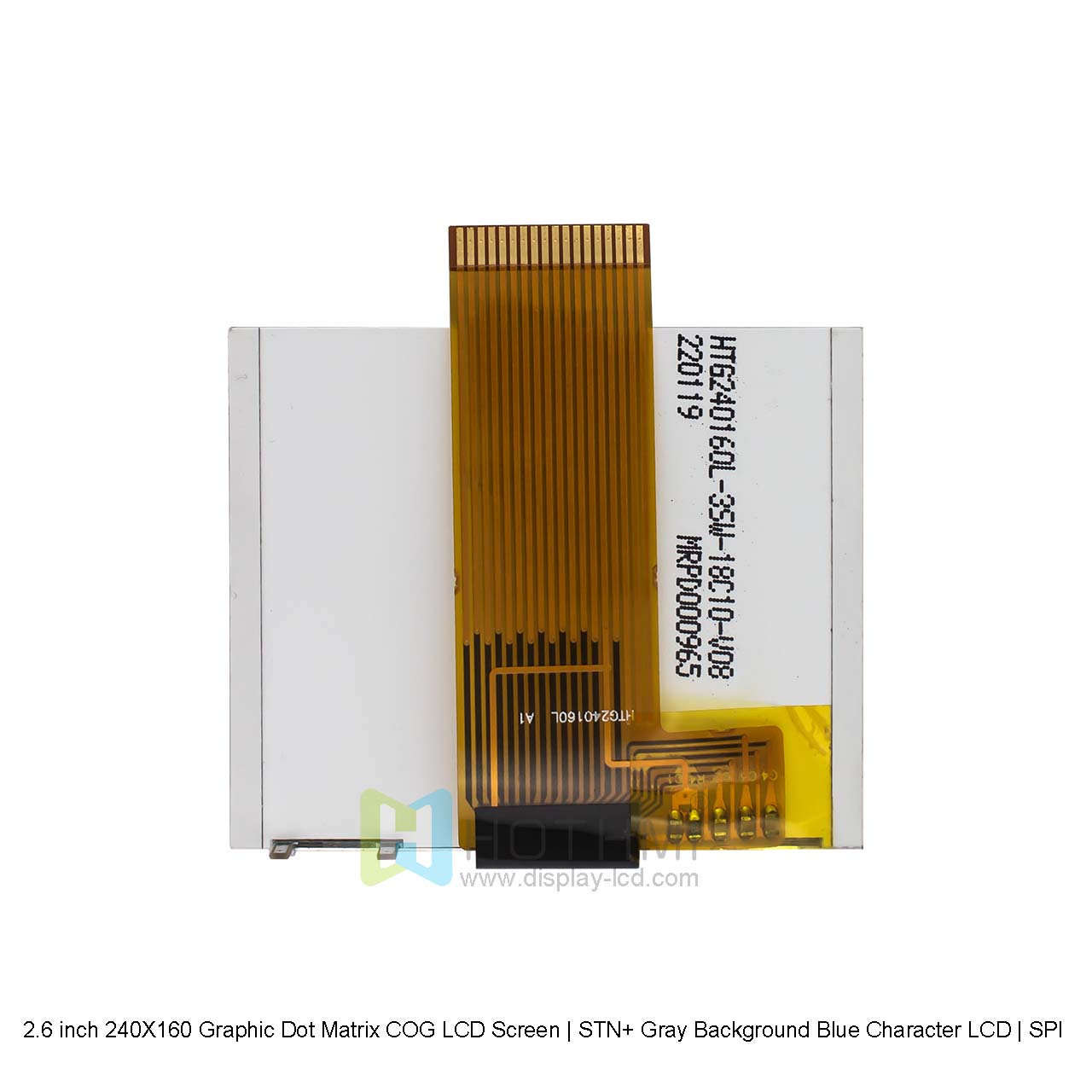

2.6 inch 240X160 Graphic Dot Matrix COG LCD Screen | STN+Gray Gray Background Blue Character LCD | SPI Interface | Arduino

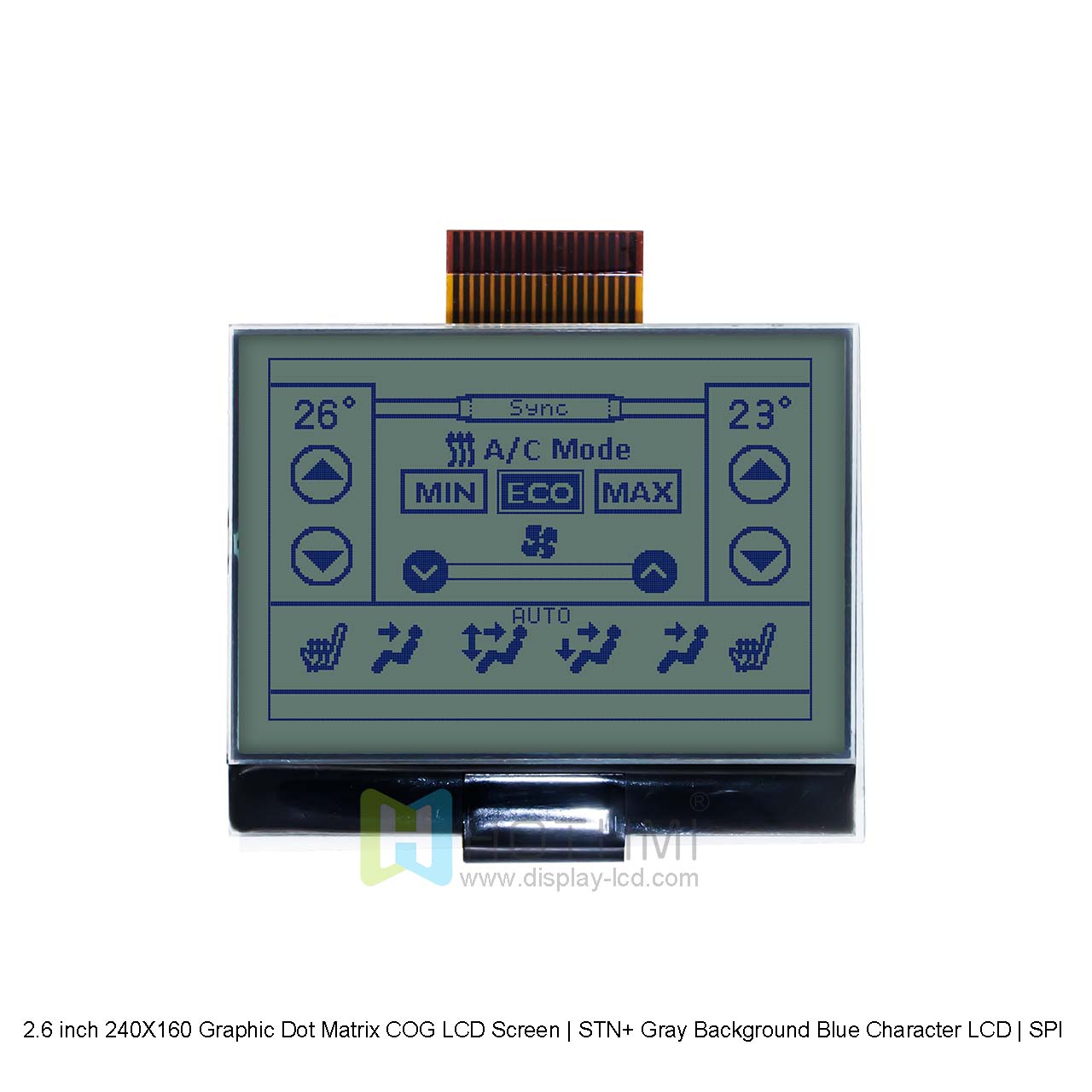

This HOTLCD 240160 Graphic Glass Chip (COG) LCD Display Module displays blue pixels on a gray background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
The display module uses innovative reflective-transmissive hybrid LCD technology to achieve a sharp display effect of yellow-green background and black text at a resolution of 240×160 pixels. Its dual-mode optical system can intelligently adapt to the ambient illumination: when the ambient light intensity is greater than 10,000 lux, the reflective layer can efficiently reflect more than 85% of the incident light to ensure visibility under strong light; in low-light environments, the integrated LED backlight module can provide a brightness output of up to 450cd/m², combined with a 5:1 contrast enhancement algorithm to achieve clear imaging in dark environments.
