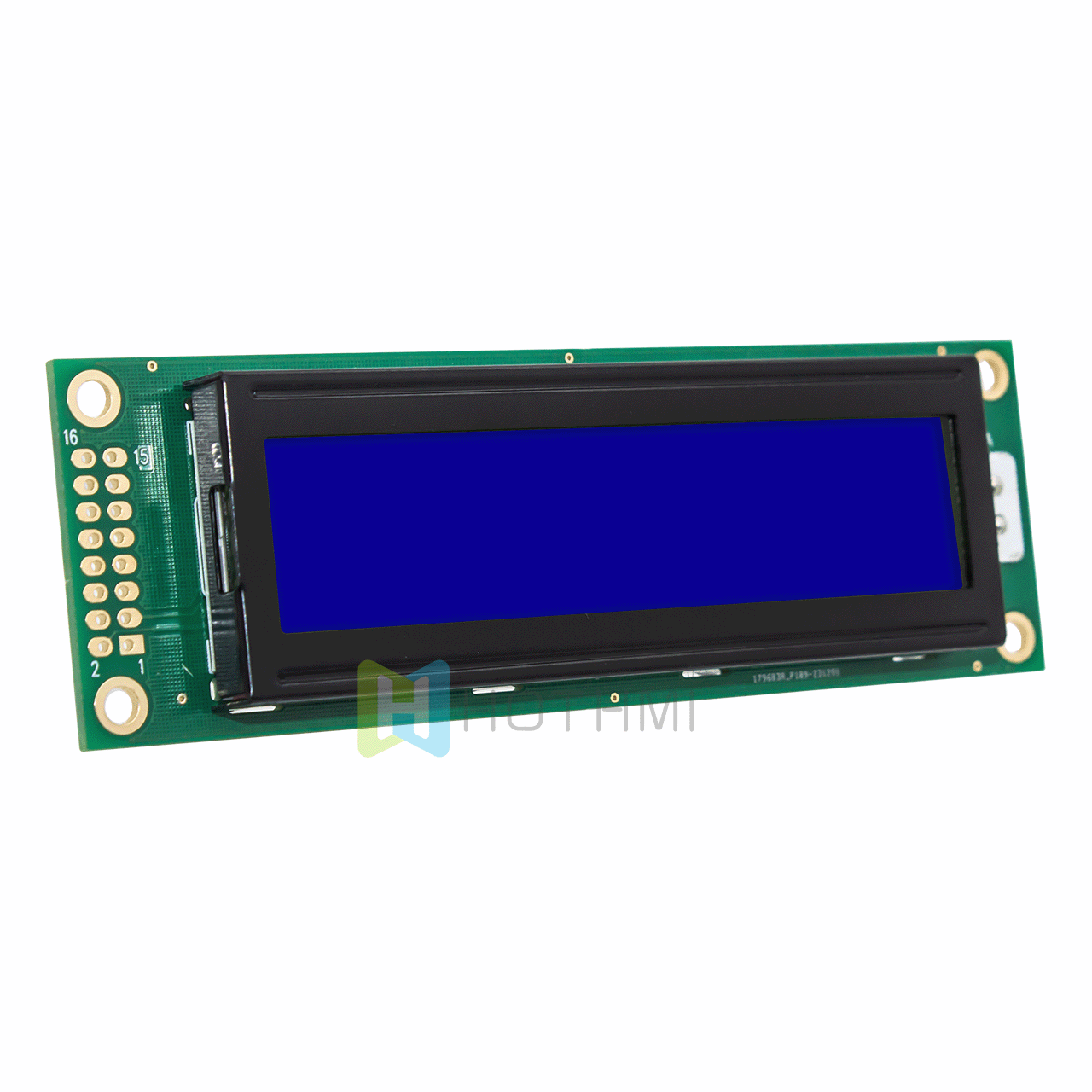

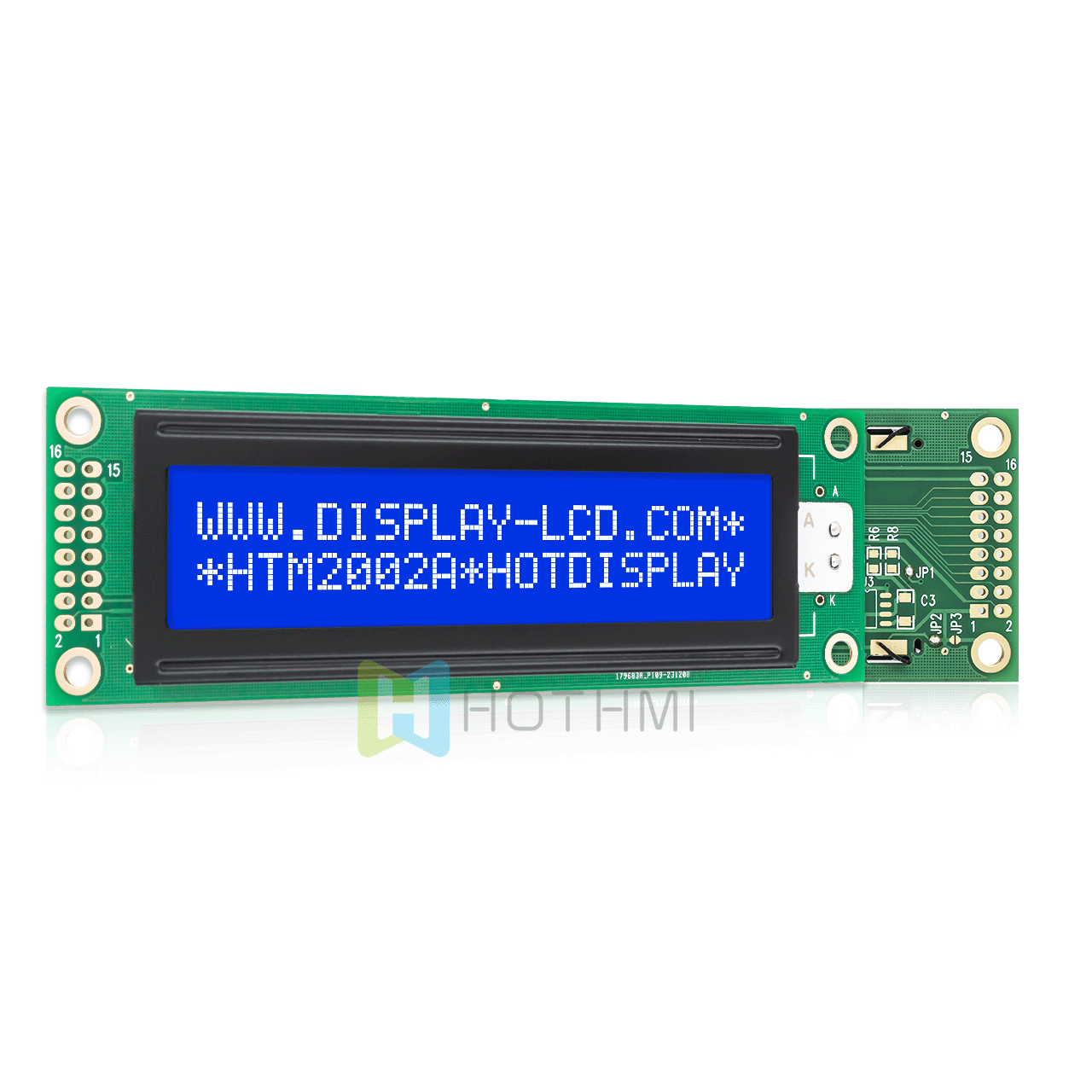

character LCD display |2X20 STN-monochrome blue display with white backlight | 5.0V |Transmissive display | ST7066U controller

character LCD display |2X20 STN-monochrome blue display with white backlight | 5.0V |Transmissive display | ST7066U controller | Arduino

▶ Model: HTM2002A-25W-A5P

▶ Type: character LCD display
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 116.0x37.0x14.6
▶ VA size (mm): 83.0x18.6
▶ AA size (mm): 75.4x11.5
▶ Point spacing mm: 0.65x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD display |2X20 STN-monochrome blue display with white backlight | 5.0V |Transmissive display | ST7066U controller | Arduino
The character LCD display 2x20 Character LCD is a transmissive LCD display primarily designed for use in embedded systems, electronic DIY projects, and educational purposes. When activated, the monitor displays characters with white pixels on a blue background. This initial setting may be the default setting. This can be adjusted via the corresponding unit settings. As a transmissive LCD, it controls the transparency of the LCD to modulate the passage of light to form an image. Screens require backlighting to ensure pixel visibility. Its operating temperature range is wide, from -20 degrees Celsius to 70 degrees Celsius, suitable for various environmental conditions. The best recommended viewing time is 6:00, which may indicate that the monitor performs better during the day or under certain lighting conditions. A 5V power supply is required, which is the standard voltage for common embedded systems and Arduino-based electronic projects. Comply with RoHS standards to ensure products comply with environmental regulations.

Item	Parameter Description	Unit
name	HTM2002-25W-A5P
Number of dots	20x2 Character	dots
Module size	116.0 × 37.0 × 14.6 (MAX)	mm
VA size	83.0（W） × 18.6（H）	mm
AA size	75.4（W） × 11.5（H）	mm
Pixel pitch	0.65 × 0.70	mm
IC	ST7066
voltage	5.0V	V
backlight	White
display mode	STN（-）
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Totally transflective polarizer
