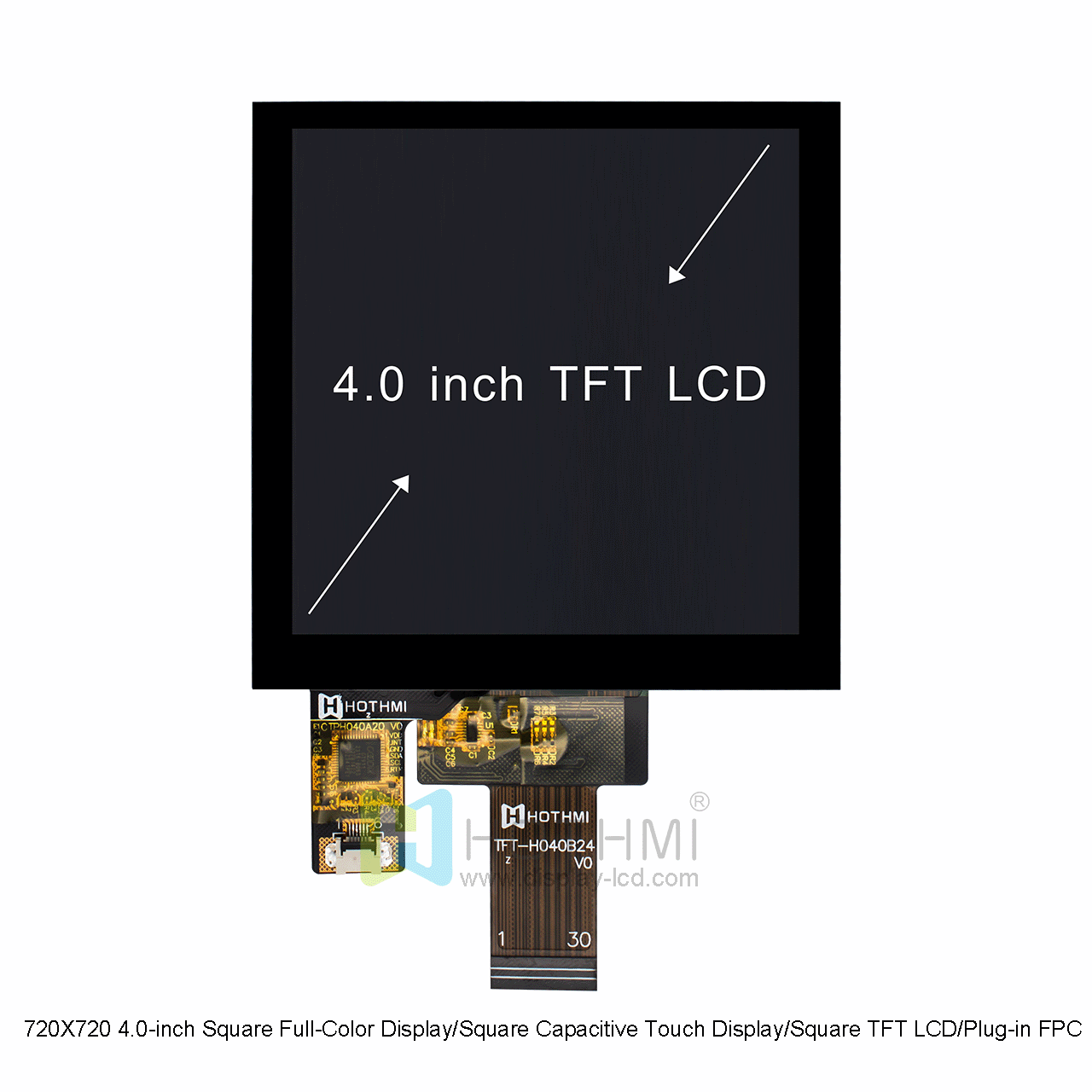

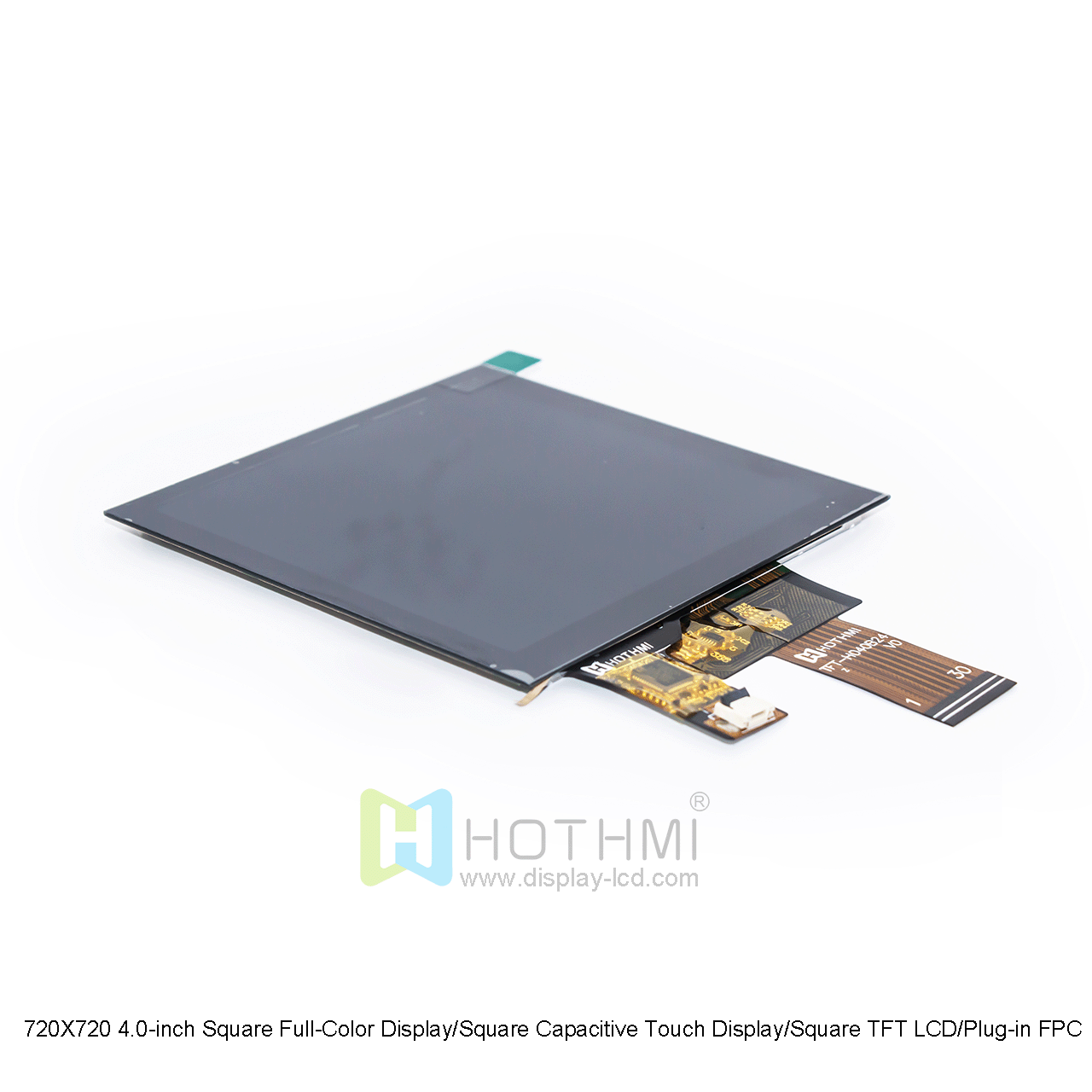

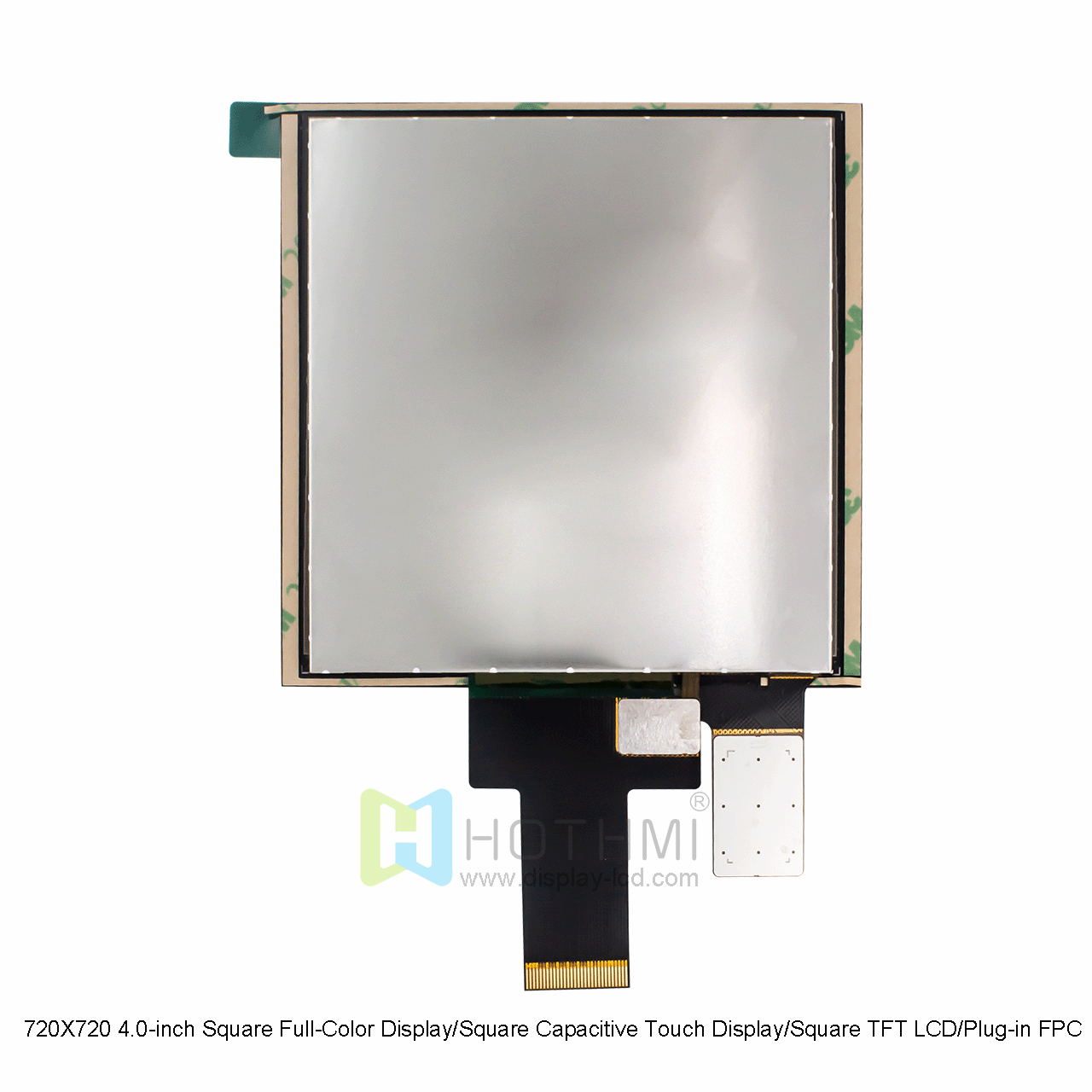

720X720 4.0-inch Square Full-Color Display/Square Capacitive Touch Display/Square TFT LCD/Plug-in FPC
This TFT-H040B24ZKIST3C30 4.0-inch TFT display is very powerful. It has a brightness of 350 nits, a contrast ratio of 800:1, and 720X720 pixels, and detailed images are clear and sharp. Powered by a 3.3V power supply, it provides amazing clarity, excellent color reproduction, better image consistency, and high contrast at full viewing angles due to the built-in IPS technology. You can choose the MIPI serial interface, and this interface configuration makes this display compatible with various Arduino models and other similar boards, allowing for seamless integration with Arduino projects. This display also features 30-pin FFC, 0.5mm pitch connectivity (6-pin 1.0mm pitch for the touchscreen), EMI shielding, and is powered by the ST7703 controller.
Capacitive Touch Capability
This LCD display is compact and features a capacitive touchscreen that is controlled by the GT911 controller with 5-point multi-touch capability. The projected capacitive or PCAP touchscreen comes with a built-in I2C interface, cover glass, and FocalTech controller, allowing users to perform a variety of gestures and interact more intuitively. It features precise touch recognition and enhanced responsiveness for interactive applications.
All of our displays are RoHS compliant and adhere to strict environmental and safety standards.
