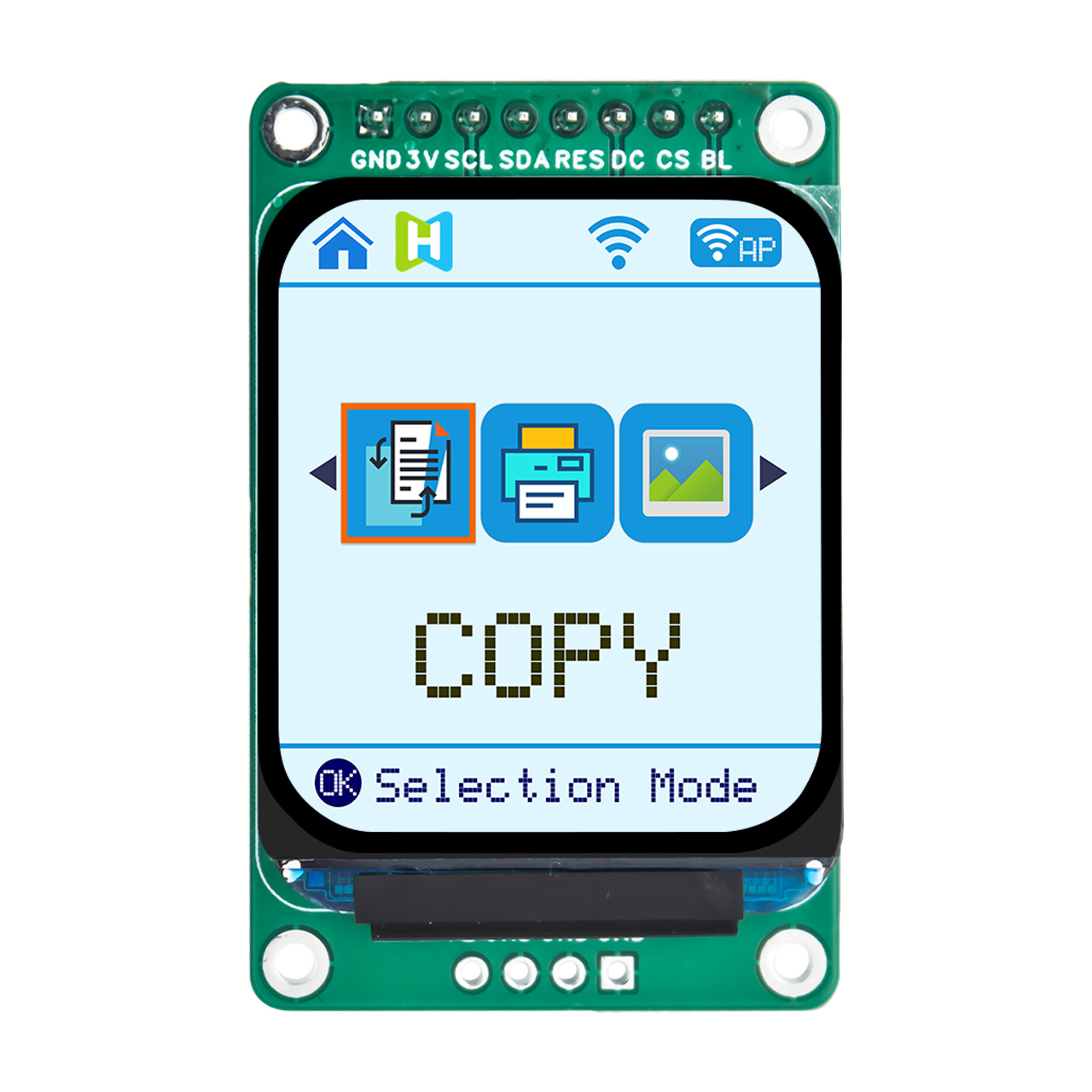

1.5 inch 172x320 TFT LCD module with ST7778 controller, SPI interface IPS full viewing angle display

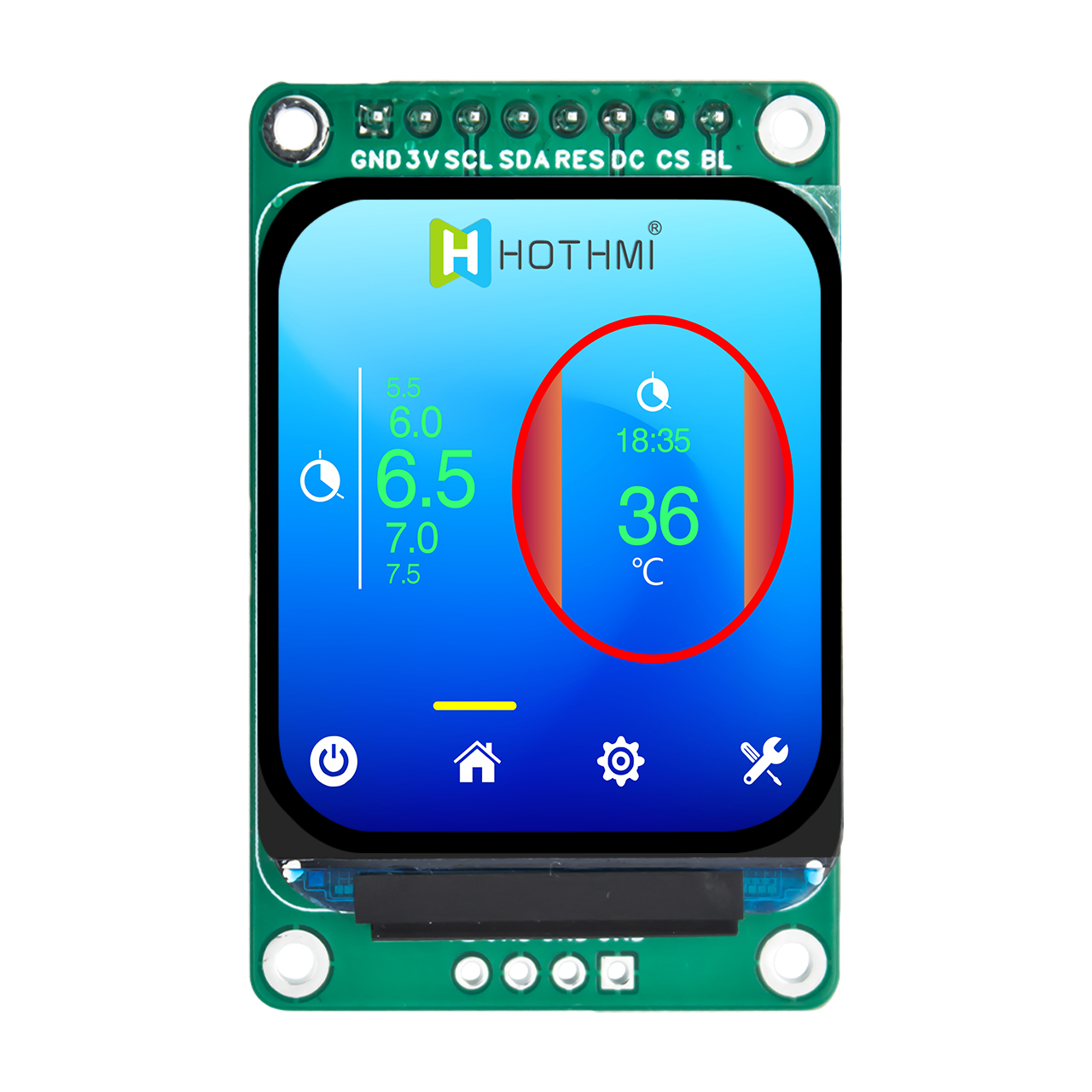

This exquisite 1.5 inch TFT LCD Modules, although small in size, contains amazing visual energy. It has a high resolution of 172 x 320, and with the RGB three-color matrix, it depicts every detail in detail. Even more amazing is its NTSC 70% wide color gamut performance, which gives vivid and full color vitality to the health data on smart bracelets, complex curves on portable instruments, or key parameters on industrial controllers, ensuring that the information transmission is both accurate and pleasing to the eye.

Excellent performance comes from careful design. The core of the module is equipped with an industrial-grade ST7778 driver chip (or compatible solution), and its built-in intelligent circuit greatly simplifies your integration work. Smooth full-color control can be achieved through an efficient 4-wire SPI interface (a total of 8 signal pins), significantly reducing the complexity and cost of hardware design. At the same time, it is compatible with a wide operating voltage range of 3.0V to 3.3V, and can be easily integrated into various low-power application scenarios. Facing the challenges of harsh environments, HTM-H015A06-SPI-V0 shows strong adaptability. Its operating temperature spans -30℃ to +80℃, and its storage temperature range reaches -20℃ to +70℃, ensuring that the display is always stable and reliable whether in hot summer or cold winter.

In order to achieve the best visual experience in a limited space, the module adopts a normally black panel design, combined with a uniform backlight brightness of up to 300 cd/m² (typical value). This makes the screen content clear and sharp even in strong ambient light. We are well aware of the troubles that long-term display of static images may cause, so we have specially built-in image retention protection mechanism. Intimate suggestion: When you need to display a fixed pattern, by refreshing the display content every 2 minutes or less, or enabling moving images or black images as screen savers, you can effectively extend the service life of the screen and keep the picture as new as ever.

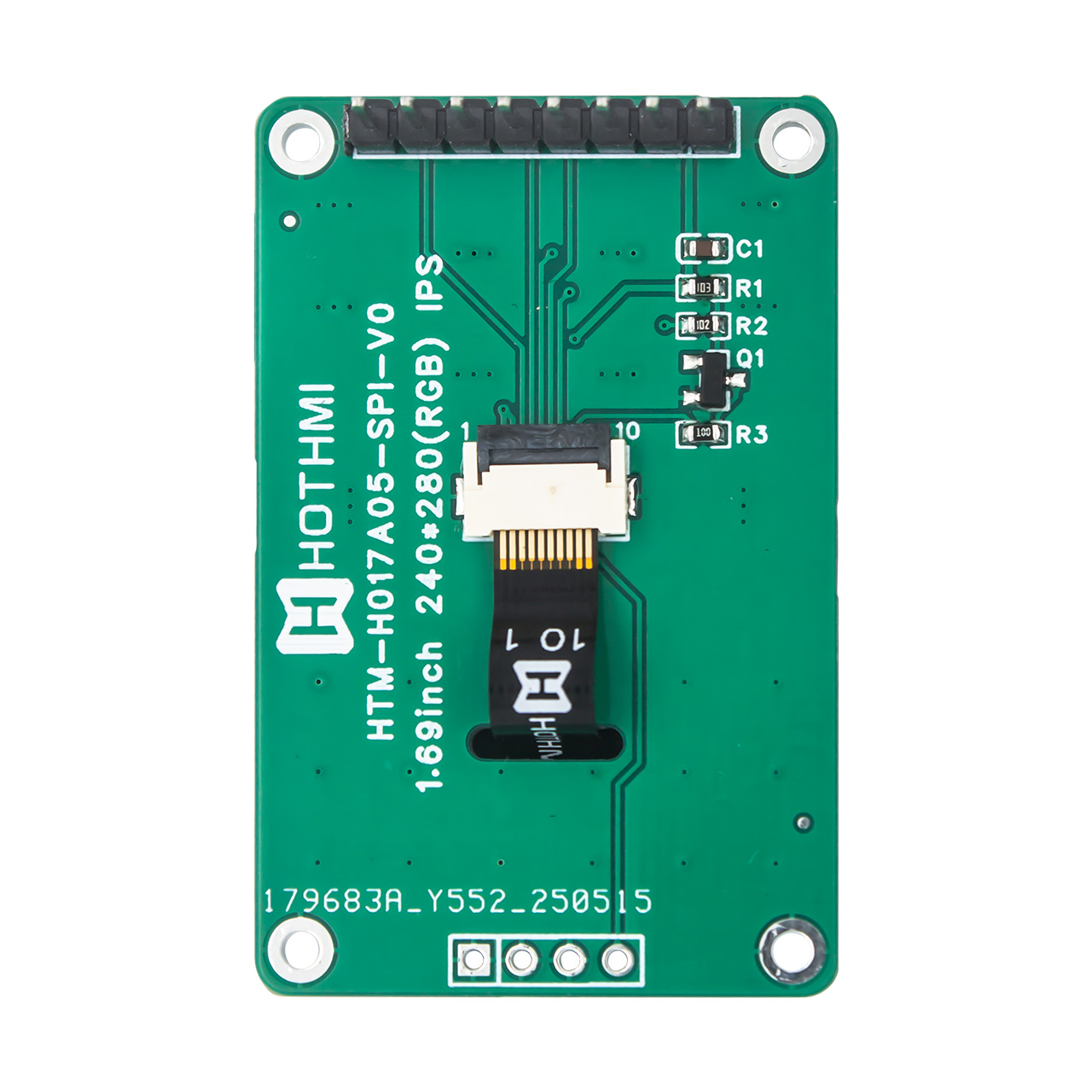

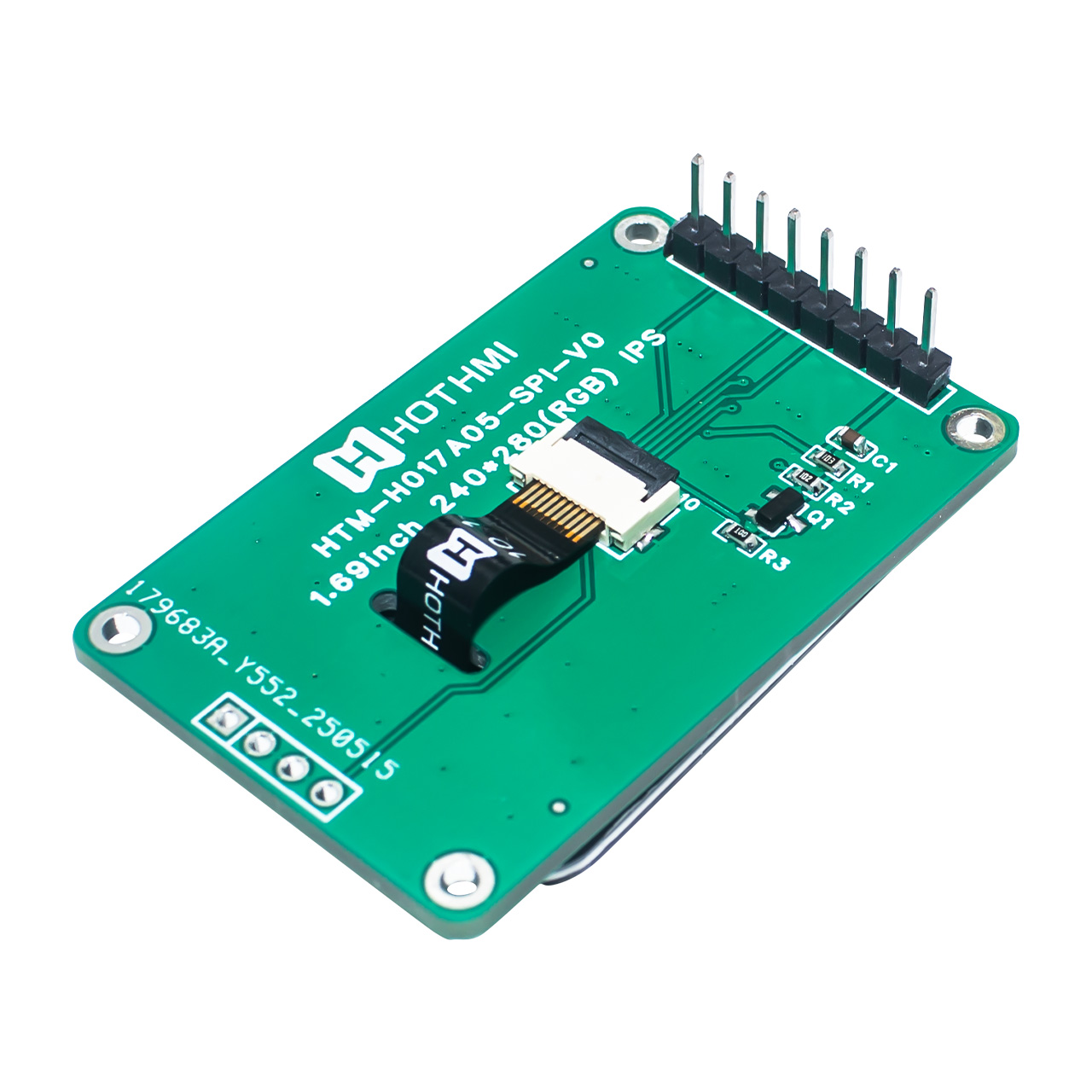

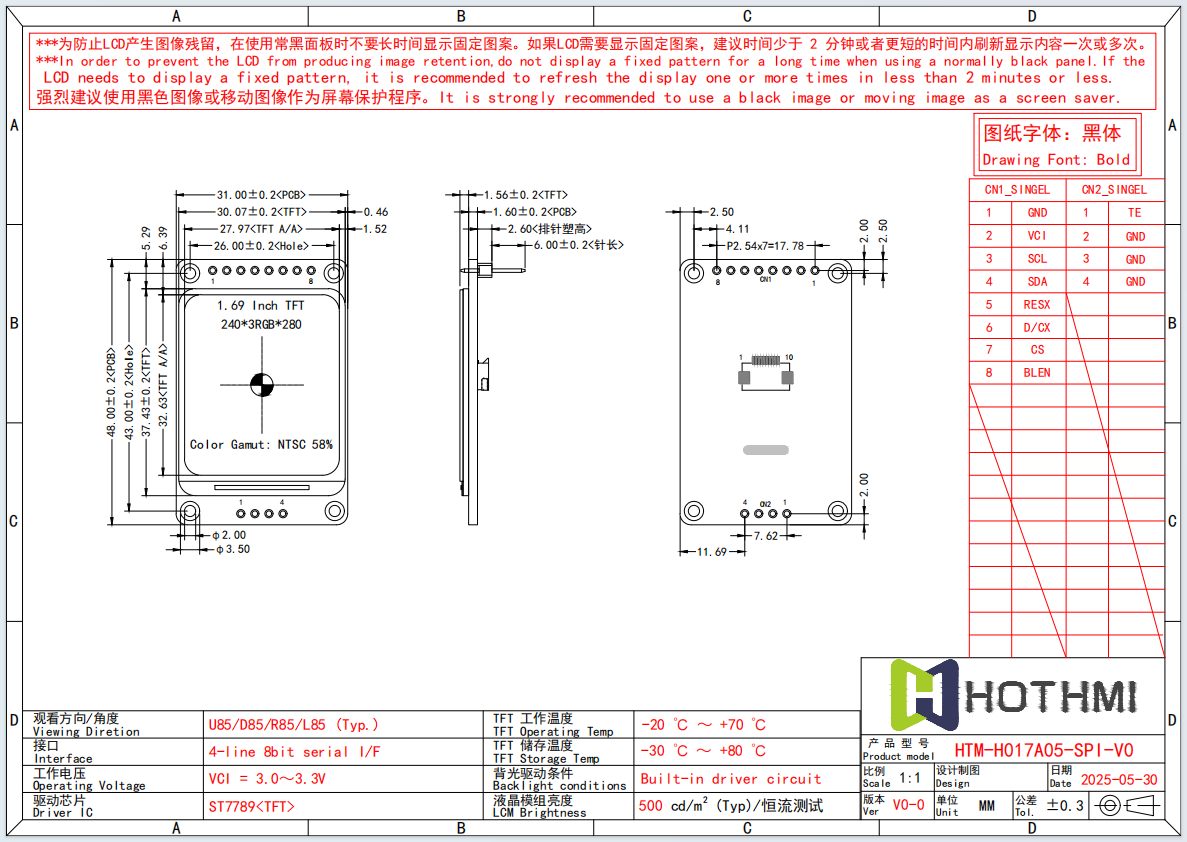

This1.5 inch TFT LCD Modules pursues millimeter-level precision in structural design, and the tolerance of key dimensions is strictly controlled within ±0.2mm. The PCB and TFT components are precisely assembled to ensure the overall sturdiness and consistency of the module. Its standardized double-row pin interface (CN1 and CN2) adopts the industry-standard 2.54mm pitch to provide convenient and reliable electrical connection. The innovative 7.62mm depth layout optimizes space utilization, and the 6.00mm long solid pins with φ2.00mm positioning hole design give the module excellent shock resistance and connection stability in complex industrial environments.

Whether it is a trend-setting wearable device, a demanding portable medical instrument, or a smart connected IoT terminal and an efficient and accurate industrial controller, This1.5 inch TFT LCD Modules display module can become the trusted visual core of your product with its compact body, powerful performance and reliable quality. Choosing it means choosing a clear, reliable and durable display solution for your precision equipment, allowing every inch of precious space to release convincing visual power.

We also offer a 320x320 resolution square display in the same size. TFT-H015A4HQIST7N40  ，There is also a 1.5-inch circular display TFT-H015A05ZNIST3N10.
