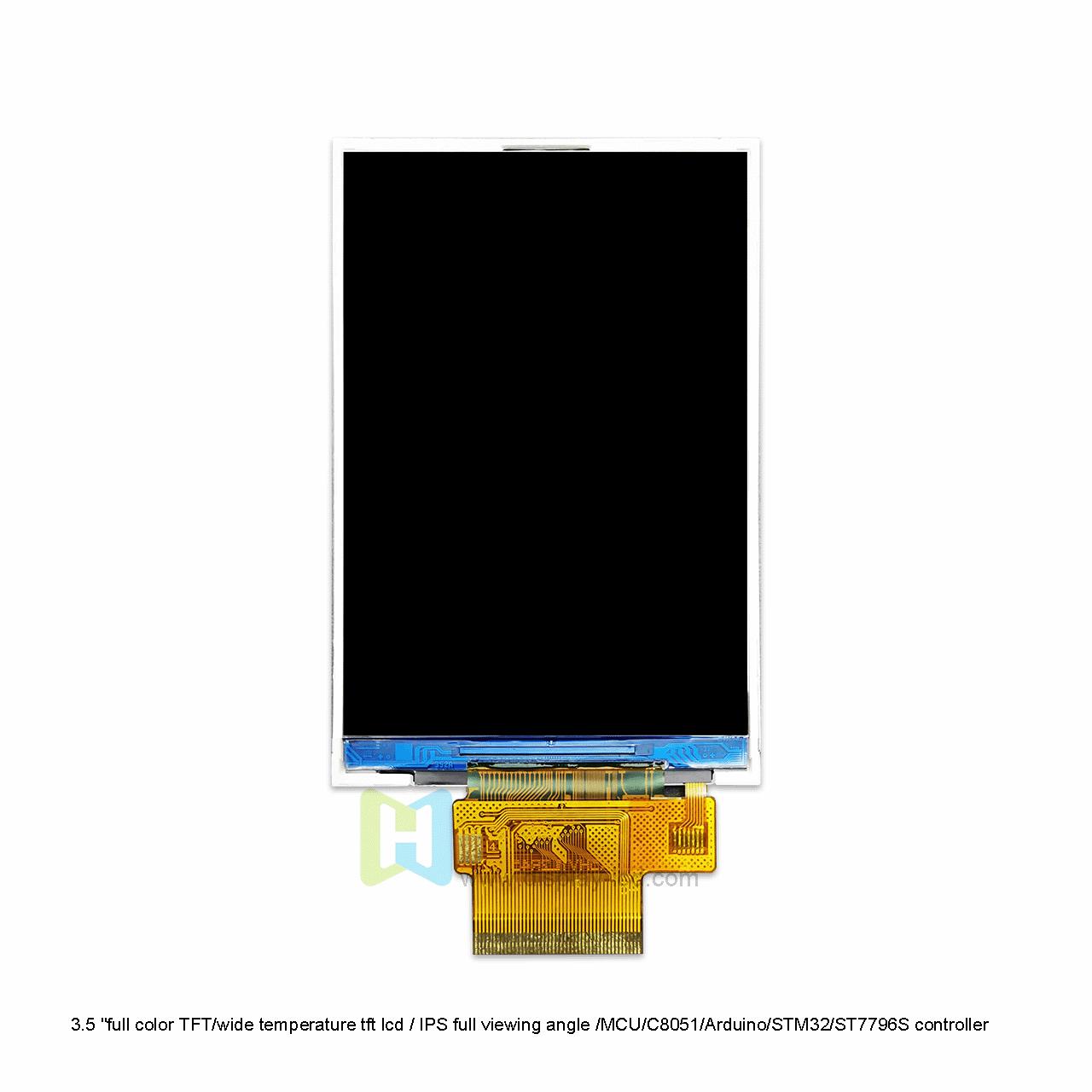

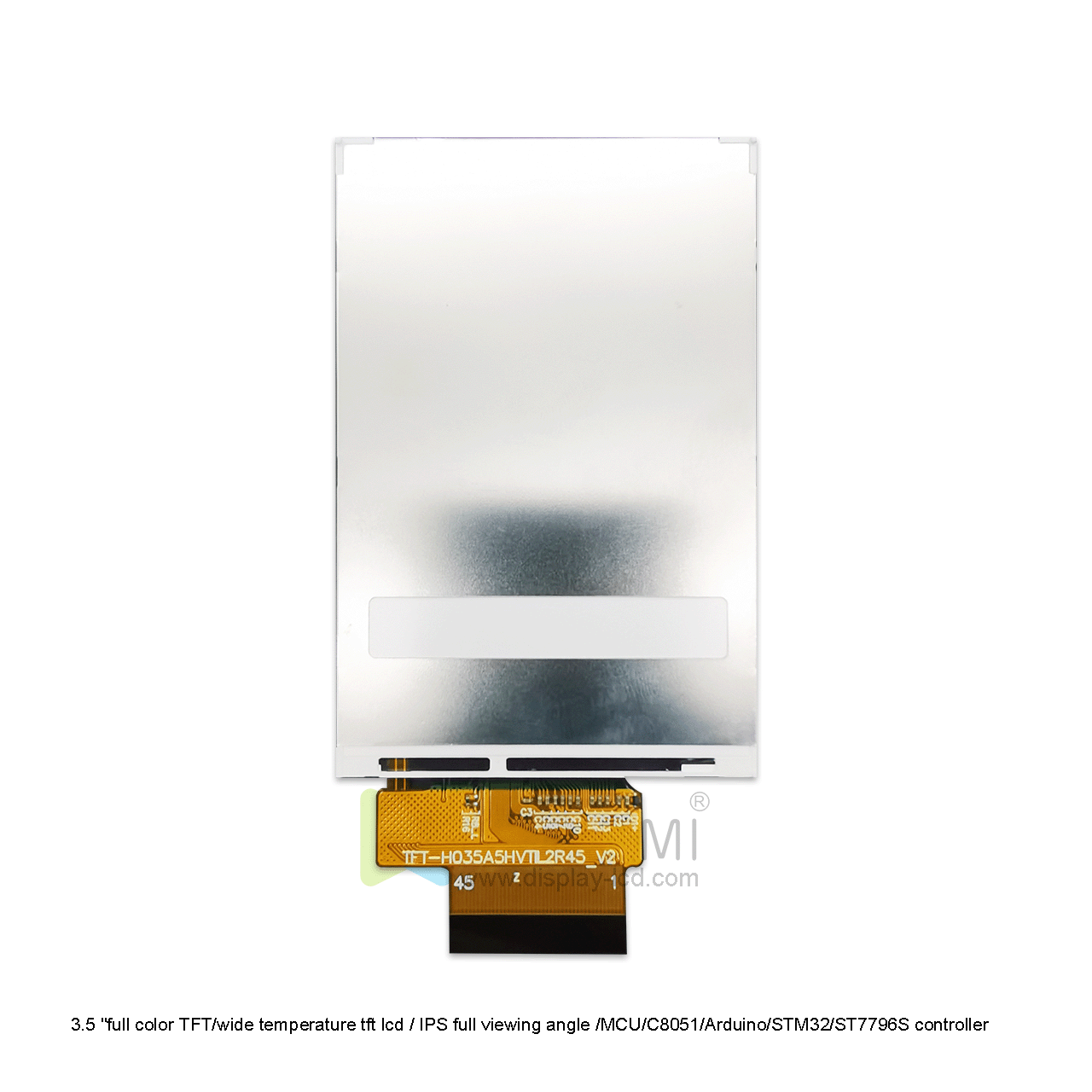

3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7796S controller

3.5-inch 320x480 TFT LCD display/3.5 "full color TFT/wide temperature tft lcd / IPS full viewing angle /MCU/C8051/Arduino/STM32/ST7796S controller

▶ Model: TFT-H035A5HVTST3N45

▶ Type: TFT display
▶ Display pixels: 320x480
▶ Dimensions (mm): 55.66x85.04x2.4
▶ Display inches: 3.5"
▶ AA size (mm): 48.96x73.44
▶ Application: Handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 350cd/m2
▶ Pin: FPC-45 pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC: ST7796S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7796S controller
3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7796S controller Model TFT-H035A5HVTST3N 45 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. It has a resolution of 320x480, built-in ST7796S controller, optional touch screen, support MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.

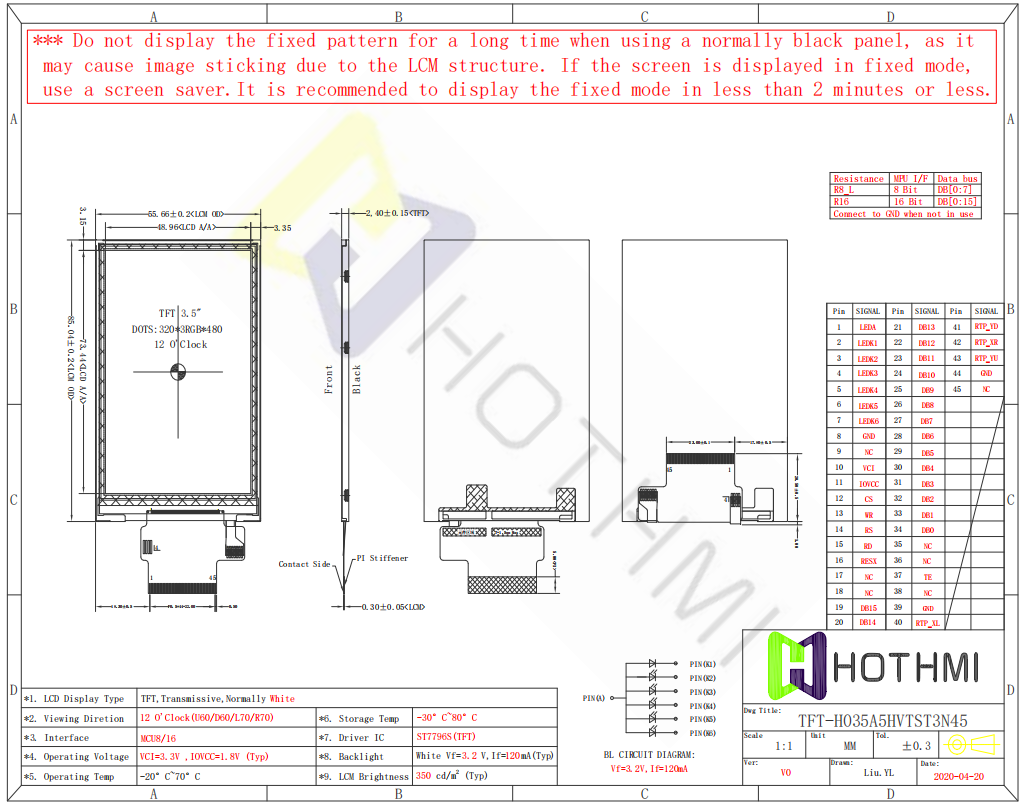

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035A5HVTST3N 45
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	55.66x85.04x2.4	mm
Active area (AA)	48.96x73.44	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7796S
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
