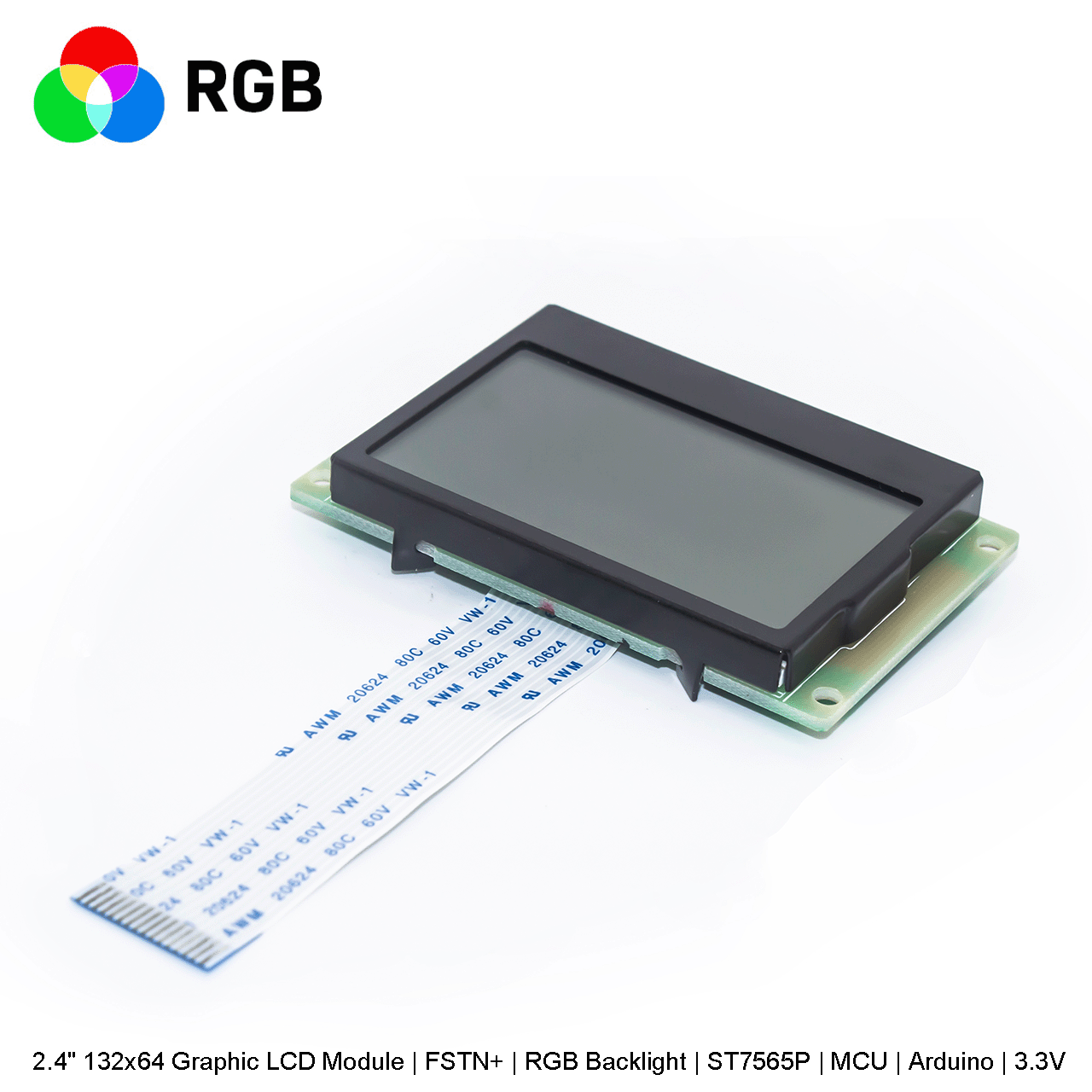

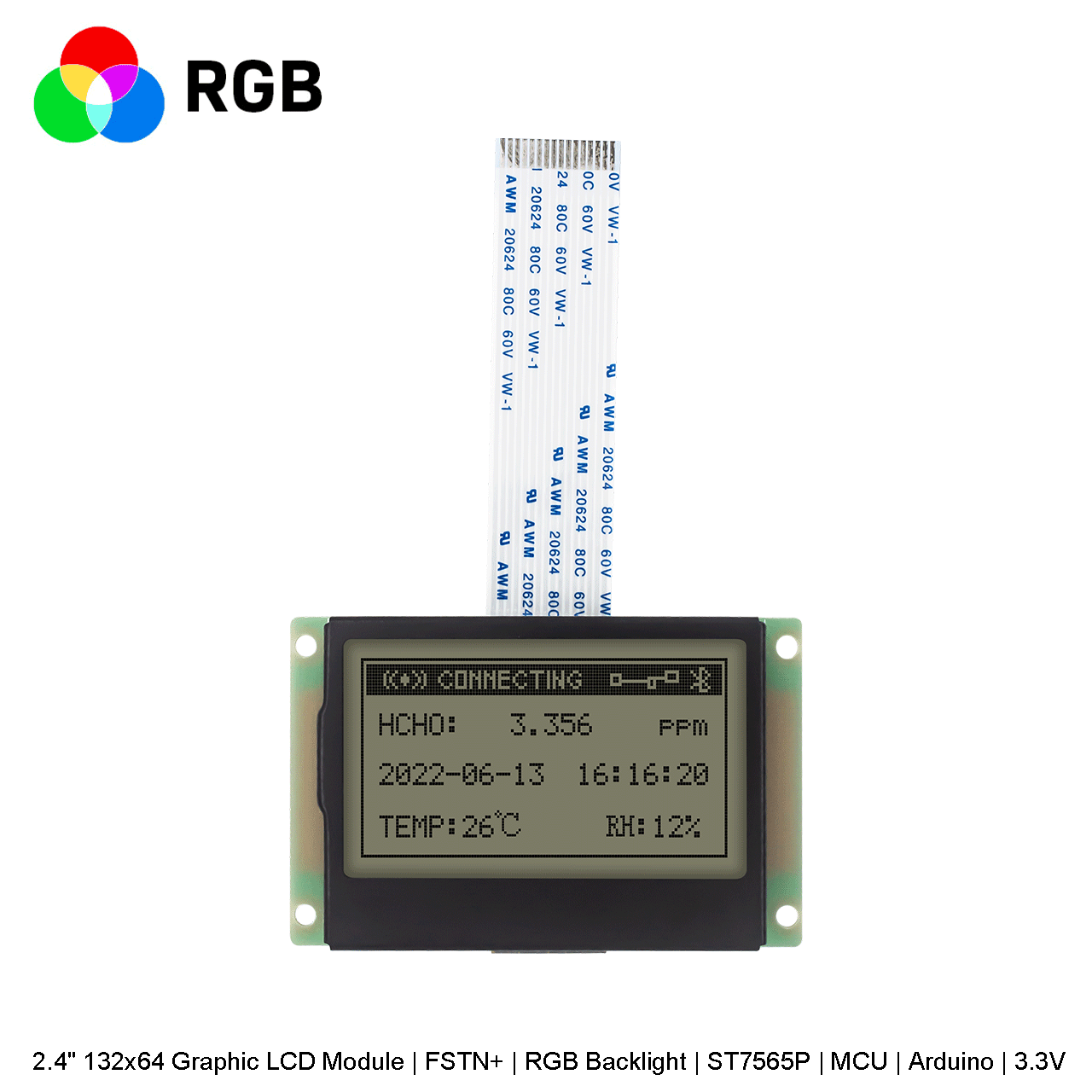

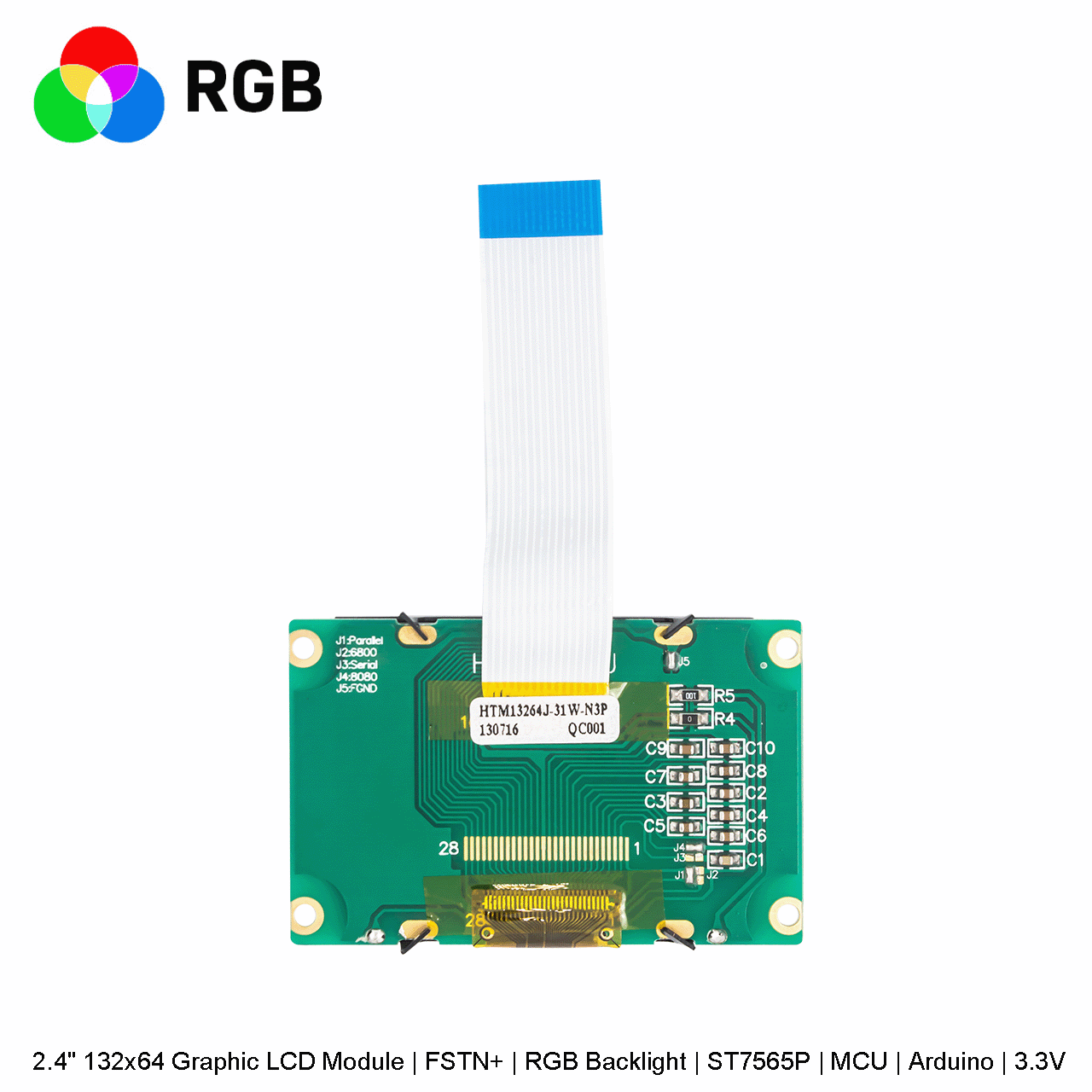

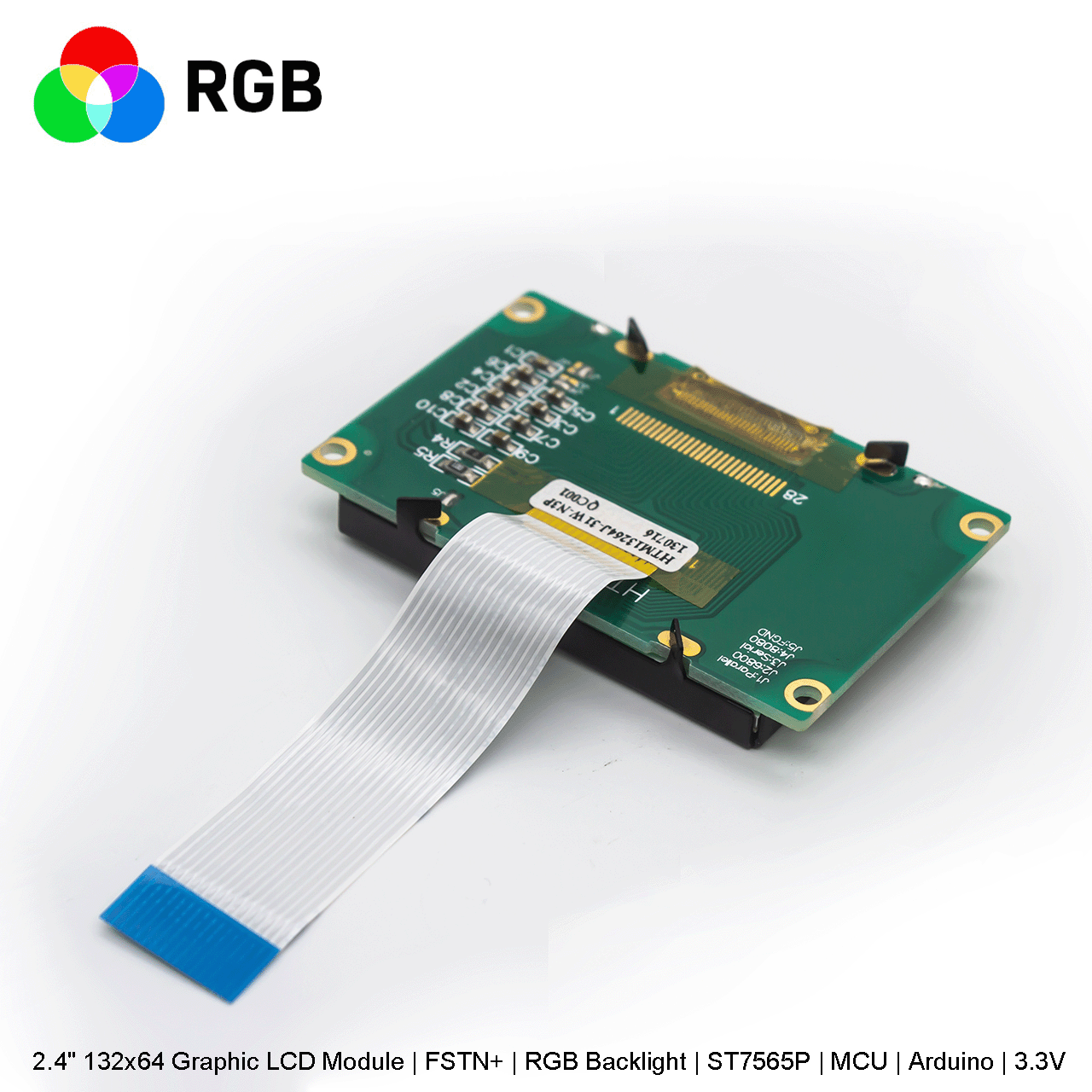

  • 2.4" 132x64 Graphic LCD Module | FSTN+ | RGB Backlight | ST7565P | MCU | Arduino | 3.3V

    This HOTDisplay132x64 Graphic LCD Display Module displays dark pixels on a red, green and blue background. This fully transparent LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display takes advantage of its full transparency and the backlight passes through completely, increasing the brightness of the display and making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

    This graphic LCD display module is created with a built-in negative voltage and comes with a built-in ST7565P controller. It is also fully compatible with Arduino/ C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and will not function properly when used in temperatures ranging from -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

    Custom LCD Size:

    Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

    Customize the number of dots and display icon content:

    Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

    Backlight color and structure customization:

    There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

    Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.



    Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

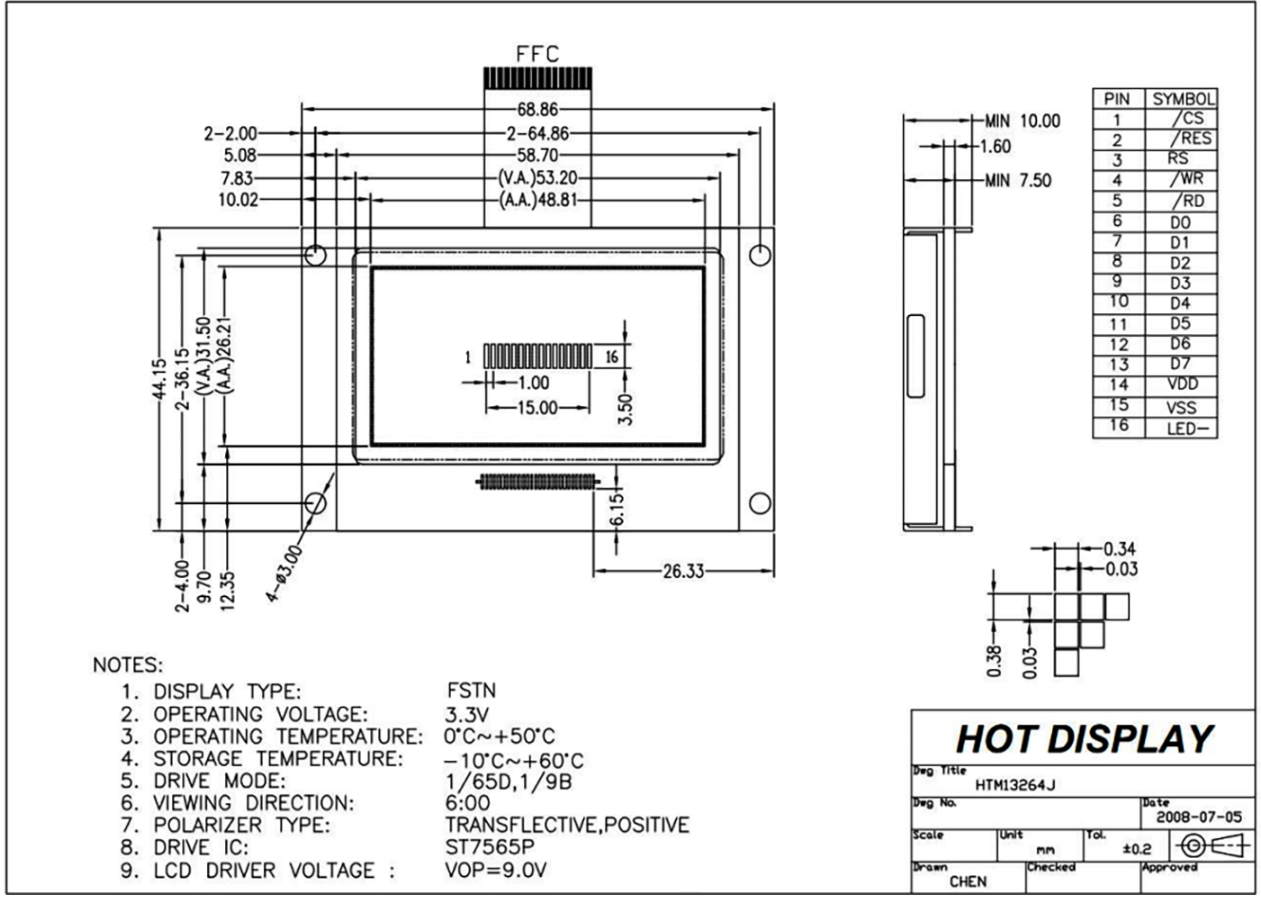

  • HTM13264J.png

  • PARAMETER

    SPECIFICATION CONTENT

    UNIT

    Name

    HTG13264J-35S


    Graphic display

    132 × 64

    dots

    Dimensions

    68.86 x 44.15 x 10.0  (MAX)

    mm

    VA size

    53.2 x 31.5

    mm

    AA size

    48.81 x 26.21

    mm

    Pixel pitch

    0.41 x 0.38

    mm

    Driver chip

    ST7565P


    Applied voltage

    3.3V

    V

    Backlight illumination

    White


    Display mode

    FSTN(+)


    Drive mode

    1/64 duty cycle


    Product type

    Graphic LCD


    Polarizer type

    Transmissive
