640x200 图形液晶模块 | DFSTN - 带白色背光的显示屏

640x200 图形液晶模块 | DFSTN - 带白色背光的显示屏应用纺织机

▶ 型号: HTM640200-41W

▶ 类型：标准COB液晶模组
▶ 显示像素：640x200
▶ 外形尺寸(mm) ：260x110.4x9.4
▶ VA尺寸(mm)：216.0x83.2
▶ AA尺寸(mm) ：211.17x79.17
▶ 点间距mm：0.396x0.366
▶ 应用：纺织机
▶ 视角：6H
▶ 背光/亮度：白光
▶ 引脚：17PIN
▶ 接口方式：MCU
▶ 工作温度：-20~70℃
▶ 供电电压：5.0V

产品咨询数据下载索取Demo Code
- 运输
- 付款
- 税款
- 保证
- 退回
- 停产
运输

国内快递我司与顺丰有合作,国外和DHL进行合作,您可以我们联系咨询运费以及重量得到最新的报价。

付款

不支持线上付款，可通过对公账户转账,若开增值税票请联系我司销售人员获取对公账户.

税款

此网站出售的所有产品都不含税,若需要增值税票请与我司销售人员联系线下购买。

保证

此网站出售的所有产品质保一年,若因客户使用不当造成的损坏免费维修,收取材料成本费用。

退回

质保期内的产品可退回维修或换新, 退回前请先与我司销售人员联系确认退货原因后再退回。

停产

我们承诺长期生产此网站销售的所有产品,若IC或面板停产,将尽量使用兼容物料替换。

上一个 返回 下一个

相关配件

Arduino转接板/适用于Arduino开发板COB/字符/图形点阵
单排排针连接器
COB 20针脚连接线底座/字符/图形点阵

产品描述

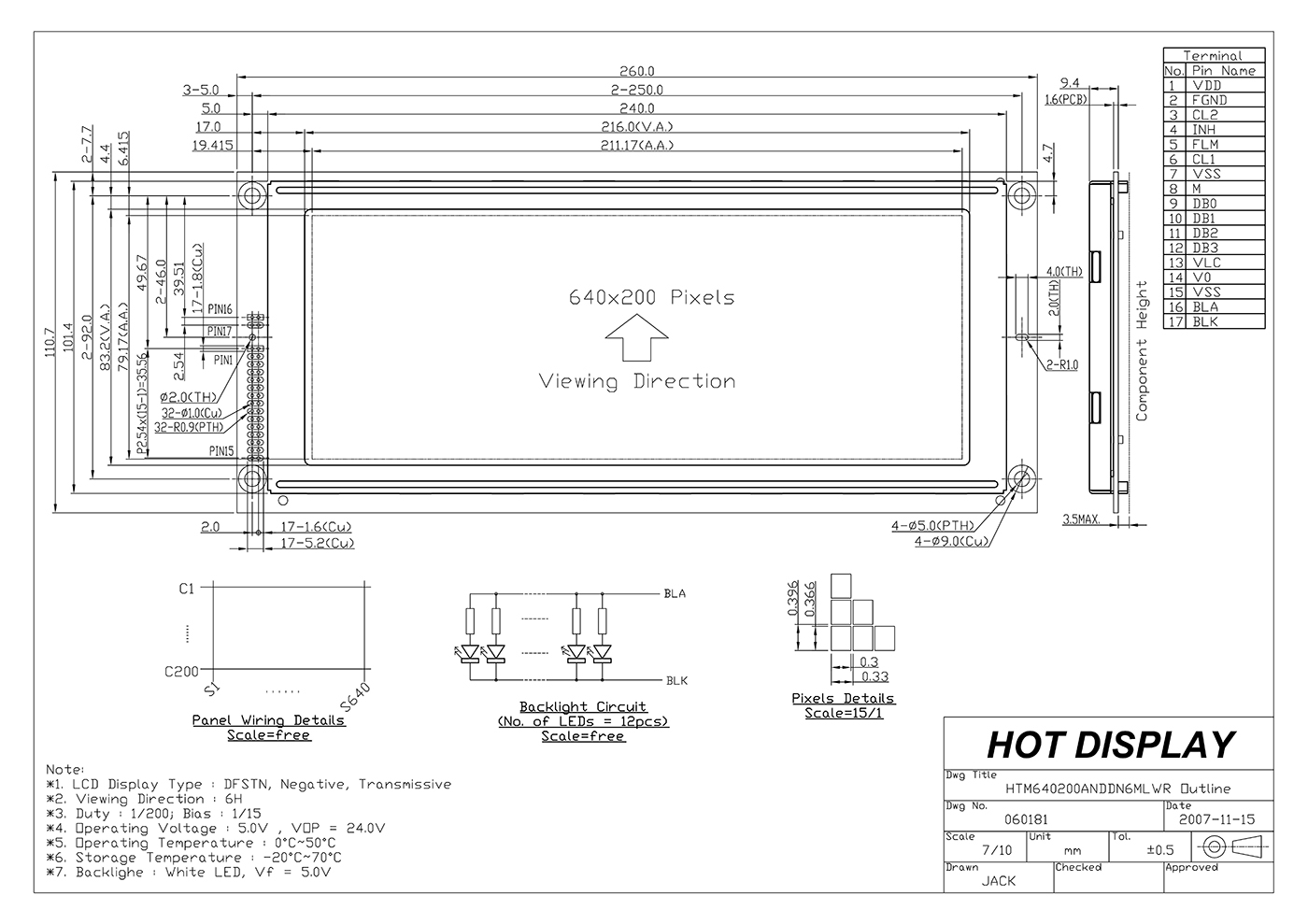

规格图
属性
相关资料下载

这款 HOTLCD 640x200 图形液晶显示模块在深黑色背景上显示明亮的白色像素。这款透射式 LCD 显示屏经过精心设计，可在较暗的环境中使用时提供最佳的可视性和令人印象深刻的色彩。显示屏内置强大的背光，可提供高对比度并确保屏幕上所有图形的可读性。

该图形 LCD 显示模块内置负电压，它还与 Arduino/C8051 完全兼容，可与其他电子系统无缝连接，适用于各种应用。 HTM640200 型号专为承受恶劣的工作条件而设计，在 -20 至 70 摄氏度的温度范围内使用时运行异常。该 LCD 的最佳视角为 6:00，工作电压为 5V，并且符合 RoHS 标准。

连接器定制：轻松修改显示器上的任何连接器以满足您的应用程序的要求。我们的工程师能够对排针、盒装接头、直角接头以及您的显示器可能需要的任何其他连接器进行焊接。

PCB修改：从 PCB 的形状、尺寸、引脚排列和元件布局等多种更改中进行选择，使其完美适合您的应用。

背光颜色定制：模组背光有多种组合可选不带背光或带黄绿色 / 蓝色 / 白色 / 琥珀色 / 红色 / RGB背光选择达48种效果，可点开定制页面参考。

字库定制：提供多种字体库，包括英语/日语、西欧、东欧、斯堪的纳维亚欧洲、西里尔语（俄语）、希伯来语/阿拉伯语等。

线缆定制:调整电缆的长度、位置和引脚排列或添加其他连接器。获得经过精确设计的电缆解决方案，使您的连接变得精简且安全。

Quality Standards

At HOTLCD Display We Strive Every Day To Provide Our Customers With The Highest Quality Products. This Means Quality, Engineering, And Manufacturing Teams Are Aligned To Exceed Your Expectations.

Our Customers Should Expect Their Products To Meet Or Exceed The Following Standards:

All Products

Reliability Testing	Customers Can Expect All Production Parts To Meet Or Exceed Operational Requirements Over Temperature, Humidity, And Vibration.
Glass Cleanliness	Customers Can Expect Glass To Be Protected By Liners And Presented Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of Contaminants, Fingerprints, And Other Foreign Material.
Bezel Appearance	Bezels Will Be Uniformly Painted Free Of Foreign Materials And Distracting Cosmetic Blemishes. Our Standards Maintain A Clean Scratch-Free Surface.
PCB Appearance	PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire Requirements. PCB Materials Will Always Be Delivered Within Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs.
Soldering	Soldering Of All Leaded And SMT Components Is Consistent In Providing The Mechanical Security And Electrical Connectivity.
Consistency	Our Manufacturing And Inspection Processes Ensure Product Consistency From Lot To Lot. This Means Orders Processed Over The Years Will Continually Meet Your Expectations. We Do This By Exacting Manufacturing Specifications, With Attention To Detail In Our Processes, And By Comparing To The Golden Units.
Product Integrity	Quality In Product Manufacturing Ensures Integrity In Construction. Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or Missing Material. Our Products Will Meet All Environmental Expectations Including Temp, Humidity, & Vibration Conditions.
Glass Color	While Normal Variations Of Glass Color May Occur (Due To Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color Charts. These Charts Are Maintained To Ensure Any Minor Glass Deviations Are Identified And Corrected As Needed.
ESD Protection & Safety	All Devices Are Designed And Handled In Consideration Of ESD Protection. This Includes ESD-SAFE Packaging Within Anti-Static Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD Safety To Best Protect The Devices.

文件名称	更新日期	大小
HTM640200	2023-12-28	41.21KB
