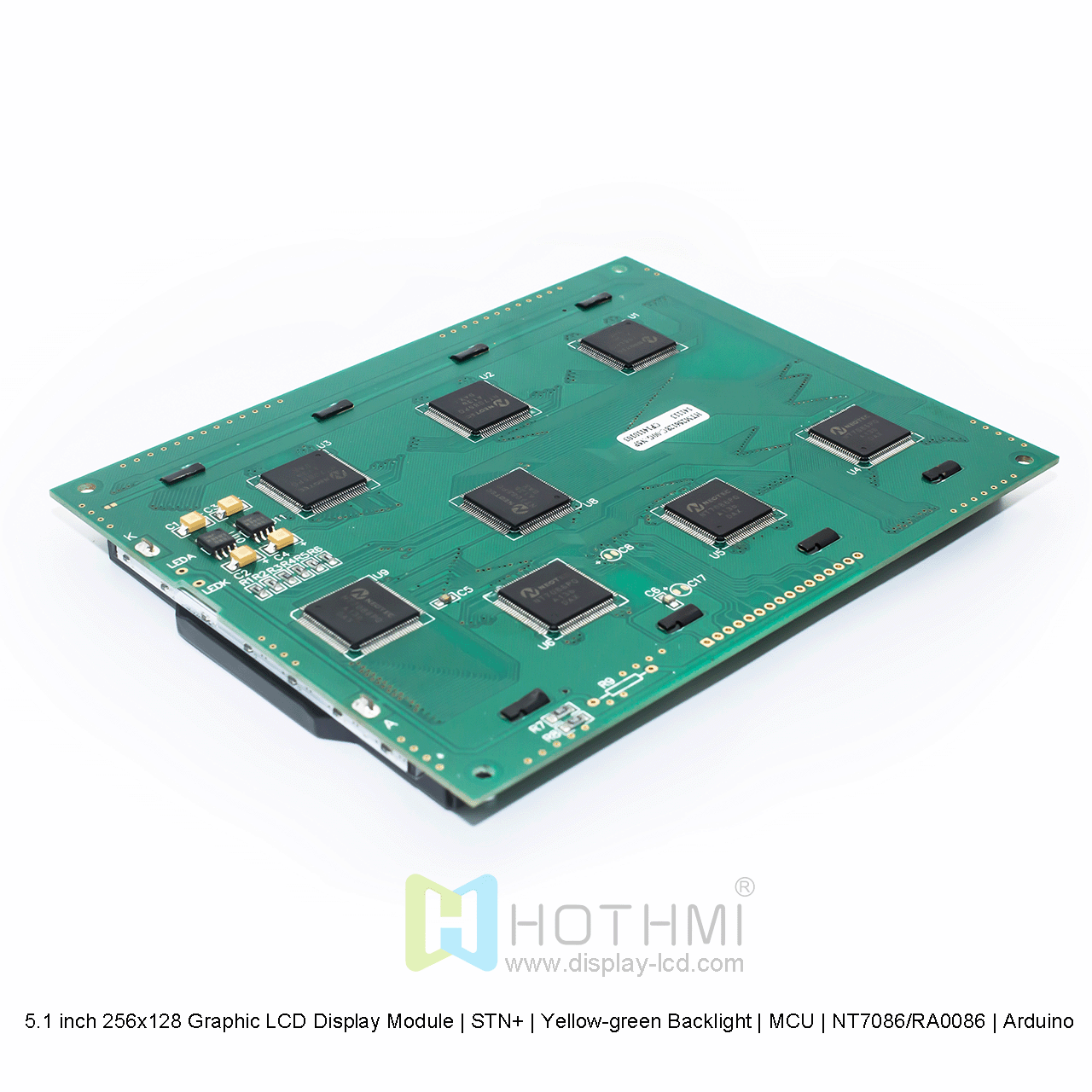

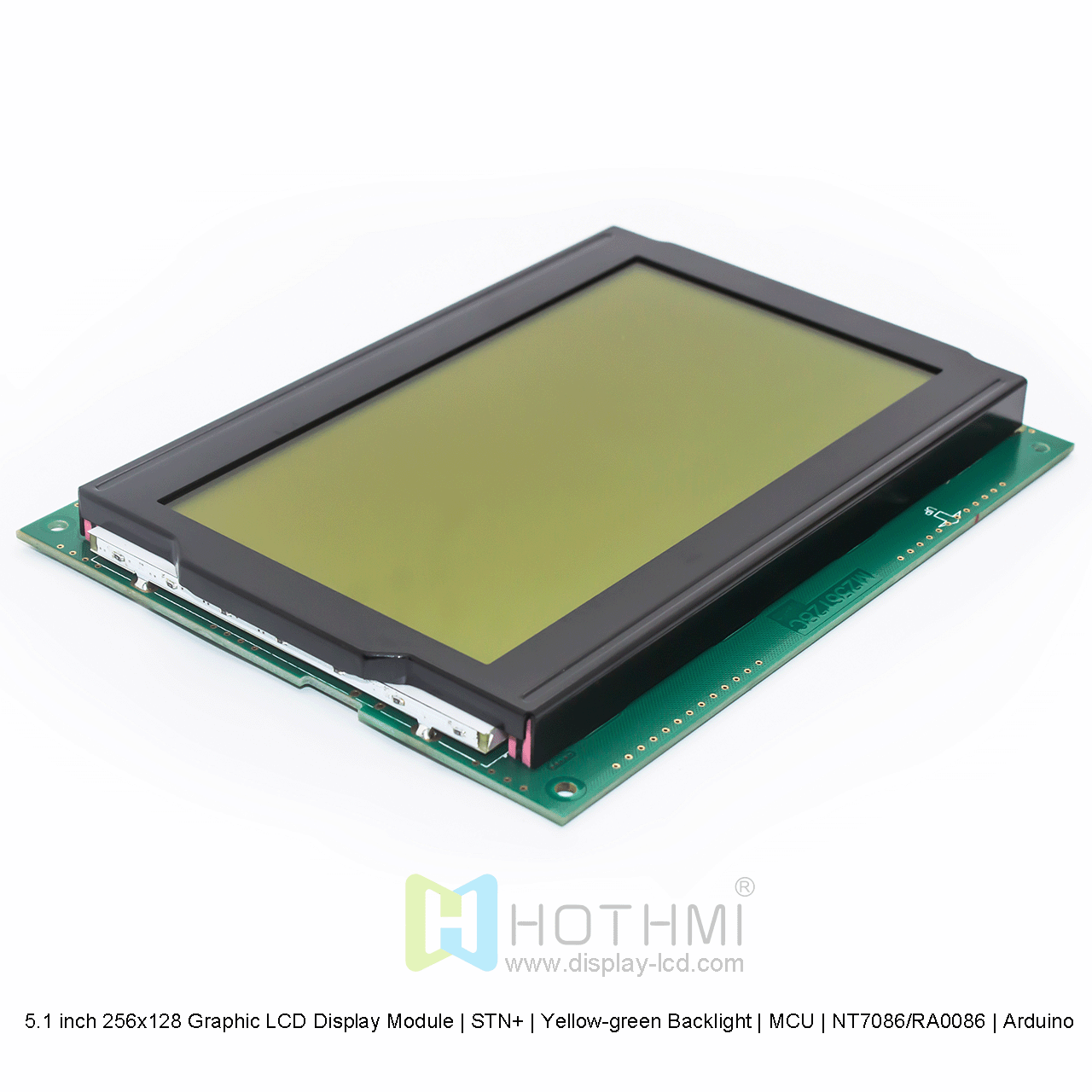

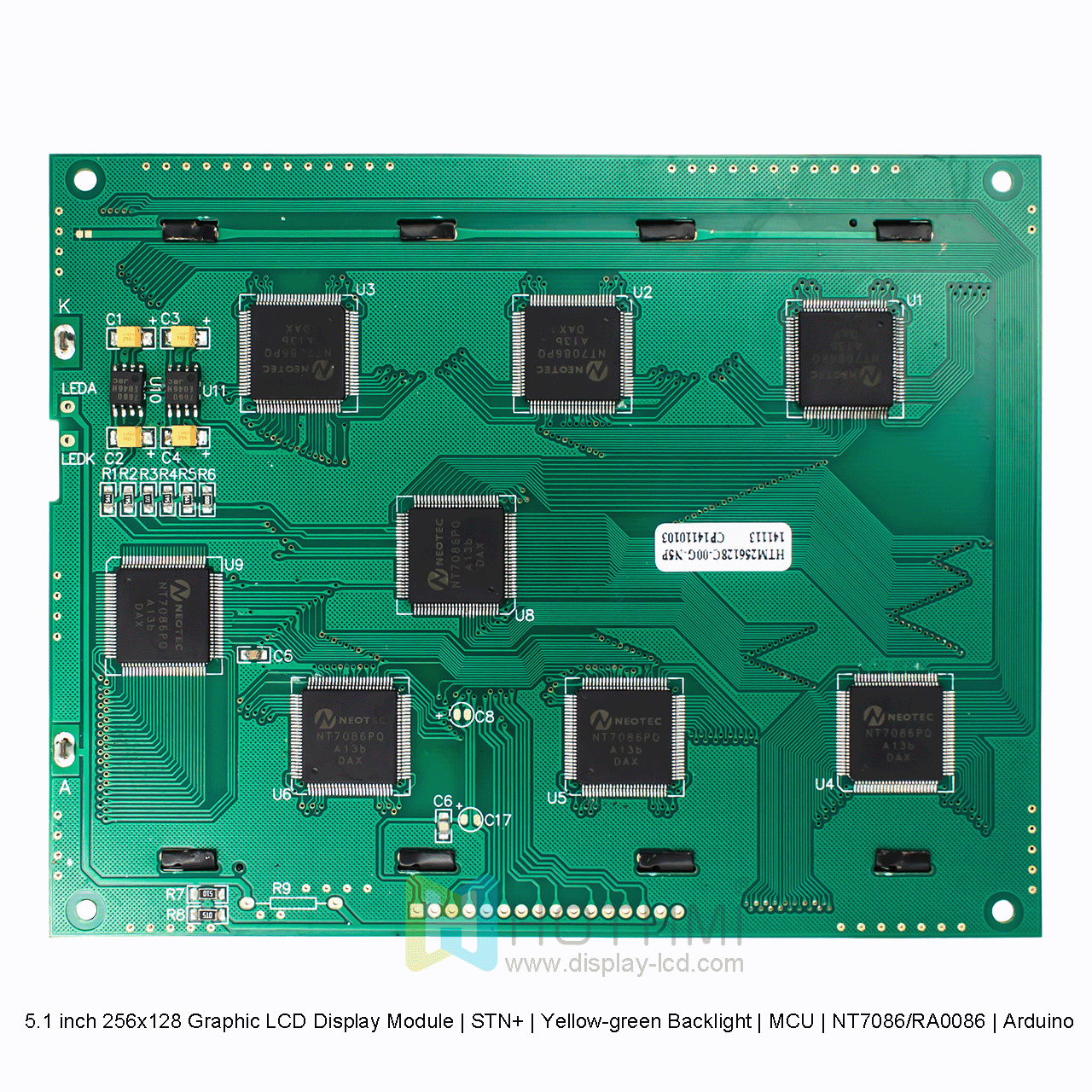

5.1 inch 256x128 Graphic LCD Display Module | STN+ | Yellow-green Backlight | MCU | NT7086/RA0086 | Arduino
HOT Display 256x128 Graphic LCD Module - High Brightness and Clearness, Excellent Experience
Excellent Display Performance
The HOT Display 256x128 Graphic LCD Module uses a yellow-green background with dark gray pixels to ensure a clear and eye-catching picture and provide an excellent visual experience. Its semi-transparent polarizer design allows it to effectively reflect external light in a strong light environment, so that the displayed content is still clearly visible; in a low-light environment, the backlighting enhances the contrast of the picture, allowing users to easily read the displayed content, providing excellent visibility and vivid color performance regardless of the lighting conditions.
High-brightness backlight for enhanced readability
The LCD display has a built-in high-brightness backlight that provides high contrast, ensuring that all graphics and text are clearly readable. Even in low-light environments, the backlight can still effectively improve visibility, making the information presentation more intuitive and clear.
Strong compatibility and easy integration
The module has a built-in negative voltage circuit and is compatible with Arduino and C8051, allowing it to be seamlessly integrated into various electronic systems and is suitable for multiple application scenarios such as industrial control, smart meters, medical equipment, consumer electronics, etc.
Rugged and durable, adaptable to harsh environments
The HTM256128C adopts a rugged design and can operate stably in an ambient temperature range of -20°C to 70°C, meeting stringent industrial requirements. Its 6:00 viewing angle design provides an ideal viewing experience, and its 5V operating voltage ensures efficient and stable operation of the device. It also complies with RoHS environmental certification, ensuring performance while meeting international environmental standards.
Why choose HOT Display 256x128 Graphic LCD Display Module?
✅ High brightness contrast, clear picture
✅ Readable in strong light, high brightness in low light
✅ Compatible with Arduino and C8051, easy to integrate
✅ Wide temperature adaptability, durable
✅ RoHS certified, environmentally friendly and reliable
Whether it is industrial applications, smart devices, or consumer electronics, HOT Display 256x128 can provide you with a stable and reliable LCD display solution, making information display clearer and more vivid!
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
