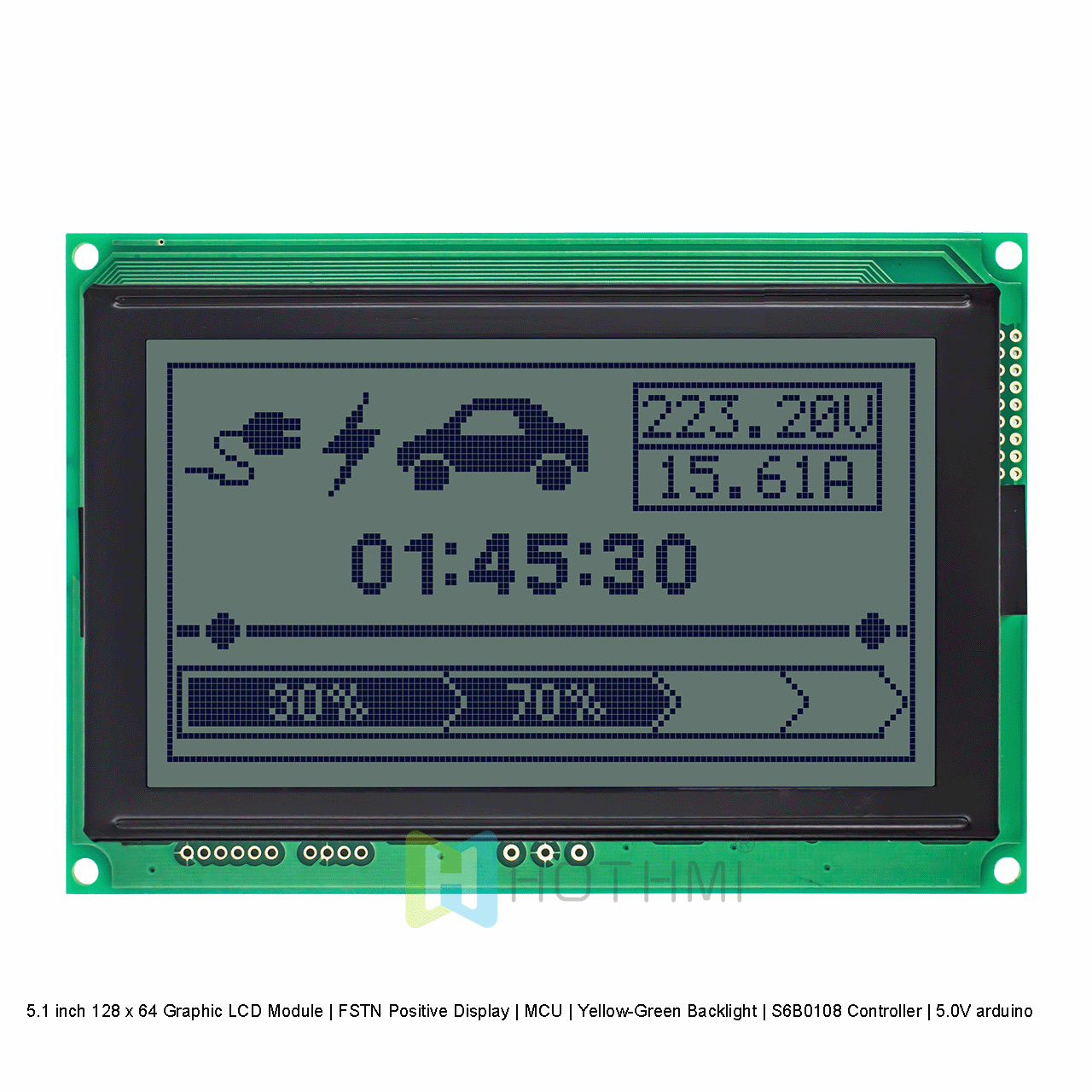

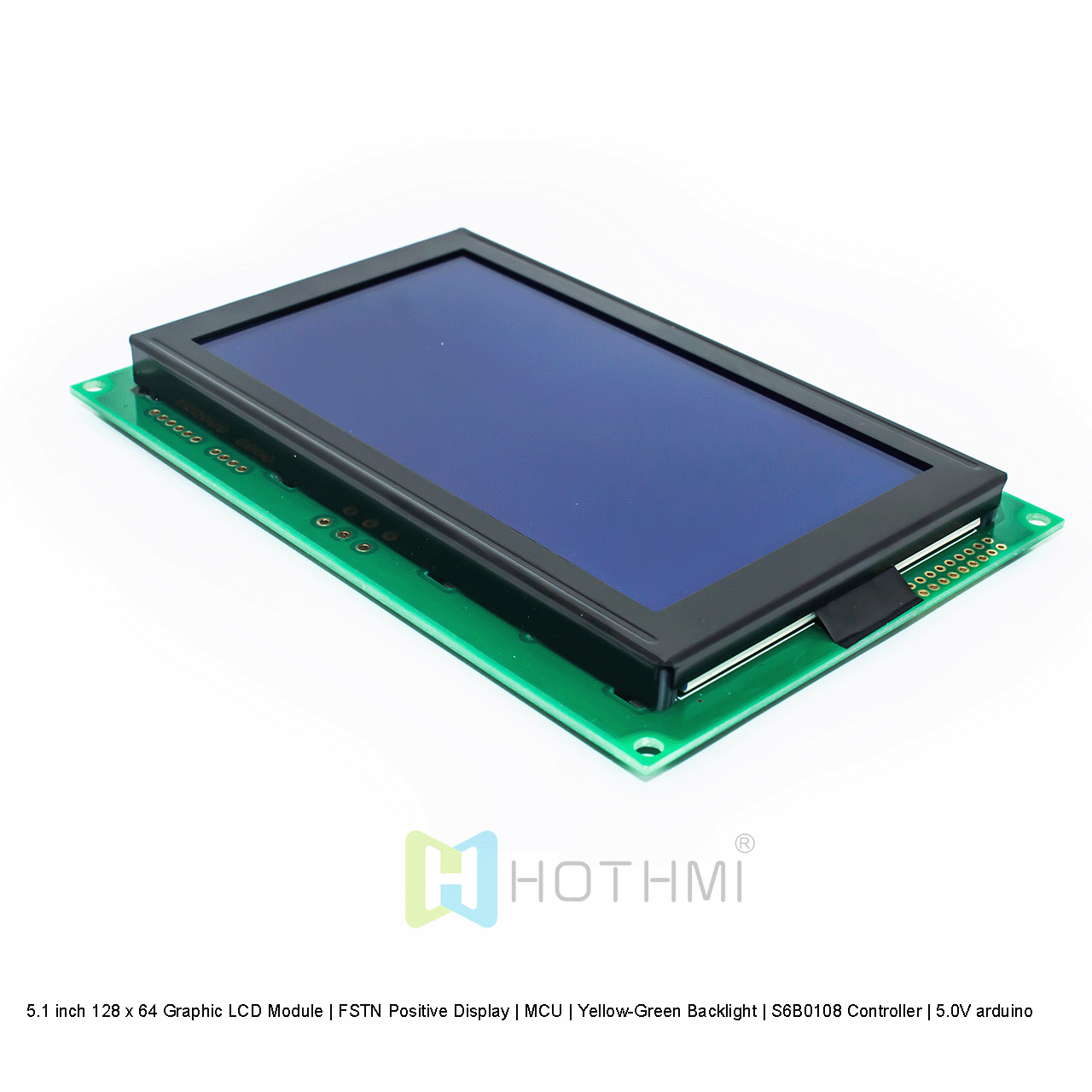

5.1 inch 128 x 64 Graphic LCD Module | FSTN Positive Display | MCU | Yellow-Green Backlight | S6B0108 Controller | 5.0V
The 5.1 inch 128 x 64 Graphic LCD Module displays dark grey pixels on a yellow-green background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
Fully compatible with Arduino, this graphic LCD display module can be seamlessly connected with other electronic systems for a variety of applications. Designed to withstand harsh operating conditions, this product performs well when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, it operates at a 5V power supply voltage, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
