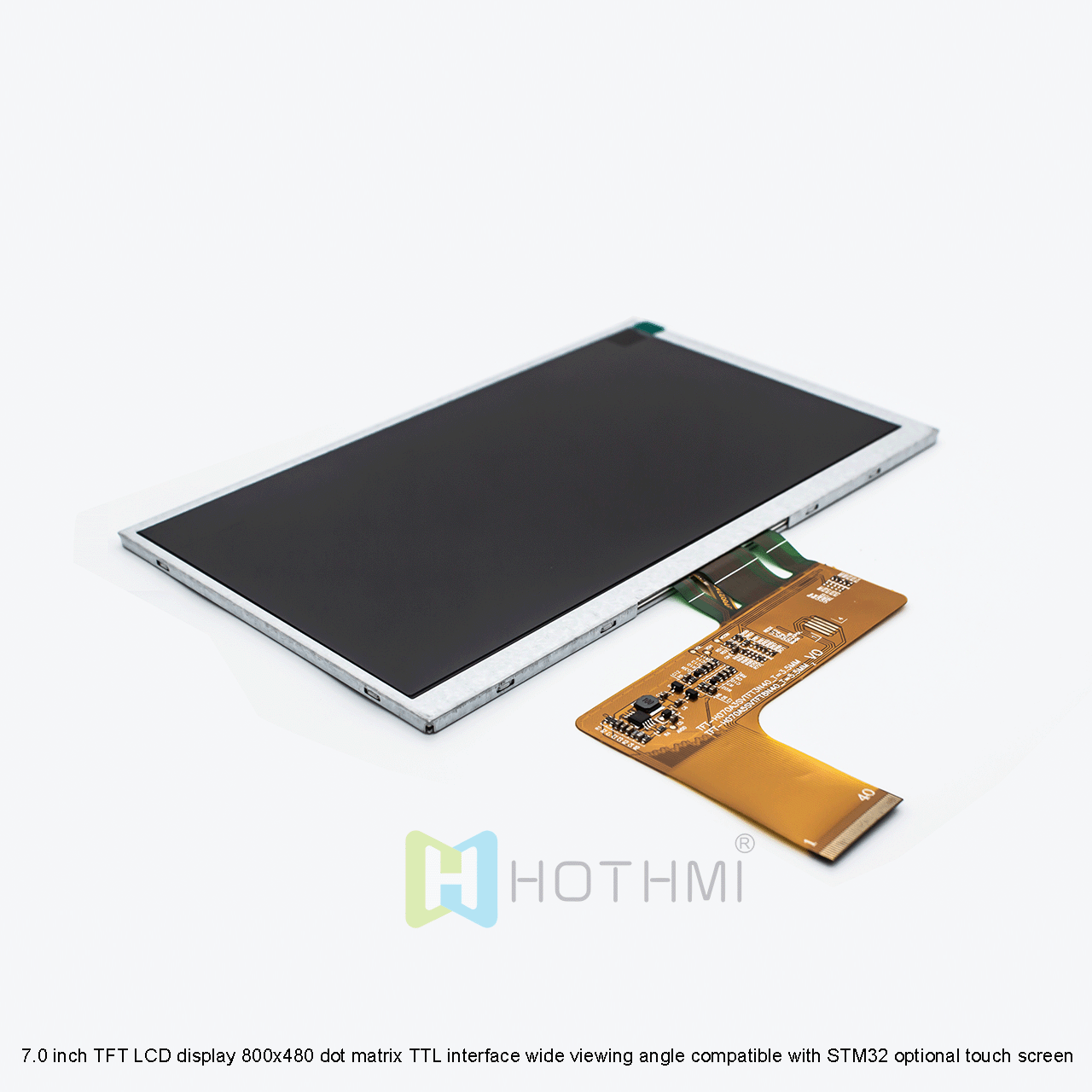

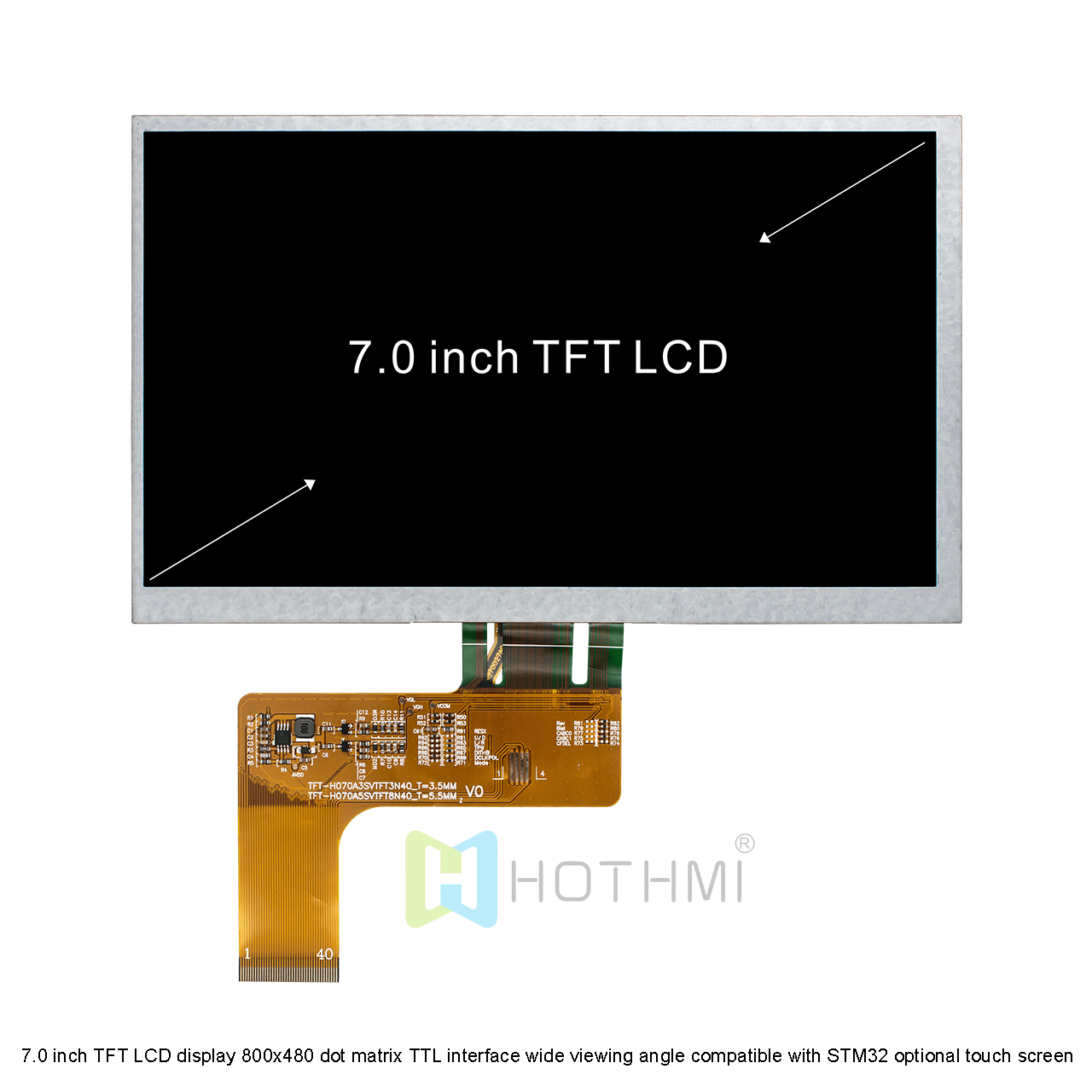

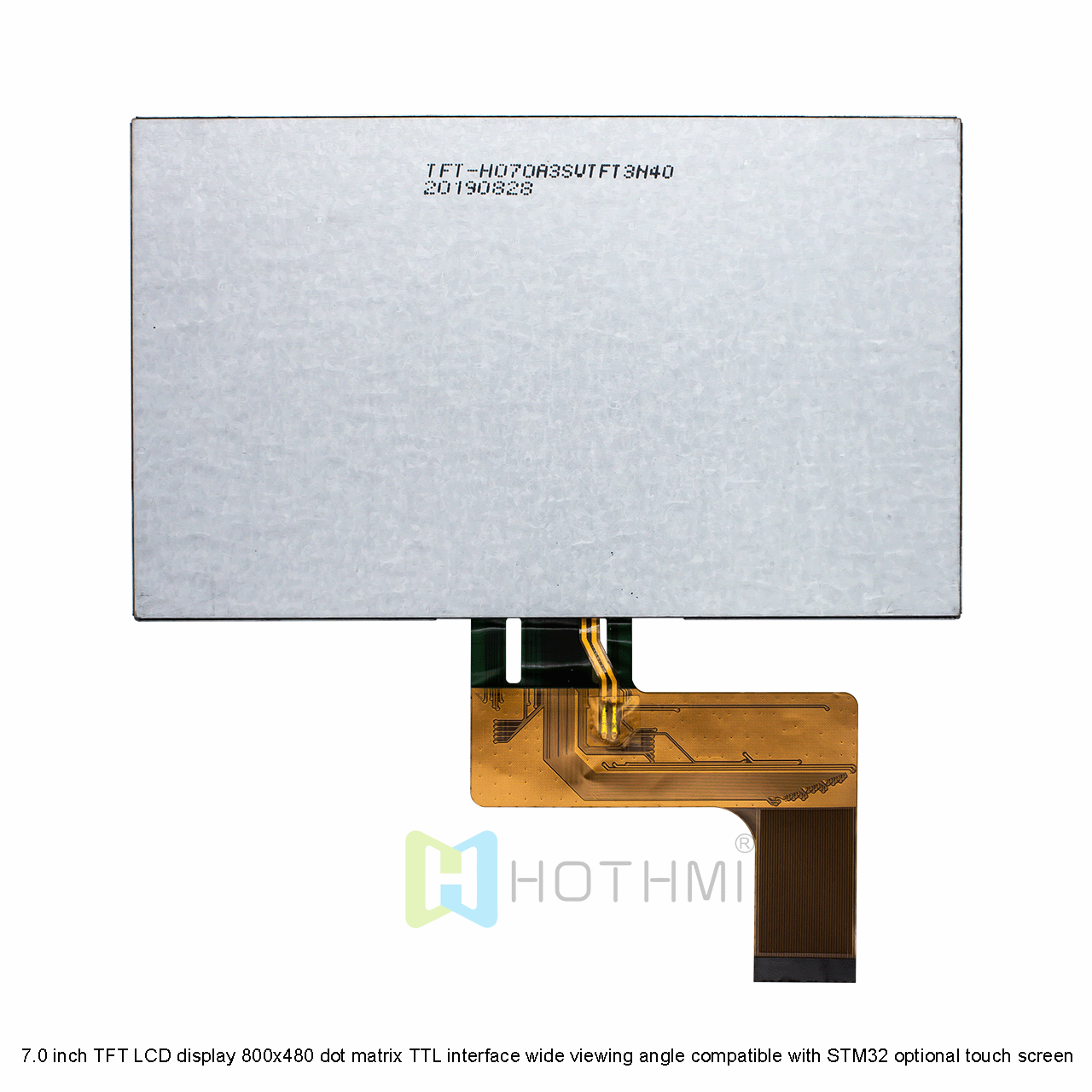

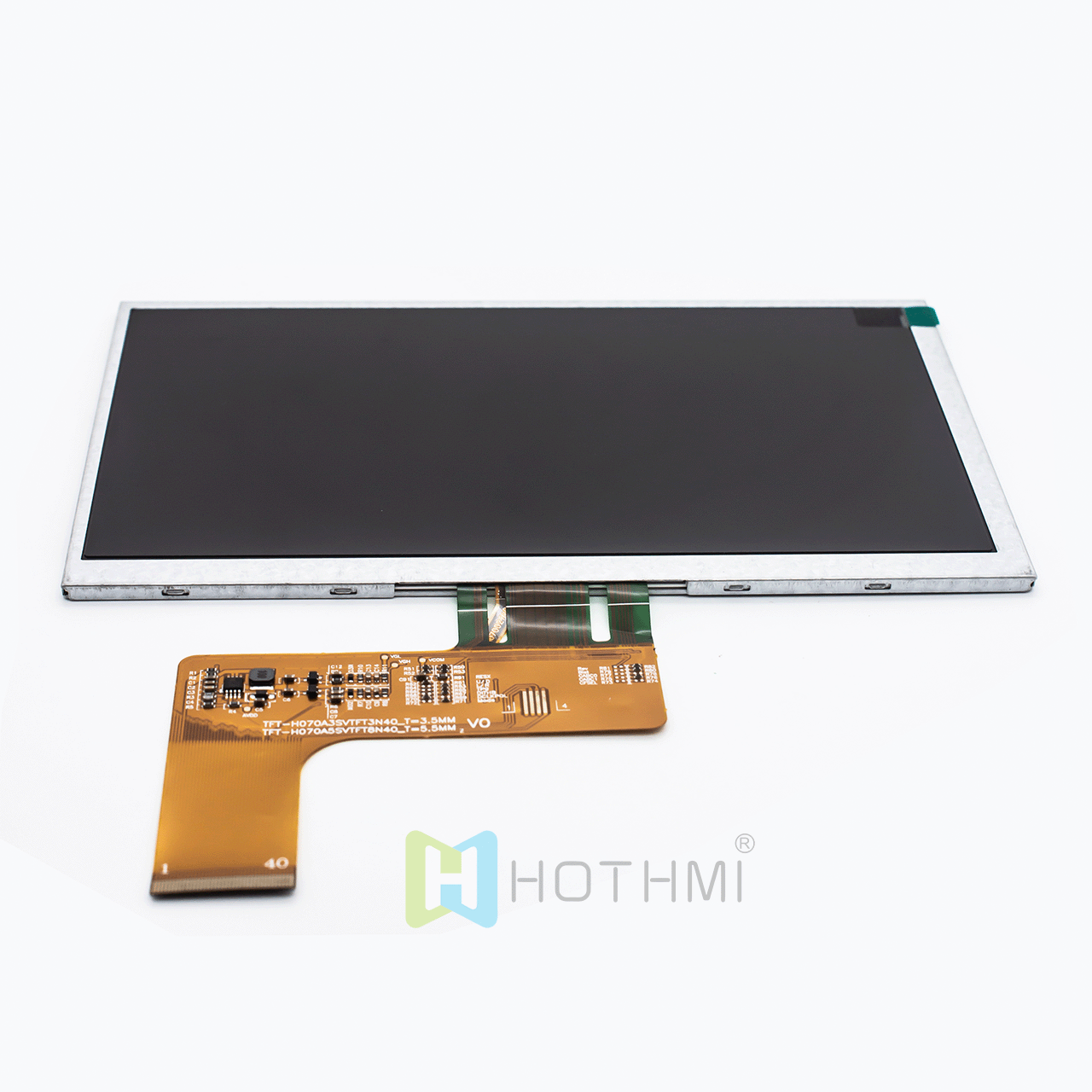

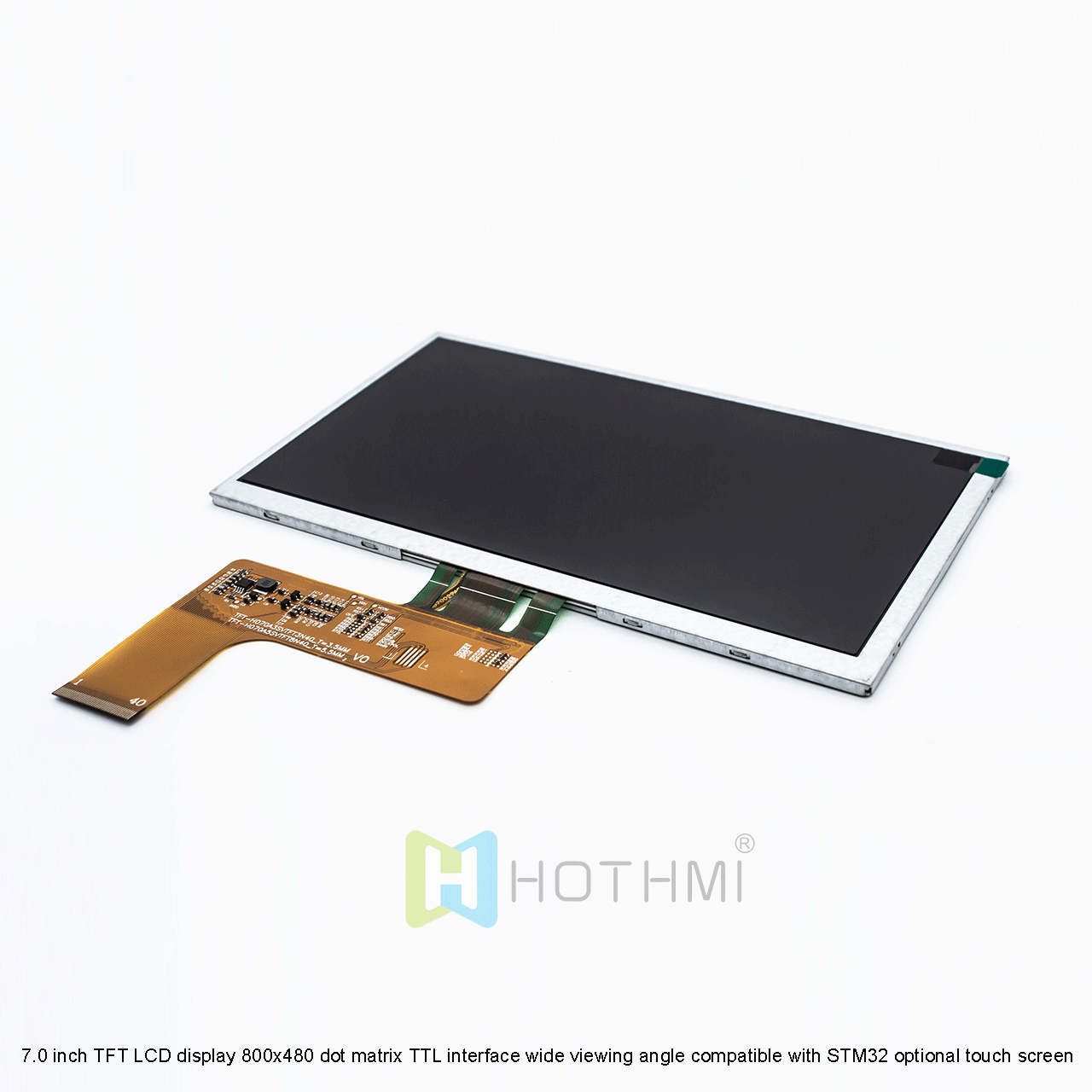

7.0 inch TFT LCD display 800x480 dot matrix TTL interface wide viewing angle compatible with STM32 optional touch screen

7.0 inch TFT LCD display 800x480 dot matrix TTL interface wide viewing angle compatible with STM32 optional touch screen

▶ Model: TFT-H070A3SVTFT3N40

▶ Type: TFT display screen
▶ Display pixel: 800x480 dot matrix
▶ External dimensions (mm): 164.9x100.0x3.5
▶ Display inches: 7.0"
▶ Effective size (mm): 153.84x85.632
▶ Application: STM32/RK series
▶ Visual angle: TN/Normally White
▶ Brightness: 350cd/m2
▶ Pin: FPC-40PIN
▶ Interface: 24 bit TTL
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -20~70 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK9716BD4+EK73002AB2

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H070A3SVTFT3N40 | 7.0-inch TN-TFT-LCD | TTL interface | 800x480 pixel resolution LCD screen | optional capacitive touch / resistive touch

TFT-H070A3SVTFT3N40 is a 7.0-inch TN display panel with a resolution of 800x480 pixels. It uses EK9716BD4+EK73002AB2 display driver IC, plug-in FPC, and can be used with a matching connector. The TN technology used in this monitor provides a wide viewing angle and excellent color reproduction, allowing you to easily watch from all angles without distortion. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with RoHS standards for environmental protection. This module is widely used in various instruments, smart devices, etc. It is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	7.0 "	Inch
Resolution	800 x RGB x 480 (TFT)	dots

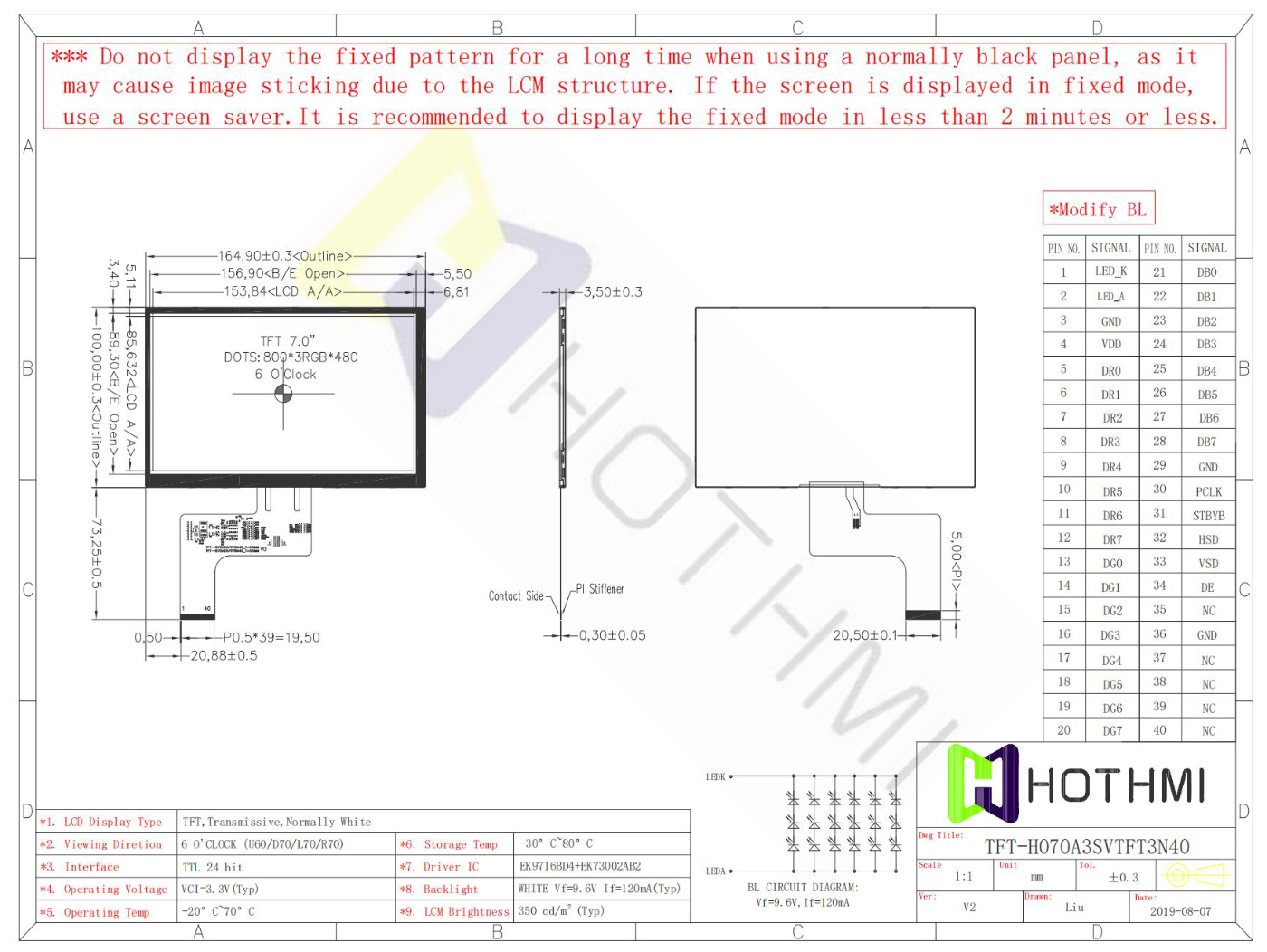

Dimensions	164.9x100.0x3.5	mm
Effective area (AA)	153.84x85.632	mm
LCD type	TFT module
Display perspective	TN/Normally White
Aspect ratio	1.1:2
Backlight type	LED, white
TFT driver IC	EK9716BD4+EK73002AB2
Touch panel	-
Surface	Bright surface
Brightness	three hundred and fifty	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
