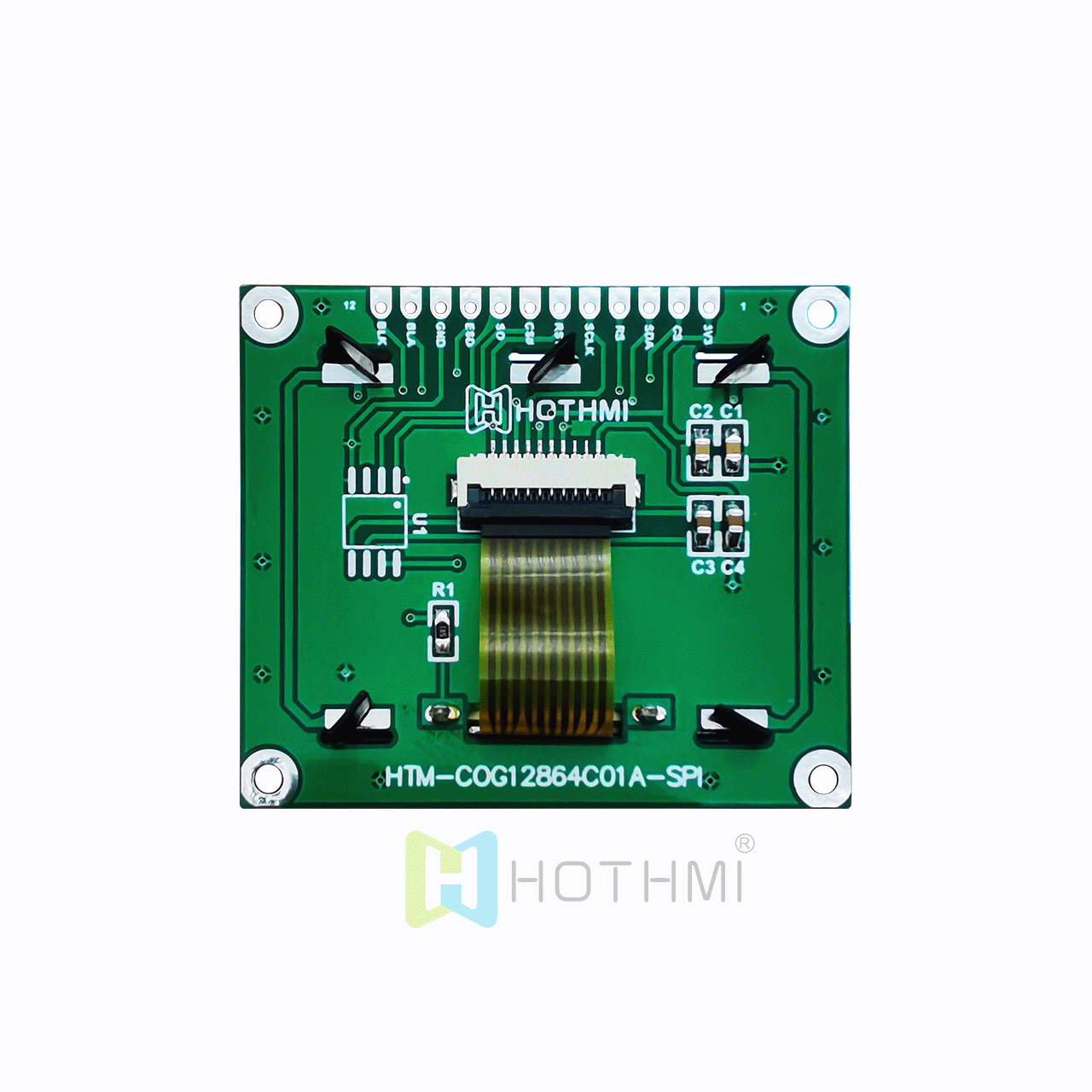

1.7 inch Graphic LCD 128x64 LCD | SPI interface | Graphic module display | STN negative display | Fully transparent polarizer

1.7 inch Graphic LCD 128x64 LCD | SPI interface | Graphic module display | STN negative display | Fully transparent polarizer | Blue background with white characters

▶ Model: HTM12864C01A-25W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 52.0x44.2x6.4
▶ VA size (mm): 36.0x23.5
▶ AA size (mm): 33.25x20.45
▶ Viewing angle: 6H
▶ Point spacing (mm): 0.38x0.32
▶ Backlight/brightness: white light
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3v
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

1.7 inch Graphic LCD 128x64 LCD | SPI interface | Graphic module display | STN negative display | Fully transparent polarizer | Blue background with white characters

1.7 inch Graphic LCD 128x64 LCD has a blue background with 128x64 monochrome white pixels, ST7567 controller. Configurable Japanese, English, Russian and Chinese character library and 126 16X8 dot half-high alphanumeric fonts, serial spi interface, contains a yellow-green single LED backlight that can be easily dimmed by resistor or PWM, wide operating temperature range, compliant with rohs standards. 5V power supply.

It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

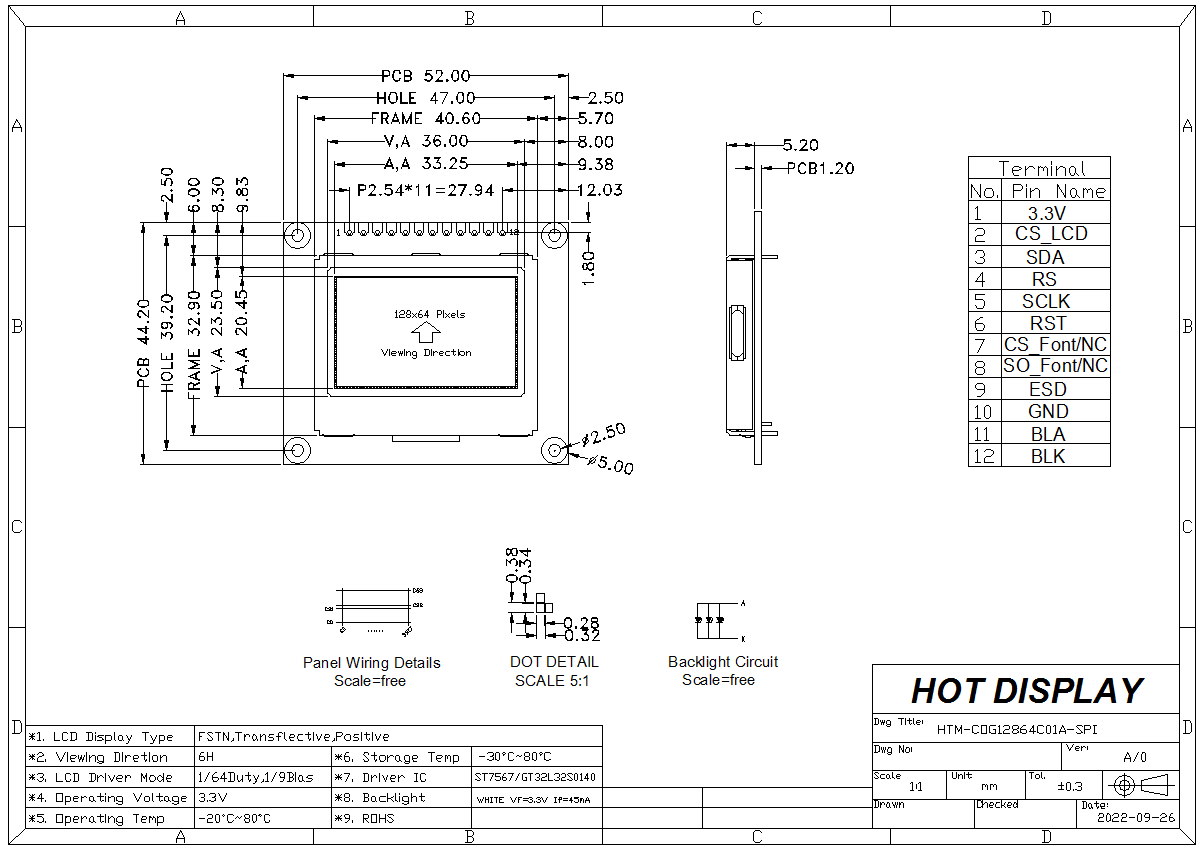

Parameter	Specification	Unit
Name	HTM-12864C01A-25W-A5P
Graphic display	128× 64	dots
Dimensions	52.0 x 44.2 x 6.4 (MAX)	mm
VA size	36.0 x 23.5	mm
AA size	33.25 x 20.45	mm
Pixel pitch	0.38 x 0.32	mm
Driver chip	st7567
Applied voltage	5V	V
Backlight illumination	WHITE
Display mode	STN(-)
Drive mode	1/64 duty cycle
Product type	Graphic LCD
Polarizer type	Transmissive
