3.5inch Monochrome TFT LCD Panel Display 240x320 px sunlight readable high contrast

3.5inch Monochrome TFT LCD Panel Display 240x320 px sunlight readable high contrast

▶ Model: TFT-H035B23QVIST3N30-WLED

▶ Type: Monochrome TFT(horizontal screen)
▶ Display pixels: 240X320 Px

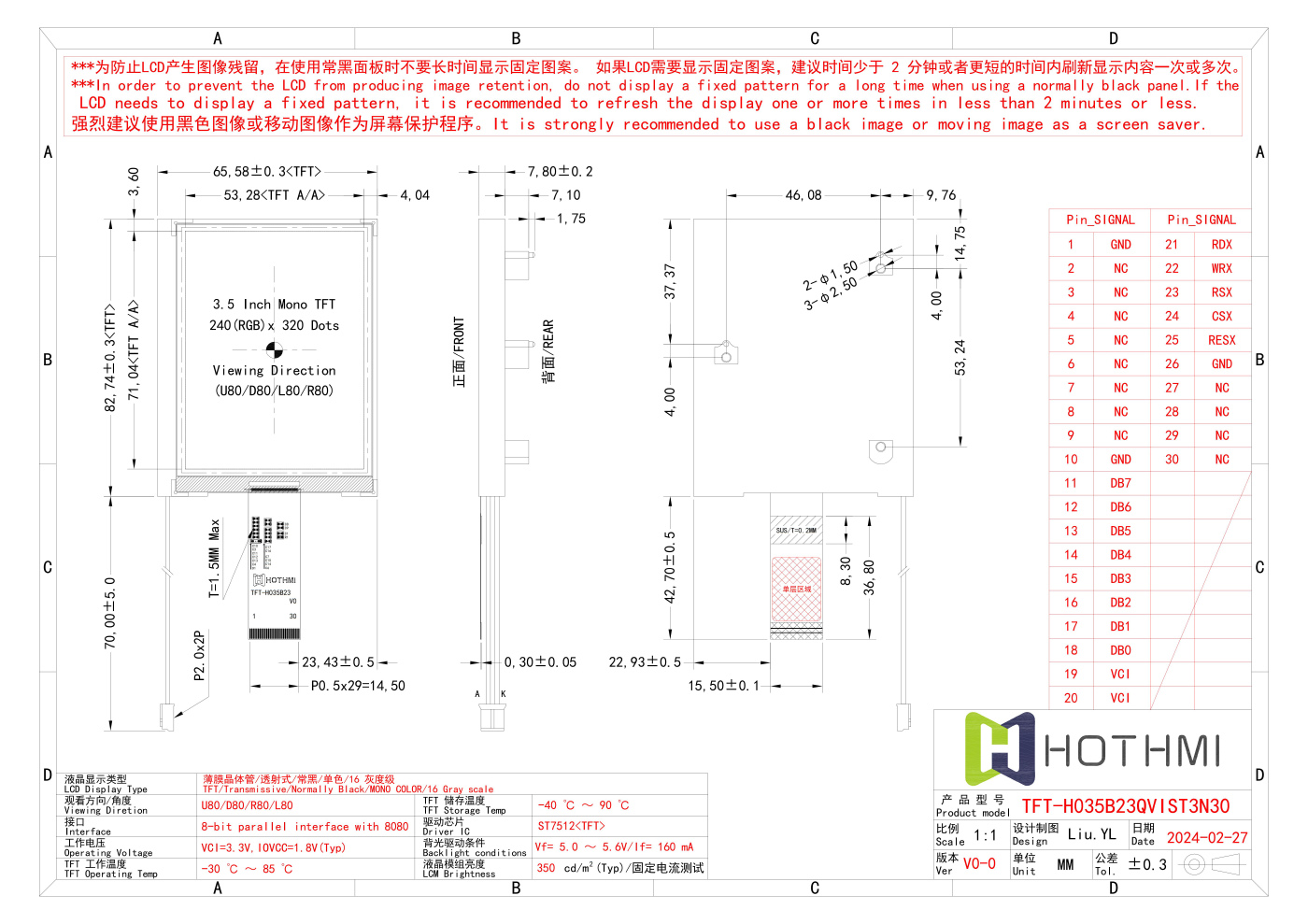

▶ Overall dimensions (Mm): 65.58x82.74x7.8
▶ Diagonal size: 3.5"
▶ AA size (Mm): 53.28x71.04
▶ Application: Vehicle-mounted instrumentation
▶ Viewing angle: IPS full viewing angle
▶ Backlight/Brightness: 350cd/M²

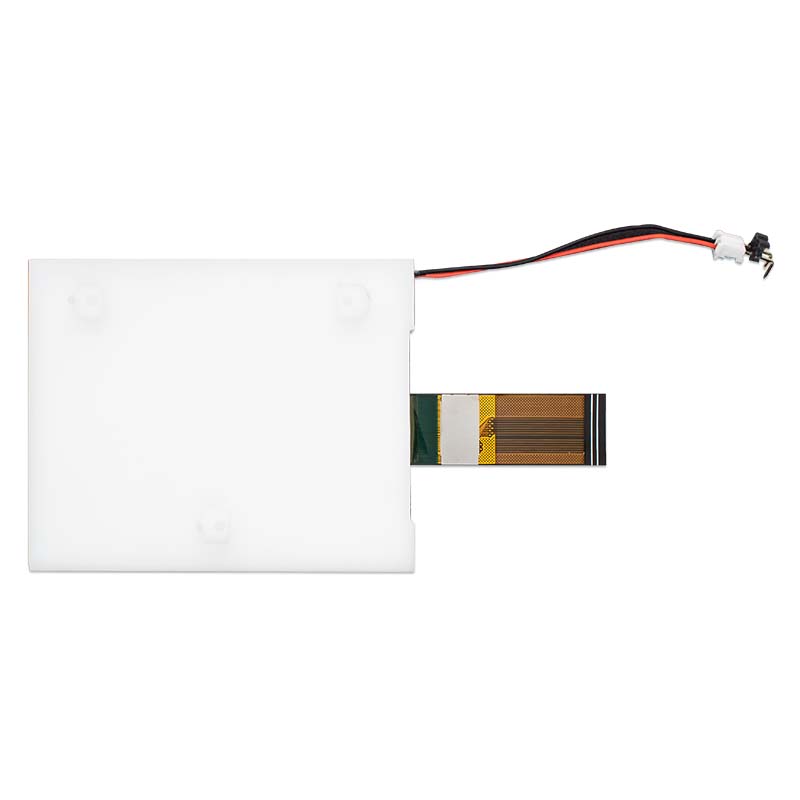

▶ Pin: FPC-30PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~85℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7512

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes
Download Related Materials

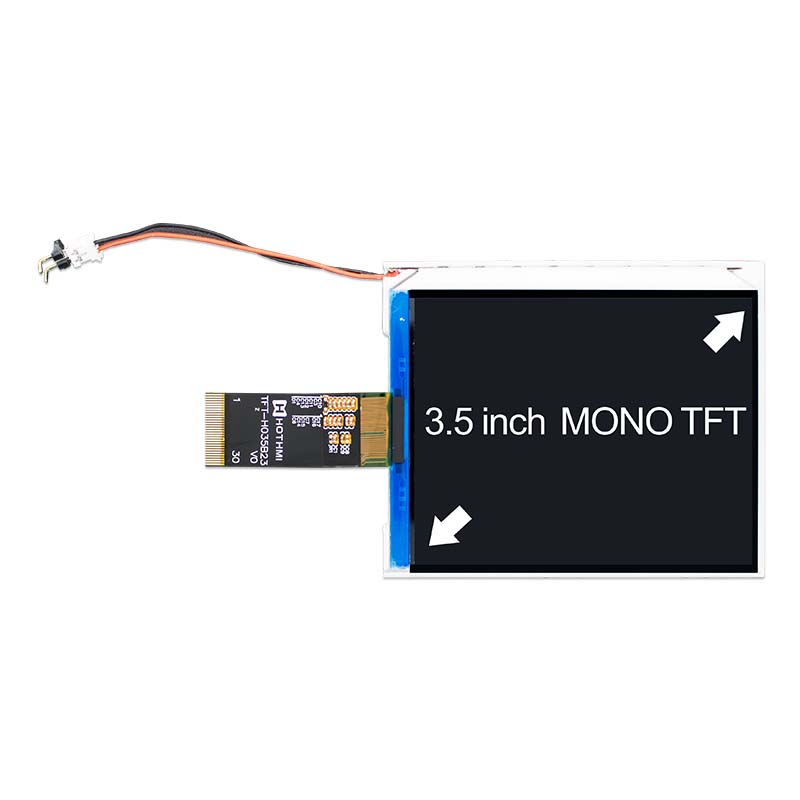

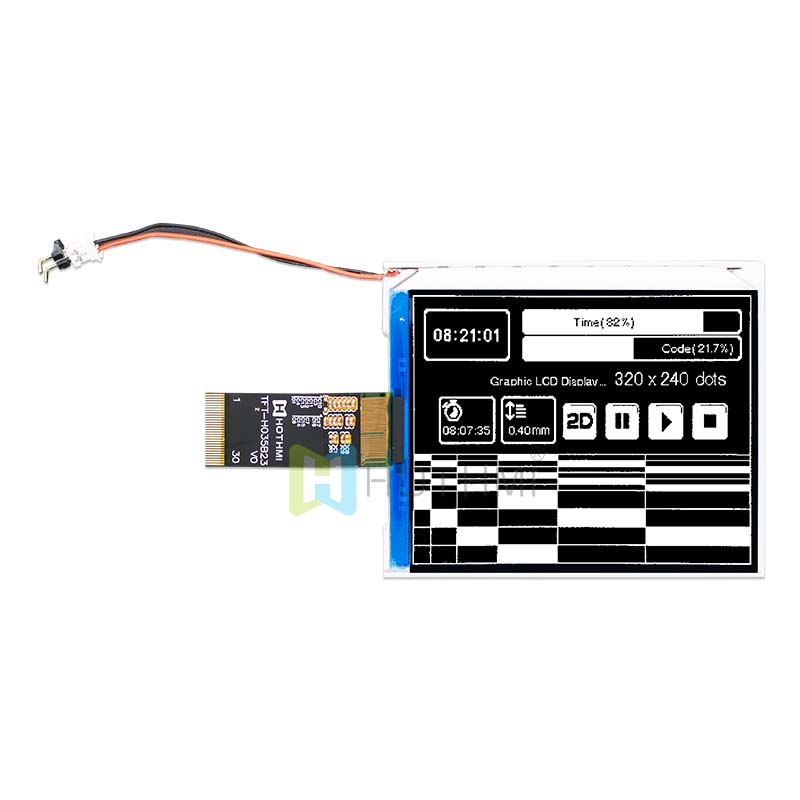

TFT-H035B23QVIST3N30-WLED | 3.5-inch MONO black and white TFT LCD display | IPS full viewing angle | High brightness and high contrast 1000:1 | 240x320 Px | MCU interface

The 3.5-inch MONO black and white TFT LCD display is specially designed for vehicle instrumentation, with excellent performance and adaptability. It has a display resolution of 240X320 pixels, a 3.5-inch diagonal size and IPS full viewing angle technology to ensure clear and high-contrast image display from all angles in the car. The overall dimensions of the product are 65.58x82.74x7.8 mm, and the AA size is 53.28x71.04 mm, providing a compact design solution for the vehicle space. The backlight intensity is 350cd/M², which can adapt to various lighting conditions in the car and ensure that the information display is clearly visible.

The use of FPC-30PIN pins and MCU interface makes the connection with the vehicle system more convenient. Special anti-static design (ESD 8KV) protects the screen from static electricity interference and improves stability and reliability.

The operating temperature range is wide, from -30 degrees Celsius to 85 degrees Celsius, adapting to various climate conditions. The power supply voltage is 3.3V and equipped with ST7512 driver chip to ensure efficient and stable performance and meet the strict requirements of vehicle-mounted instrumentation.
