4X40 character LCD module | monochrome display STN positive display | with yellow-green backlight | Arduino display

4X40 character LCD module | monochrome display STN positive display | with yellow-green backlight | Arduino display | ST7066U controller

▶ Model: HTM-4004B-01Y-A5P

▶ Type: 4X40 character LCD module
▶ Display content: 40x4 characters
▶ Dimensions (mm): 190.0 x 54.0 x 14.9
▶ VA size (mm): 147.0 x 29.5
▶ AA size (mm): 140.47 x 23.18
▶ Pixel pitch mm: 0.57 x 0.62
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

4X40 character LCD module | monochrome display STN positive display | with yellow-green backlight | Arduino display | ST7066U controller

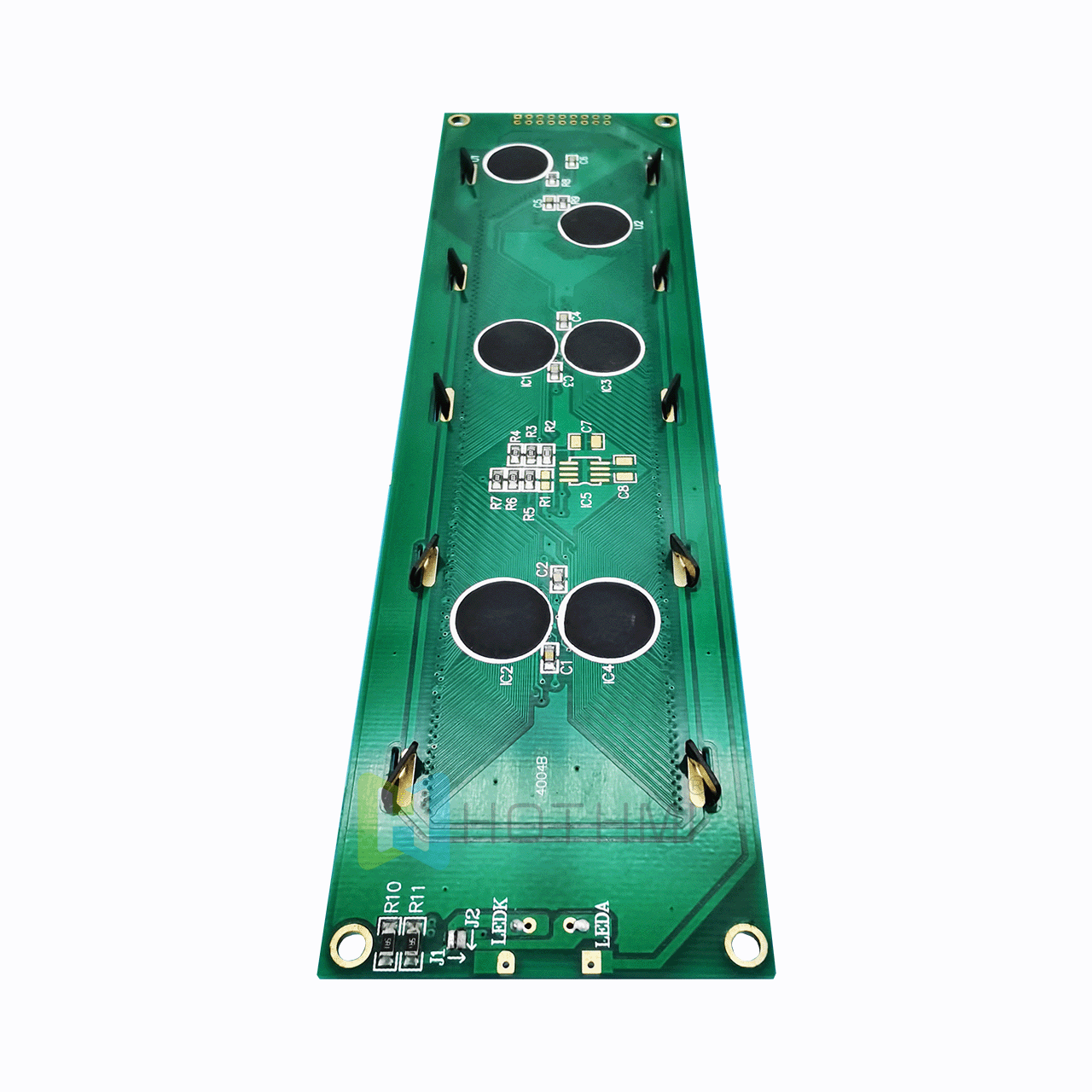

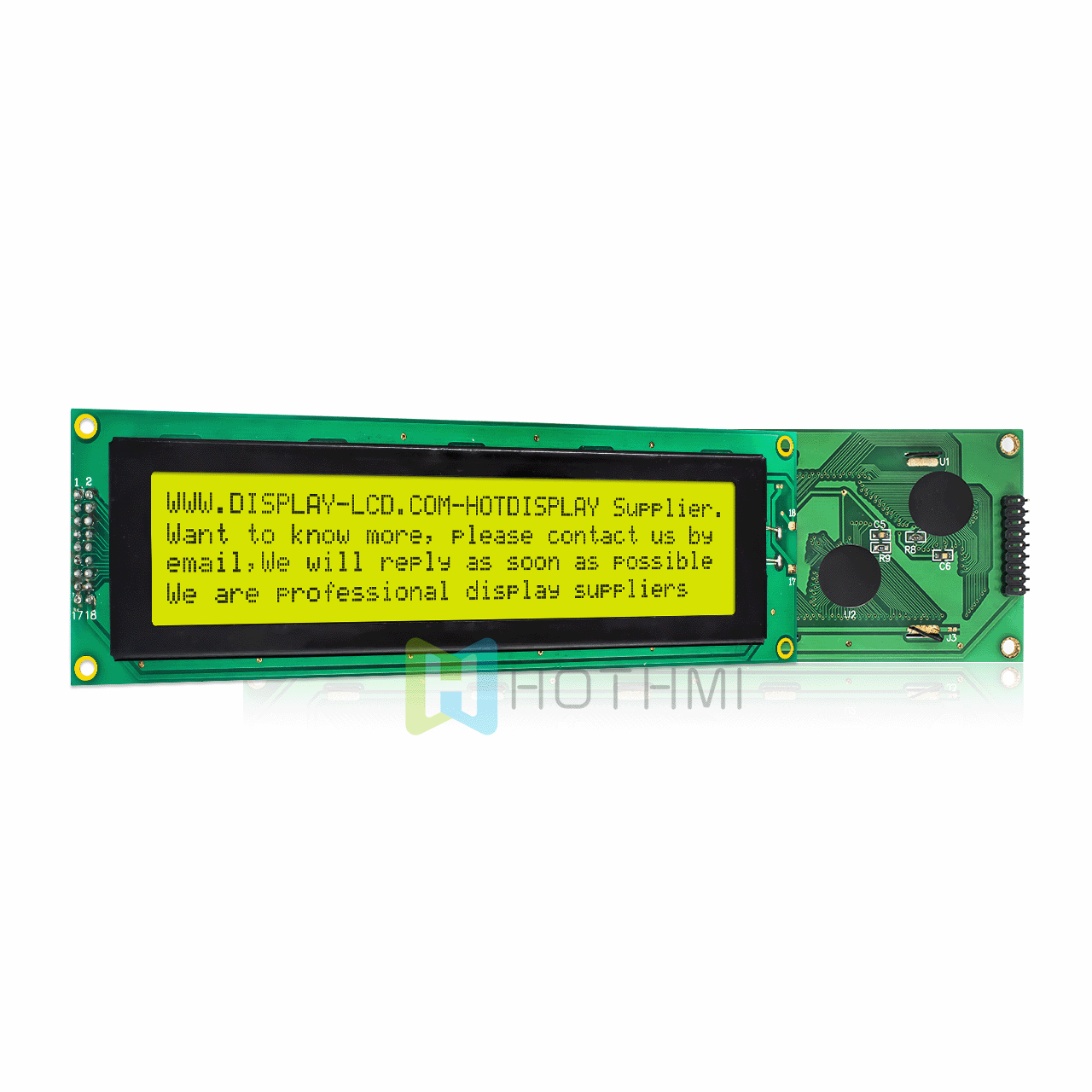

4X40 character LCD module,Hot Display's monochrome LCD 40x4 character display has 4 lines of 40 pixels, up to 160 pixels, for a perfect bright yellow/green viewing angle. The LCD panel also comes with an STN reflector, includes a retro LED yellow/green display, and has an optimal viewing angle of 6:00. The display HTM-4004B-01Y-A5P comes with an operating temperature of -20 to 70 degrees Celsius, ST7066U controller, 5V operation, Arduino compatible, and is also RoHS compliant.

item	Parameter Description	unit
Name	HTM-4004A-01Y-A5P
Number of dots	40words × 4lines	dots

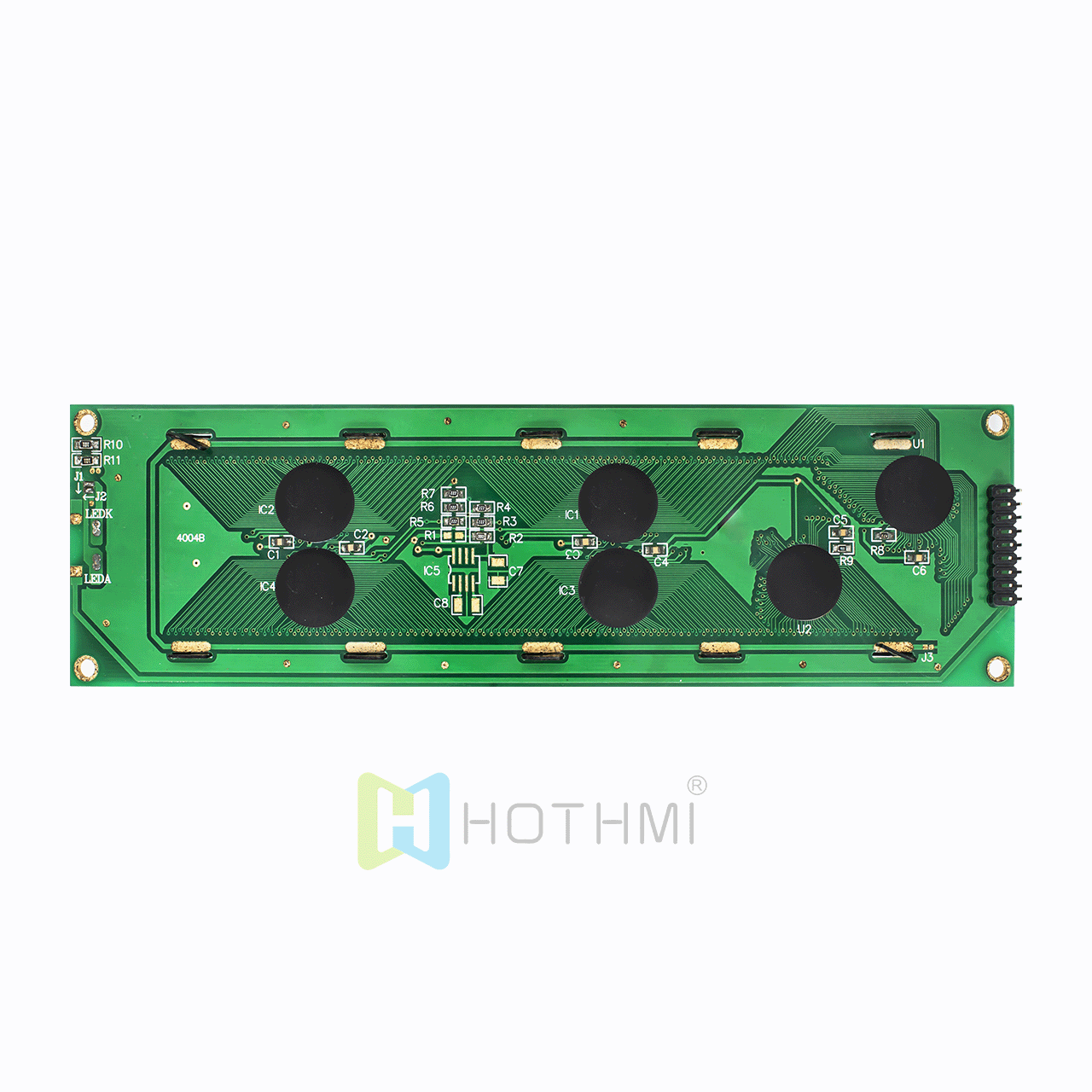

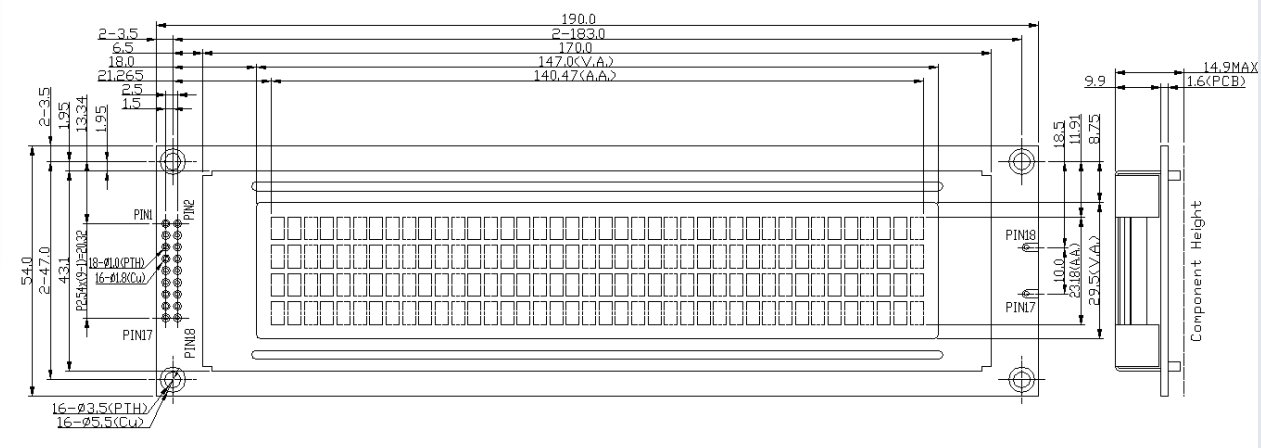

Module size	190.0 x 54.0 x 14.9 (MAX)	mm
Visual (VA) area	147.0（W） × 29.5（H）	mm
Effective (AA) area	140.47 （W） × 23.18（H）	mm
Dot (pixel) spacing	0.57 × 0.62mm	mm
IC	ST7066U driver chip
Power supply voltage	5.0V	V
Backlight	Yellow/green
Display mode	STN
Drive mode (Duty)	1/16 duty cycle
Type	Character LCD
Features	Transflective polarizer
