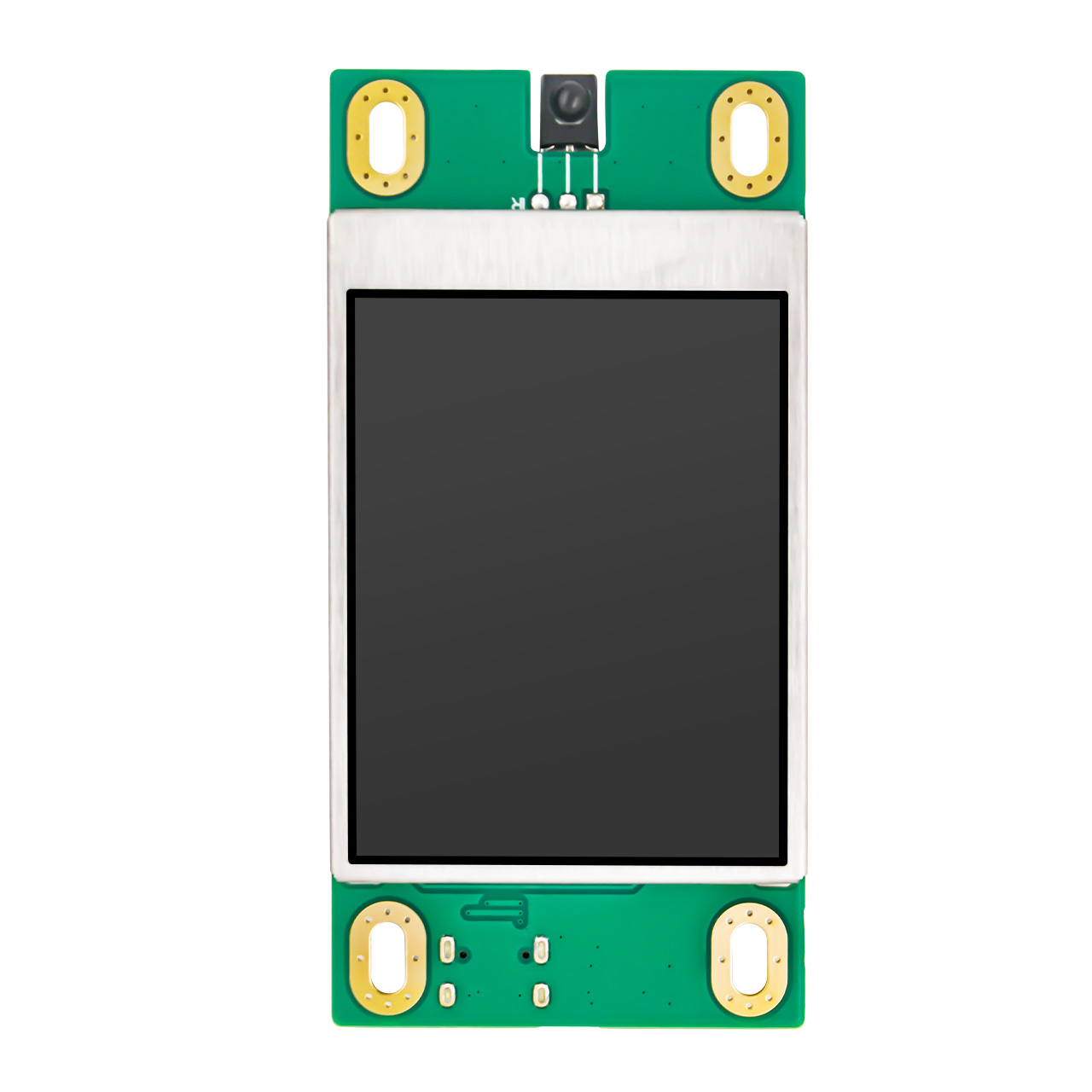

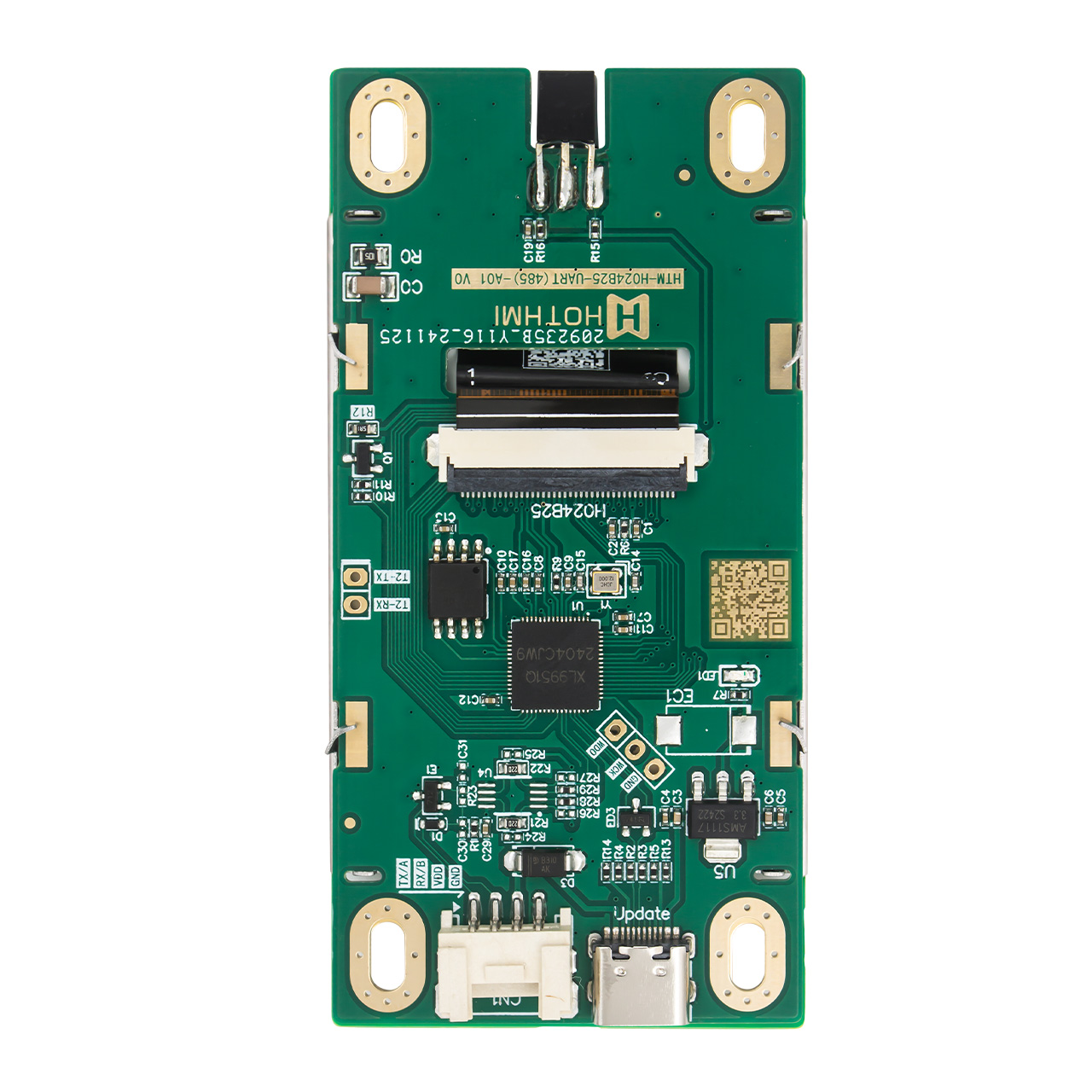

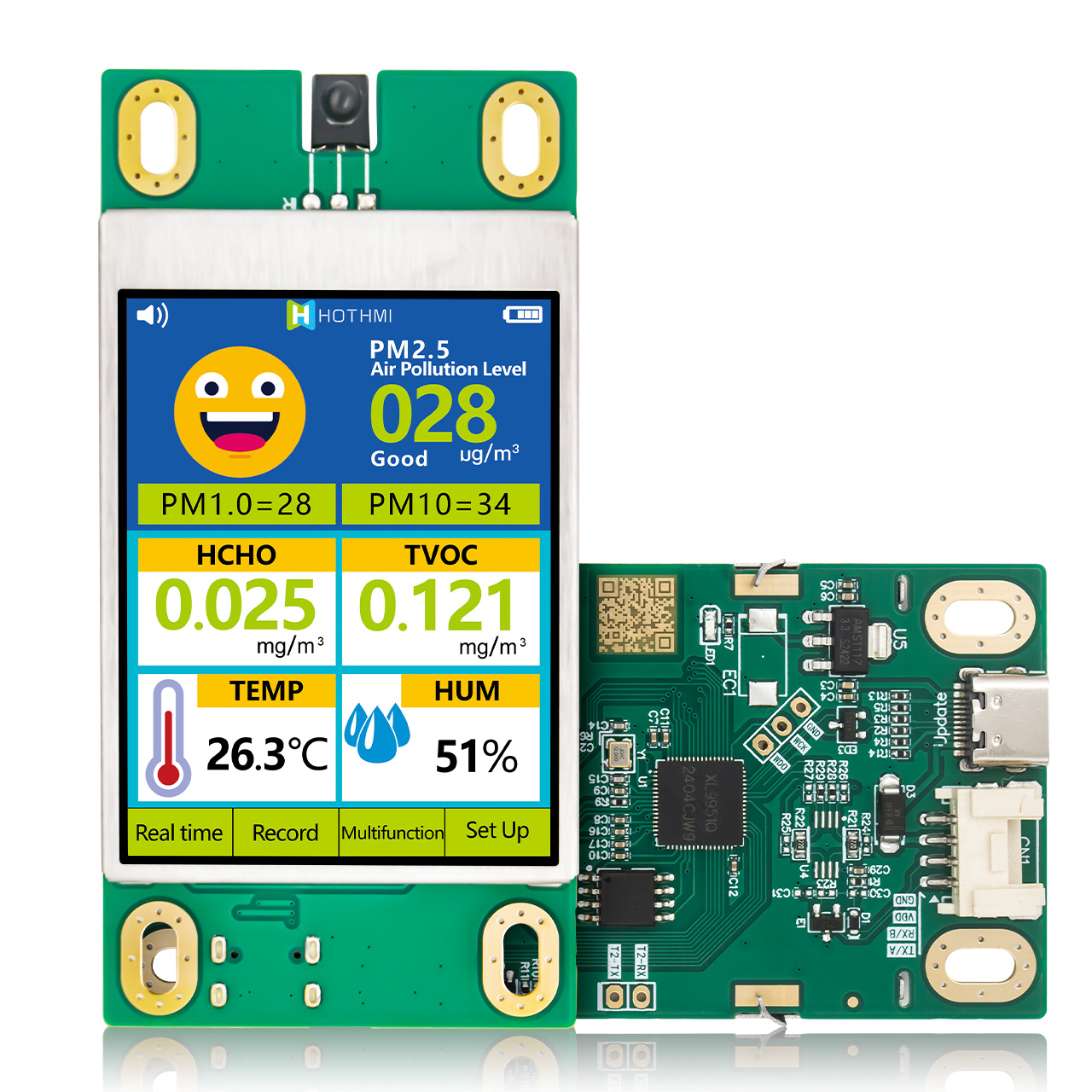

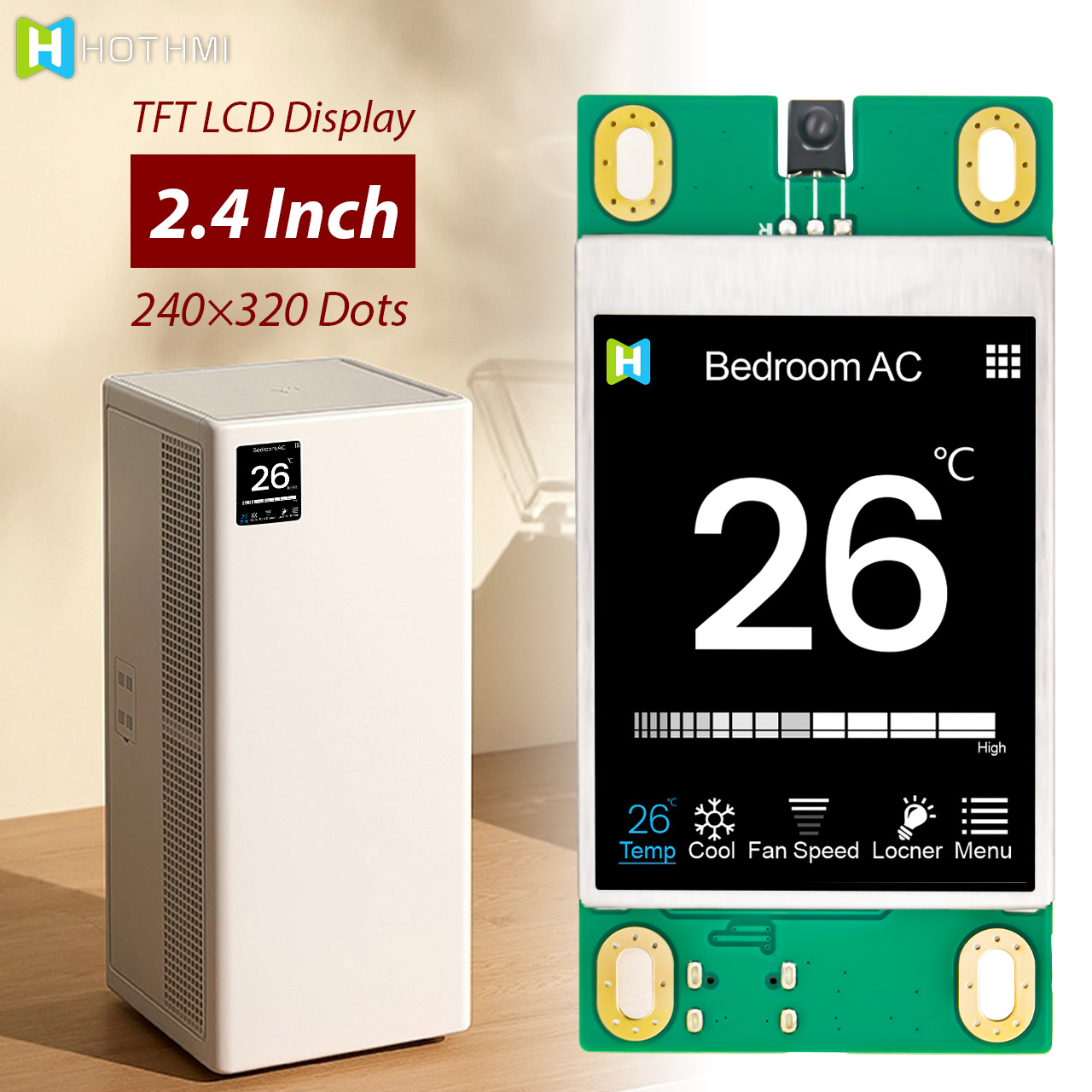

2.4 inch smart display module 240×320 pixels| RS485 TFT module for industrial and commercial application

2.4 inch smart display module 240×320 pixels| RS485 TFT module for industrial and commercial application

▶ Model: HTM-H024B25-UART-A01

▶ Type: 2.4 inch smart display module

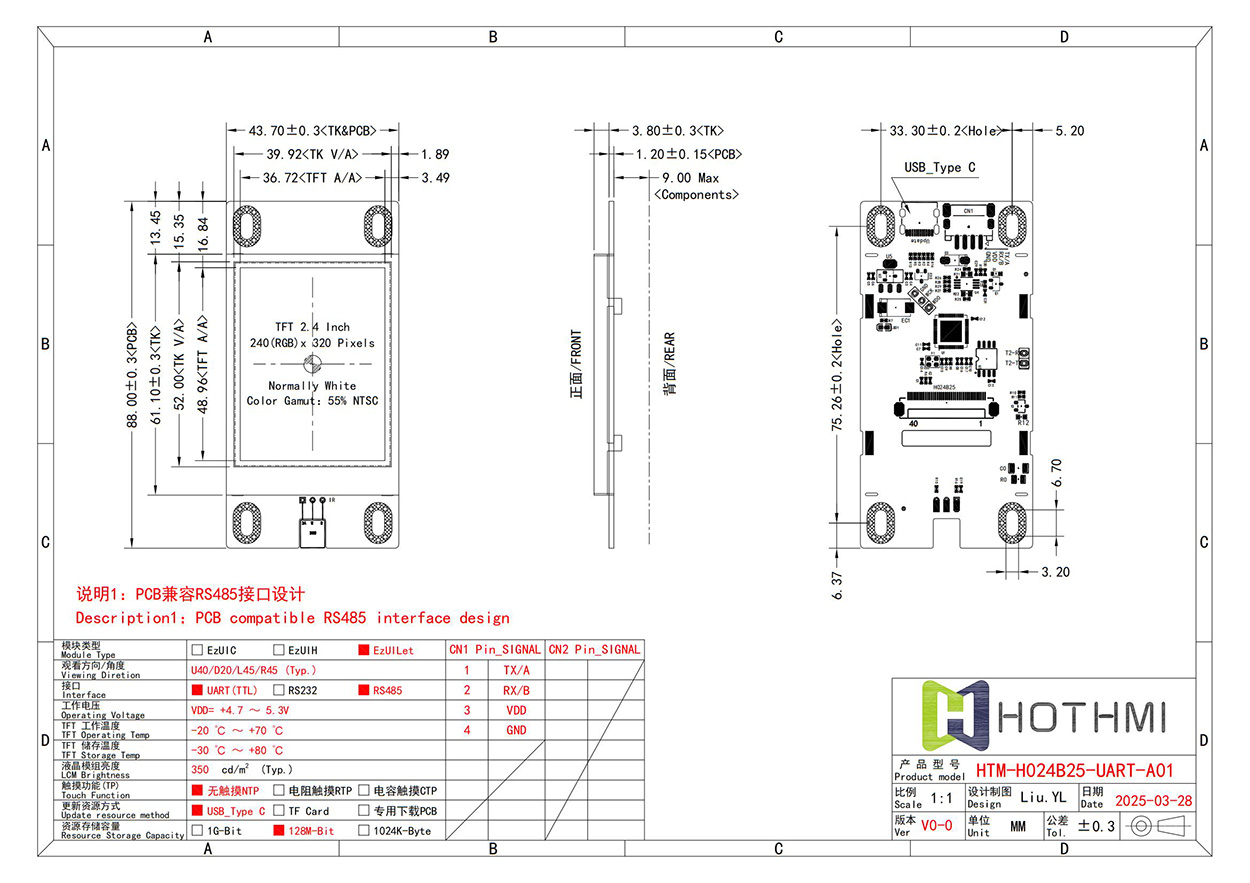

▶ Dimensions (mm): 43.70x88.00x3.80
▶ Display size (mm): 2.4”
▶ Resolution: 240x320
▶ AA size (mm): 36.72x48.96
▶ Application: Home appliances, handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 350cd/m2
▶ Pin: Smart UART board module
▶ Interface mode: UART
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.4 inch smart display module 240×320 pixels| RS485 TFT module for industrial and commercial application
2.4 inch smart display module,EzUI smart serial port screen HTM-H024A25-UART-A01 Core advantages:

High-definition display: 2.4-inch TFT screen, resolution 240×320 (RGB), normally black panel, NTSC 70% high color gamut, brightness 350 cd/m², clearly visible under strong light.
Wide temperature and durability: working temperature -20℃~+70℃, storage temperature -30℃~+80℃, suitable for industrial and harsh environments.
Flexible interface: supports UART (TTL), RS232, RS485, compatible with multiple communication protocols; convenient resource update (USB/TF card/dedicated PCB).
Optional touch: three configurations are provided: no touch (NTP), resistive touch (RTP), and capacitive touch (CTP) to meet diverse needs.
Anti-image retention design: built-in screen saver recommendation (black/dynamic image refresh) to avoid long-term static display and damage to the screen.
Large-capacity storage: supports 1G-bit/128M-bit resource storage, easily cope with complex interface and multimedia requirements.
Stable power supply: +5V±0.3V wide voltage design, strong compatibility, low power consumption (typically 500mA).
Applicable scenarios: industrial HMI, smart device control, medical instruments, outdoor display, etc.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H024B25-UART-A01	March 03, 2025	126.75KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H024B25-UART-A01
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	43.70x88.00x3.80	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	1:2
Backlight type	LED white
TFT driver IC	EzUI
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~70℃	℃
