2.7 Yīngcùn LCM12864 túxíng diǎn zhèn xiǎnshì píng mókuài/128x64 túxíng yèjīng xiǎnshì píng/FST quán tòu zhèng piānguāng piàn/RGB hóng lǜ lán bèiguāng 2.7 Yīngcùn LCM12864 túxíng diǎn zhèn xiǎnshì píng mókuài HTM12864N01A-35S-A5P xiǎnshì hóng lǜ lán sè b

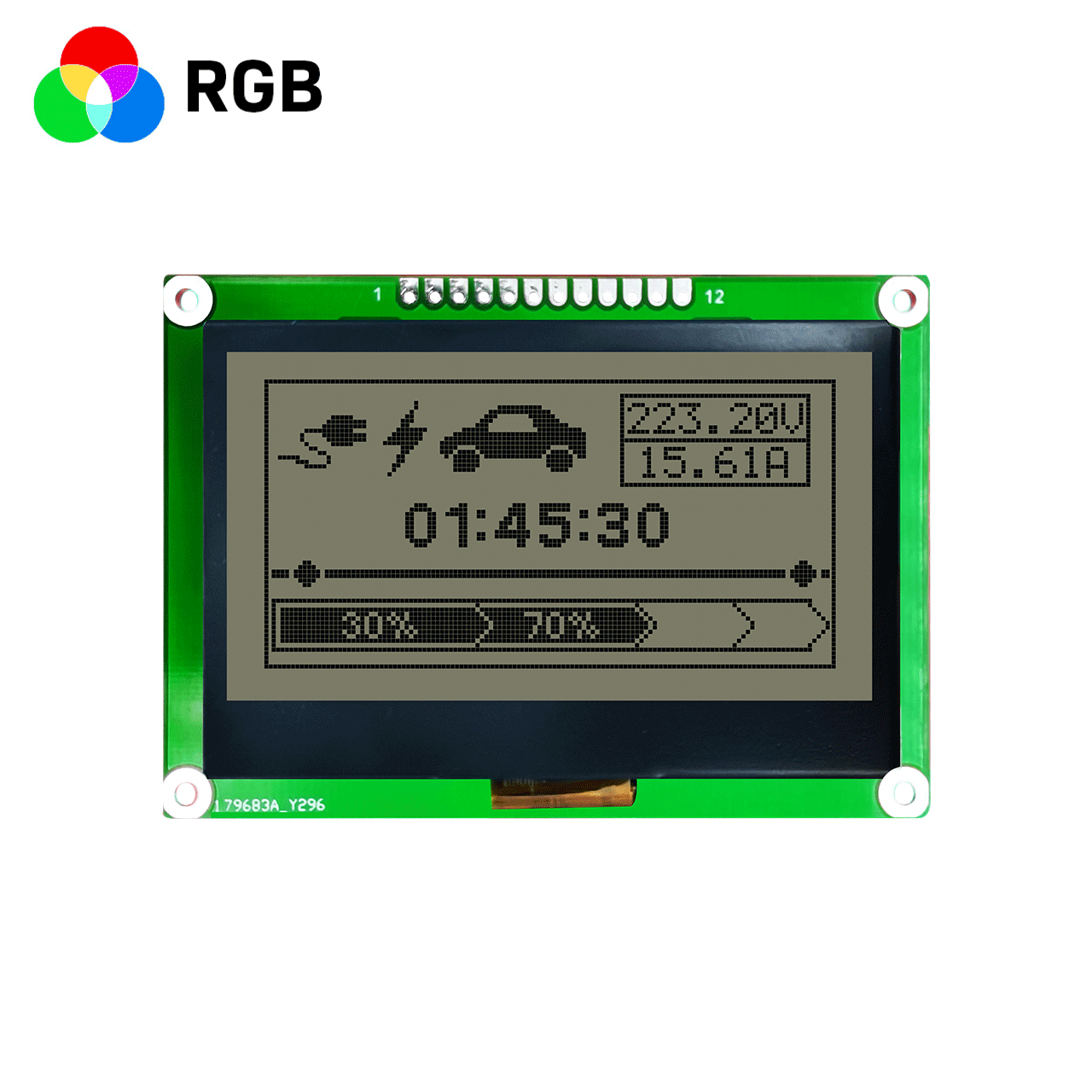

2.7-inch LCM12864 graphic dot matrix display module/128x64 graphic LCD display/FST fully transparent positive polarizer/RGB red, green and blue backlight

▶ Model: HTM12864N01A-35S-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

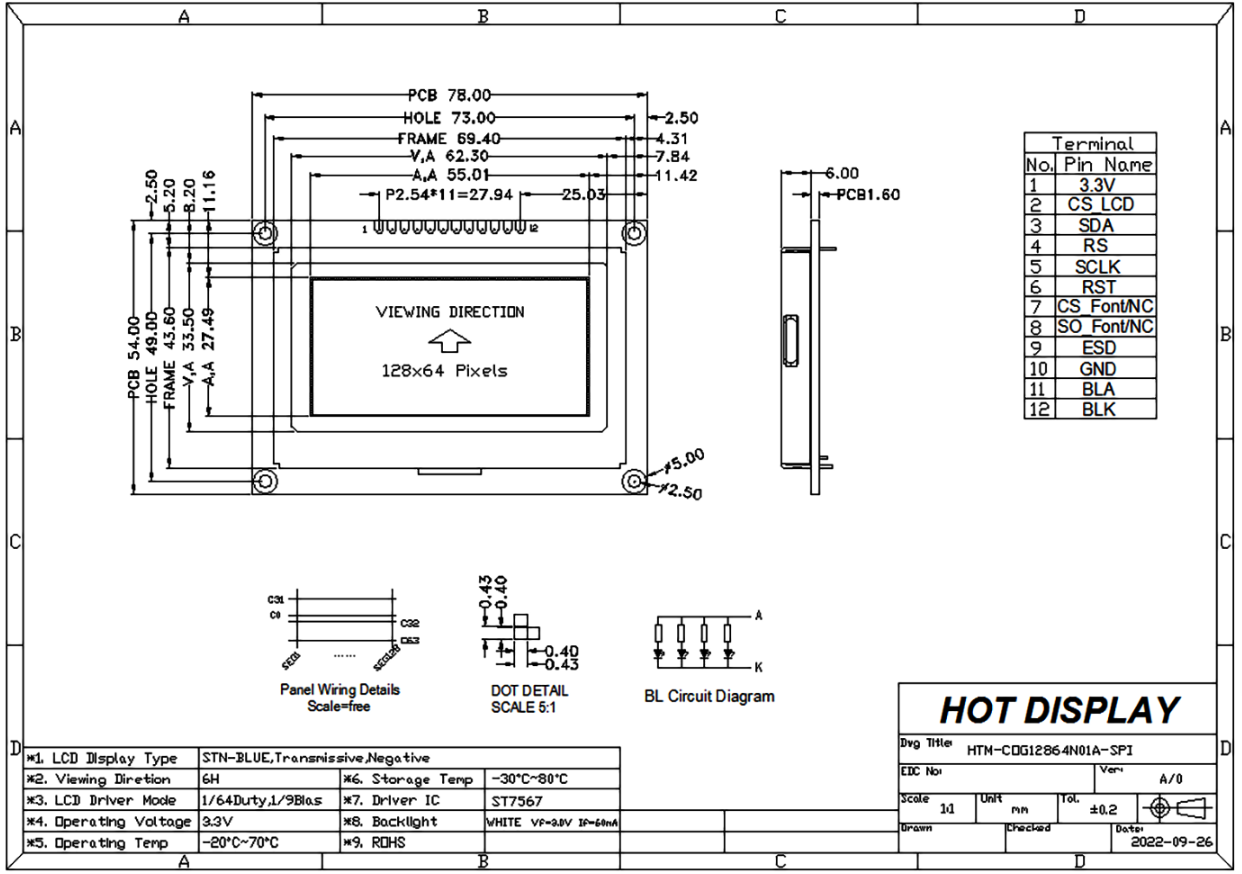

▶ Overall dimensions (mm): 78.0x54.0x7.6
▶ VA size (mm): 62.3x33.5
▶ AA size (mm): 55.01x27.49
▶Viewing angle: 6H
▶ Point spacing (mm): 0.43x0.43
▶ Backlight/brightness: red/green/blue light
▶ Pin: 12PIN
▶Interface mode: SPI
▶ Working temperature: -20~70℃
▶ Special instructions: Chinese font library can be brought
▶ Supply voltage: 3.3v
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2.7-inch LCM12864 graphic dot matrix display module/128x64 graphic LCD display/FST fully transparent positive polarizer/RGB red, green and blue backlight

The 2.7-inch LCM12864 graphic dot matrix display module HTM12864N01A-35S-A5P displays illuminated gray pixels on a red, green, and blue background. This fully transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer.

This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and performs exceptionally well when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	specification	unit
name	HTM12864N01A-35S-A5P
Points	128 x 64	dots
Module size	78.0（W） × 54.0 （H） × 7.6 （T）	mm
Vision (VA)	62.3 x 33.5	mm
AA size	55.01（W） ×27.49（H）	mm
Point (pixel) spacing	0.43（W） × 0.43（H）mm	mm
Control chip	ST7567
Voltage	5.00V	V
backlight	Red、green、blue
Model	STN(+)
Drive mode	1/64 duty cycle
type	Graphic LCD
Polarizer type	Transmissive
