2.4-inch wide temperature color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller

2.4-inch wide temperature color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller

▶ Model: TFT-H024B23QVIST4N12

▶ Type: TFT LCD
▶ Display content: 240x320
▶ Display inches: 2.4"
▶ Dimensions (mm): 42.72x58.56
▶ AA size (mm): 36.72x48.96
▶ Product application: handheld devices, small household appliances
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight 400cd/M2
▶ Connection method PIN number: FPC-12pin
▶ Interface method: SPI 4L
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~+80℃
▶ Supply voltage: VCI=3.0～3.3V
▶ Driver chip: ST7789<TFT>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.4-inch wide temperature color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller

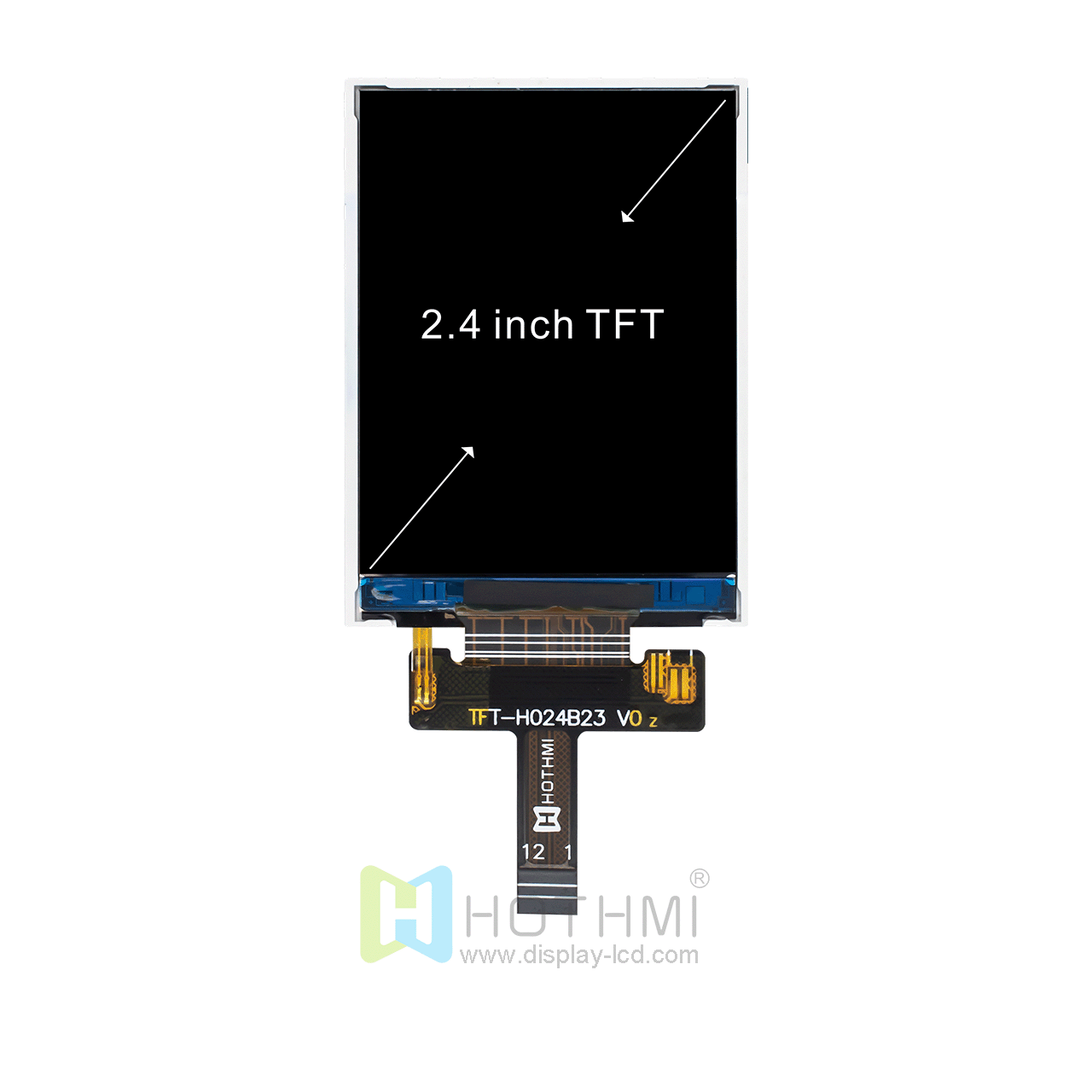

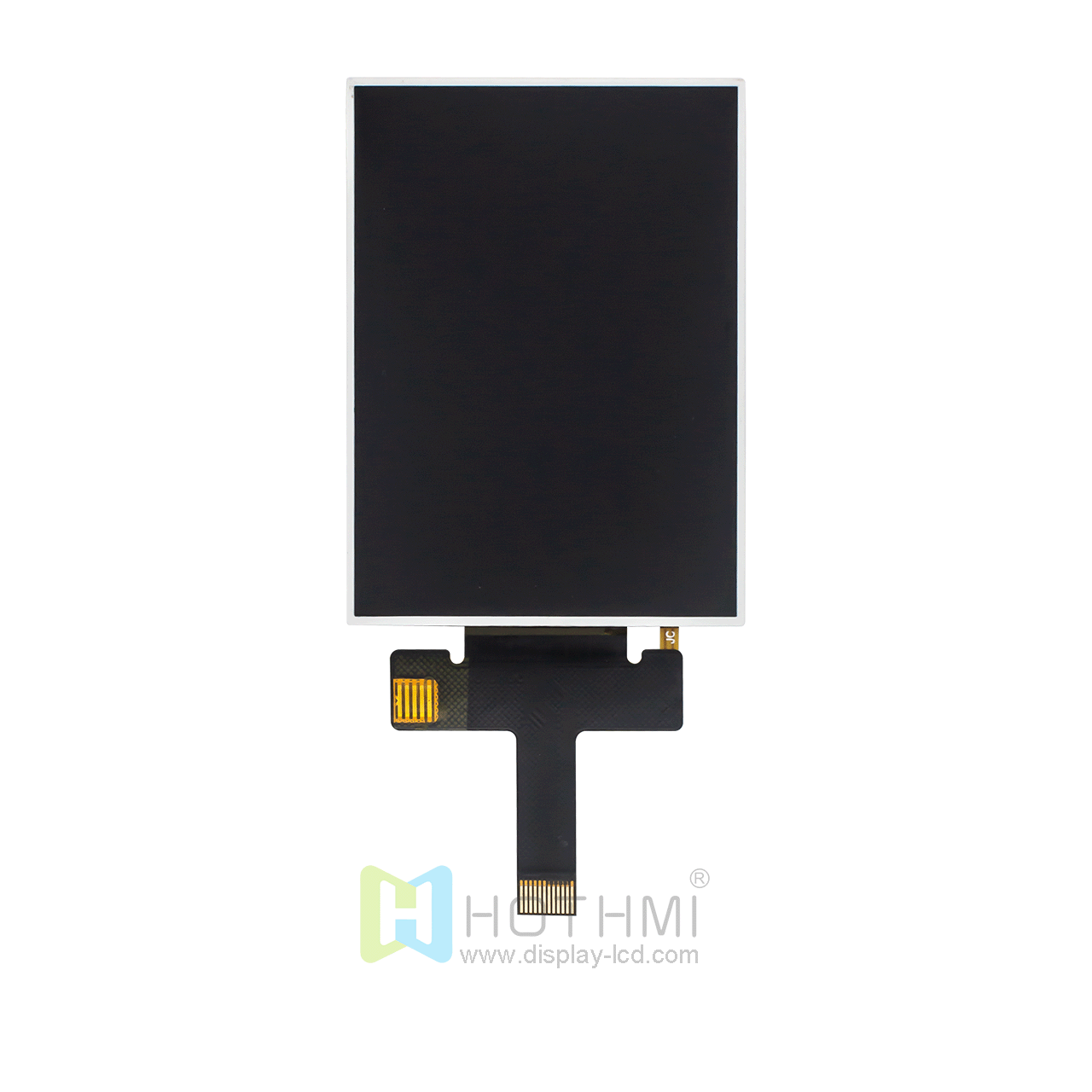

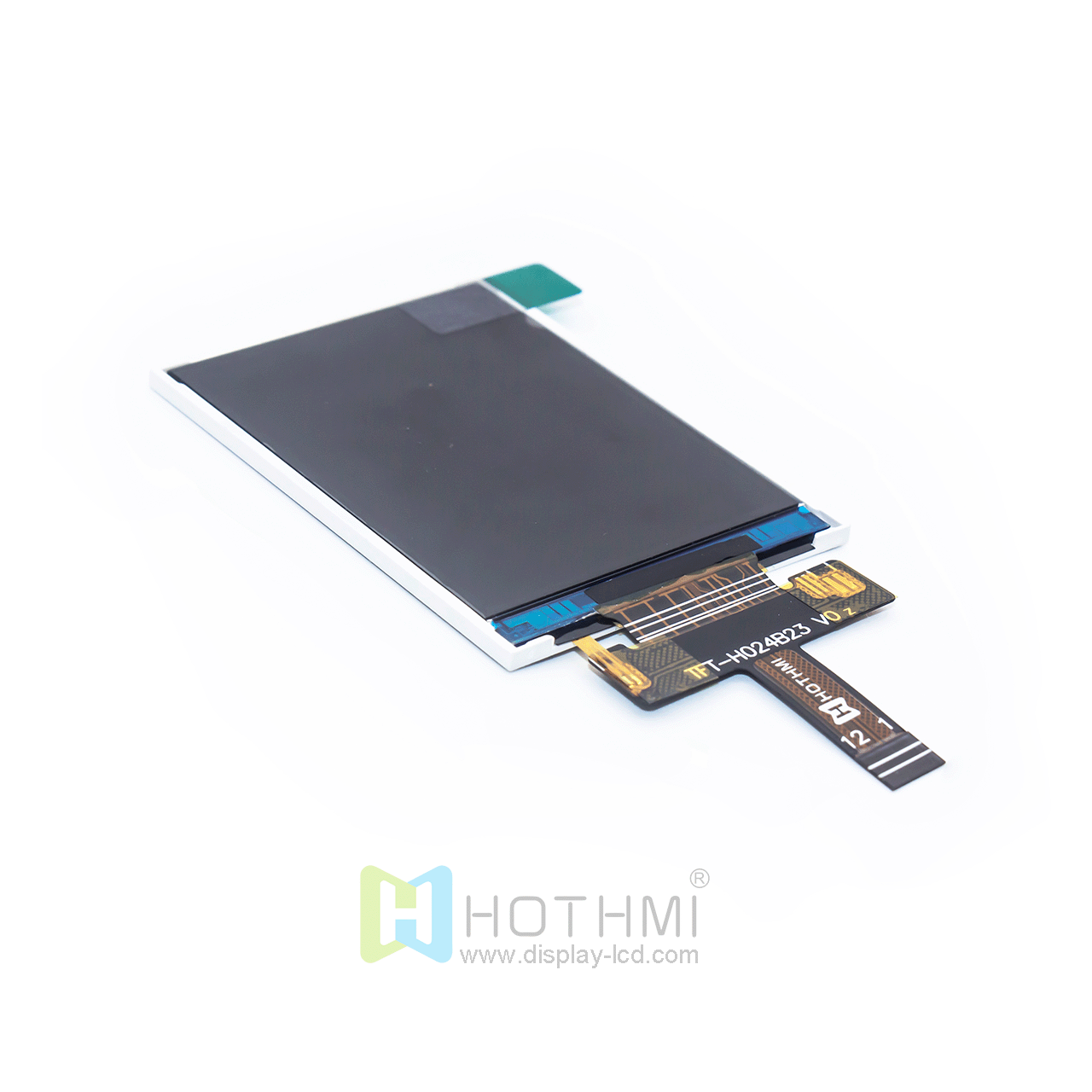

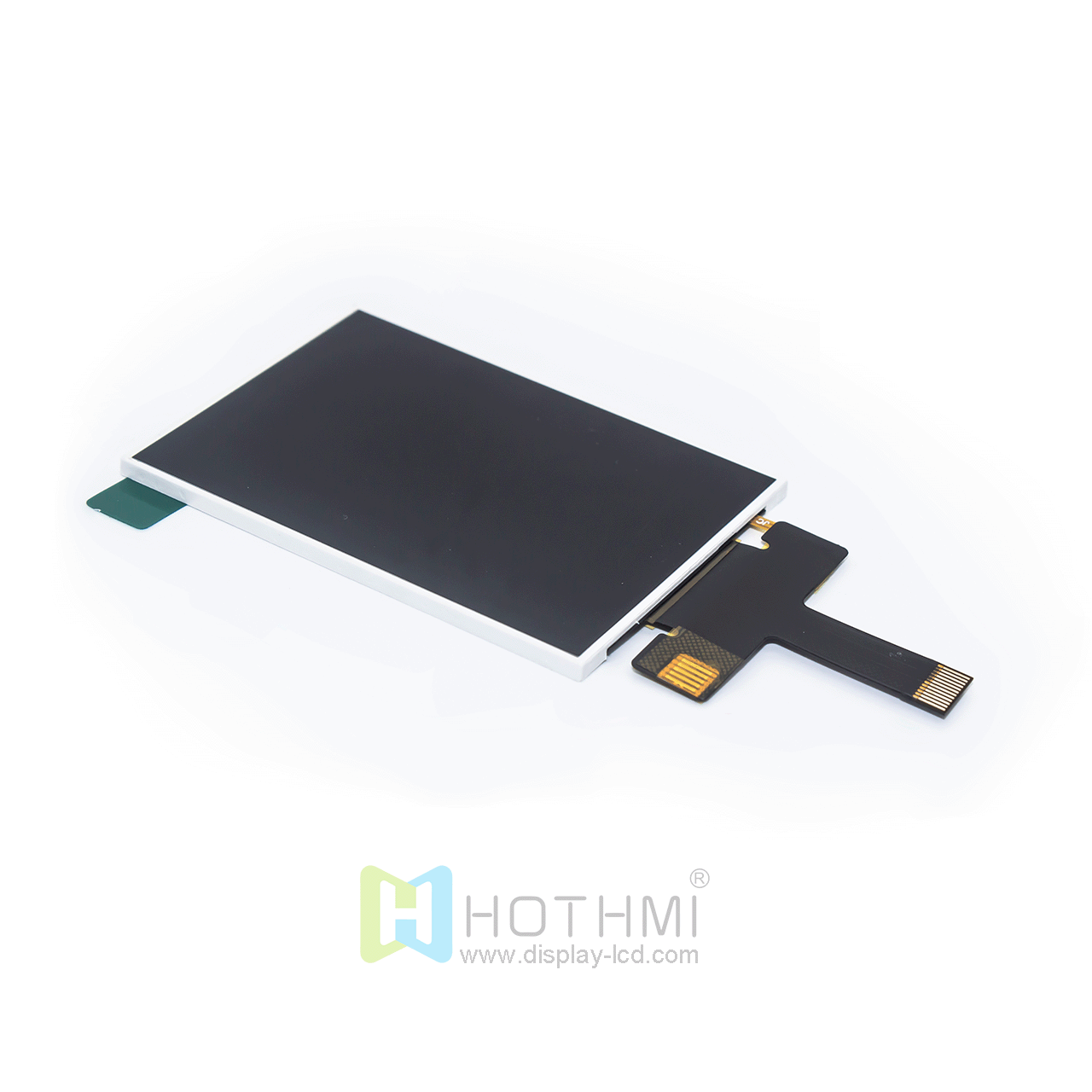

TFT-H024B23QVIST4N12 / 2.4-inch color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller is a 2.4-inch TFT with a resolution of 240x320, normal brightness, and an operating temperature range of -30 ℃ ~ +80 ℃. The connector FPC is a soft cable type and requires a connector. Plug the FPC directly into the connector on the PCB for easy insertion or removal.
The IPS (In-Plane Switching) technology used in this monitor provides wide viewing angles and excellent color reproduction, so there is no distortion when viewing from all angles. The monitor has a contrast ratio of up to 800:1, capable of deep blacks and vivid colors. It also has a brightness of up to 400cd/m2.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024B23QVIST4N12
Diagonal size	5.5”	Inch
Resolution	240X320	Dot
Dimensions	42.72x58.56	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio
Backlight type	LED white
TFT driver IC	ST7789<TFT>
Brightness	400cd/m2	cd/m2
Operating temperature	-30-~80℃	℃
Storage temperature	-30~80℃	℃
