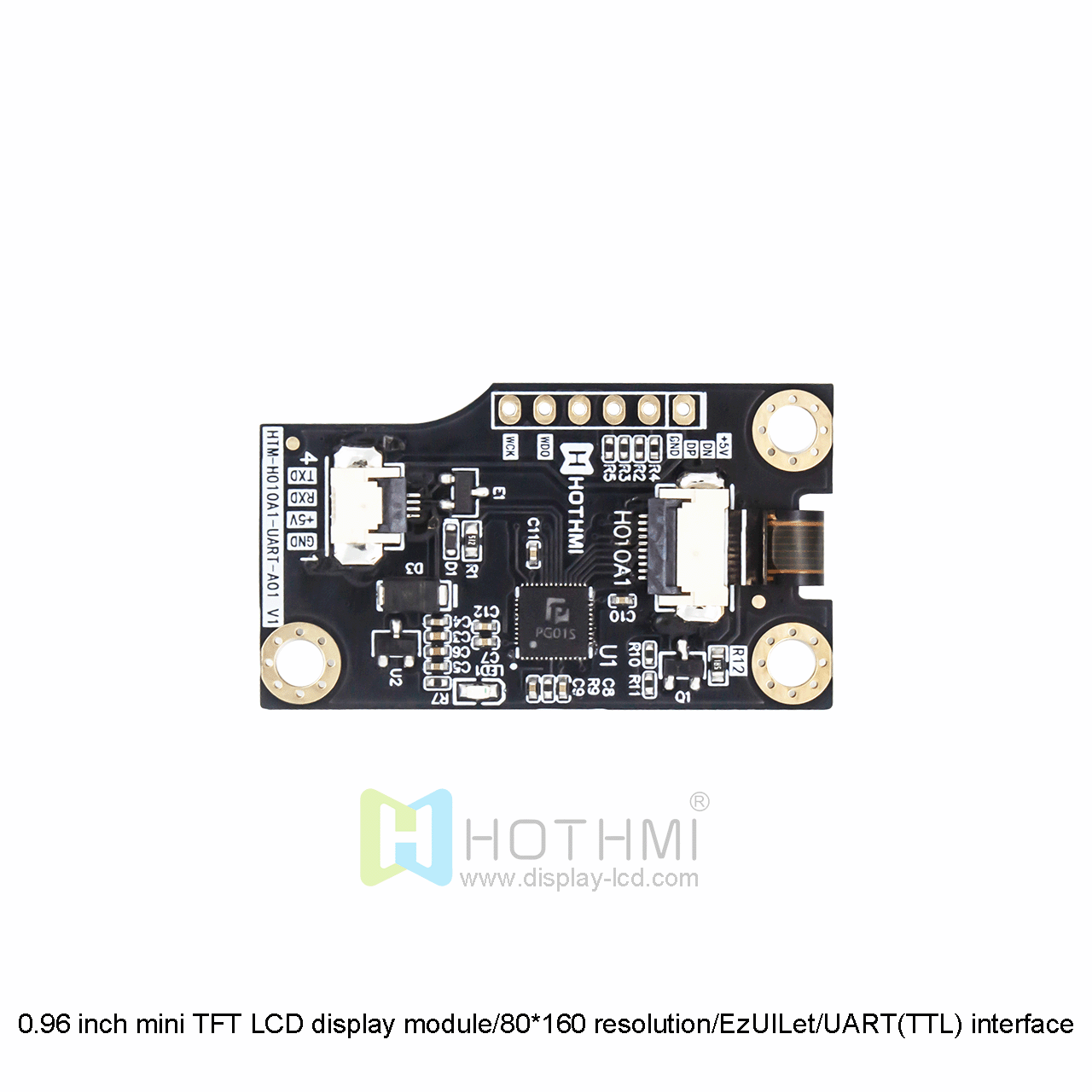

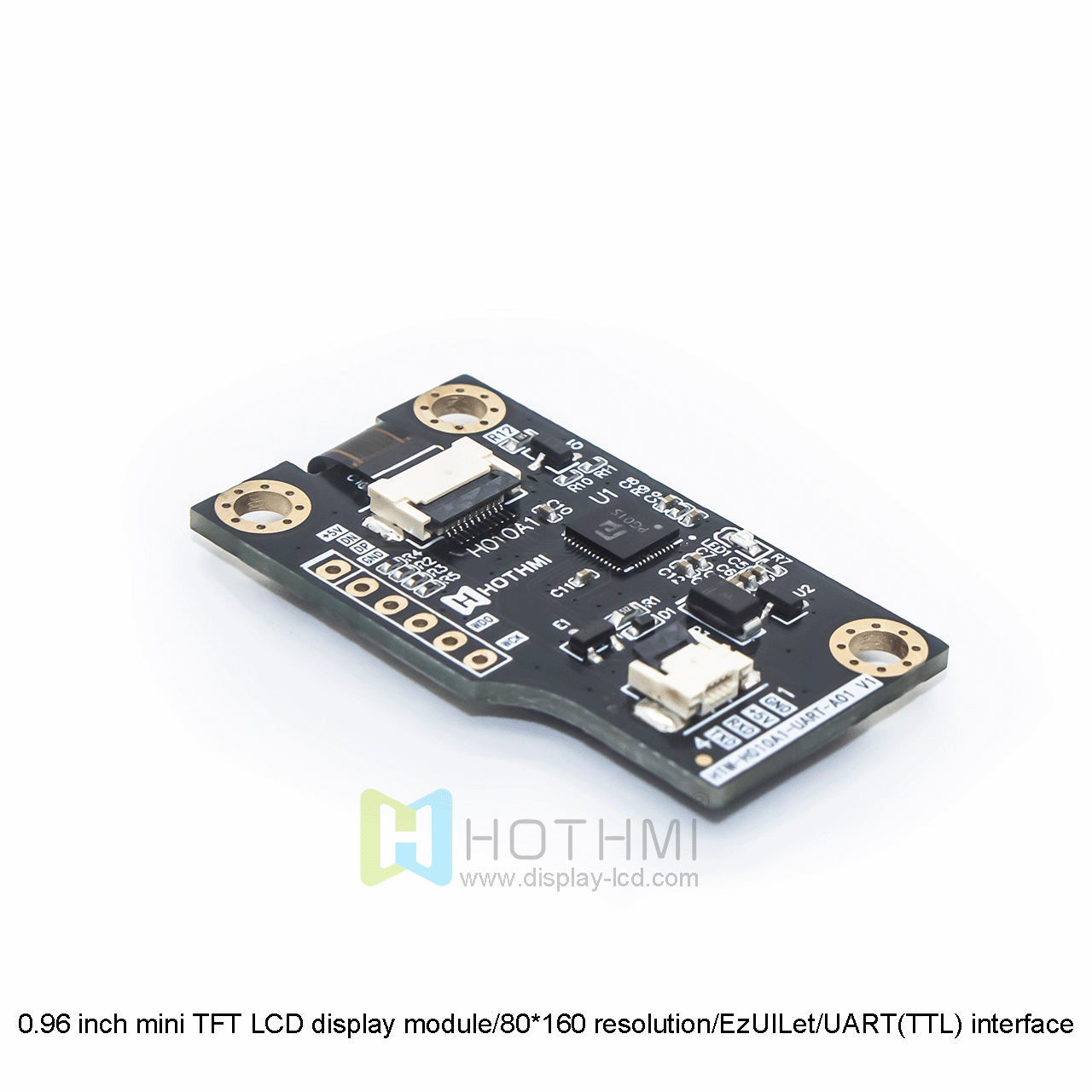

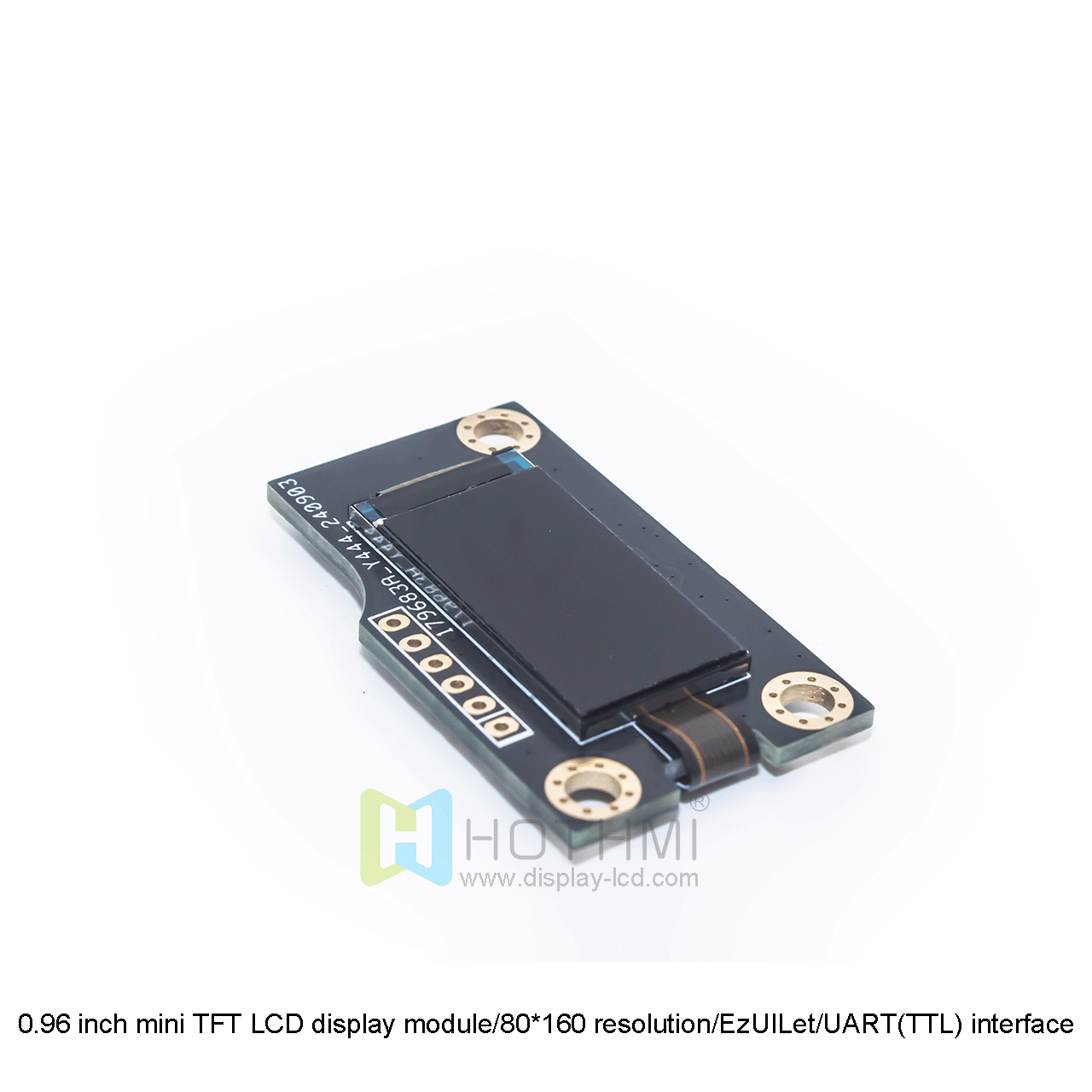

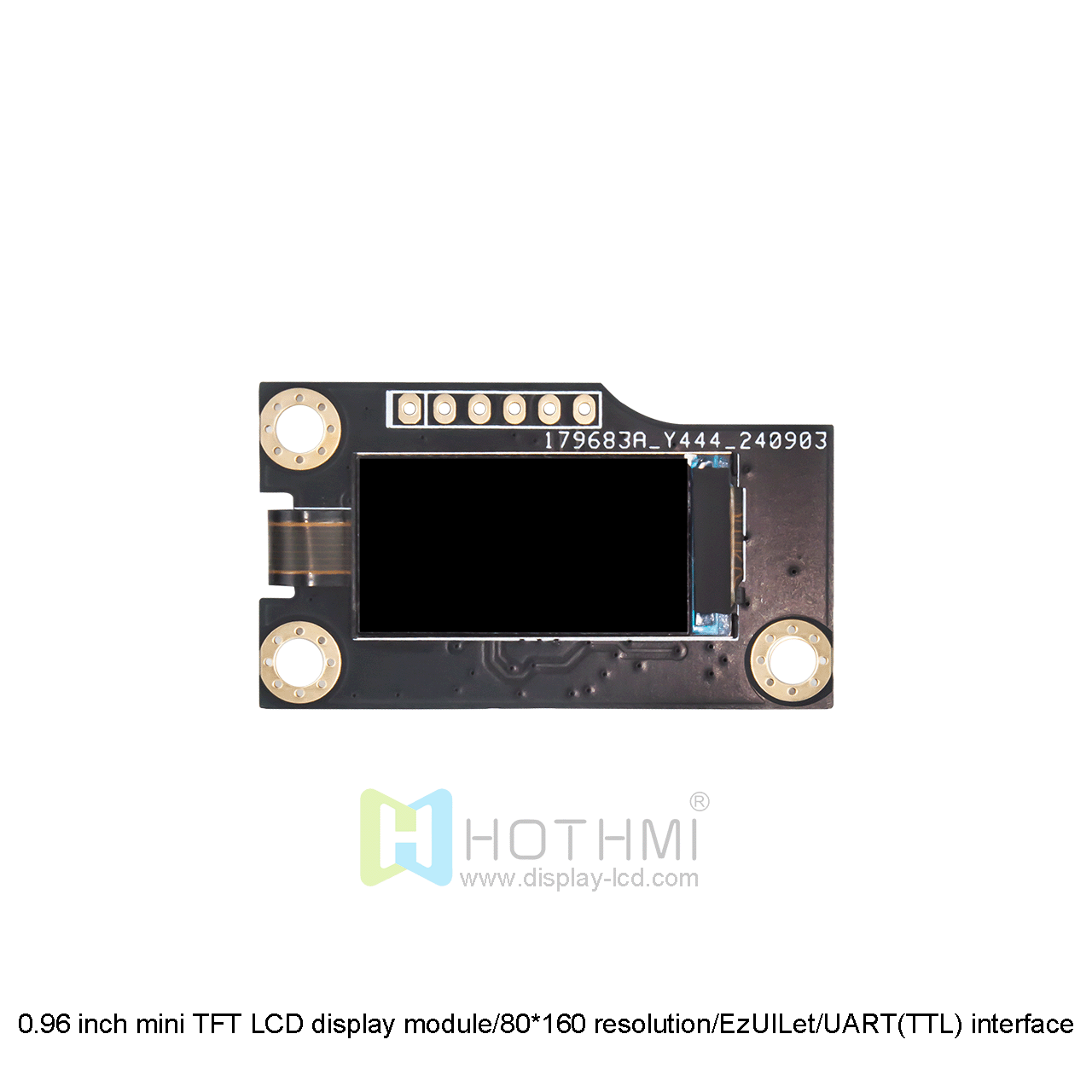

0.96 inch TFT LCD display modules | 80*160 EzUILet UART(TTL) LCD Display Screen

0.96 inch TFT LCD display modules | 80*160 EzUILet UART(TTL) LCD Display Screen

▶ Model: HTM-H010A1-UART-A01

▶ Type: TFT module
▶ Display pixels: 80x160 Px

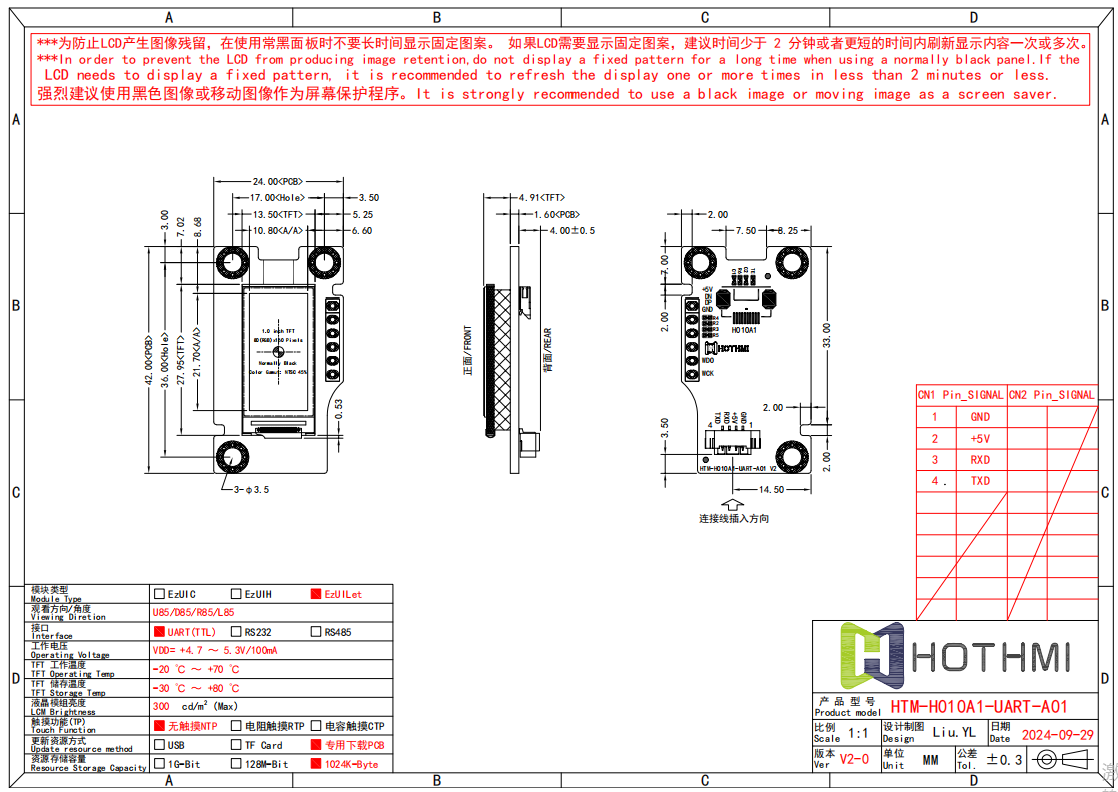

▶ Dimensions (mm): 24.0X42.0X4.9
▶ Effective size (mm): 10.8X21.7
▶ Display inches: 0.96"
▶ Application: handheld devices, mini home appliances
▶ Viewing angle: U85/D85/R85/L85
▶ Brightness: 300cd/M²
▶ Pin: 4 PIN
▶ Interface: UART (TTL)
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: VDD= +4.7 ~ 5.3V/100mA
▶ Update resource method: dedicated download PCB
▶ Driver chip：ST7735S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Specification
Attributes

0.96 inch TFT LCD display modules | 80*160 EzUILet UART(TTL) LCD Display Screen
This 0.96-inch TFT LCD display module HTM-H010A1-UART-A01 is a wide temperature mini LCD display module. This product does not have a touch function, the resolution is 80x160 pixels, and the display is very clear. This HTM-H010A1-UART-A01 is suitable for the interface UART (TTL), has the advantage of a wider viewing angle, the best viewing direction: up 85/down 85/right 85/left 85, brightness 300 nits (typical) value), moderate power consumption, can be used for reference in micro handheld devices, household appliances and other displays. This product has a serial port module, and the typical operating voltage is 3.3V. It can operate at temperatures from -20°C to +70°C, and storage temperature from -30°C to +80°C.

This 0.96-inch TFT LCD module is developed from the product TFT-H010W21AIST4N8. Users can also choose the display TFT-H010W21AIST4N8 with 10 metal pins to complete the combination with the driver board. The driver board is equipped with the easy-to-operate EZUI system. For developers, it is simple and easy to operate. The same series of products can also provide touch function. The product complies with ROHS/FCC standards, and quality control strictly follows ISO9001:2015.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H010A1-UART-A01
Diagonal size	0.96”	Inch
Resolution	80X160	Dot
Dimensions	24.0X42.0X4.9	mm
Active area (AA)	10.8X2.7	mm
LCD type	MINI TFT Module	mm
Display viewing angle	U85/D85/R85/L85
Aspect ratio	5:1
Backlight type	LED white
TFT driver IC	_
Brightness	300	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
