Diagonal size conversion

The meaning of "inch"

When describing the size of a display screen, we usually use inches as the unit. The "inch" here refers to the diagonal of the screen, not the length or width. For example, a "5-inch TFT display screen" refers to a display screen with a diagonal length of 128.5 mm (5 inches = 5*25.4 mm = 128.5 mm).

Continuing with the example of a 5-inch display, 7 inches only represents the diagonal of the display, so the ratio of the width and height of the display is not unique (the same diagonal can have several combinations of aspect ratios). Therefore, to accurately locate the size of a 5-inch display, the aspect ratio should also be stated. Common display aspect ratios are generally 4:3, 1:1, and 16:9.

In order to better understand the specific parameters of display screens of different sizes, HOT Display Technology has designed a "special conversion table" for you. Please download the following file for use.

LCD Diagonal Calculator.xlsx

Please refer to the following illustrations for instructions

(Note: 1. Only the blue part of the table can be entered with values, and the other areas are automatically converted. 2. The left side of the table shows the specific width and height converted into inches, while the right side can be converted into the width and height corresponding to various display ratios based on the inches)

Take a 5-inch TFT display as a reference example:

Product name: 5-inch IPS full viewing angle 480x854 resolution wide temperature

capacitive touch TFT display ST7701S suitable for industrial computers

▶ Model: TFT-H050A12FWIST4C40

▶ Product type: TFT vertical screen

▶ Aspect ratio: 6:10

▶ Display content: 480x854

▶ Dimensions (mm): 72x122.25x4.15

▶ Viewing window size (mm): 5.0

▶ Display size (mm): 5.0

▶ Effective size mm: 61.63x109.65

▶ Read more

The effective size of this 5-inch TFT display is 61.63x109.65mm

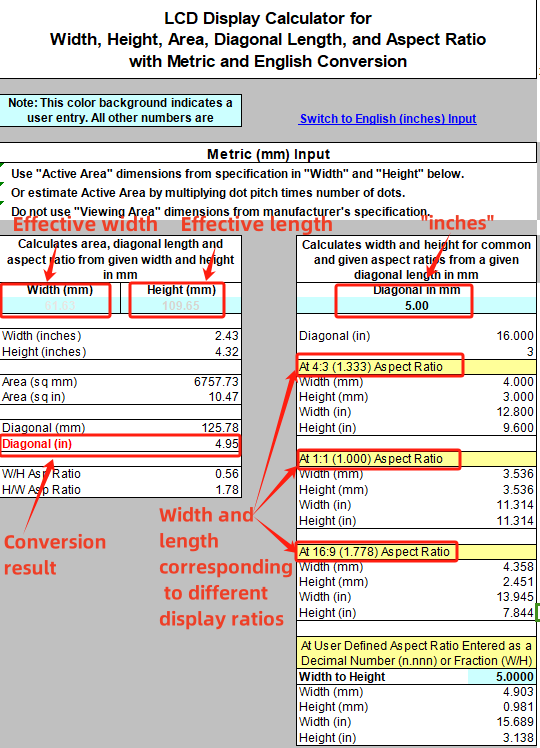

As shown in the figure below: We enter the corresponding effective width and length in the blue area on the left, and the conversion result below is 4.95 inches, so the size of this display is about 5 inches.

Conversely, if you enter 5 inches in the right area, you can get the specific width and height corresponding to different display ratios.
