Hot Display Technology Early October 2024 Electronic Newsletter Focus Information

Welcome to read the October 2024 Xinhongtai eNewsletter!

Circular displays are widely used in many fields, mainly because of their unique appearance design and functional advantages. Hot Dispay has developed circular displays of various sizes, resolutions, with or without touch functions. This month, the editor will take you into the world of circular screens and open up a new product design route!

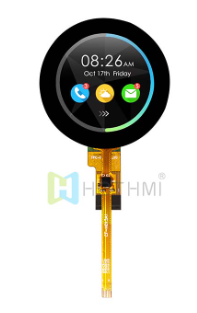

1.28 inch Round IPS SPI TFT LCD Display Sunlight Readable GC9A01

▶ Model: TFT-H013A6QQIGC7N10-V1

▶ Type: TFT round

▶ Display pixels: 240x240 Px

▶ Dimensions (mm): 35.6x38.1x1.6

▶ Display inches: 1.28"

▶ Effective size (mm): 32.4x32.4

▶ Application: smart wearable, instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 750cd/M2

▶ Pin: FPC-10PIN

▶ Interface: SPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 2.8V

▶ Driver chip: GC9A01

▶ Read more

1.3 inch round HD IPS LCD display 240x240 sunlight viewable GC9A01

▶ Model: TFT-H013A6QQIGC7N10

▶ Type: TFT round

▶ Display pixels: 240x240 Px

▶ Dimensions (mm): 35.6x38.1x1.6

▶ Display inches: 1.3"

▶ Effective size (mm): 32.4x32.4

▶ Application: smart wearable, instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 750cd/M2

▶ Pin: FPC-10PIN

▶ Interface: SPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 2.8V

▶ Driver chip: GC9A01

▶ Read more

1.3 inch round IPS MIPI TFT LCD display capacitive touch ST7796DW

▶ Model: TFT-H013A1HQIST2C16

▶ Type: TFT round

▶ Display pixels: 320x320 Px

▶ Dimensions (mm): 44x44x3.03

▶ Display inches: 1.3"

▶ Effective size (mm): 33.12x33.12

▶ Application: smart wearable, instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 250cd/M2

▶ Pin: FPC-16PIN

▶ Interface: MIPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7796DW

▶ Read more

1.5-inch round TFT LCD display 360x360 dot matrix/IPS full viewing angle/wide temperature/ST77916/optional touch screen

▶ Model: TFT-H015A05ZNIST3N10

▶ Type: TFT round screen

▶ Display pixels: 360x360 dot matrix

▶ Dimensions (mm): 39.3x40.96x1.6

▶ Display inches: 1.5"

▶ Effective size (mm): 37.3x37.3

▶ Application: C8051/Arduino/STM32

▶ Viewing angle: IPS (U80/D80/L80/R80)

▶ Brightness: 300cd/m2

▶ Pin: FPC-10PIN

▶ Interface: SPI-4L

▶ Special tips: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST77916

▶ Read More

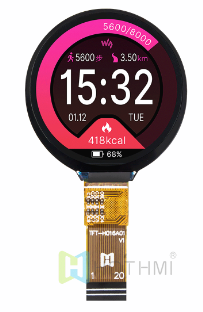

1.6-inch round TFT LCD display/MIPI interface/400x400 dots/IPS full viewing angle/wide temperature/ST7797/optional touch screen/compatible with Android

▶ Model: TFT-H016A01ZGIST4N20

▶ Type: TFT round screen

▶ Display pixels: 400x400 dot matrix

▶ Dimensions (mm): 42.14x44.34x1.95

▶ Display inches: 1.6"

▶ Effective size (mm): 39.84x39.84

▶ Application: C8051/Arduino/STM32

▶ Viewing angle: IPS (U80/D80/L80/R80)

▶ Brightness: 450cd/m2

▶ Pin: FPC-20PIN

▶ Interface: MIPI

▶ Special tips: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7797

▶ Read more

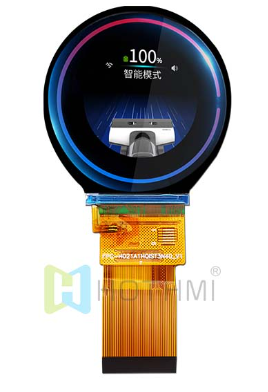

2.1-inch round TFT LCD display, 480×480 pixels, IPS, ST7701S

▶ Model: TFT-H021A1HQIST5N40

▶ Type: TFT round

▶ Display pixels: 480x480 Px

▶ Dimensions (mm): 56.18x59.71x2.26

▶ Display inches: 2.1"

▶ Effective size (mm): 53.28x53.28

▶ Application: smart home appliances, sweeping robots

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 550cd/M²

▶ Pin: FPC-40PIN

▶ Interface: RGB

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7701S

▶ Read more

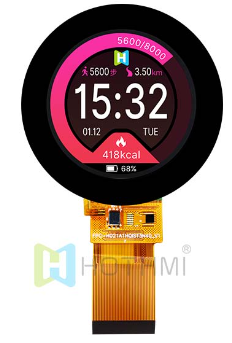

2.1 inch TFT LCD display IPS round capacitive touch screen 480×480 pixels ST7701S

▶ Model: TFT-H021A1HQIST4C40

▶ Type: TFT round

▶ Display pixels: 480x480 Px

▶ Dimensions (mm): 71.26x71.26x3.46

▶ Display inches: 2.1"

▶ Effective size (mm): 53.28x53.2

▶ Application: smart home appliances, sweeping robots

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 450cd/M²

▶ Pin: FPC-40PIN

▶ Interface: RGB

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7701S

▶ Read more

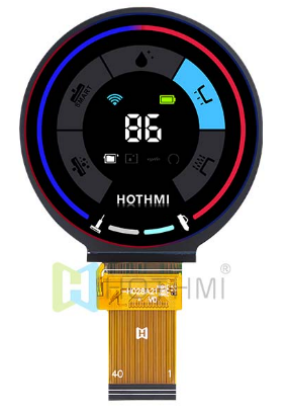

2.8 inch TFT LCD display Round IPS 480×480 pixels ST7701S

▶ Model: TFT-H028A21ZHIST3N40

▶ Type: TFT round

▶ Display pixels: 480x480 Px

▶ Dimensions (mm): 70.032x76.478x2.3

▶ Display inches: 2.8"

▶ Effective size (mm): 70.128x70.128

▶ Application: smart home appliances,

 sweeping robots

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 300cd/M²

▶ Pin: FPC-40PIN

▶ Interface: RGB

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7701S

▶ Read more

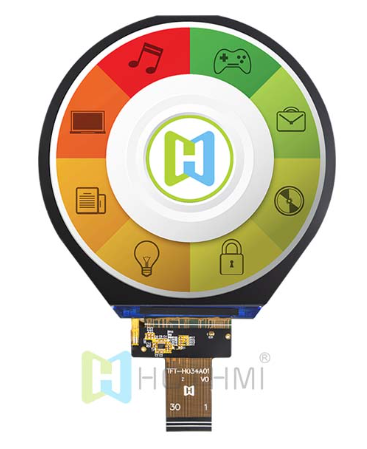

3.4 inch MIPI DSI circular capacitive touch screen 800×800 pixels IPS display panel full lamination process

▶ Model: TFT-H034A01ZJINV4C30

▶ Type: TFT round

▶ Display pixels: 800x800 Px

▶ Dimensions (mm): 109.2x113.47x3.75

▶ Display inches: 3.4"

▶ Effective size (mm): 88.4x88.4

▶ Application: smart home appliances, industrial robots

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 450cd/M2

▶ Pin: FPC-30PIN

▶ Interface: MIPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: NV3051F, CST836U<CTP>

▶ Read more

3.4 inch MIPI DSI TFT LCD display screen 800×800 pixels IPS display panel full lamination process

▶ 型号: TFT-H034A01ZJINV5N30

▶ Type: TFT round

▶ Display pixels: 800x800 Px

▶ Dimensions (mm): 94.9x96.95x2.2

▶ Display inches: 3.4"

▶ Effective size (mm): 88.4x88.4

▶ Application: smart home appliances, industrial robots

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 550cd/M2

▶ Pin: FPC-30PIN

▶ Interface: MIPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: NV3051F

▶ Read More

For more round displays, please contact us directly!
