Hot Display has 21 years of experience in display manufacturing. We always keep pace with the times. When there is market demand, we keep up with the mainstream. After extensive research by Hot Display's senior technical engineering team, we decided to develop and launch a 6.2-inch golden size series display.

We have conducted countless experiments and improvements, striving to achieve perfection in every detail. Our design team constantly breaks through ourselves to create a stylish and practical appearance design; our engineering team strives for excellence to ensure that every function of the product can reach the industry-leading level; our marketing team has a deep understanding of user needs to ensure that the product can truly meet user expectations and needs.

This 6.2-inch TFT product includes three models: monochrome, bar, and high brightness. They not only embody the hard work and wisdom of our company's R&D team, but also represent our beautiful vision of future technological life.

6.2 inch TFT display product recommendation

Highly adaptable two-wheeled electric vehicle display screen/motorcycle display screen/two-wheeled electric vehicle capacitive screen/two-wheeled electric vehicle touch screen

Currently, the display screens used in two-wheeled electric vehicles and motorcycles, / capacitive screens of two-wheeled electric vehicles, touch screens of two-wheeled electric vehicles / capacitive screens of two-wheeled electric vehicles / touch screens of two-wheeled electric vehicles on the market are usually 5-inch or 7-inch screens, and 6-inch display screens have become a gap. 5-inch screens are too small and 7-inch screens are too large for use in some high-end motorcycle instruments, causing many high-end two-wheeled electric vehicle manufacturers to fall into a dilemma: "How to find a two-wheeled electric vehicle display screen with just the right size?" Hot Display's 6.2-inch  TFT "tailor-made" for two-wheeled electric vehicle displays / motorcycle displays / capacitive screens of two-wheeled electric vehicles / touch screens of two-wheeled electric vehicles will become the best solution.

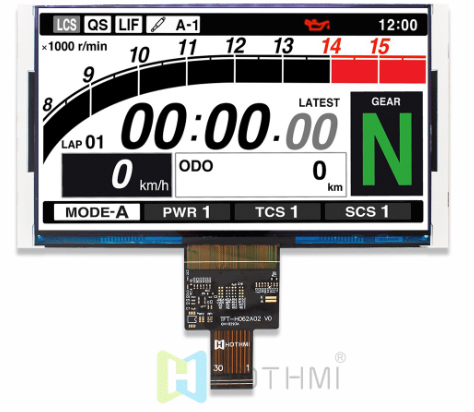

6.2-inch TFT LCD display 1024x600 dot matrix MIPI interface IPS full viewing angle wide temperature sunlight readable compatible with Android optional touch screen

▶ Model: TFT-H062A02WSIJDGN30

▶ Type: TFT horizontal screen

▶ Display pixels: 1024x600 Px

▶ Dimensions (mm): 155.3x88.3x4.7

▶ Display inches: 6.2"

▶ Effective size (mm): 137.47x77.23

▶ Application: electric vehicles, outdoor remote control

▶ Viewing angle: IPS (U85/D85/L85/R85)

▶ Brightness: 1700cd/m2

▶ Pin: FPC-30PIN

▶ Interface: MIPI/LVDS

▶ Special tips: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: NV3051

▶ Read more

Product Description:

TFT-H062A02WSIJDGN30 is a 6.2-inch color LCD module with a resolution of 1024x600, built-in NV3051 controller, optional touch screen, high picture quality, IPS wide viewing angle, support MIPI/LVDS interface, 16.7M HD, wide temperature -30~80℃, 1700cd/m² visible in sunlight, FPC connection (optional connector), 2.8V~3.3 voltage, support vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, vehicles, smart homes, medical, smart devices, etc., suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip development platforms.

Product highlights:

1. Ultra-high brightness visible in sunlight: The brightness of general display screens is 500cd/m2, and the brightness of this TFT-H062A02WSIJDGN30is as high as 1700cd/m2, which is more than 3 times higher.

2. Wide temperature range -30℃～80℃, no fear of severe cold, no fear of high temperature.

3. Electric vehicle display screen 6.2 inches golden size

4. High color gamut

5. IPS full viewing angle, high-definition picture quality

6. Suitable for display screens of two-wheeled electric vehicles and motorcycles, / capacitive screens of two-wheeled electric vehicles, touch screens of two-wheeled electric vehicles / capacitive screens of two-wheeled electric vehicles / touch screens of two-wheeled electric vehicles

Other suitable for two-wheeled electric vehicles, motorcycle display displays, / two-wheeled electric vehicle capacitive displays, two-wheeled electric vehicle touch displays/ two-wheeled electric vehicle capacitive displays / two-wheeled electric vehicle touch displays: (link)

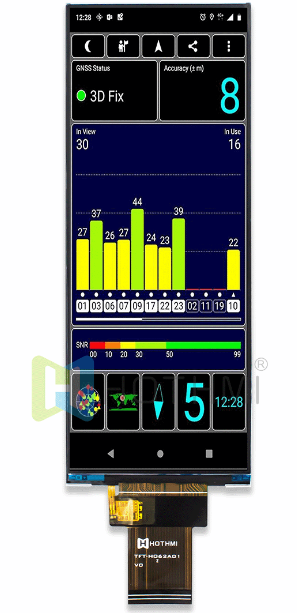

Full viewing angle IPS/6.2 inch TFT LCD display module/360x960 dot matrix color screen module/RGB interface ST7701S/STM32

▶ Model: TFT-H062A01ZDIST2N40

▶ Type: TFT bar screen

▶ Display pixels: 360x960 Px

▶ Dimensions (mm): 58.20x155.0x2.30

▶ Display inches: 6.2"

▶ Effective size (mm): 55.3x147.46

▶ Application: STM32/RK series

▶ Viewing angle: IPS (U89/D89/L89/R89)

▶ Brightness: 250cd/m2

▶ Pin: FPC-40PIN

▶ Interface: RGB 24 Bit

▶ Special reminder: Anti-static ESD 8KV

▶ Operating temperature: -20~60℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7701S

▶ Read more

Product description:

TFT-H062A01ZDIST2N40 is a 6.2-inch full-view IPS color LCD display module, 360x960 resolution, built-in ST7701S controller, optional resistive touch screen and capacitive touch screen (built-in GT911 controller), high image quality, wide viewing angle, support RGB interface, 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage, support vertical screen display. All materials meet environmental protection requirements RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of single-chip development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

6.2 inch TFT monochrome display 640x320 PX high brightness and high contrast

▶ Model: HTM062A02-Mono

▶ Type: monochrome TFT

▶ Display pixels: 640X320 Px

▶ Dimensions (mm): 165.4X92.4X5.8

▶ Diagonal size: 6.2"

▶ VA size (mm): 140x66

▶ Application: Instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 500cd/M²

▶ Pin: FPC-20PIN

▶ Interface: MCU

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Supply voltage: 3.3V

▶ Driver chip: TBD

▶ Read more

Product Description:

The 6.2-inch MONO black and white TFT LCD display is a monochrome TFT product designed for instrumentation applications. It has a 640X320 pixel resolution, a 6.2-inch diagonal size, and an IPS full viewing angle, ensuring clear display at various viewing angles.

The product dimensions are 165.4X92.4X5.8 mm, and the AA size is 140x66 mm, making it suitable for instrumentation designs with limited space. The backlight intensity is up to 500cd/M², ensuring a bright display under various lighting conditions.

The display uses FPC-20PIN pins and MCU interface methods, which is convenient for connection with various devices. The specially designed anti-static function prevents electrostatic interference, making it more suitable for various working environments. The operating temperature range is -20 to 70 degrees Celsius, and the supply voltage is 3.3V, providing stable electrical performance for various applications. The driver chip adopts TBD (to be determined) to meet the needs of different applications.

For more information about customized display screens for two-wheeled electric vehicles and motorcycles, / capacitive screens for two-wheeled electric vehicles, touch screens for two-wheeled electric vehicles / capacitive screens for two-wheeled electric vehicles / touch screens for two-wheeled electric vehicles / 6.2-inch TFT, please contact us directly!
