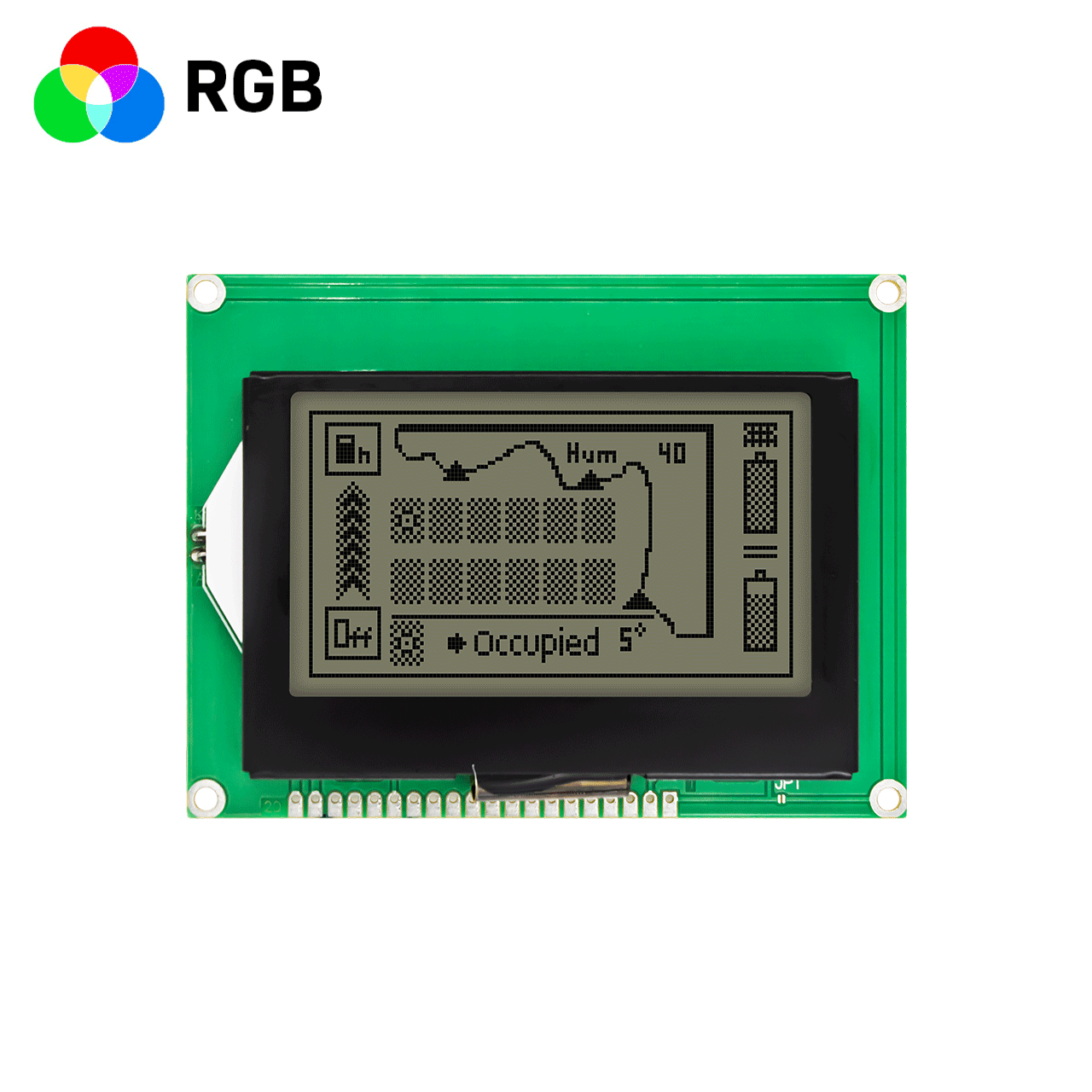

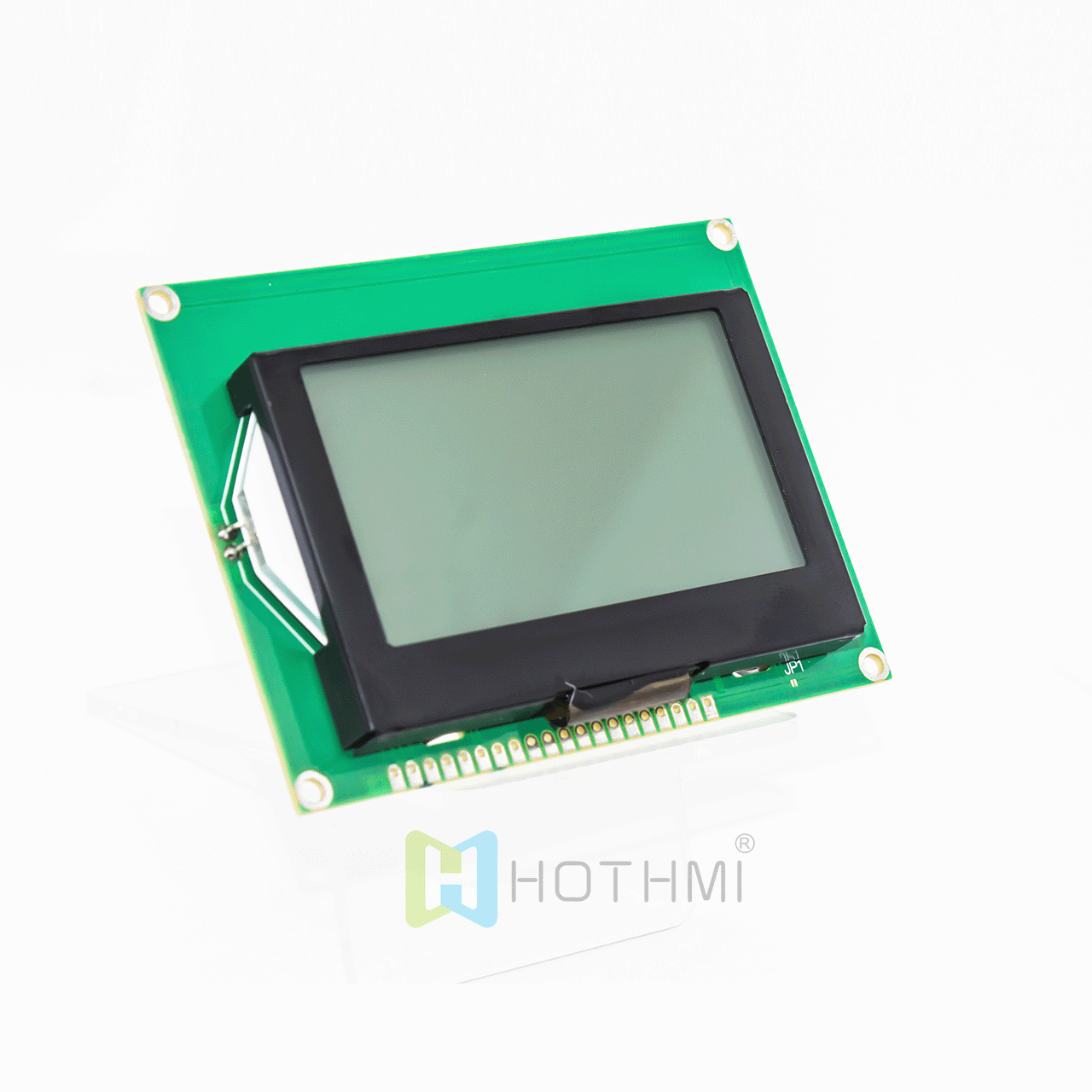

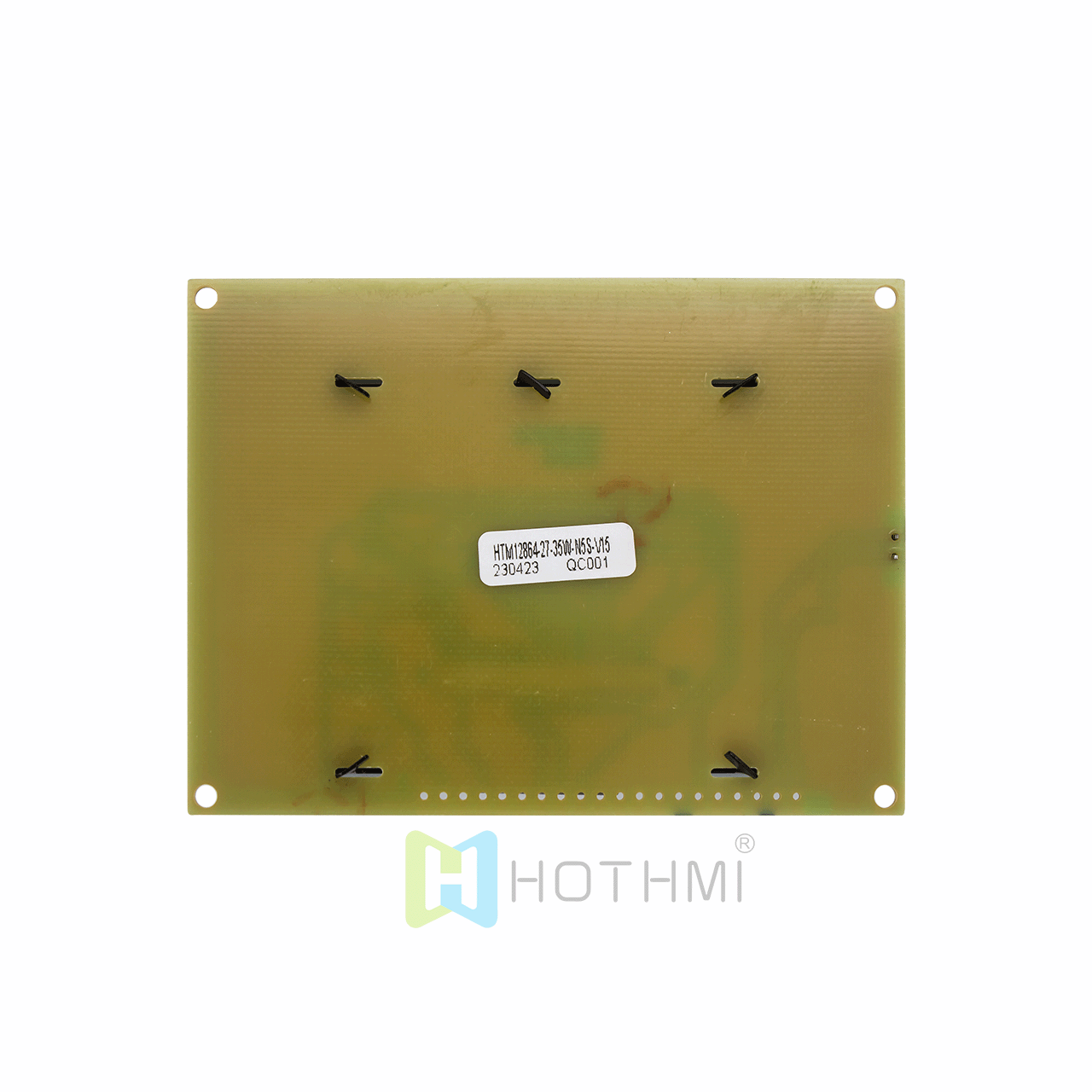

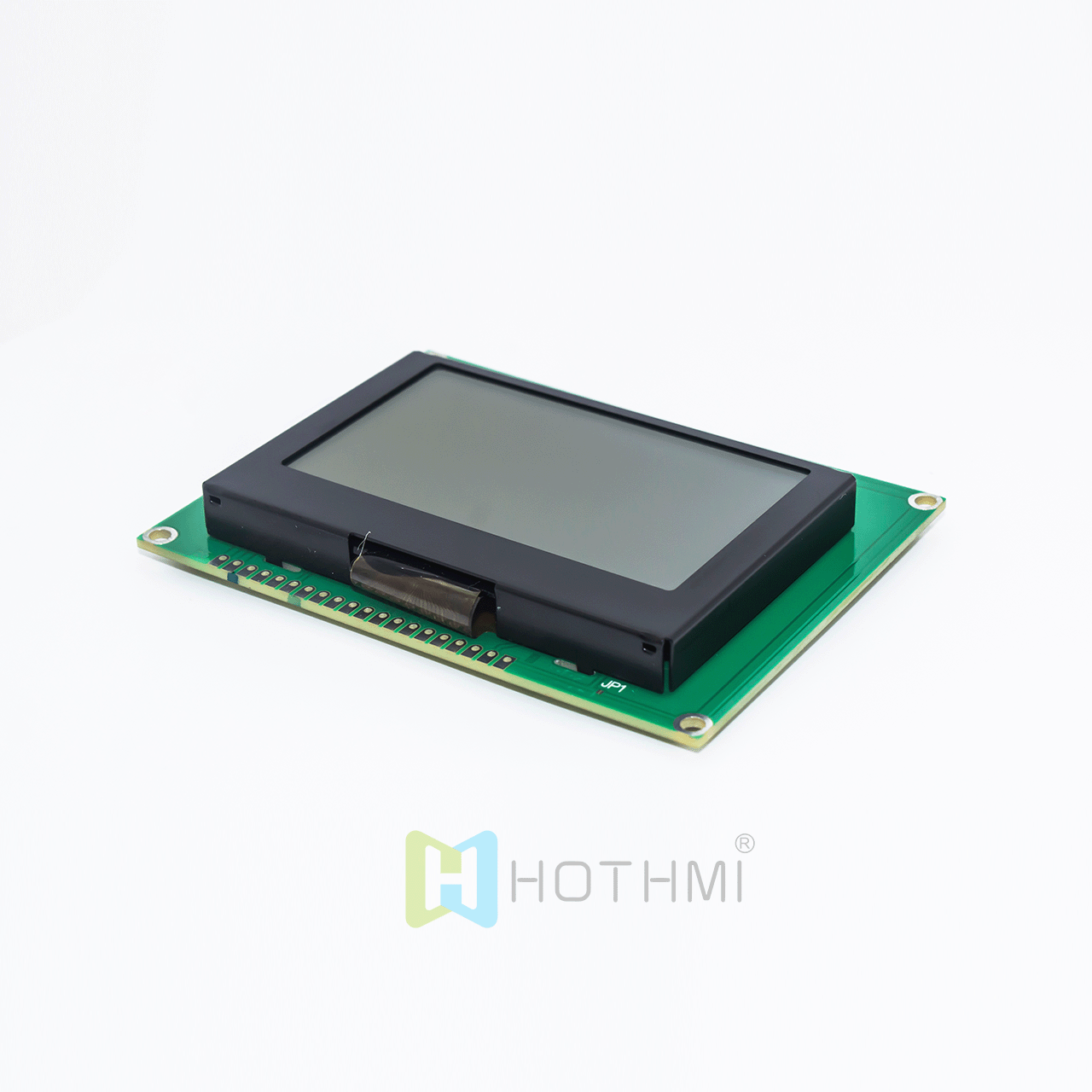

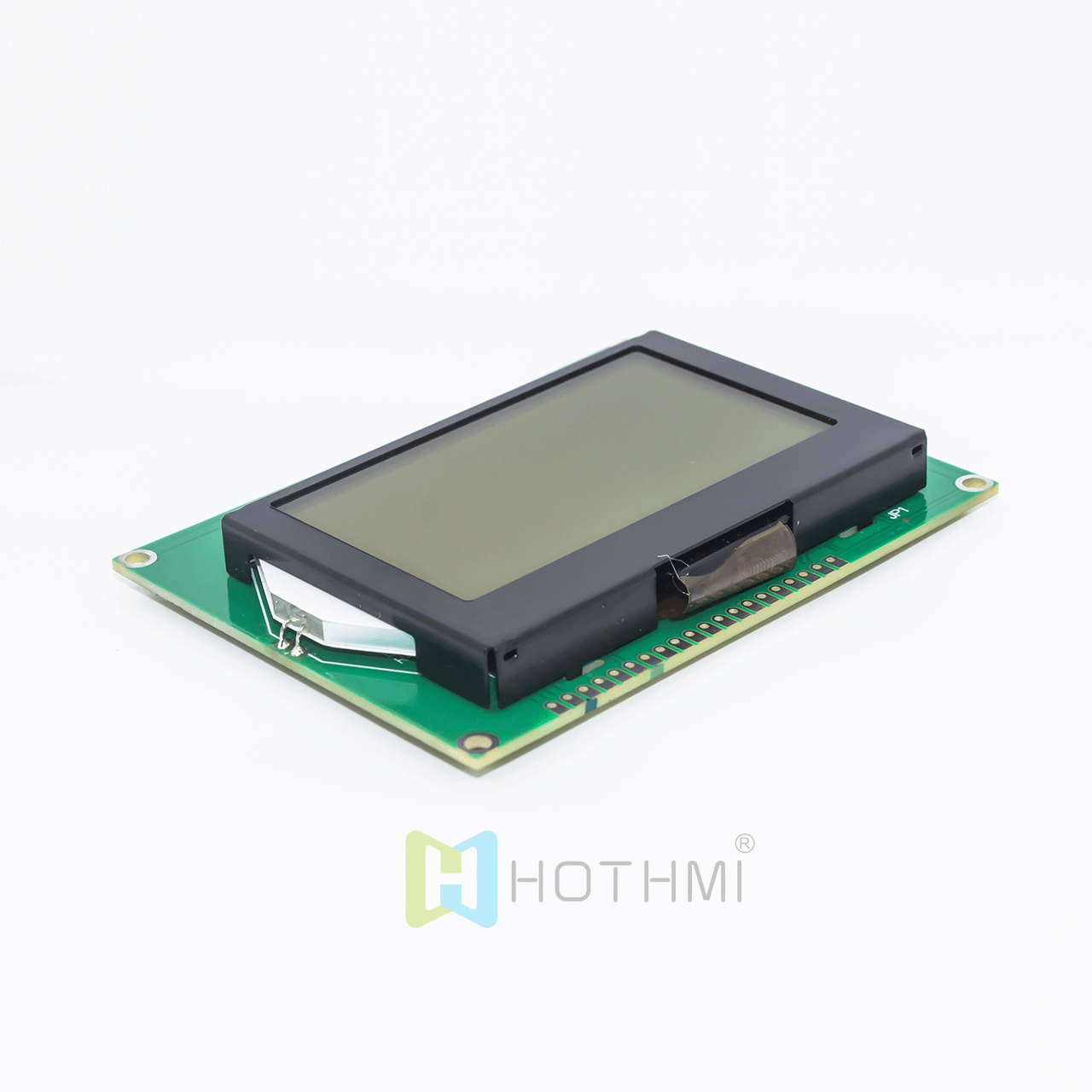

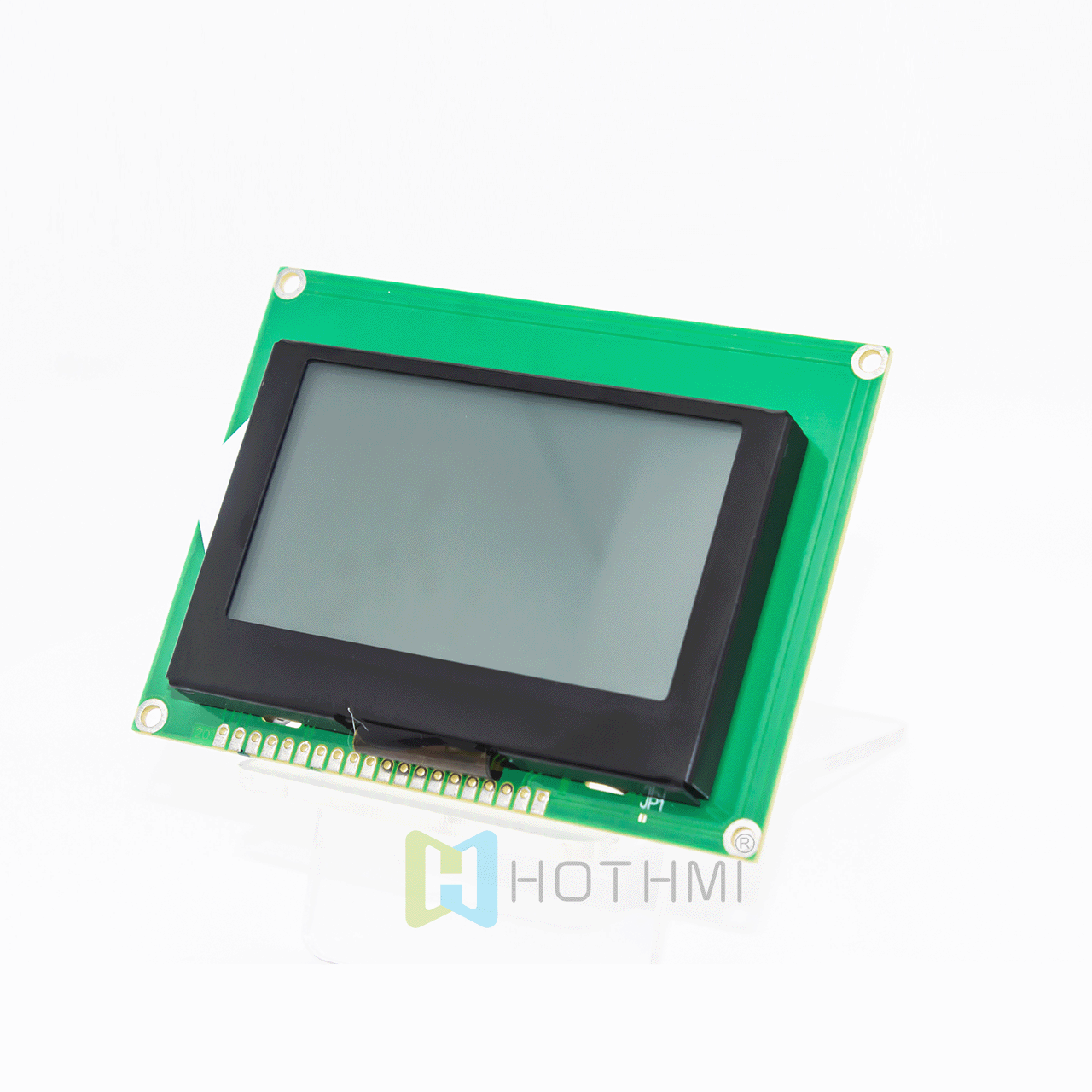

3-inch LCD graphic LCD module | 128x64 graphic dot matrix module | FSTN front display RGB red, green and blue backlight

3-inch LCD graphic LCD module | 128x64 graphic dot matrix module | FSTN front display RGB red, green and blue backlight | fully transparent polarizer

▶ Model: HTM12864-27-35S-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

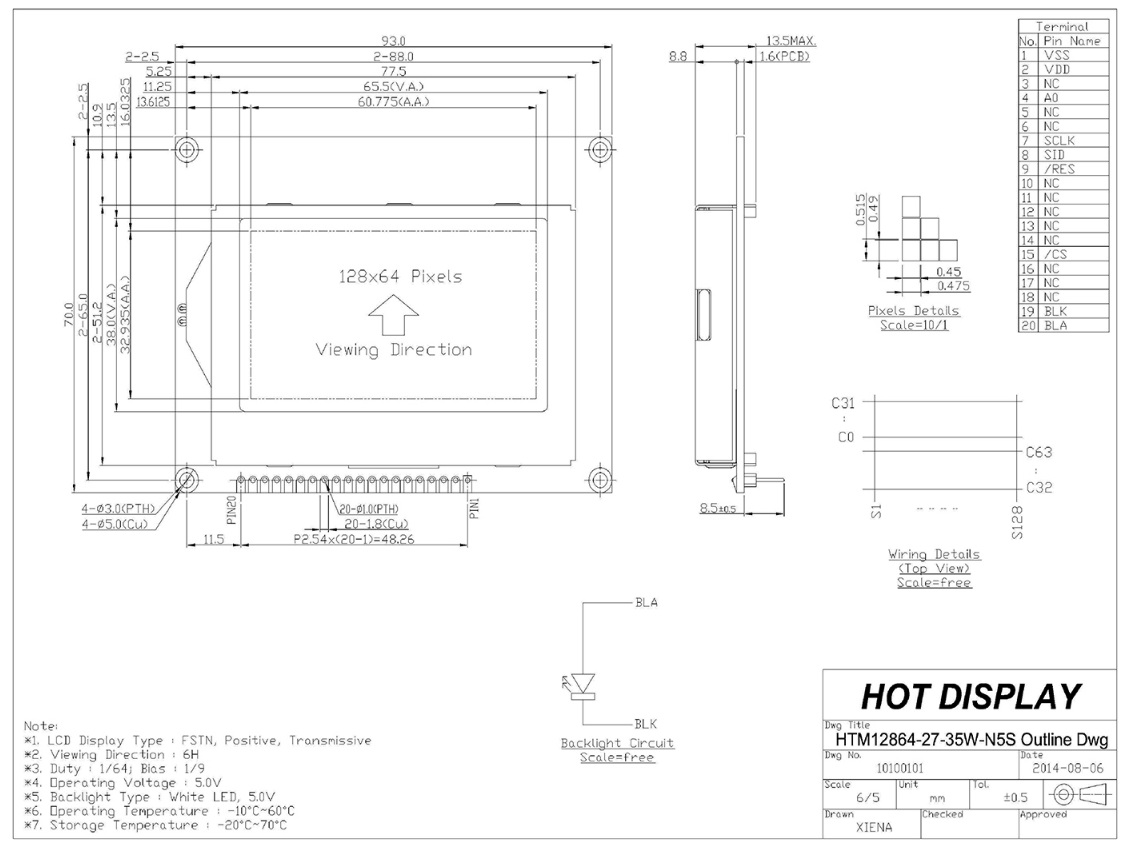

▶ Overall dimensions (mm): 93.0x70.0x13.5
▶ VA size (mm): 65.5x38.0
▶ AA size (mm): 60.775x32.935
▶ Point spacing (mm): 0.475x0.515
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: red green blue light
▶ Pin: 20PIN
▶ Interface mode: SPI
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

3-inch LCD graphic LCD module | 128x64 graphic dot matrix module | FSTN front display RGB red, green and blue backlight | fully transparent polarizer

This HOT Display 128x64 Graphic LCD module displays white pixels on a bright blue background and contains a white single LED backlight that can be easily dimmed via a resistor or PWM. This semi-transparent polarizer LCD is engineered to be stn positive. In darker environments, the LCD has a powerful built-in backlight that provides high contrast and displays clear graphics to the viewer. In bright conditions, the polarizer remains visible under reflection. This advanced display technology ensures No matter the lighting conditions, the display is always easy to read.

This graphic LCD module has built-in negative voltage. It can be easily controlled via 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi etc. It can be used in any embedded system, industrial equipment, security, medical and handheld devices. . The HTM12864-27-41W-A5P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

ITEM	SPECIFICATION	UNIT
model	HTM12864-11Y-35S-A5P
Column × Row	128columns × 64 lines	dots
Module size	93.0 x 70.0 x 13.5 (MAX)	mm
VA size	65.5（W） × 38（H）	mm
AA size	60.775 x 32.935	mm
Point (pixel) spacing	0.475（W） × 0.515（H）mm	mm
IC	ST7565R
Applied voltage	5V	V
backlight	Red green blue
model	FSTN+
Drive mode	1/64duty cycle
type	Graphic LCD
Polarizer type	TRANSMISSIVE
