7-inch TFT display TN 800x480px sunlight readable EK9716 RGB interface/can be equipped with touch screen

7-inch TFT display TN 800x480px sunlight readable EK9716 RGB interface/can be equipped with touch screen

▶ Model: TFT-H070A16SVTFTKN50

▶ Type: TFT TN display
▶ Display pixels: 800x480 Px

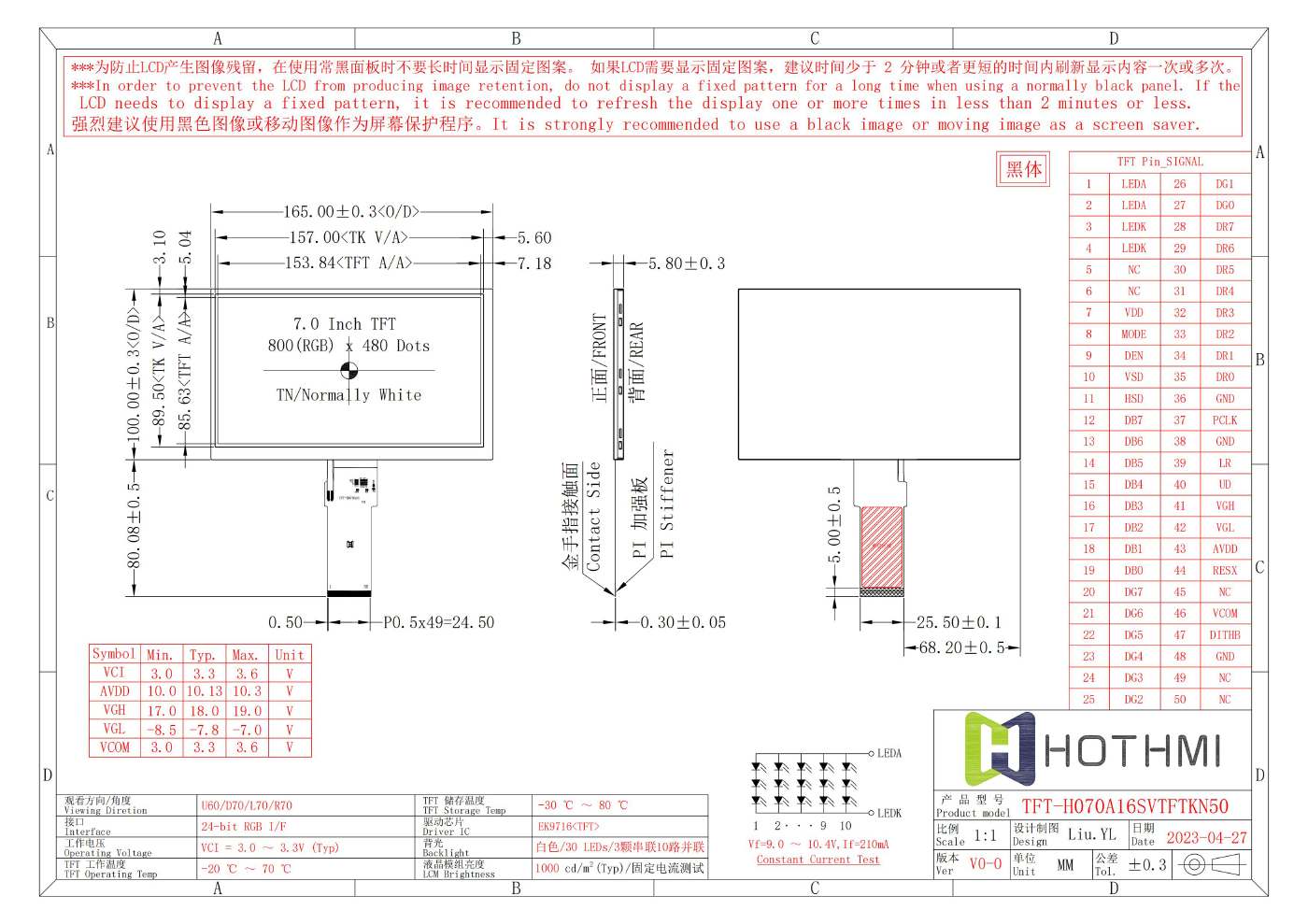

▶ Overall dimensions (mm): 165x101.55x7.50
▶ Display inches: 7.0"
▶ Effective size (mm): 153.84x85.63
▶ Application: STM32/RK series
▶ Viewing angle: TN/Normally White
▶ Brightness: 1000cd/m2
▶ Pin: FPC-50PIN
▶ Interface: 24-bit RGB
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK9716

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

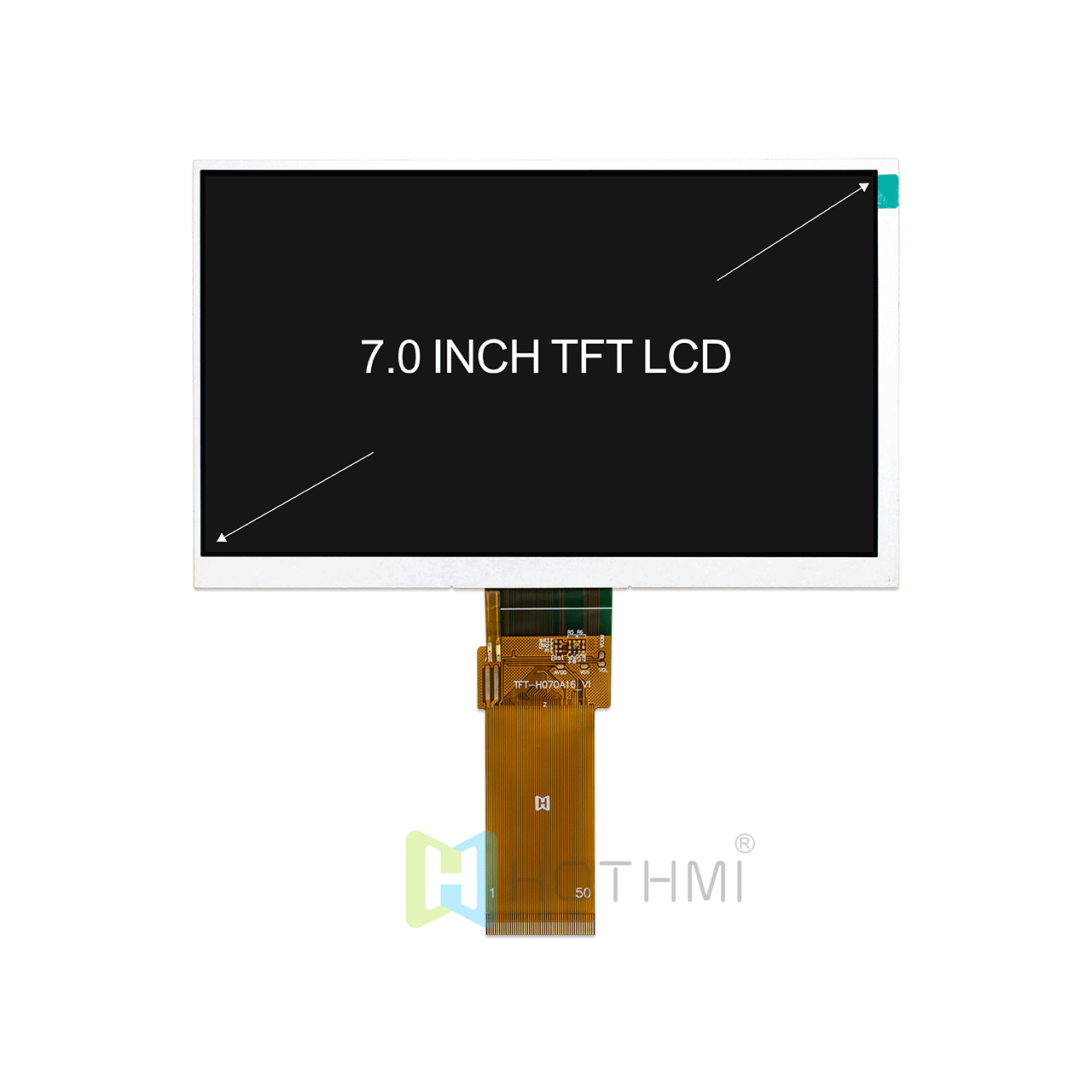

TFT-H070A16SVTFTKN50 | 7.0-inch TN-TFT-LCD | RGB interface | 800x480 pixel resolution LCD screen | optional capacitive touch/resistive touch | readable under sunlight

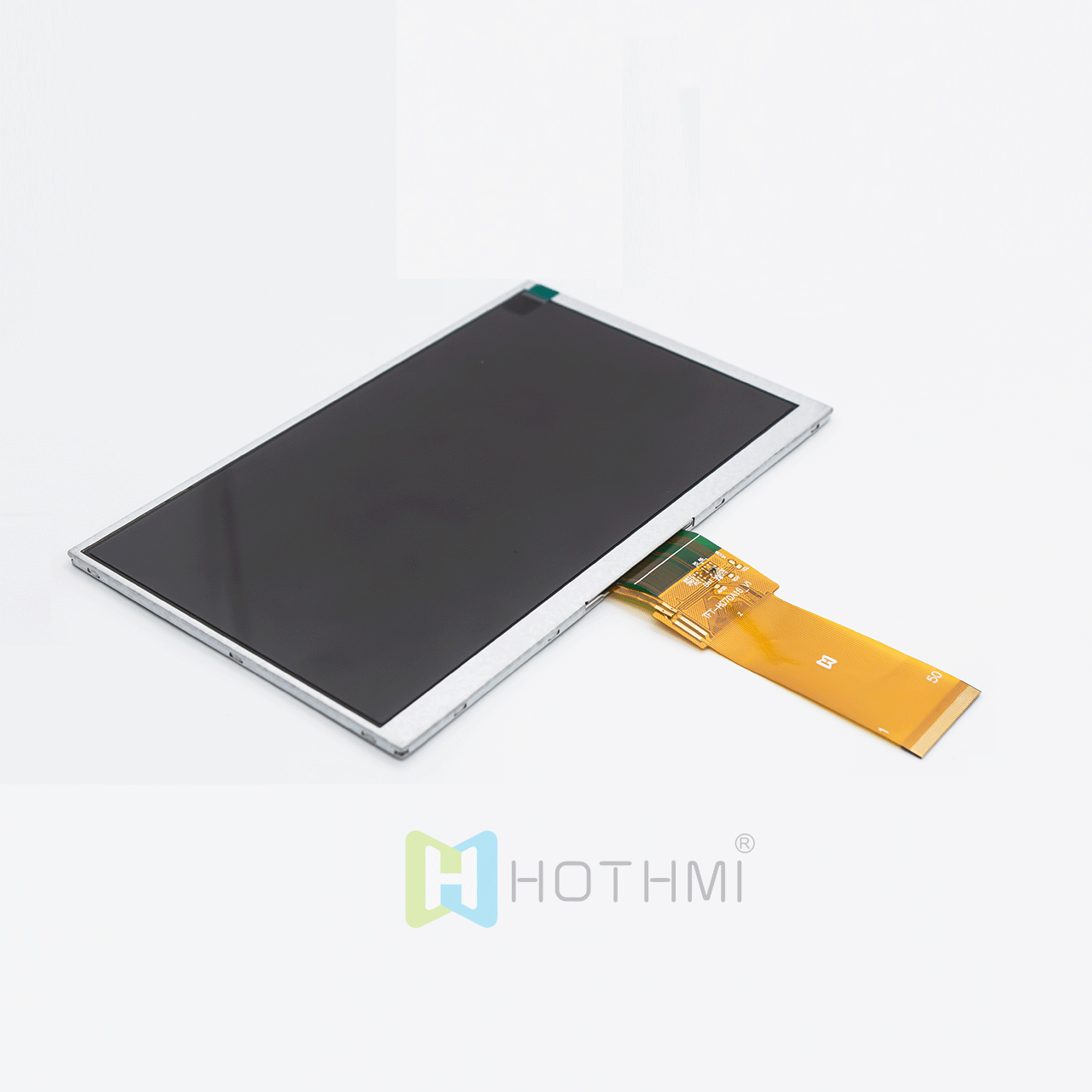

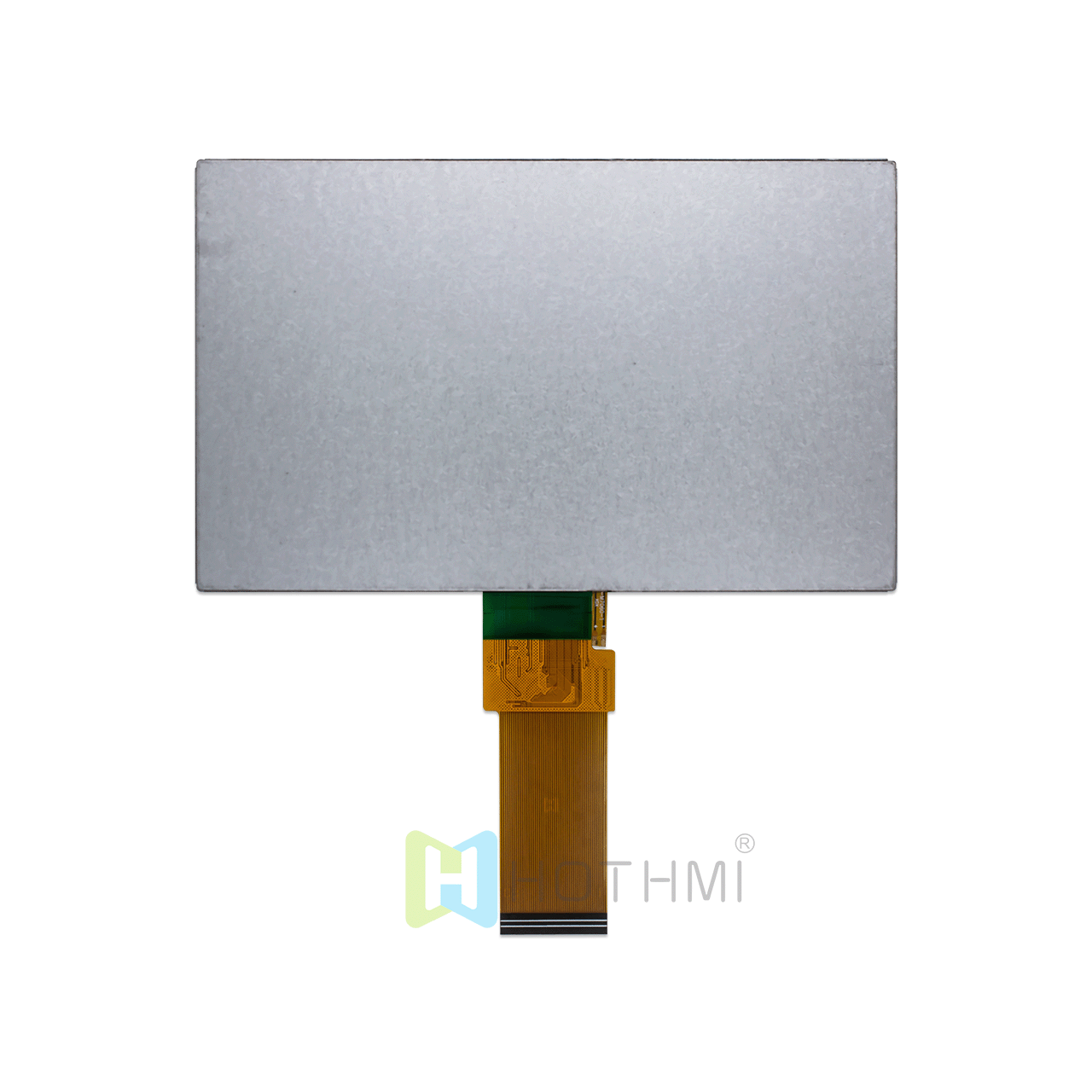

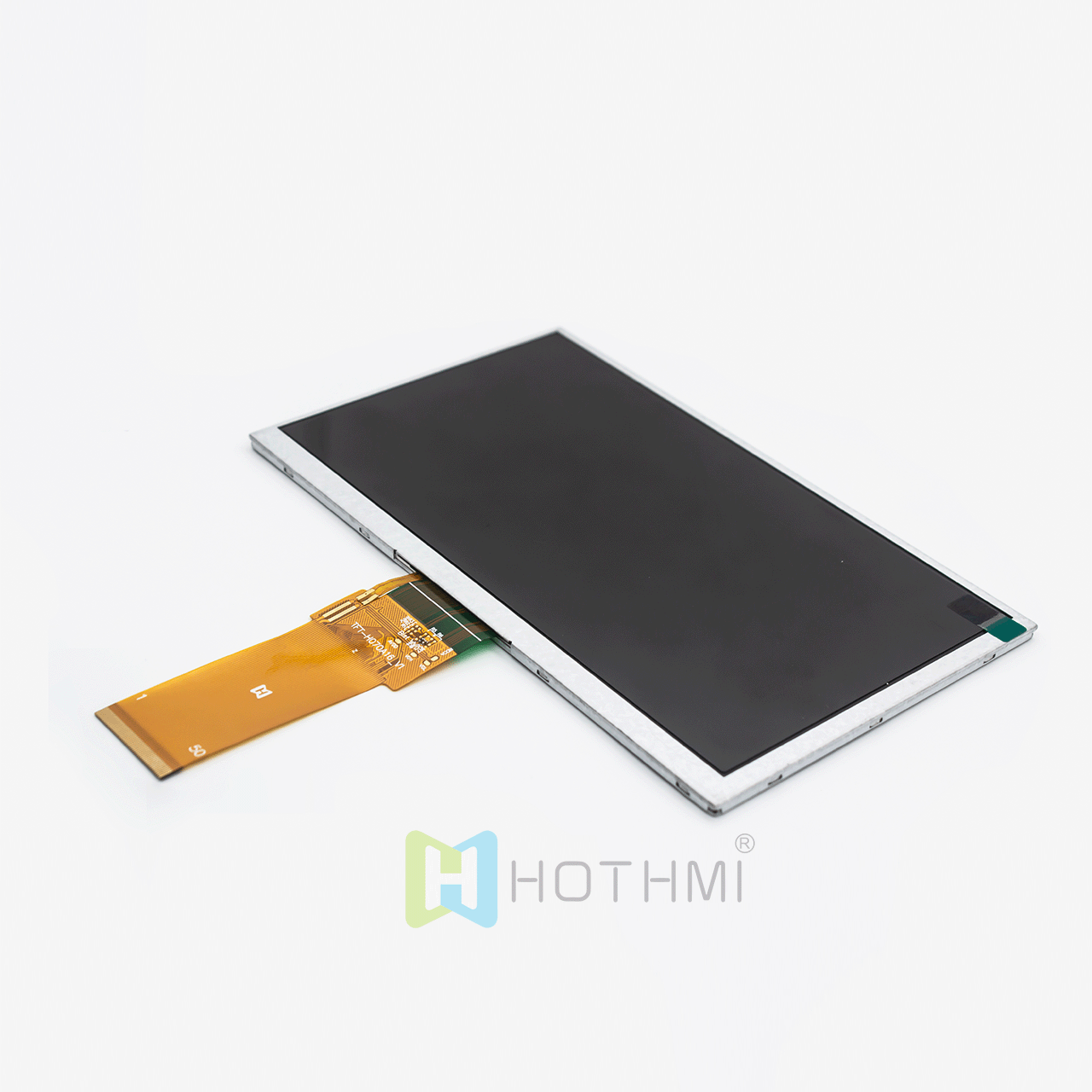

The TFT-H070A16SVTFTKN50 is a 7.0-inch TN display panel with a resolution of 800x480 pixels. It uses EK9716 display driver IC and plug-in FPC, which can be used with connectors. The TN technology used in this monitor offers wide viewing angles and excellent color reproduction, allowing you to easily view from all angles without distortion. The display features a high contrast ratio of 500:1, delivering deep blacks and vibrant colors. Can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc. .

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

parameter	Parameter Description	unit
TFT LCD	Standard TFT
Diagonal inches	7.0”	Inch
resolution	800 × RGB × 480 (TFT)	dots
Dimensions	165x101.55x7.50	mm
Size (AA) area	153.84x85.63	mm
LCD specifications	TFT, white, TN
Display perspective	6 o'clock direction/U60/D70/L70/R70
aspect ratio	2.8:5
Backlight specifications	LED, white
TFT driver chip	EK9716
Touch glass type	none
surface	Glossy
Display brightness	1000	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+85	°C
