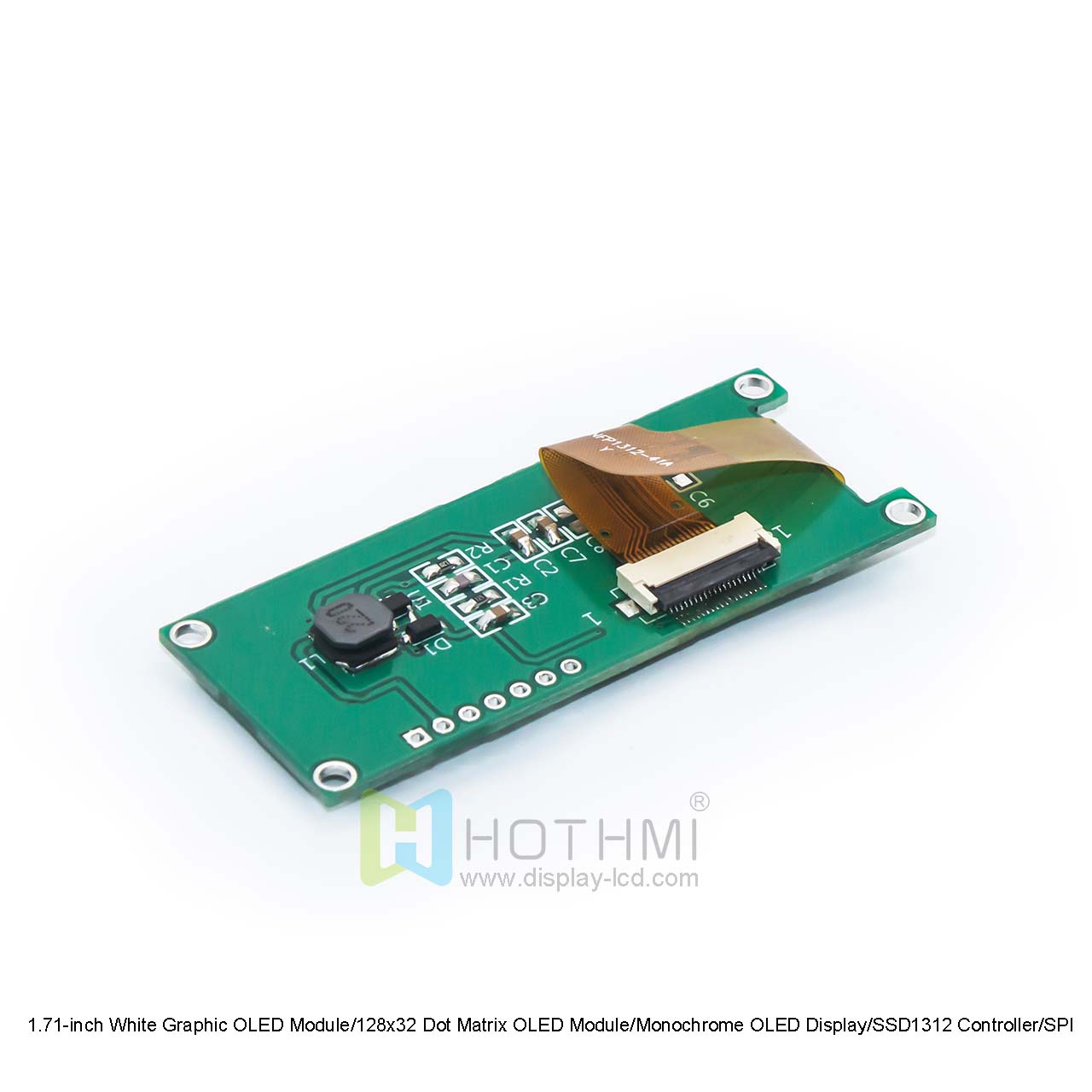

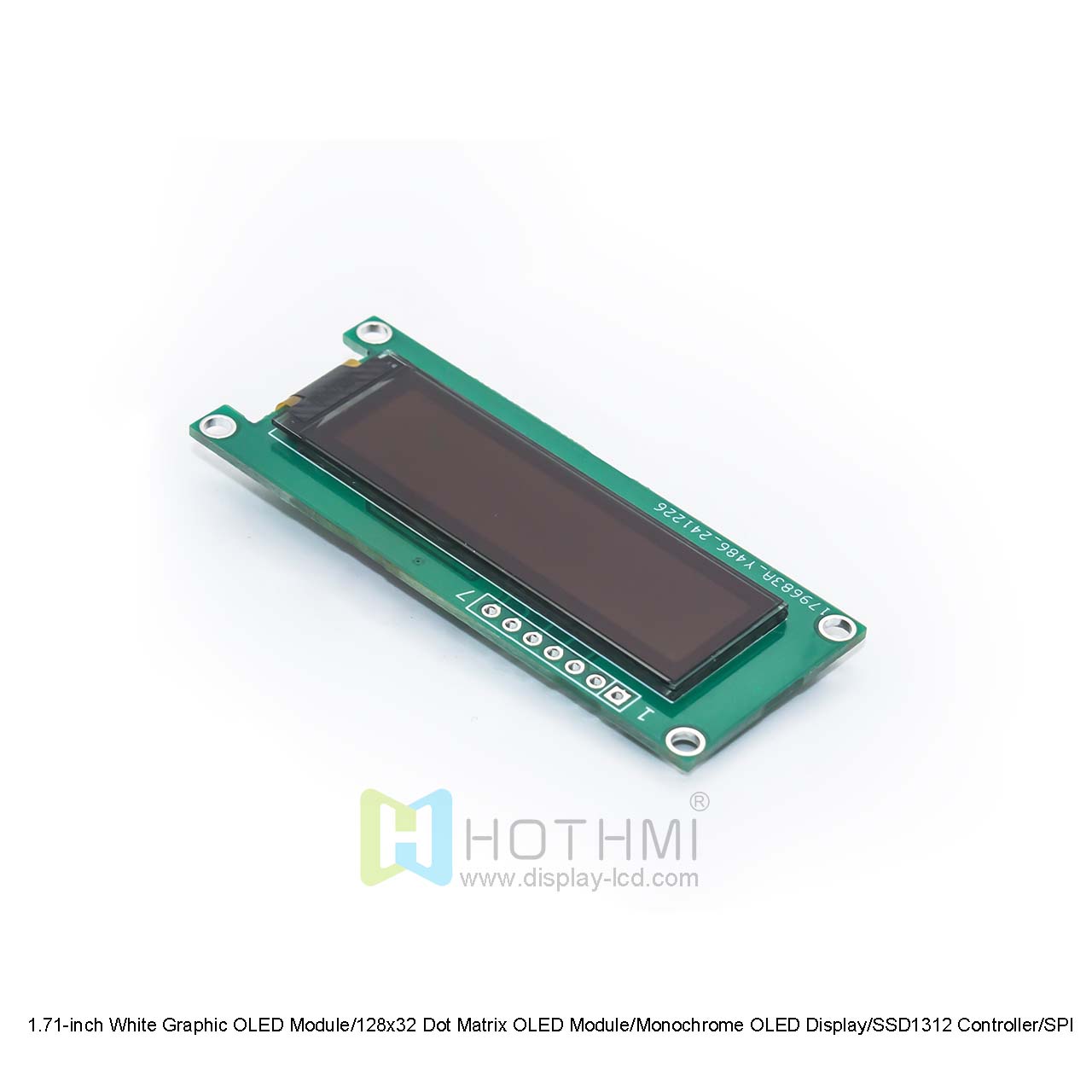

1.71-inch White Graphic OLED Module/128x32 Dot Matrix OLED Module/Monochrome OLED Display/SSD1312 Controller/SPI Interface/Arduino/STM32/C8051

1.71-inch White Graphic OLED Module/128x32 Dot Matrix OLED Module/Monochrome OLED Display/SSD1312 Controller/SPI Interface/Arduino/STM32/C8051

▶ Model: HTM-OLED1.71-SPI-W

▶ Display type: Graphic OLED module
▶ Display format: 128x32 pixels
▶ Appearance (mm): 62.5x25x3.2
▶ Display size: 1.71"
▶ VA (mm): 44.22x12.54
▶ AA (mm): 44.22x10.54
▶ Display color: Monochrome white
▶ Supply voltage: 3.3V
▶ Interface: SPI
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1312
▶ Operating temperature: -40°C ~ 80°C
▶ Storage temperature: -40°C ~ 90°C

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

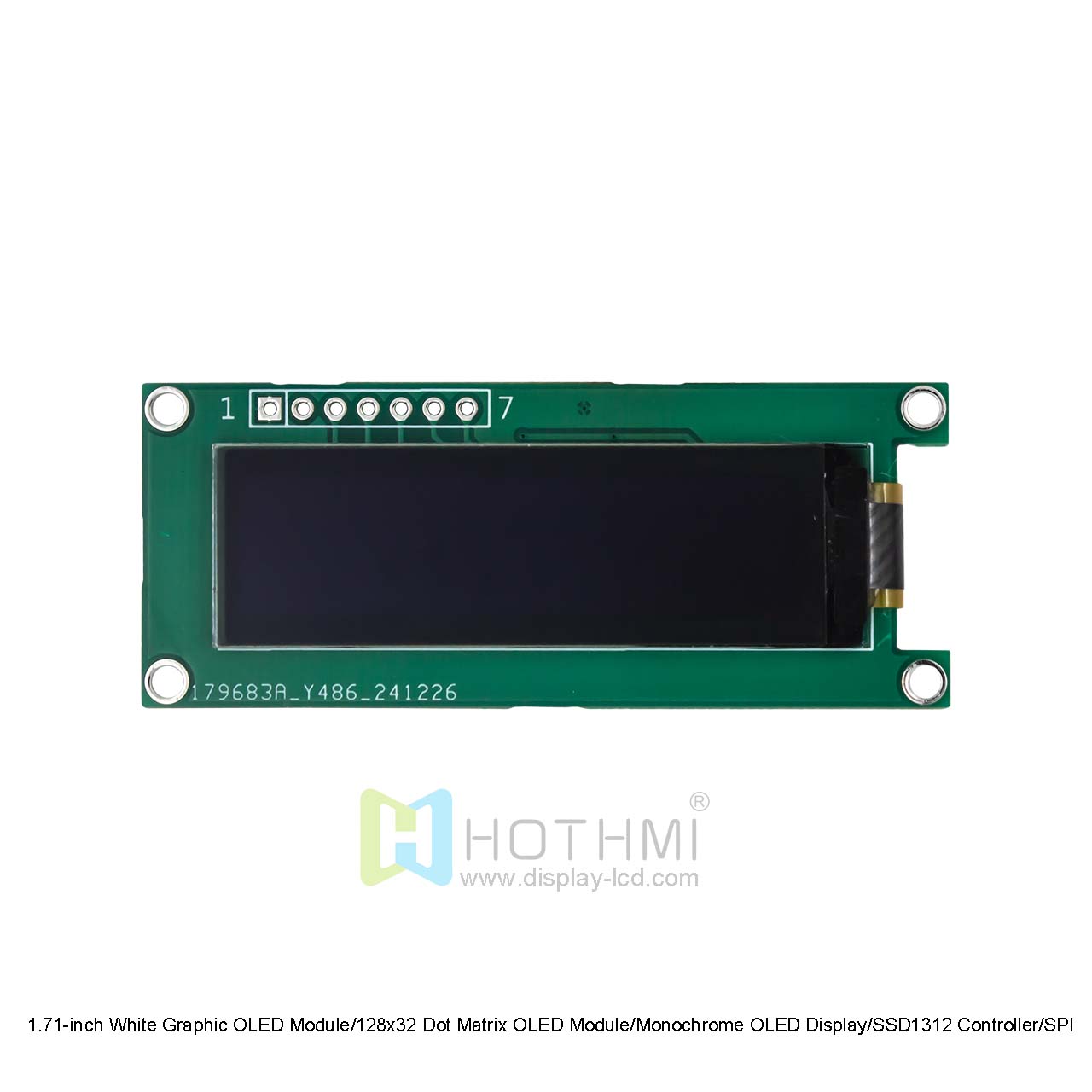

1.71-inch White Graphic OLED Module/128x32 Dot Matrix OLED Module/Monochrome OLED Display/SSD1312 Controller/SPI Interface/Arduino/STM32/C8051
This 128x32 resolution graphic OLED display module provides high contrast viewing with striking white graphics against a deep black background. OLED display technology is self-luminous, designed to provide high visibility and ensure easy reading from any angle in different environments. With this OLED, you can expect the fastest response time. It is a passive matrix display built with 6800/8080 serial or parallel interface options, fully compatible with Arduino, and can be seamlessly integrated with many different electronic systems for a wide range of applications. The display also comes with a 7-pin connector and a built-in SSD1312 controller. Designed to withstand extreme operating conditions, the HTM-OLED1.71-SPI-W model performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires a 3.3V power supply to operate and is RoHS compliant.

Datasheet for Touch Panel,Controller

Name	Date	Size
HTM-OLED1.71-SPI-W	January 01, 1970	46.01KB

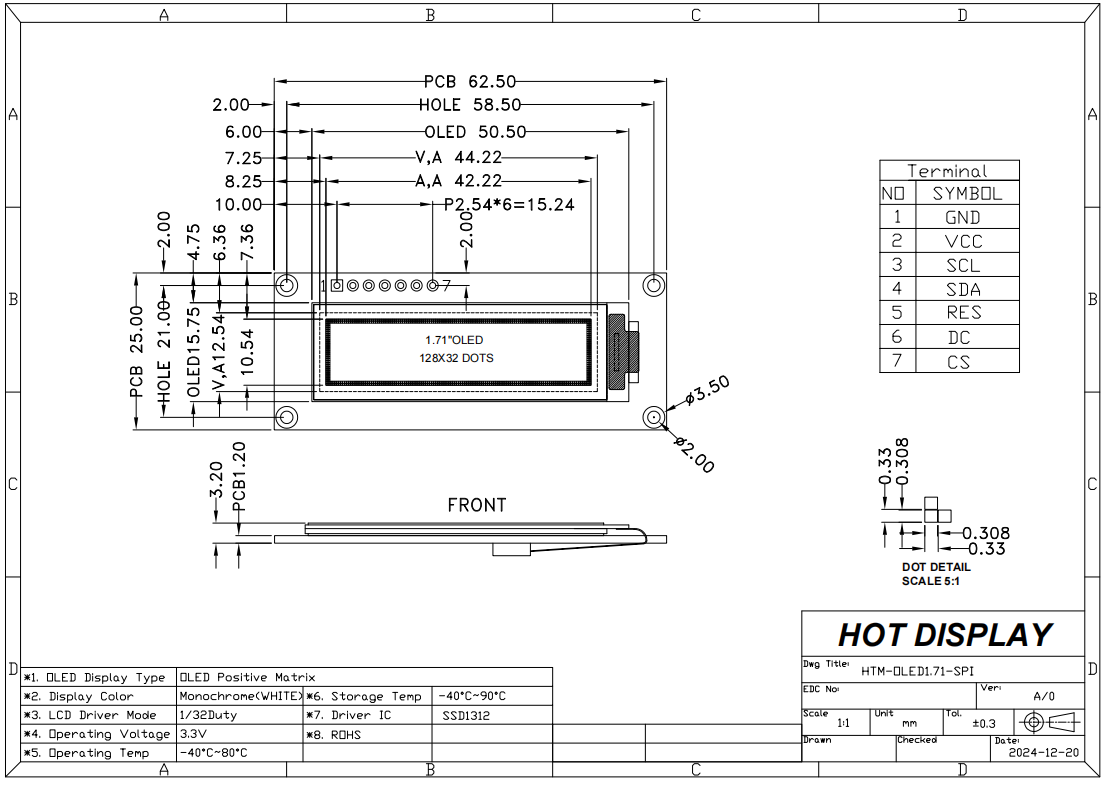

ITEM	Parameter Description	UNIT
OLED Model	HTM-OLED1.71-SPI-W
Diagonal Size	1.71”	“
Pixels	128x32	Dot
Appearance Size	62.5x25x3.2	mm
VA Size	44.22x12.54	mm
Active Area (AA)	44.22x10.54	mm
Dot Pitch	0.33x0.33	mm
Supply Voltage	3.3	v
Driver IC	SSD1312
Drive Mode	1/32 duty
Interface	SPI
Type	OLED Module
Display Color	White
Operating Temperature	-40°C~85°C	℃
Storage Temperature	-40°C~90°C	℃
