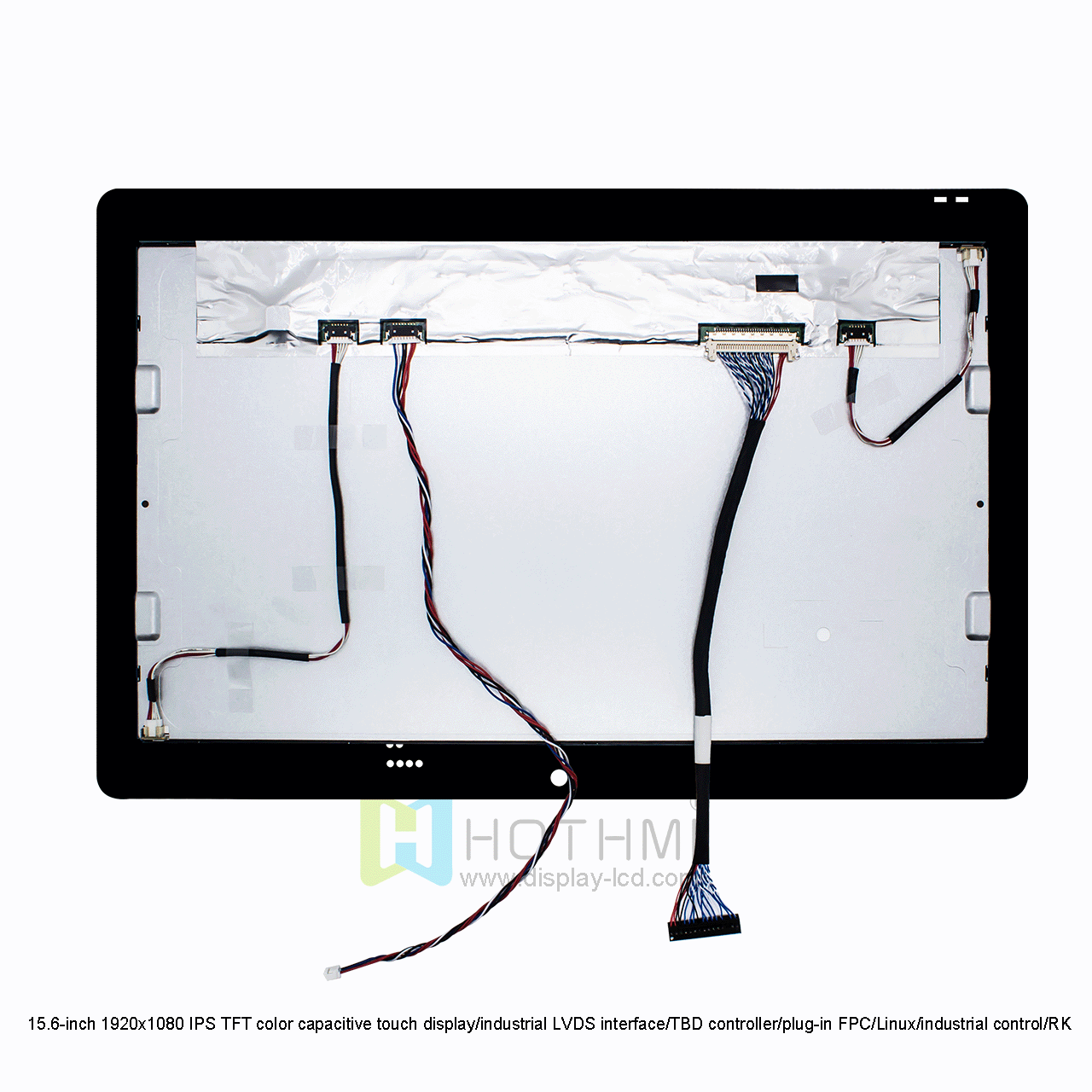

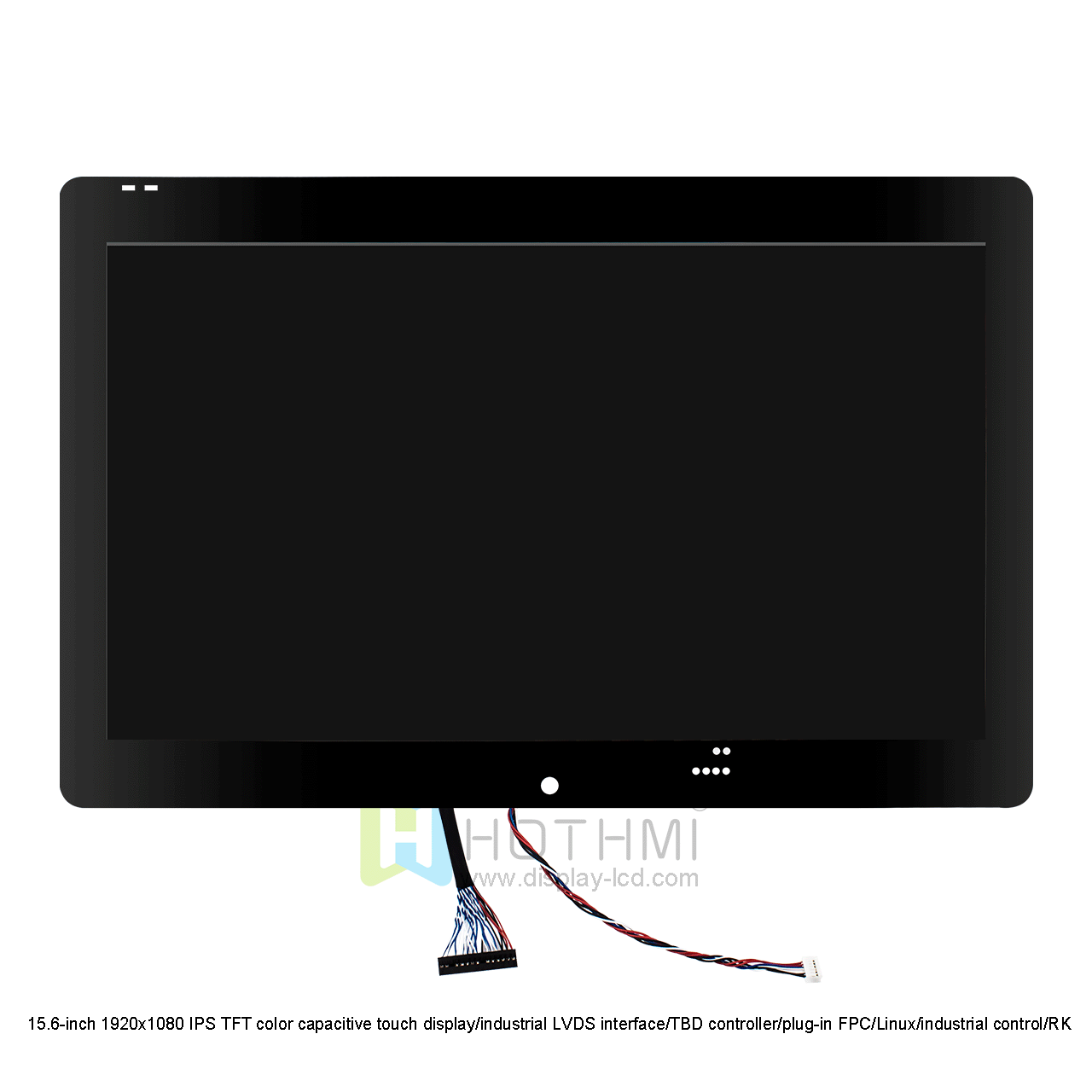

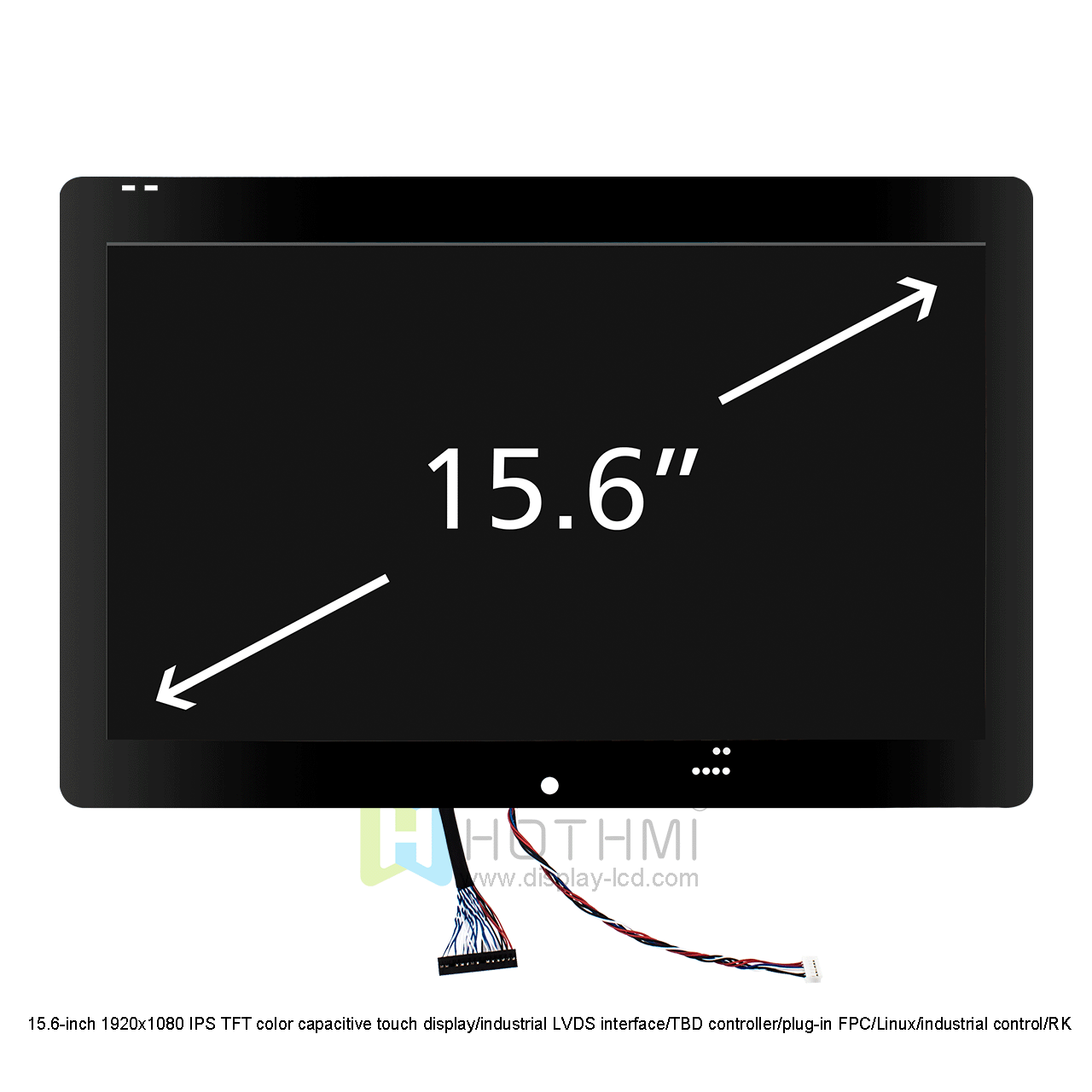

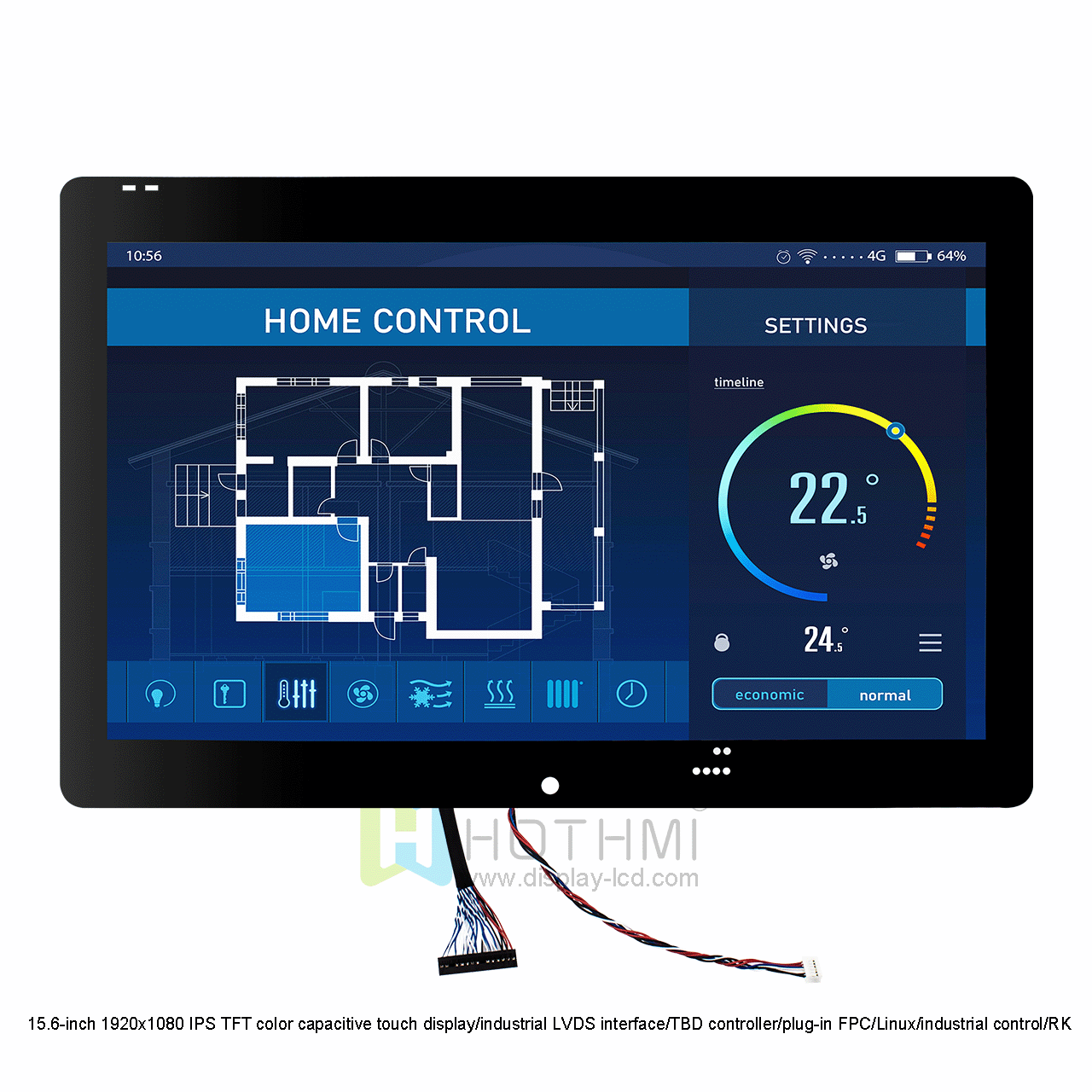

15.6-inch 1920x1080 IPS TFT color capacitive touch display/industrial LVDS interface/TBD controller/plug-in FPC/Linux/industrial control/RK
This standard 15.6-inch TFT LCD display TFT-H156FHDI8C30-LVDS has a resolution of 1920x1080 pixels, IPS full viewing angle, and high-quality effects regardless of viewing direction. The standard brightness LED backlight brightness is 850 nits. Although this transmissive LCD has a touch screen, the compact size, 3.3V low-voltage power supply, and impressive display quality make it an excellent choice for projects that require portrait mode visual output without touch function.
This 15.6-inch LCD display uses a 30PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly simpler and easier to operate. This TFT LCD display is powered by a T.B.D controller and the touch screen is controlled by ILI2511. It can provide excellent performance and reliability. The controller optimizes the functionality of the display, ensuring smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also great for DIY or prototyping projects due to their compatibility with Arduino. The LVDS interface enables fast and efficient communication between Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with a wide range of Arduino models. Its CTP interface is IIC+USB. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
