128x64 Graphic LCD Module Product Series

128x64 Graphic LCD Module Product Series - HTM12864-19C

2.5-inch 122x32 graphic dot matrix LCD display module series HTM12864-19C series introduction

HTM12864-19C series graphic dot matrix module specifications:

▶ Type: COG LCD module with board

▶ Display pixels: 128x64

▶ Dimensions (mm): 45.0x42.0x9.0

▶ VA size (mm): 36.0x23.5

▶ AA size (mm): 33.26x20.46

▶ Pixel pitch (mm): 0.32x0.29

▶ Application: Smart meter

▶ Viewing angle: 6H

▶ Pin: 11PIN

▶ Interface: SPI

▶ Operating temperature: -20~70℃

▶ Supply voltage: 3.3V

▶ Driver chip：ST7565R

HTM12864-19C Series of graphic dot matrix modules product description

The 128x64 graphic LCD module HTM12864-19C is a 128x64 dot matrix LCD display module with an integrated driver board. The driver board is designed with four positioning holes for easy installation and fixation of the device; the display is firmly connected to the driver board by welding. 11 PIN pin welding positions are reserved on the board, and users only need to weld the PIN pins to achieve convenient connection with the main control board.

This 128x64 graphic LCD module has a compact structure and provides an optimized wide viewing angle experience (6 main viewing directions, and the polarizer angle is adjustable to expand the viewing angle). It can maintain excellent visibility and readability in a wide temperature range of -20°C to 70°C and harsh lighting conditions. The built-in ST4565R controller ensures its high compatibility with mainstream development boards and interfaces such as Arduino.

This series of products is widely used in instrumentation, industrial control, medical equipment, and electronic game consoles. All Hotdisplay products comply with ROHS standards and are produced in strict accordance with ISO9001:2015 quality management system.

This model series can present different display effects by matching different polarizer modes and backlight compositions.

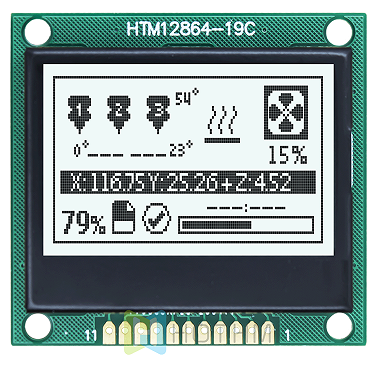

1.7 inch 128 x 64 LCD graphic display | FSTN positive display with gray text on white background | SPI interface

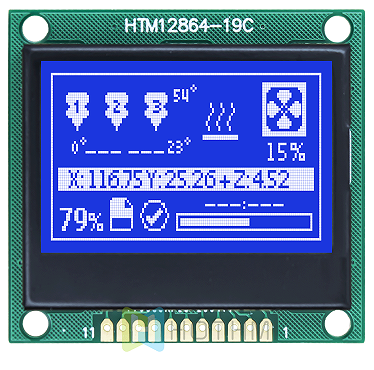

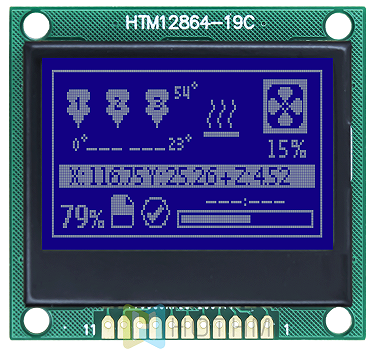

1.7 inch 128 x 64 LCD graphic display | SPI interface | STN negative display blue background white text | ST7565R controller

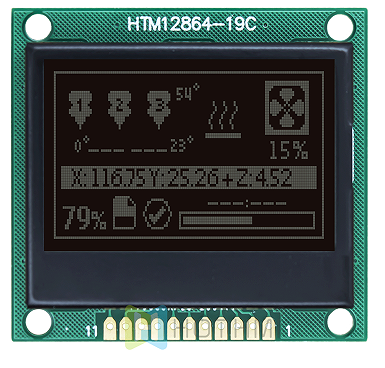

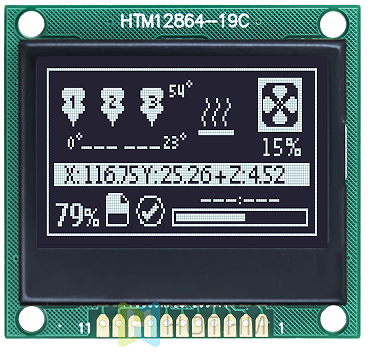

1.7 inch 128 x 64 LCD graphic display | 12864 LCD graphic display module | SPI interface | DFSTN negative black background white text display

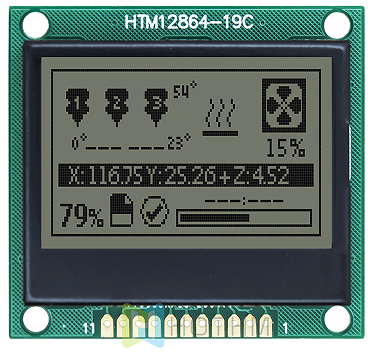

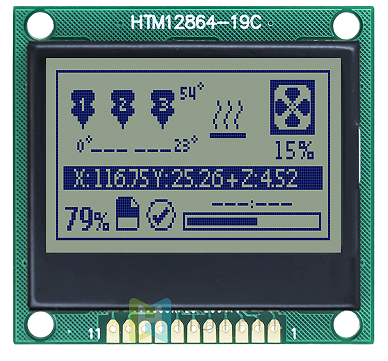

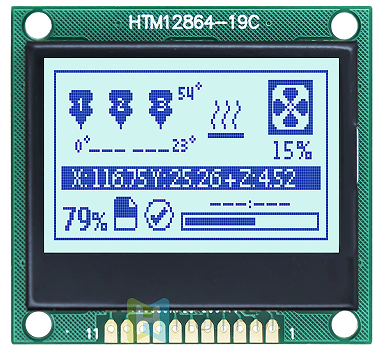

1.7 inch 128 x 64 LCD graphic display | SPI interface | STN positive gray background blue text display | Translucent polarizer

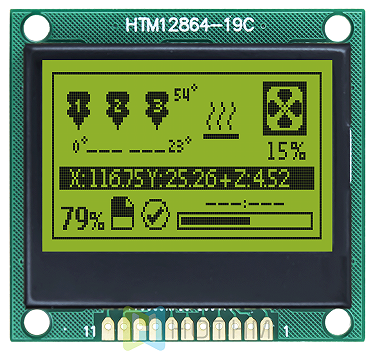

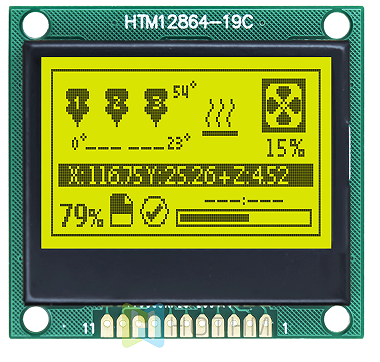

1.7" 128 x 64 LCD Graphic Display Module | STN Positive Yellow Green Backlight | Arduino

For different modes and backlight matching effects, please click on the link: LED backlight and LCD color to learn more!

For the related 128x64 dot matrix graphic LCD series, we provide users with different sizes, please contact us for more product recommendations.
