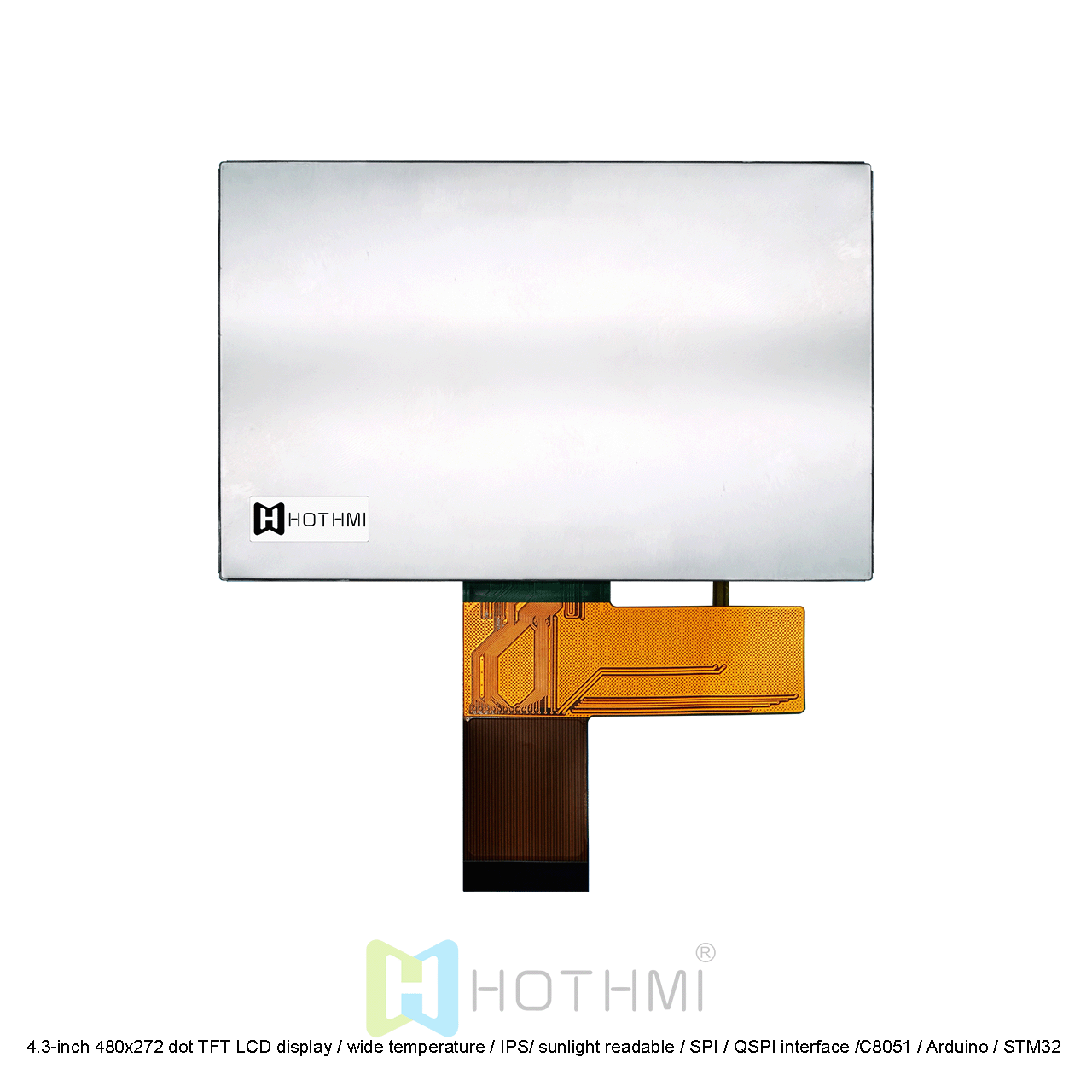

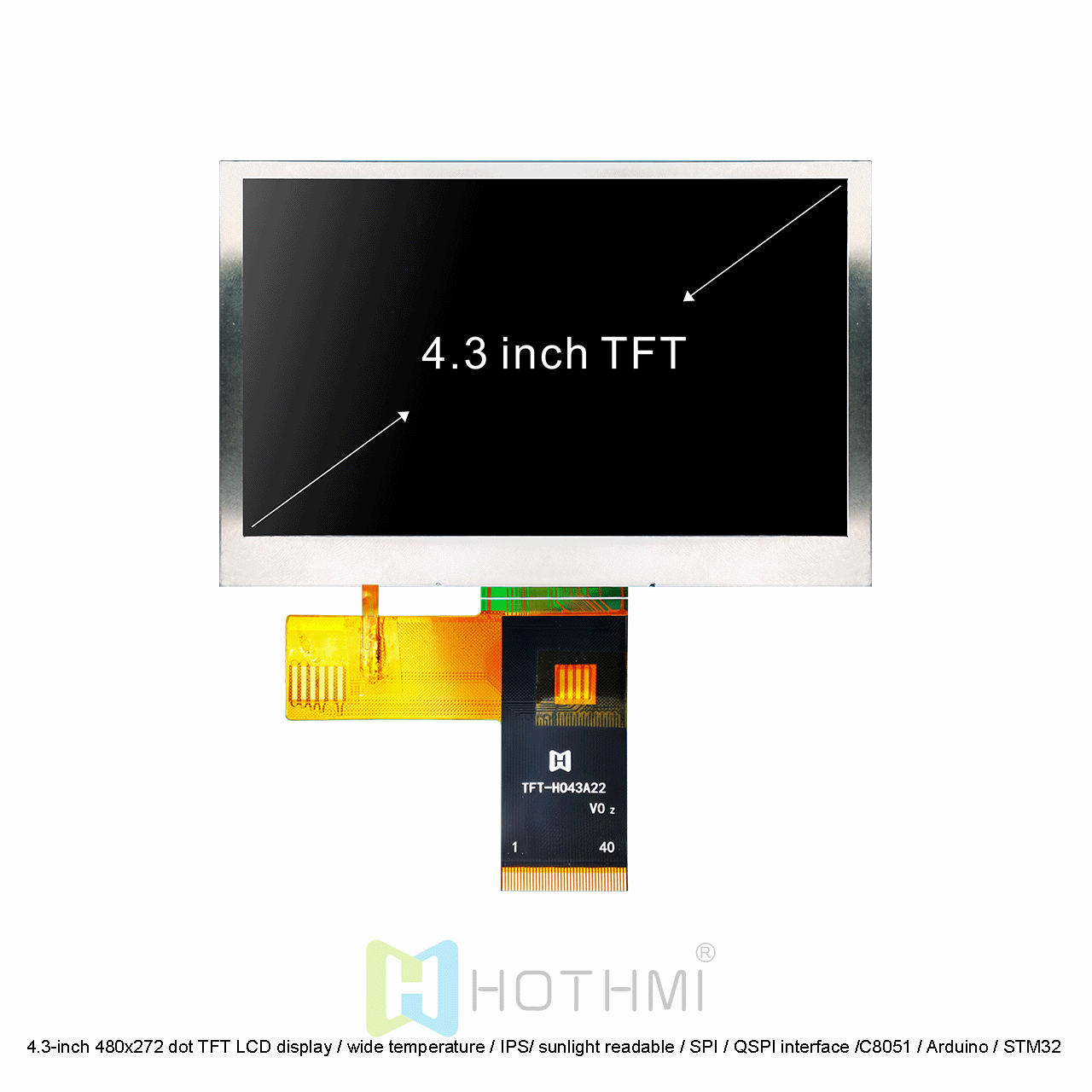

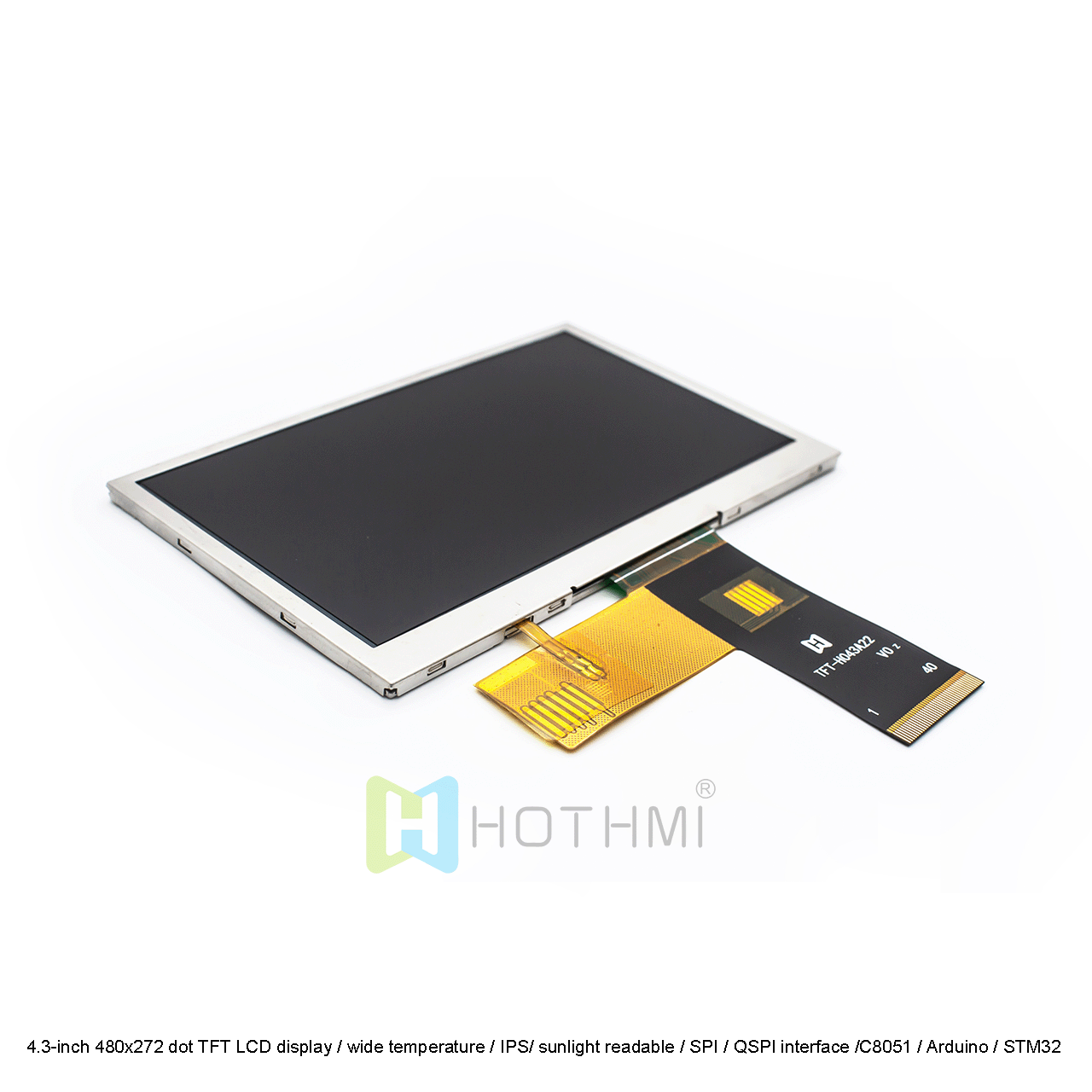

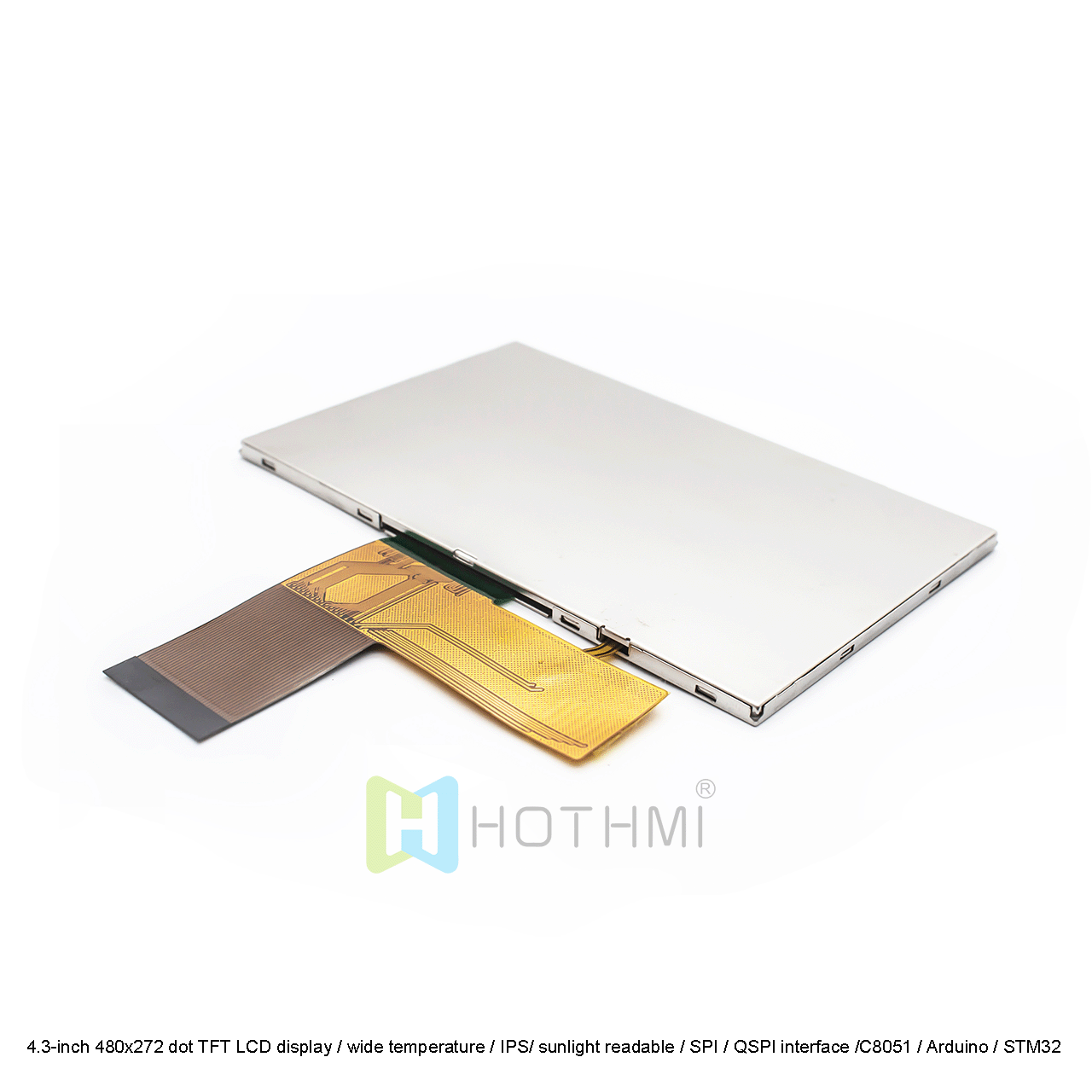

TFT-H043A22WQISTKN40 | 4.3-inch TFT wide temperature LCD screen | SPI/Dual SPI/QSPI or MCU 8/16Bit interface | 480x272 dot matrix LCD screen | optional resistive/capacitive touch | wide temperature | readable under sunlight | compatible with C8051/Arduino/STM32
TFT-H043A22WQISTKN40 is the only 4.3-inch TFT wide temperature LCD screen in the industry that supports SPI/QSPI interfaces, with a resolution of 480x272, built-in TBD controller, optional touch screen, high image quality, IPS full view angle, supports 8080 8-bit, 9-bit, 16 bit, 18 bit parallel interfaces and 3-wire, 4-wire serial//QSPI interfaces, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for microcontroller development platforms such as 8051 PIC, STM32, AVR, ARDUINO, ARM, Raspberry Pi, etc.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
