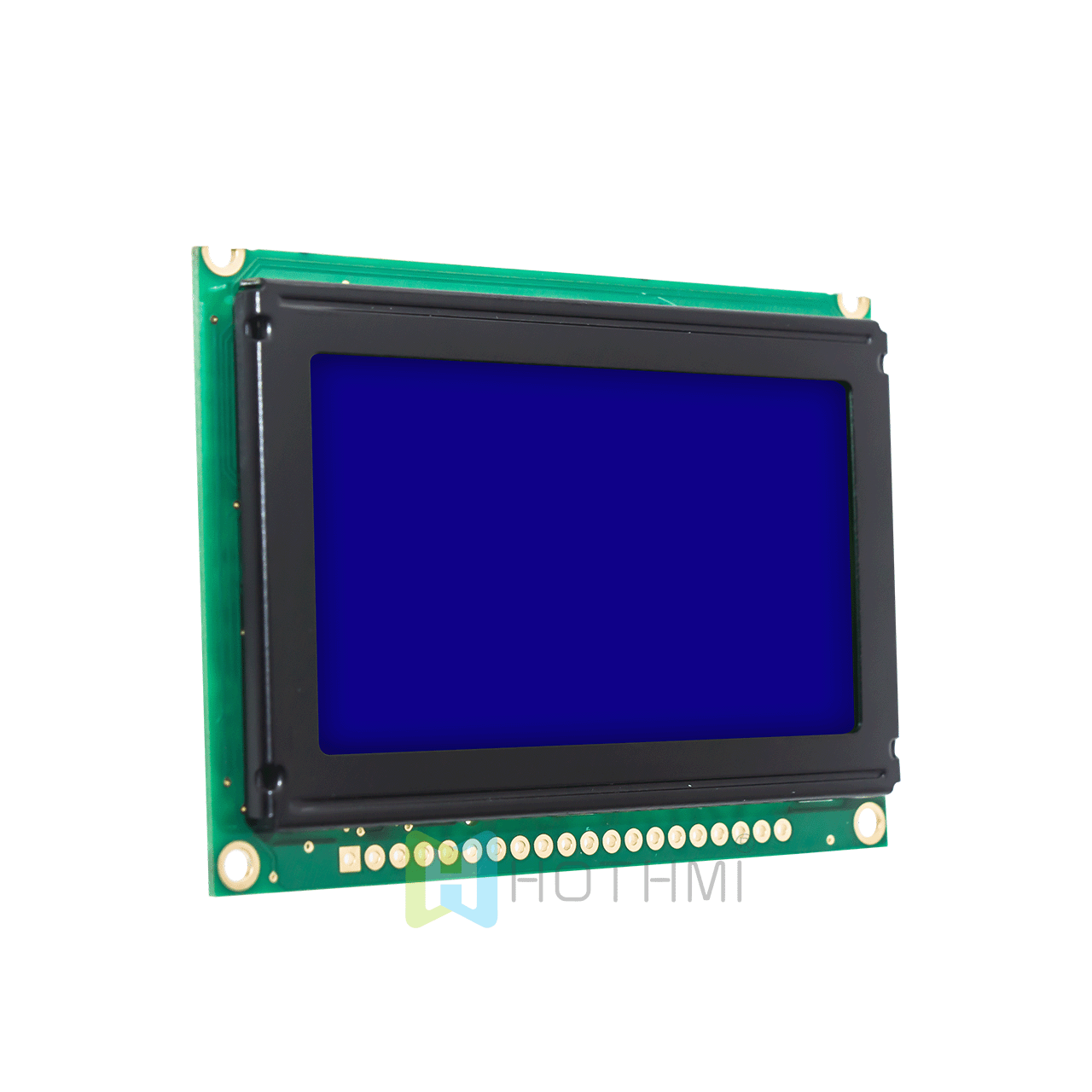

2.7 inch STN Negative Display Blue Background White Characters 128x64 Graphic LCD Display Module, SPI, for Arduino
2.7 inch STN Negative Display Blue Background White Characters 128x64 Graphic LCD Display Module has a blue background with 128x64 monochrome white pixels, the SBN0064G controller is extremely common and well documented, it is a 4-wire SPI interface, STN-blue LCD negative film, wide operating temperature range, high contrast, ROHS compliant, compact size. Pin header connection by default. Because it uses a fully transparent polarizer, the backlight can be transmitted to the maximum extent, making the display content clear enough.
It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
