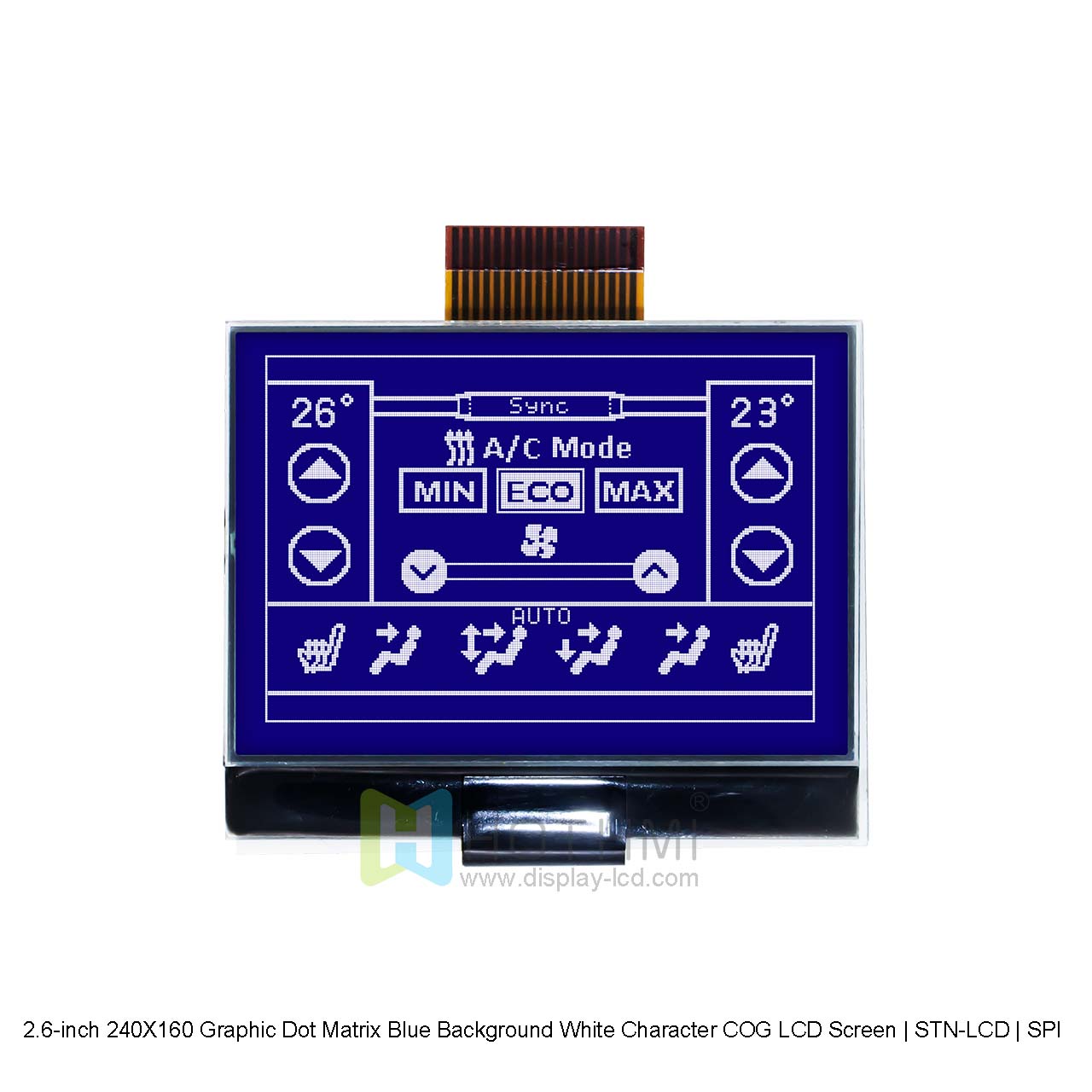

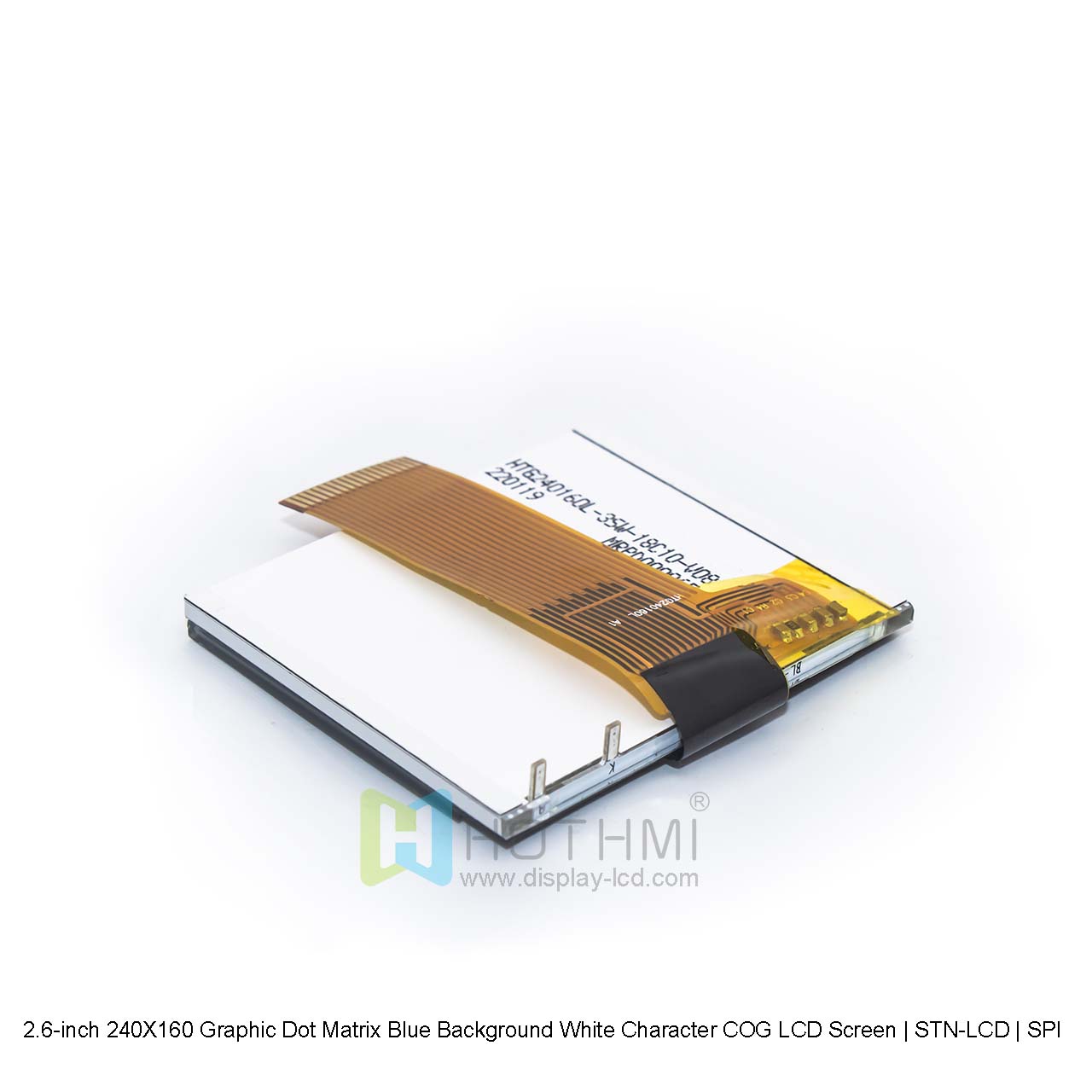

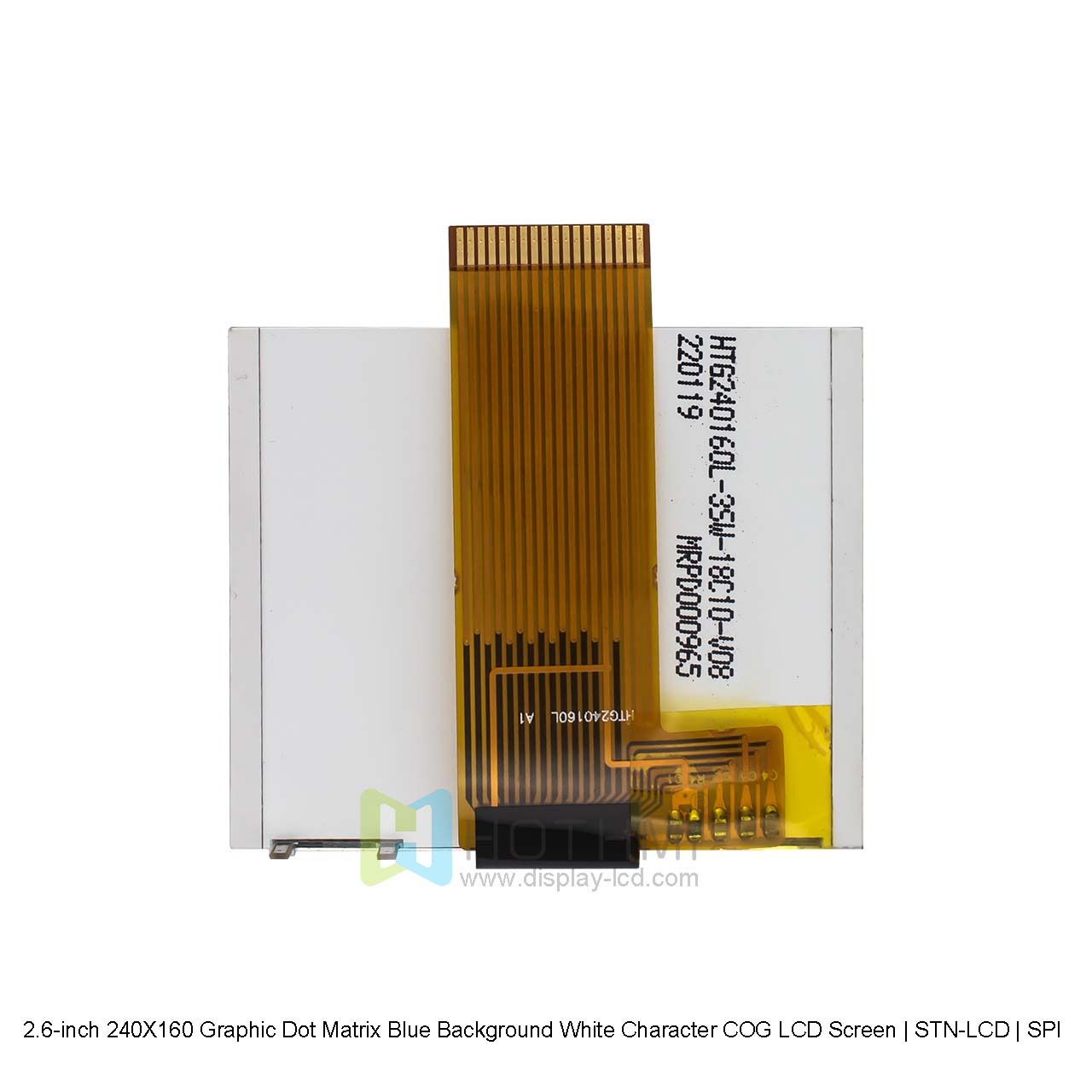

2.6-inch 240X160 Graphic Dot Matrix Blue Background White Character COG LCD Screen | STN-LCD | SPI Interface

2.6-inch 240X160 Graphic Dot Matrix Blue Background White Character COG LCD Screen | STN-LCD | SPI Interface | Arduino

▶ Model: HTG240160L-25W-18C10-V07

▶ Type: COG Graphic Dot Matrix
▶ Display Pixels: 240x160
▶ Dimensions (mm): 60.0x49.5x5.6
▶ Display Inches: 2.6"
▶ VA Size (mm): 56.0x38.7
▶ AA Size (mm): 51.94x34.62
▶ Dot Pitch (mm): 0.216x0.216
▶ Application: Inverter
▶ Viewing Angle: 6H
▶ Backlight/Brightness: white Light
▶ Pin: FPC-18PIN
▶ Interface: SPI
▶ Special Instructions: Anti-static ESD 8KV
▶ Operating Temperature: -20~70℃
▶ Supply Voltage: 3.3V
▶ Driver Chip: UC1698U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2.6 inch 240X160 Graphic Dot Matrix Blue Background White Character COG LCD Screen | STN-LCD | SPI Interface | Arduino
This 2.6 inch 240X160 Graphic Dot Matrix Blue Background White Character COG LCD Screen | STN-LCD | SPI Interface | Arduino product is a COG display from HOT Display that displays white pixels on a blue background. This fully transparent LCD display is carefully designed to provide optimal visibility under various lighting conditions in many different environments. The driver chip is UC1698U, which has a white LED backlight. The display can use its full transparency to allow the backlight to pass through completely, greatly improving the brightness of the display and making the screen easy to read. This advanced display technology ensures that the display is always easy to read. This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. Mini size, exquisite and beautiful, clear display, industrial control level support long-term use. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and complies with RoHS standards.

Datasheet for Touch Panel,Controller

Name	Date	Size
HTG240160L-25W-18C10-V07	January 01, 1970	1.25MB

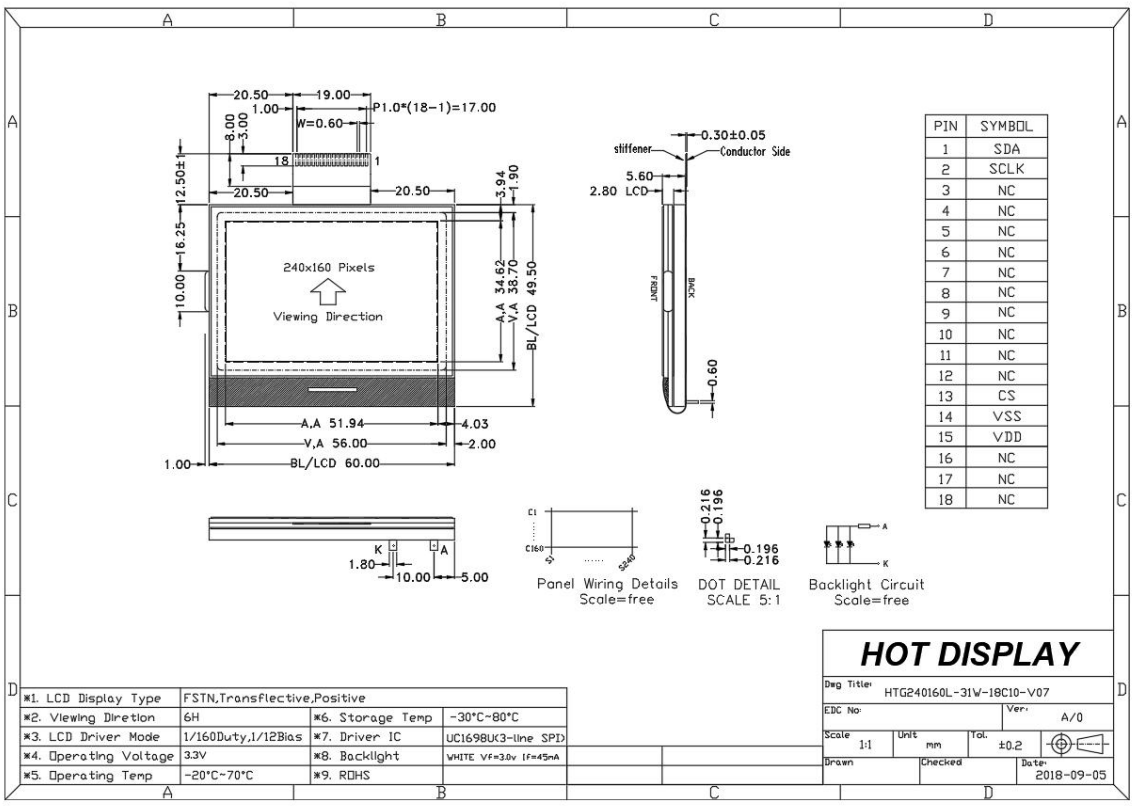

parameter	Specification content	Unit
Name	HTG240160L-25W-18C10-V07
Graphic display	240×160	dots
Dimensions	60.0x49.5x5.6 (MAX)	mm
VA size	56.0x38.7	mm
AA size	51.94x34.62	mm
Pixel pitch	0.216x0.216	mm
Driver chip	UC1698U
Applied voltage	3.3V	V
Backlight illumination	White
Display mode	STN(-)
Drive mode	1/160 duty cycle
Product type	Graphic COG
Polarizer type	Transmissive
