What resolutions are available for 2.4-inch TFTs?
June 06, 2024
1202
CN Display Manufacturer, Global Supplier
June 06, 2024
1202
2.4-inch color TFT has different resolutions to choose from. Different resolutions have different display effects, and of course, the prices are also different. Customers can selectively choose TFT color displays with different resolutions based on product needs and cost-effectiveness. This article will introduce you to products with common 2.4-inch resolutions.
2.4-inch TFT display, resolution 240x320

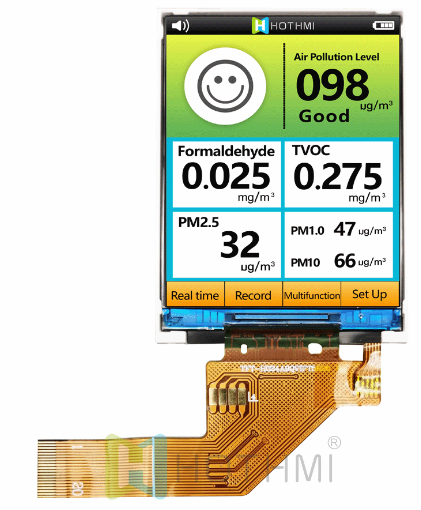

2.4 inch TFT LCD module/IPS/240x320 dot matrix pixels/plug-in FPC/JD9852/MIPI DSI/sunlight readable
▶ Model: TFT-H024A9QVIFT8N20
▶ Type: TFT vertical screen
▶ Display pixels: 240x320 Px
▶ Dimensions (mm): 42.52x59.86x2.20
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: Android motherboard/RK motherboard
▶ Viewing angle: IPS (U85/D85/L85/R85)
▶ Brightness: 800cd/m2
▶ Pin: FPC-20PIN
▶ Interface: MIPI
▶ Special tips: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 2.8V
▶ Driver chip: JD9852

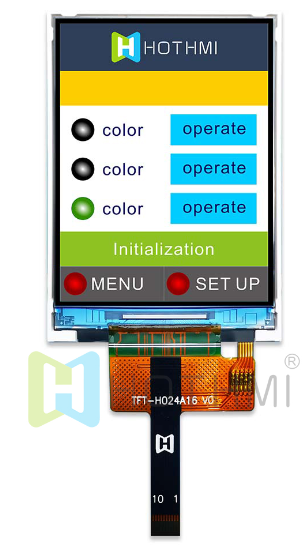

2.4 inch TFT IPS full viewing angle color LCD module 240x320
pixels ST7789 4-wire serial port SPI Arduino
▶ Model: TFT-H024A16QVIST6N10
▶ Type: TFT vertical Display
▶ Display pixels: 240x320 Px
▶ Overall dimensions (mm): 42.52(H)x59.61(V)x2.20
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: C8051/Arduino/STM32
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 600cd/M²
▶ Pin: FPC-10PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7789

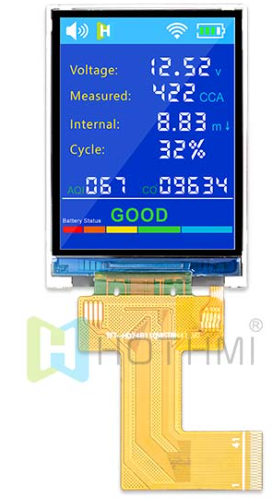

2.4 inch IPS TFT LCD display high brightness MCU ST7789V Arduino display
▶ Model: TFT-H024B11QVIST8N41
▶ Type: TFT vertical screen
▶ Display pixels: 240x320 Px
▶ Dimensions (mm): 42.52x59.86x2.2
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: C8051/Arduino/STM32
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 800cd/M²
▶ Pin: FPC-40PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 2.8V
▶ Driver chip: ST7789
2.4-inch TFT display, resolution 640x480
2.4 inch IPS 480x640 high brightness TFT LCD display ST7701S STM32/RK
▶ Model: TFT-H024A13VGIST5N40
▶ Type: TFT vertical screen
▶ Display pixels: 480x640 Px
▶ Dimensions (mm): 42.72x60.26x2.24
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: STM32/RK series
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 500cd/M²
▶ Pin: FPC-40PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701S
What resolutions are available for more 2.4-inch TFTs? Please contact us directly!
