Welcome to the January 2025 Hot Display newsletter!

Focus of this issue: smart displays.

Smart display screens usually refer to display devices that can provide interactive, networked or integrated intelligent functions. This type of display screen not only displays static content, but also can perform dynamic content updates and interactive operations according to user needs, and supports networking with other smart devices to perform complex applications or control tasks.

Hot Display combines the EZUI system with the display screen to launch a series of smart serial port screens with simple development and diverse functions.

What is EZUI smart serial port screen?

EZUI serial port screens are usually used in embedded systems and support interaction with main control chips (such as microcontrollers, development boards, etc.) through serial port communication. EZUI serial port screens are usually equipped with a user-friendly interface and rich display functions, allowing developers to easily integrate display functions into their devices.

The main features of EZUI serial port screens include:

Serial port control: EZUI serial port screens transmit data through standard serial communication protocols (such as TTL, RS232, etc.), which is very convenient to control and suitable for embedded systems and various hardware platforms.

Graphic and text display: EZUI serial port screens support displaying graphics, text, menus, icons, etc., and can meet diverse interface requirements. Its display content can be updated by sending different serial port commands.

Easy to develop: EZUI serial port screens usually provide corresponding development documents, sample codes and development tools to help developers get started quickly. The instruction set it supports is usually simple, and commands can be sent through the serial port to implement operations such as changing the display content and adjusting the interface layout.

Multiple sizes and resolutions: EZUI serial screens are available in a variety of sizes (e.g. 2.8-inch, 3.2-inch, 7-inch, etc.) to meet different application requirements.

Graphical interface design software: Some EZUI serial screens support graphical interface design software (e.g. EZUI Studio), which allows users to design screen content and layout through a graphical interface, eliminating the trouble of writing complex code.

Support touch screen function: Some models of EZUI serial screens are also equipped with a touch screen, allowing users to interact with the device through the touch screen.

This type of serial screen is particularly suitable for embedded projects that require a simple interactive interface but do not want to invest too much time in hardware and code. For example, it is used in small home appliances, robot control, data monitoring systems, etc.

Hot Display EZUI Smart UART Screen Related Products Recommendations

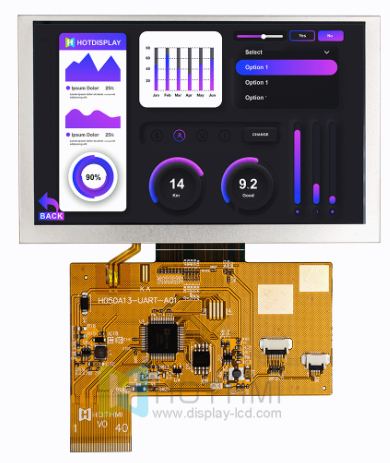

5.0 inch 800x480 resolution high brightness color TFT display module / 5.0 inch UART smart serial port screen / IPS full viewing angle TFT with board module

▶ Model: COF-H050A13-UART-A01

▶ Type: TFT serial port display module

▶ Display content: 800x480

▶ Dimensions（mm）：120.7(W)x75.8(H)x3.00(D)

▶ AA Size(mm) ：108.0x64.8

▶ Applications: Industrial control systems, handheld electronic devices,

▶ Viewing angle: IPS full viewing angle

▶ Backlight / Brightness:1000cd/m2

▶ Pinout: Smart UART with board, pinout assembled

▶ Interface mode:UART

▶ Special instructions: Anti-static ESD 8KV

▶ Operating Temperature:-30~70℃

▶ Supply voltage:5.0V

▶ Read more

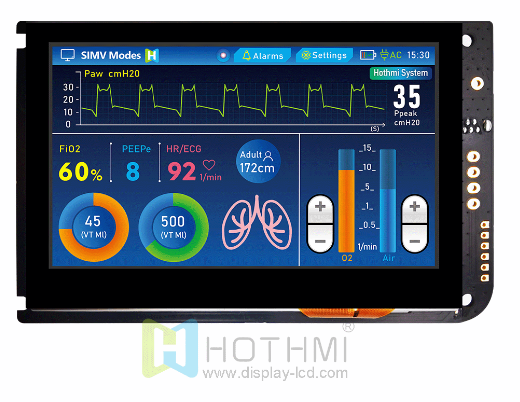

4.3 inch TFT LCD display module/4.3 inch UART smart serial port screen/800x480 dot matrix color screen module/IPS full viewing angle TFT board module

▶ Model: HTM-H043A10-A5-UART

▶ Type: TFT standard display

▶ Display Pixels: 800x480

▶ Dimensions (mm) ：122.5x73.2x5.0

▶ Display inches：4.3"

▶ AASize(mm) ：95.04x53.86

▶ Applications: Industrial control systems, handheld electronic devices,

▶ Viewing angle: IPS full viewing angle

▶ Backlight/Brightness：500cd/m2

▶ Pinout: Smart UART with board, pinout assembled

▶ Interface：UART

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature：-20~70℃

▶ Supply voltage：5.0V

▶ Read more

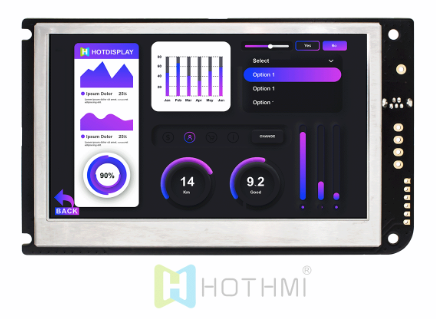

4.3 inch color capacitive touch TFT display module / 4.3 inch UART smart serial port screen / 800x480 resolution / IPS full viewing angle TFT with board module

▶ Model: HTM-H043A10-A5C-UART

▶ Type: TFT standard display module

▶ AA Size(mm) ：95.04x53.86

▶ Applications: Industrial control

systems, handheld electronic devices,

▶ Viewing angle: IPS full viewing angle

▶Backlight/Brightness：500cd/m2

▶ Pinout: Smart UART with board,

pinout assembled

▶ Interface：UART

▶ Special instructions: Anti-static

ESD 8KV

▶ Operating temperature：-20~70℃

▶ Supply voltage：5.0V

▶ Read more

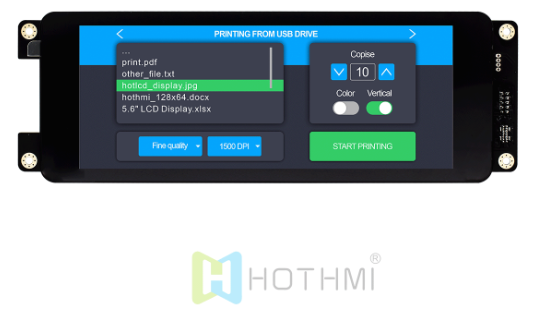

6.86 inch 480x1280 dot matrix TFT LCD display module URAT smart serial port screen capacitive touch screen HMI IPS sunlight readable compatible with Raspberry Pi

▶ Model: HTM-H068A04-UART-A01C

▶ Type: UART smart serial port screen module

▶ Display content：480x1280

▶ Display inches：6.86”

▶ Dimensions(Mm) ：73.5x210.0x.9.25

▶ AASize(Mm) ：60.192x160.512

▶ Product Application: Customized

Programming Display

▶ Viewing angle：IPS（U80/D80/R80/L80）

▶ Backlight type or brightness：800cd/M2

▶ Connection method PIN number：10pin

▶Interface：UART/RS232

▶ Special note: With capacitive touch

▶ Operating temperature：-20~70℃

▶ Supply voltage：+5V

▶ Read more

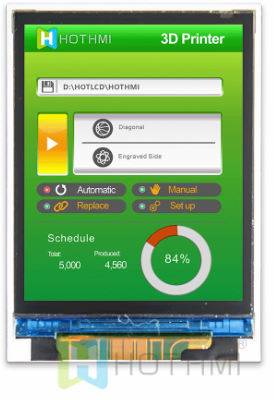

2.0 inch smart serial port screen 240x320 pixels IPS UART HMI smart serial port screen TFT display module sunlight readable

▶ Model: LCM-EU020T61NL

▶ Type: TFT smart serial port screen

▶ Display content：240x320

▶ Display inches：2.0”

▶ Dimensions(Mm) ：36.0x52.0x5.3

▶ VA尺寸(Mm)：34.60x47.83

▶ AA尺寸(Mm) ：30.6x40.8

▶ Product Application: Raspberry Pi

/Arduino/STM32

▶ Viewing angle: IPS full viewing angle

▶ Connection method PIN number：4pin

▶ Operating voltage：+5V/1A

▶ Interface：UART/RS232

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature：-10~60℃

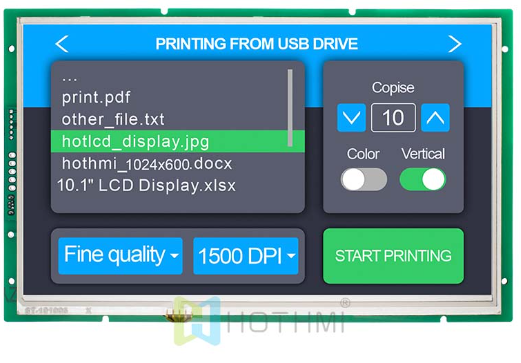

10.1 inch smart serial port screen 1024x600 IPS UART HMI TFT display

▶ Model: EZUIH101

▶ Type: 10.1 inch TFT smart HMI

▶ Display content：1024x600

▶ Display inches：10.1”

▶ Dimensions(mm) ：251×153×10

▶ AA size (mm) ：222.72×125.28

▶ Product application: industrial

system

▶ Viewing angle: IPS full viewing angle

▶ Connection method PIN number：

11pin

▶ Interface：UART/RS232

▶ Special instructions: Anti-static ESD

 8KV

▶ Operating temperature：-20~70℃

▶ Supply voltage：5V~24V

▶ Read more

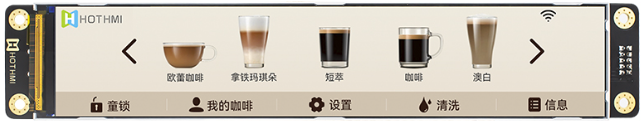

7 inch UART interface IPS 280x1424 resolution smart serial port screen TFT LCD screen

▶ Model: HTM-H070A18-UART

▶ Type: TFT smart serial port screen

▶ Display content：280x1424

▶ Dimensions(mm) ：206x38.2x5.45

▶ VA Size(mm)：182.47x38

▶ AA尺寸(mm) ：170.88x33.6

▶ Product application: automotive,

 medical, industrial control

▶ Viewing angle: full viewing angle

▶ Backlight type：500cd/m2

▶ PIN：10pin

▶ Interface：UART/RS232

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature：-20~70℃

▶ Supply voltage：5.0V

▶ Read more

Hot Display UART can find the smartest and most optimized solution for you, please contact us to learn more!
