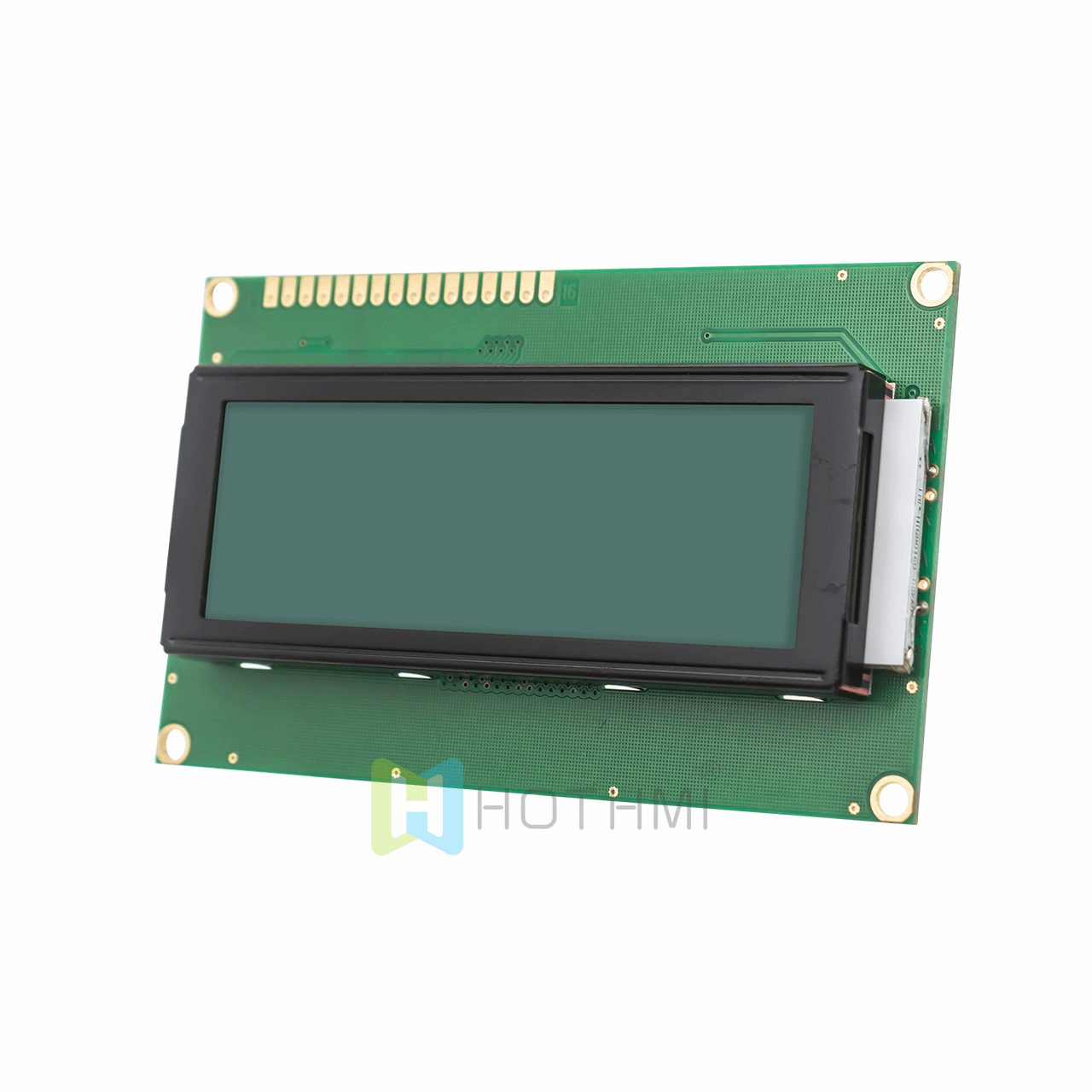

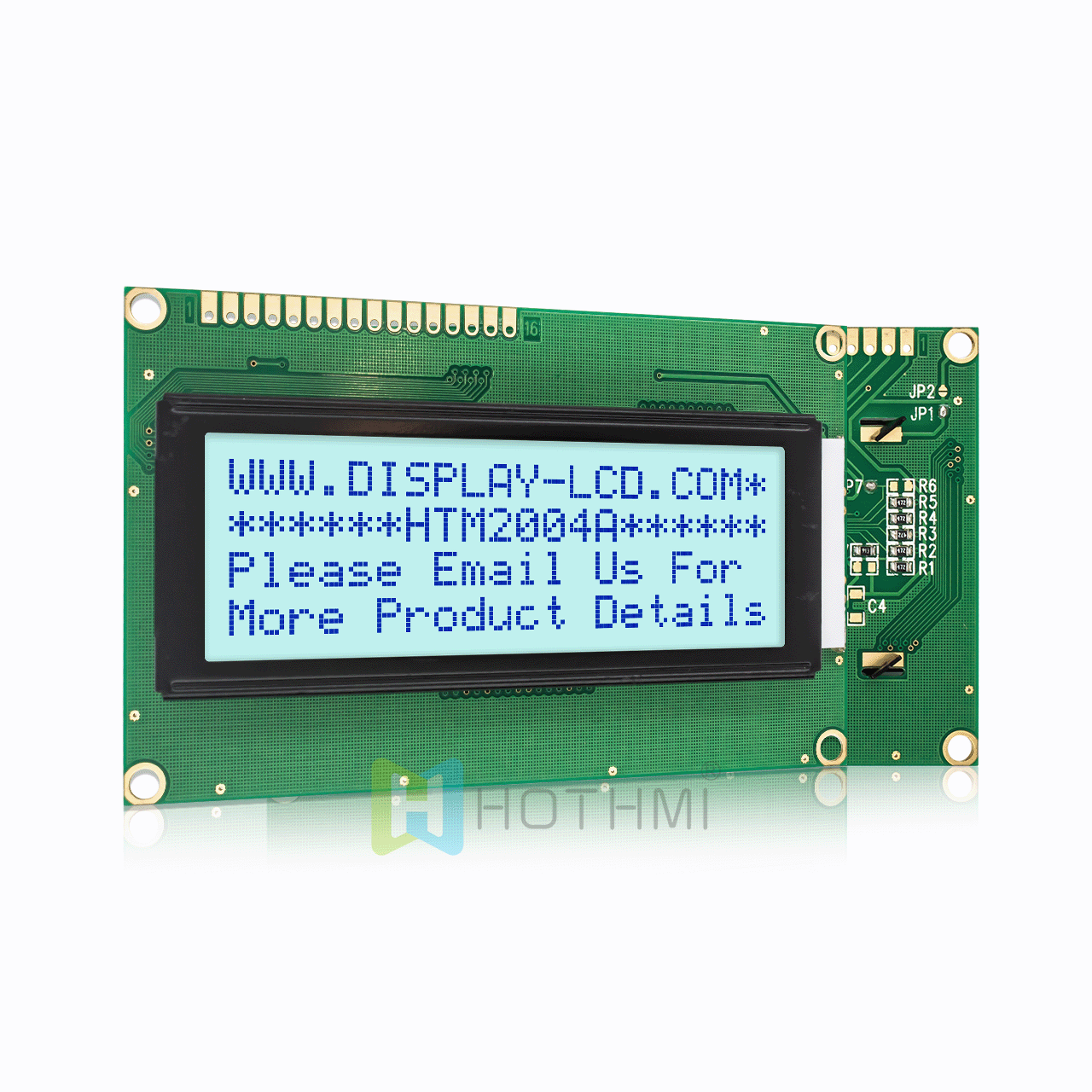

HTM-2004A-11W-A5P | 5v | 20x4 | Single color character LCD display | STN + | With white side backlight | Arduino display | Transflective | Adruino | Gray background with blue characters
Hot Display 20x4 character LCD screen displays dark pixel characters on a gray background. This transflective LCD screen is highly visible even in high ambient light and does not affect screen visibility even without a backlight, maximizing efficiency without unnecessary power consumption. At the same time, you can also add backlight to this screen for better viewing effect. Designed for powerful performance, this 4-line, 20-character display operates effectively over a wide temperature range from -20 to 70°C, making it ideal for a variety of environments. The HTM - 2004A - 11W - A5P model has been carefully designed to provide optimal viewing at a 6 o'clock angle, allowing users to easily read from a variety of positions. The monitor operates at 5V, is compatible with Arduino and other development boards, has a built-in ST7066U controller, and is RSP compatible.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
