HTM-2004A-11Y-A5P | 20x4 | Monochrome character LCD display | STN + | With yellow-green side backlight | Arduino display | Transflective | Adruino | ST7066U | 3.3v/5.0v

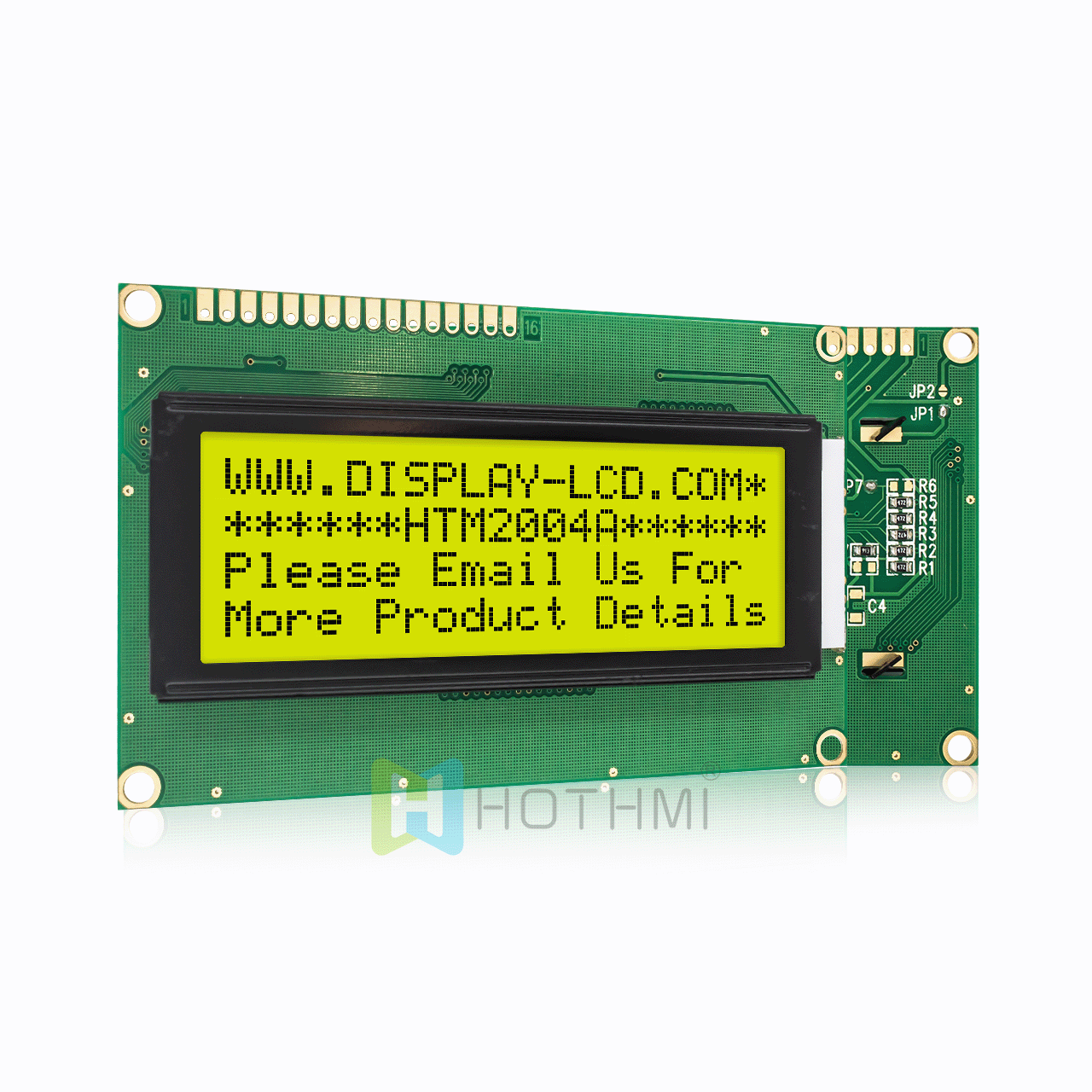

Hot Display 20x4 character LCD displays characters in dark pixels on a bright yellow/green background. This cross-screen LCD monitor can be used in ambient or low-light environments, includes visible yellow and green backlighting, and offers a wide operating temperature range of -20 to 70°C. Best viewing angle for HTM2004-11 Y-A5P monitor is now 6 o'clock. The power supply voltage is 3.3V or 5.0V, and can be used with development boards such as Arduino. It is also RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
