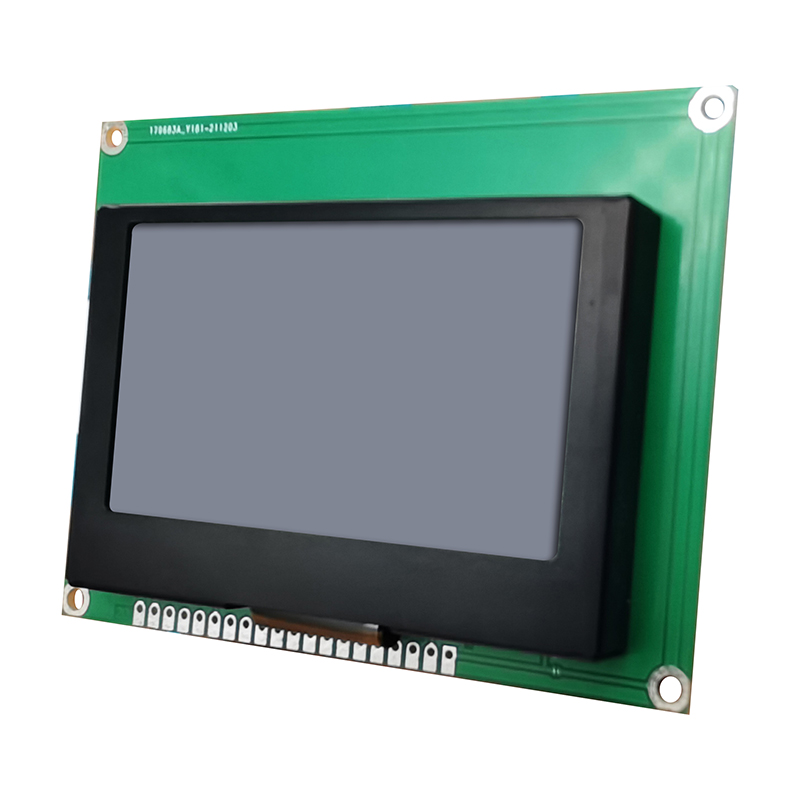

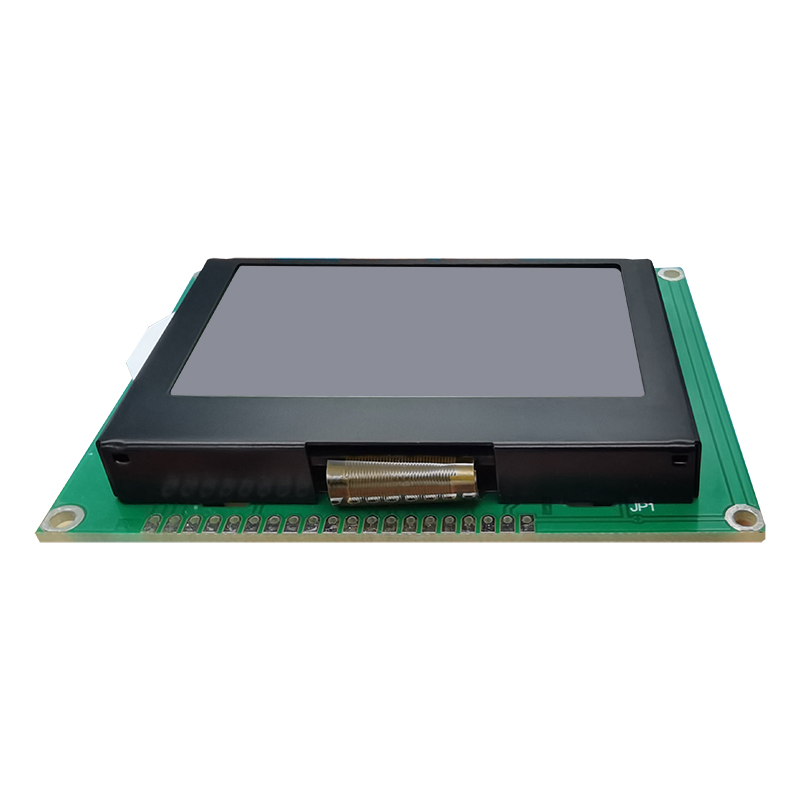

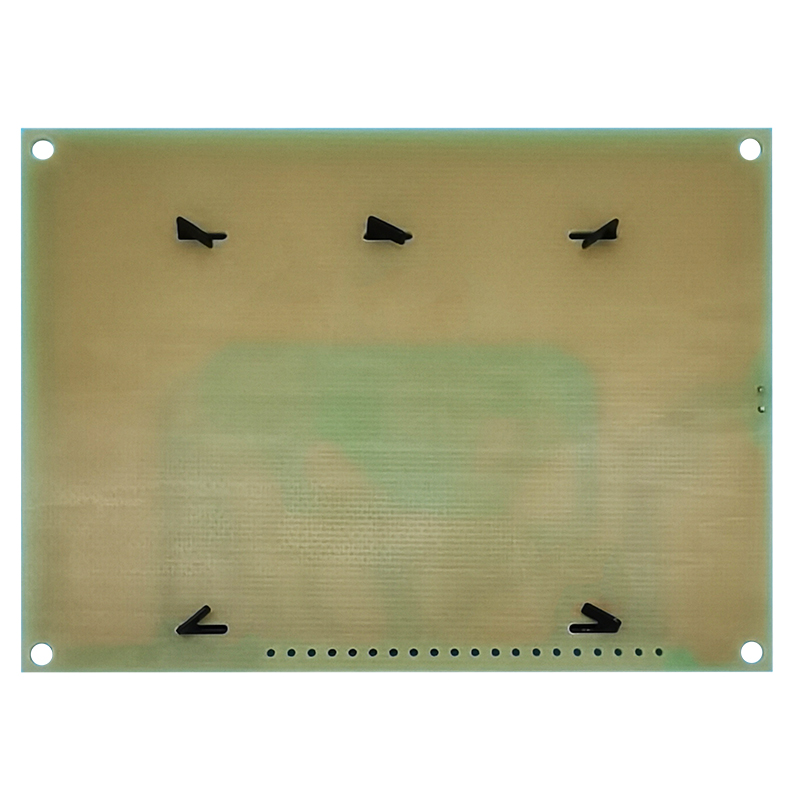

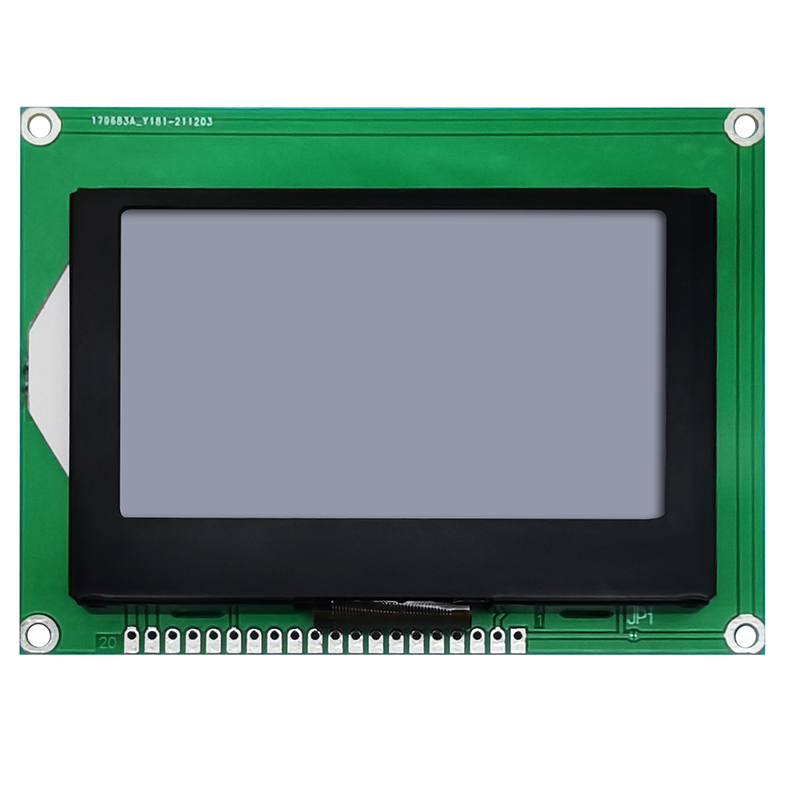

128*64 LCM Graphic/HTM12864-27
$10.62
-
$10.99
Add to wish list
Color
black and white

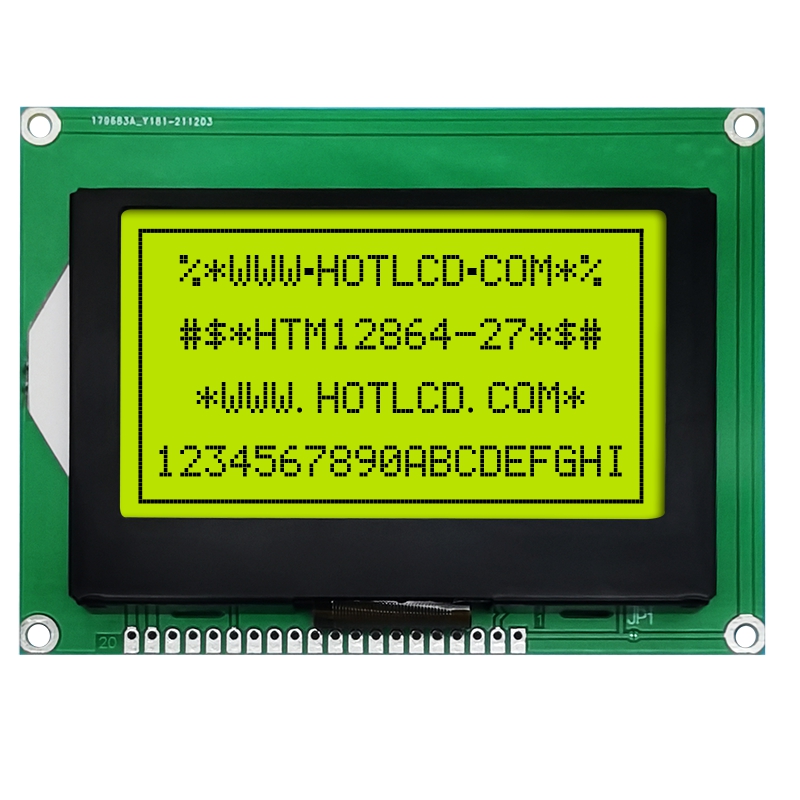

black on yellow

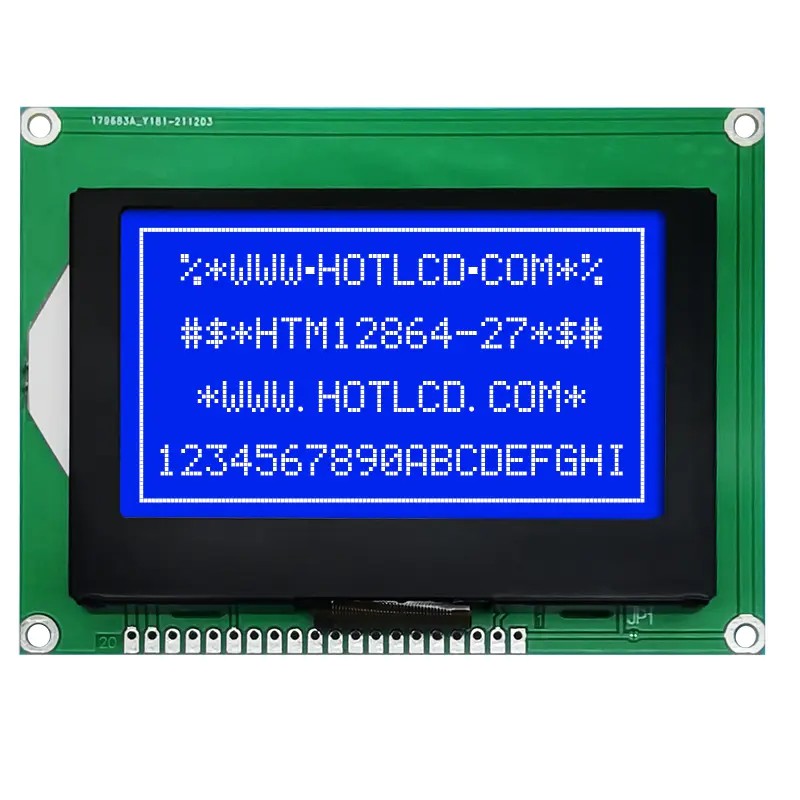

white on blue
black text on grey
Quantity
+
Product details
Model : 128*64 LCM Graphic/HTM12864-27

Product type:Graphic LCM

Show contents:128*64

Outline size(mm) :93.0*70.0*13.5

Size of View Window(mm):65.5*38.0

Display size(mm) :60.775*32.935

Point spacing(mm):0.475*0.515

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:20PIN

Interface mode:SPI

Working temperature:-20~70℃

Power supply voltage:5.0v

Driver chip model:ST7565R

CAD Drawings
