$3.99
Add to wish list
Quantity
+
Product details

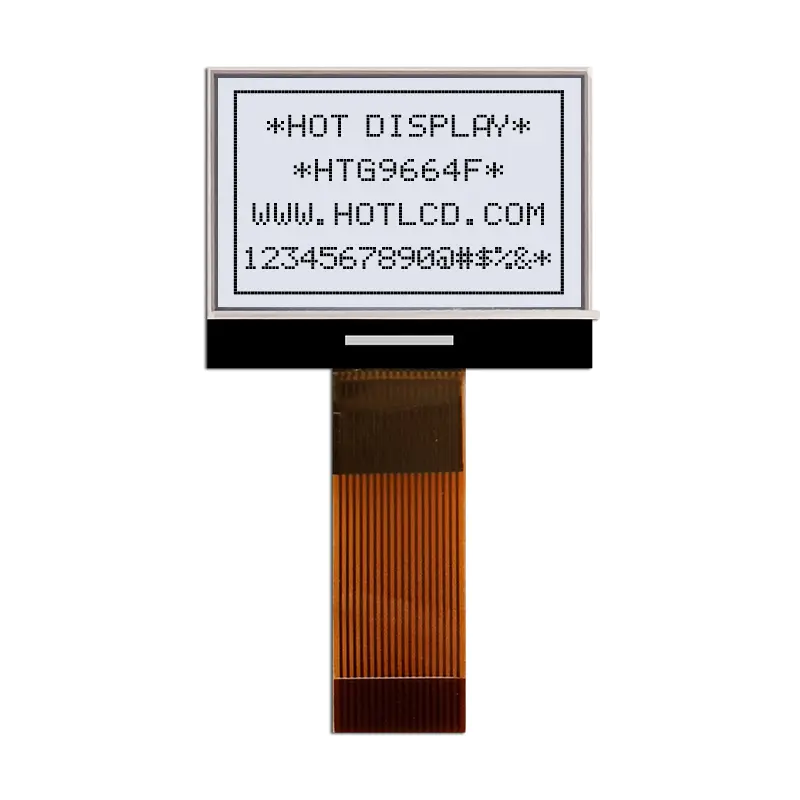

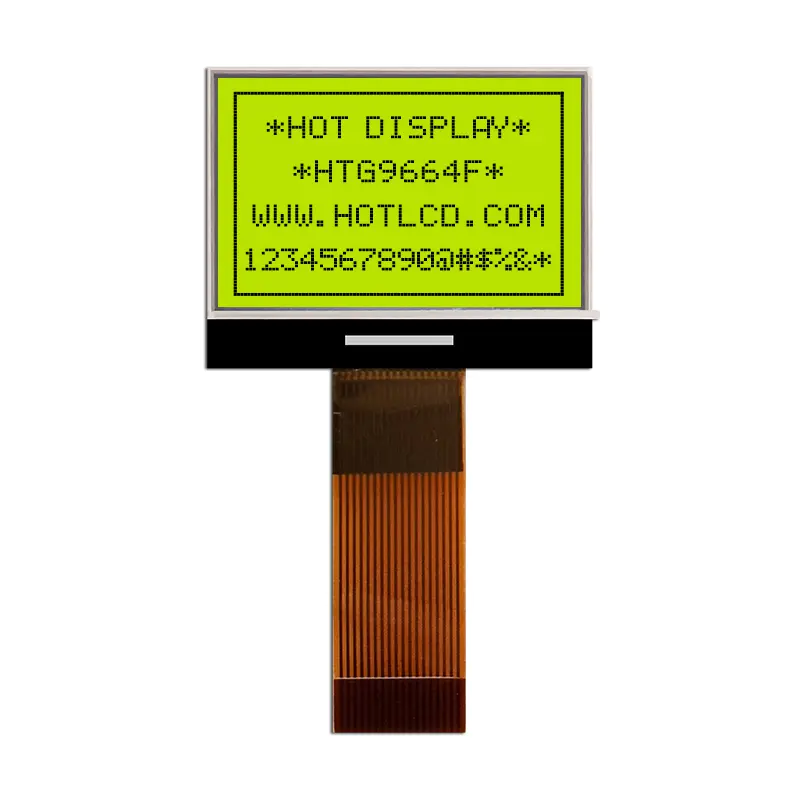

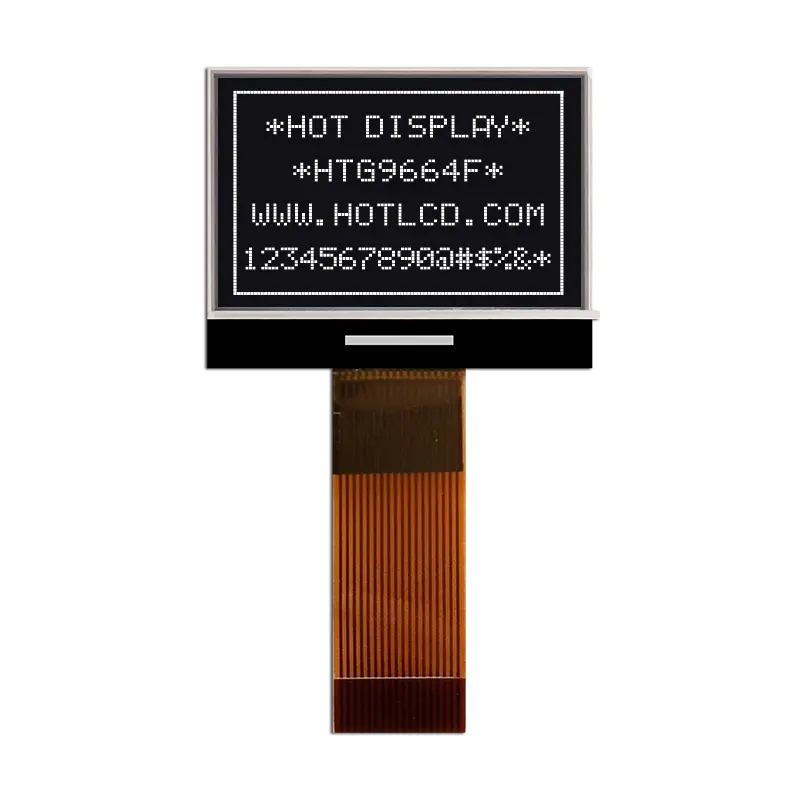

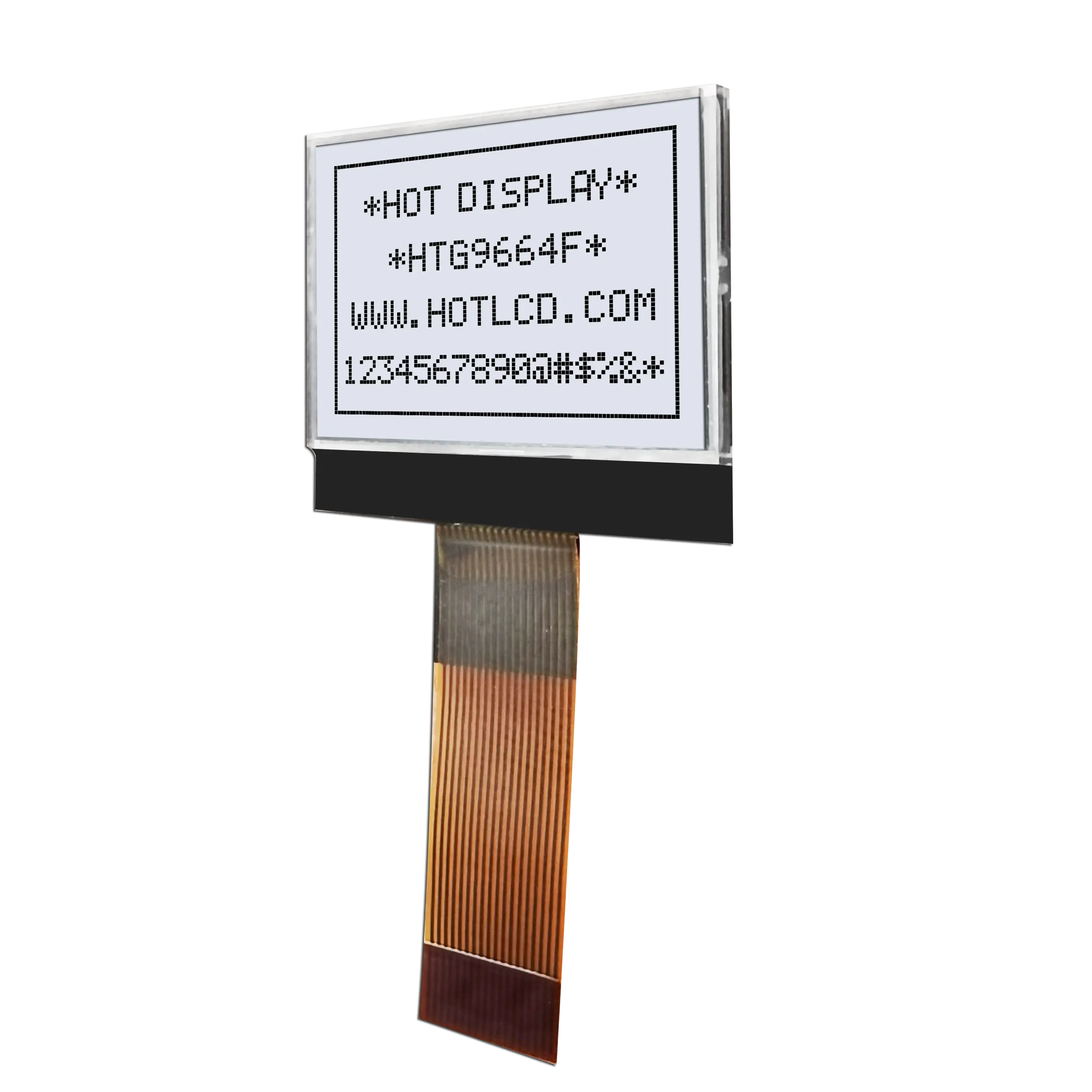

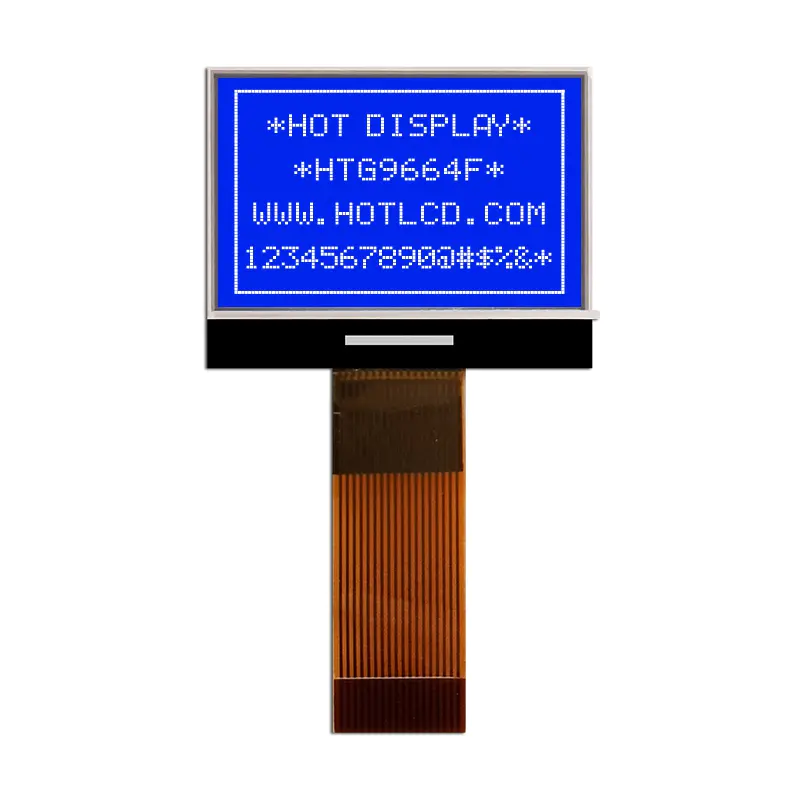

Model : 96*64COG LCD Graphic/HTG9664F

Product type:COG

Show contents:96*64

Outline size(mm) :28.0*22.3*1.7

Size of View Window(mm):25.0*15.3

Display size(mm) :23.02*14.06

Point spacing(mm):0.24*0.22

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:FPC-18PIN

Interface mode:MCU/8bit

Working temperature:-20~70℃

Power supply voltage:3.3v

Driver chip model:ST7549

CAD Drawings
