8.0''TFT/1024*768Resolution/LVDS-4L/TFT-H080A2XGTHX3N40_V0
$26.99
Add to wish list
Quantity
+
Product details
Product Description

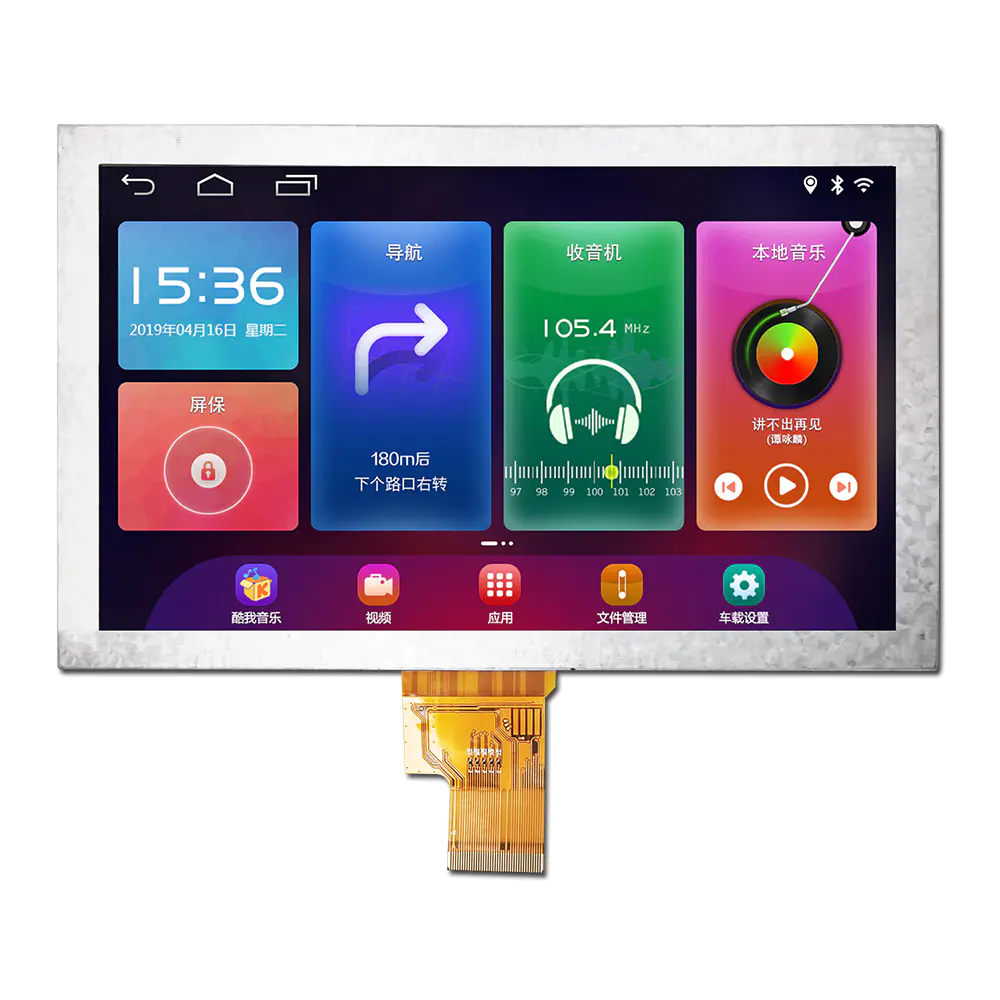

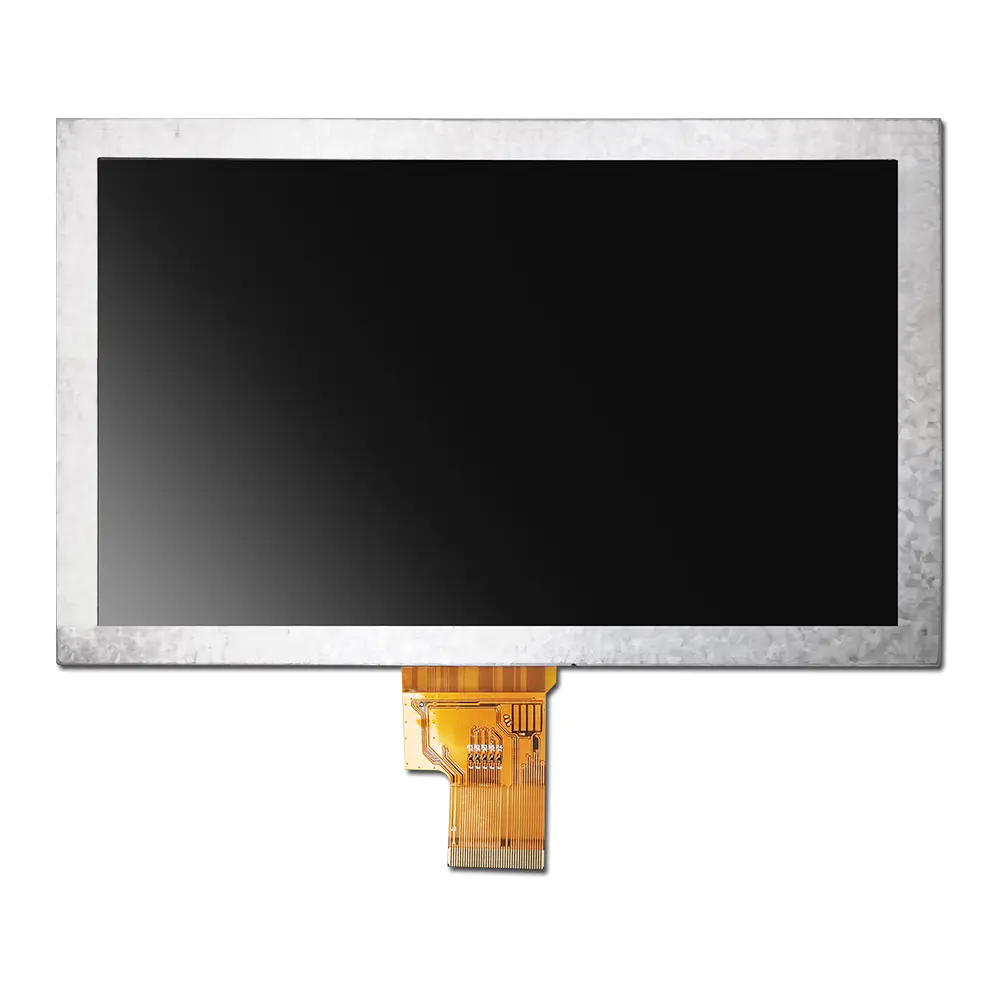

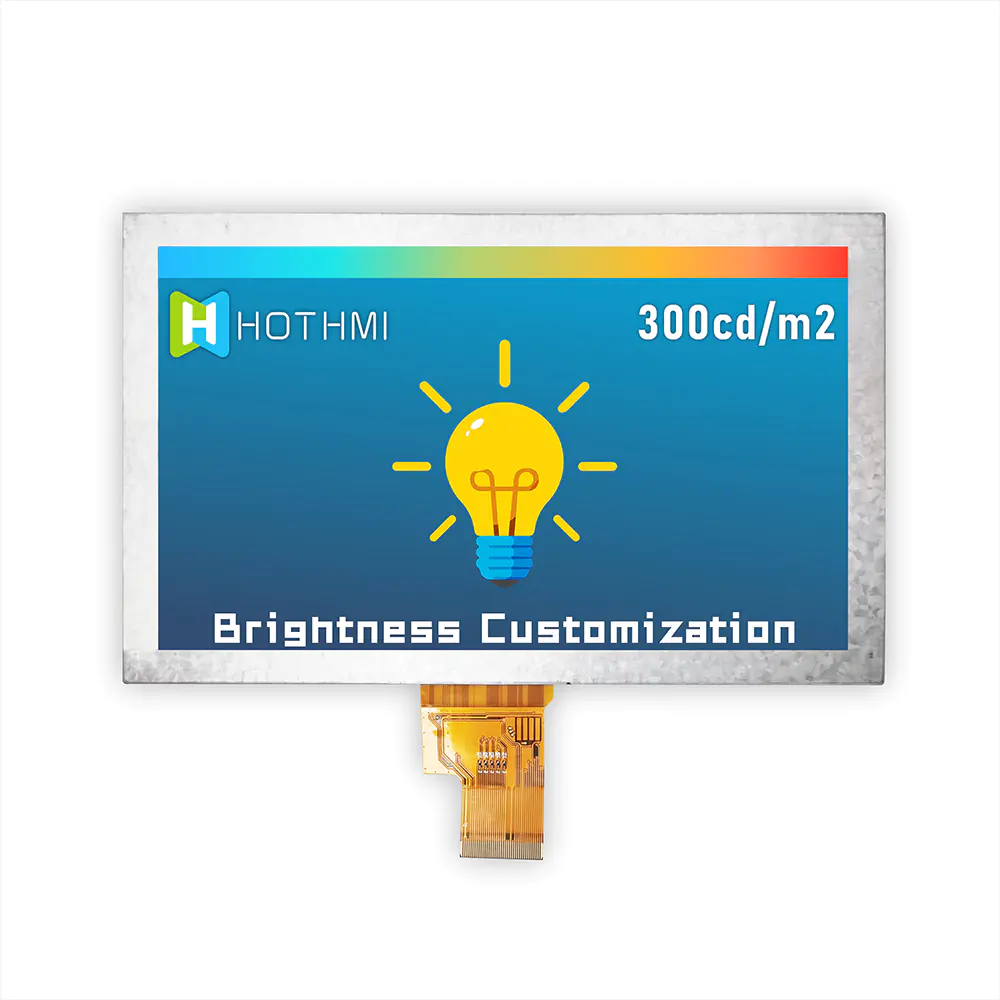

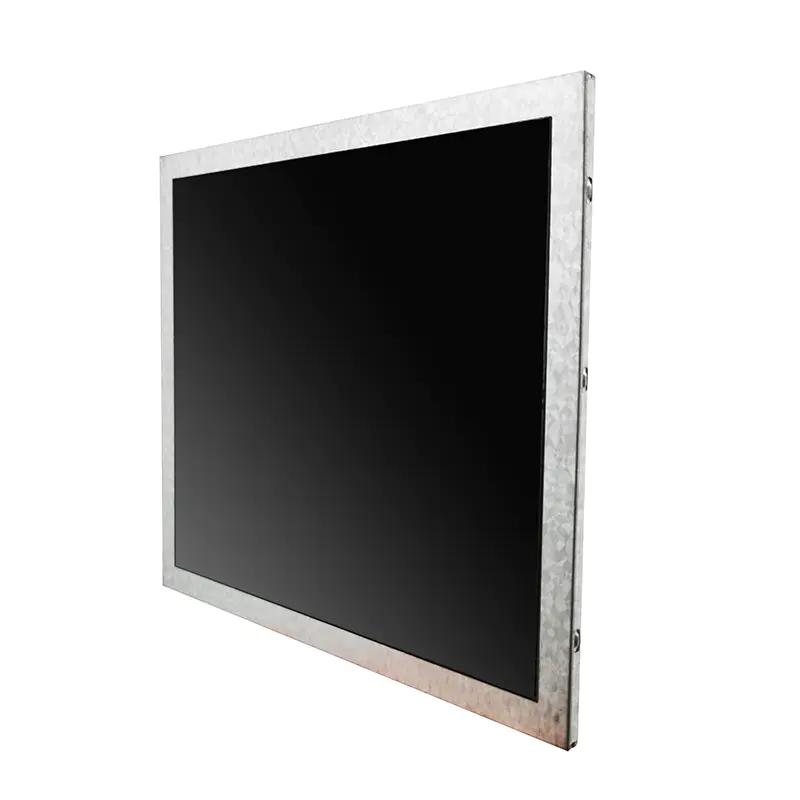

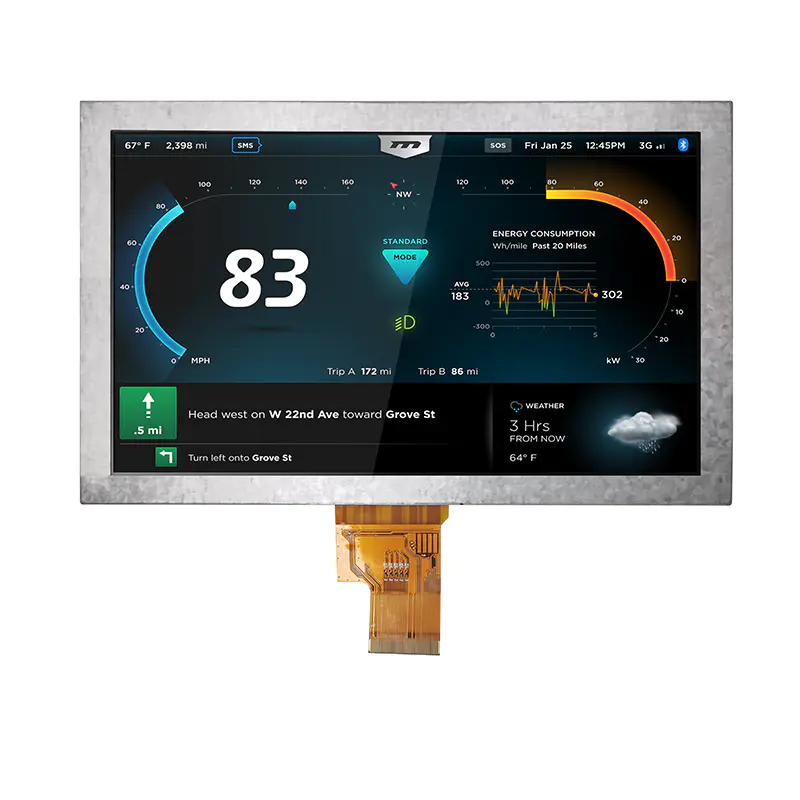

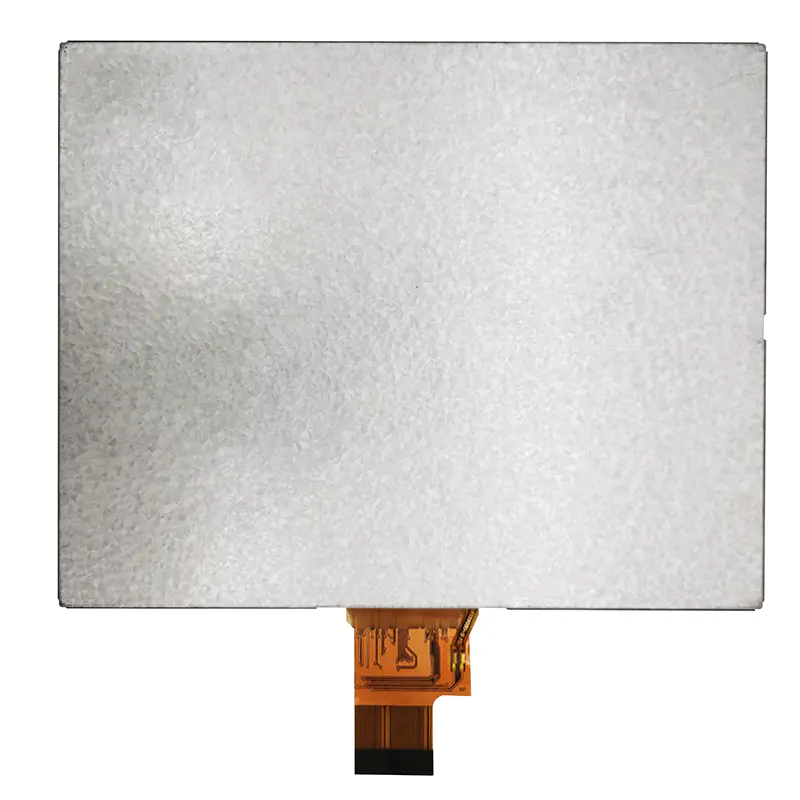

TFT-H080A2XGTHX3N40 is an 8-inch TFT LCD module with IPS panel technology. The resolution of this TFT-LCD is 1024 x 768 pixels. TFT-H080A2XGTHX3N40 module has built-in HX8282A+HX8695_B01 driver IC, supports LVDS interface, contrast ratio is 300 (typical value), and module brightness is 300 nits (typical value). The H080A2 uses IPS panel technology with wider viewing angles than TN glass. Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees, vivid colors, high quality picture with saturation and naturalness. The driving voltage of the WF50F module is 3.3V, ordinary black/translucent liquid crystal, frosted glass, and the screen aspect ratio is 16:9. The module has an operating temperature of -30°C to +80°C and a storage temperature of -20°C to +70°C.
Model:8.0''TFT/1024*768Resolution/LVDS-4L/TFT-H080A2XGTHX3N40_V0

Product type:TFT

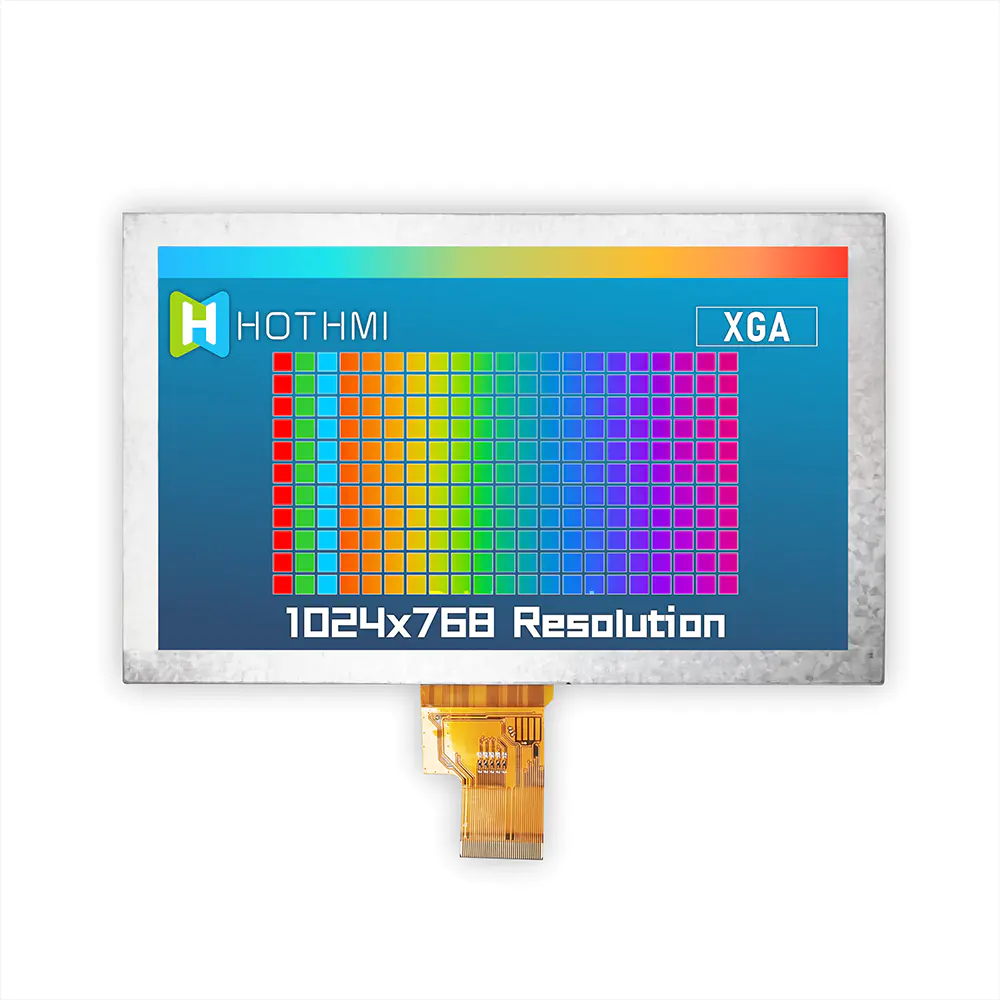

Show contents:1024*768

Outline size(mm) :183.0*141.0*3.4

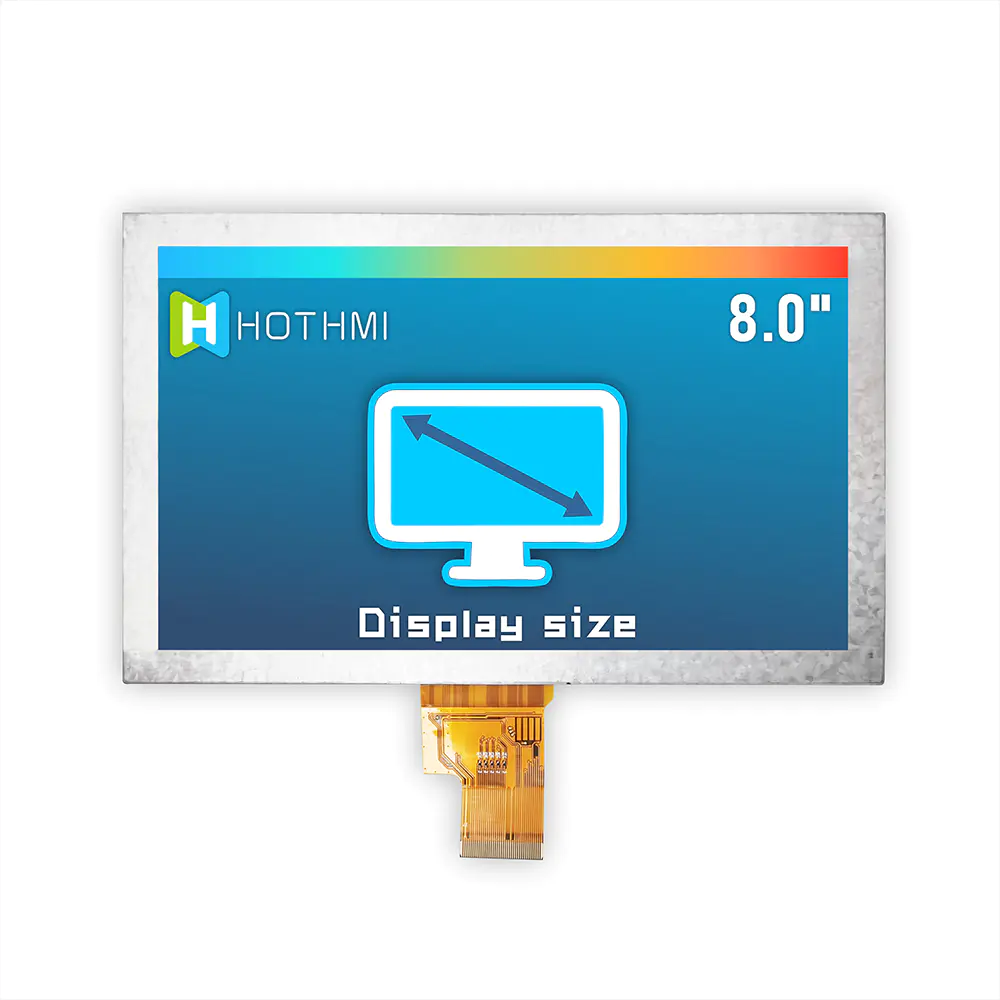

Size of View Window(mm):8.0"

Display size(mm) :8.0"

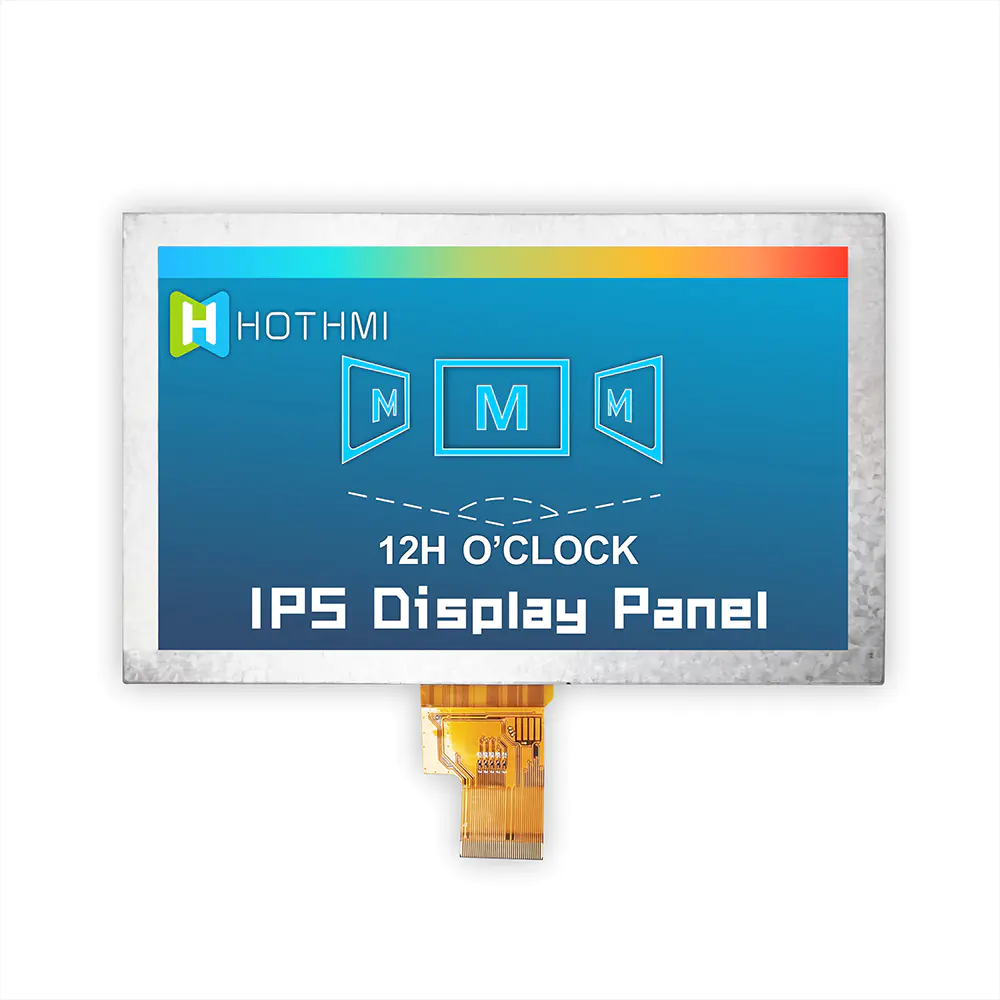

Visual angle:12H

Backlight type or brightness:300cd/m2

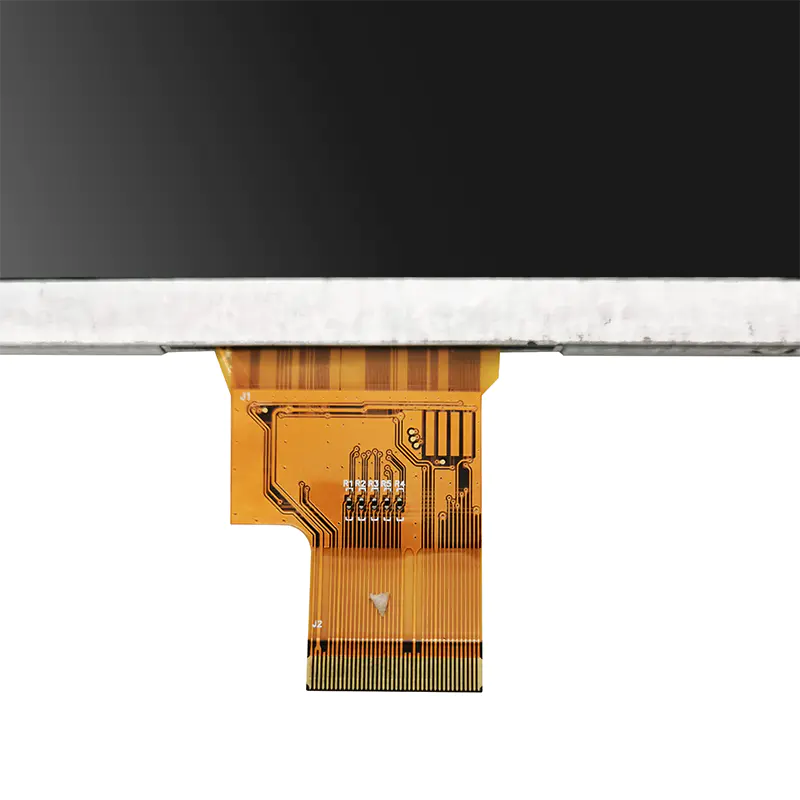

Connection PIN Number:FPC-40PIN

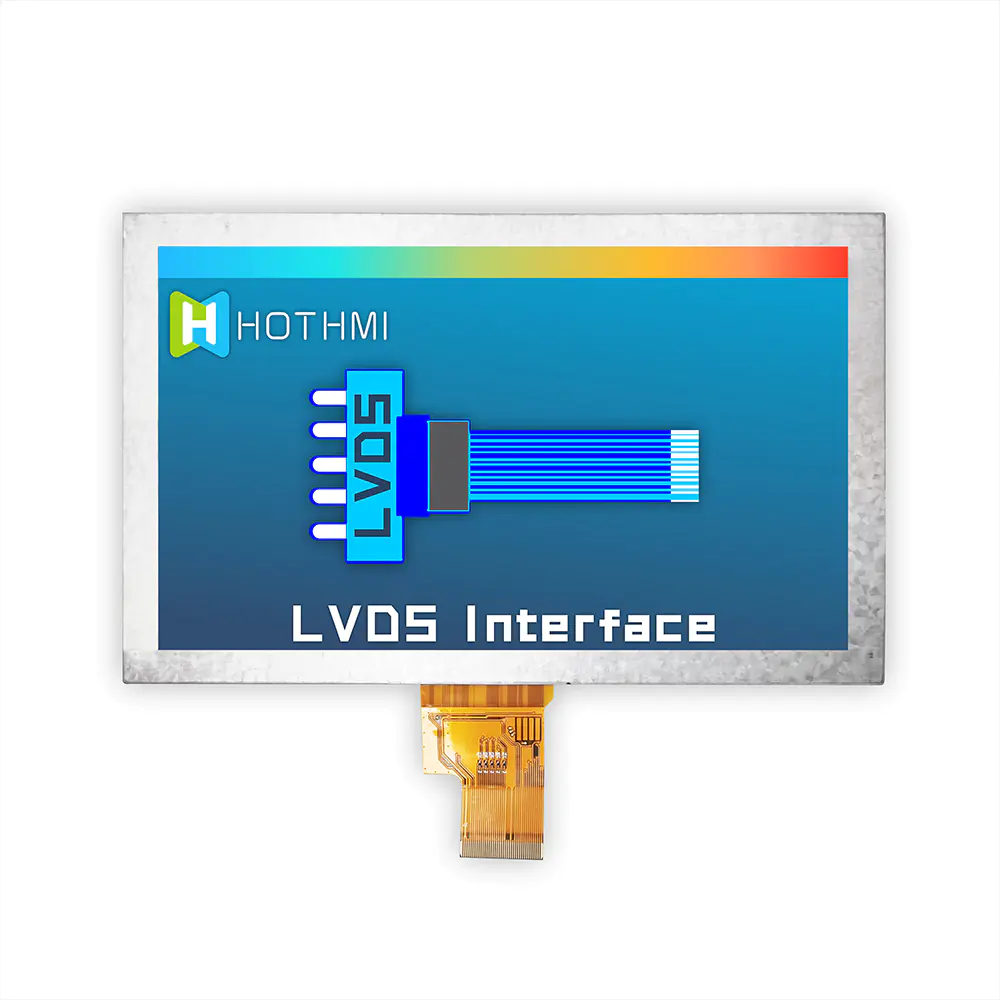

Interface mode:LVDS

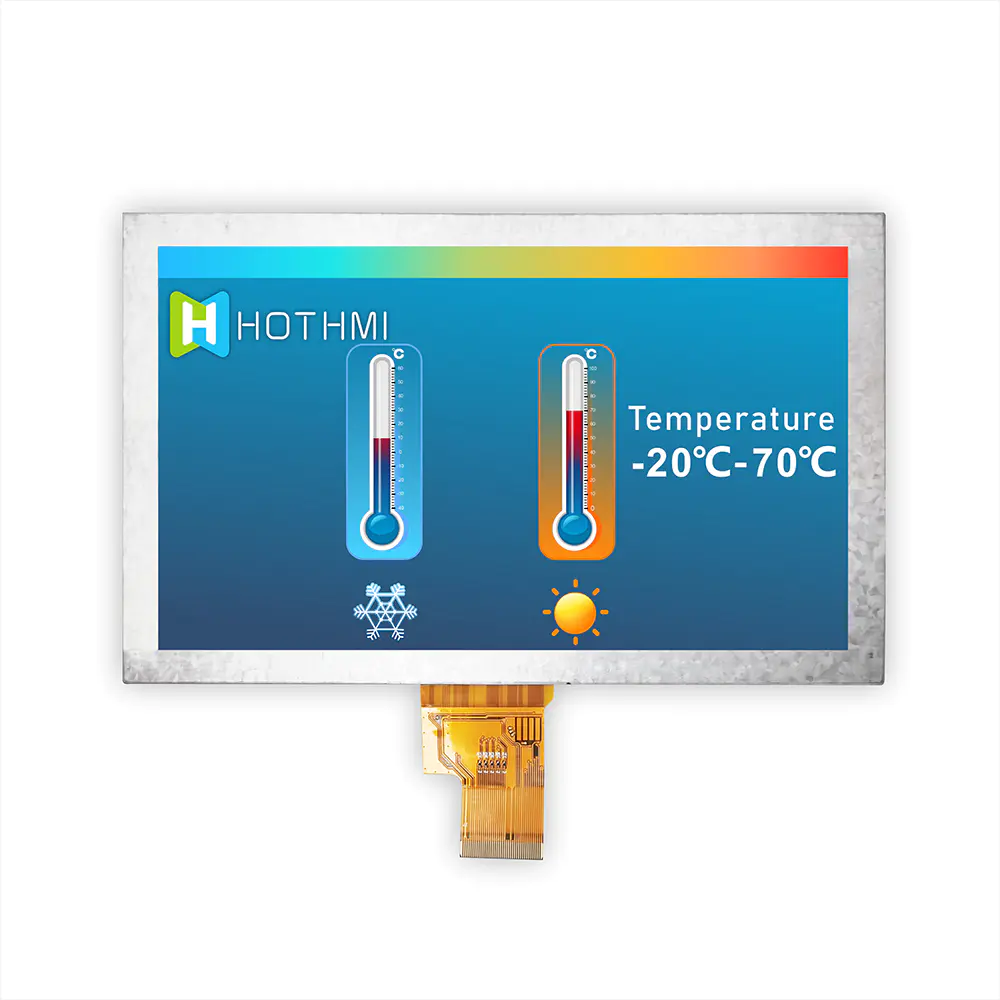

Working temperature:-20~70℃

Power supply voltage:3.3v

IC driver chip: HX8282A+HX8695_B01



CAD Drawings
