7.84 -inch elongated TFT/resolution of 400 * 1280 / IPS/high brightness/TFT- H078A1ZAISTN40
7.84 -inch elongated TFT/resolution of 400 * 1280 / IPS/high brightness/TFT- H078A1ZAISTN40
US$29.99
Add to wish list
Quantity
+
Product details
Product Description

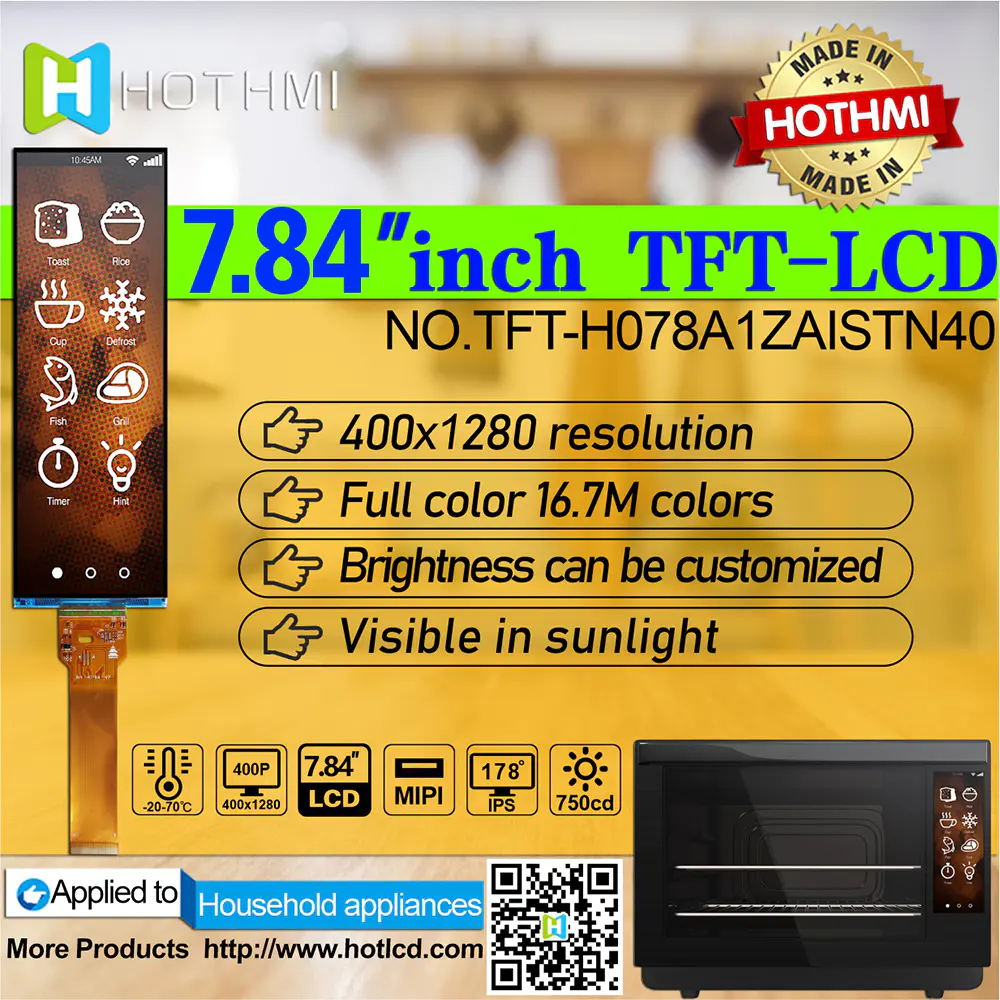

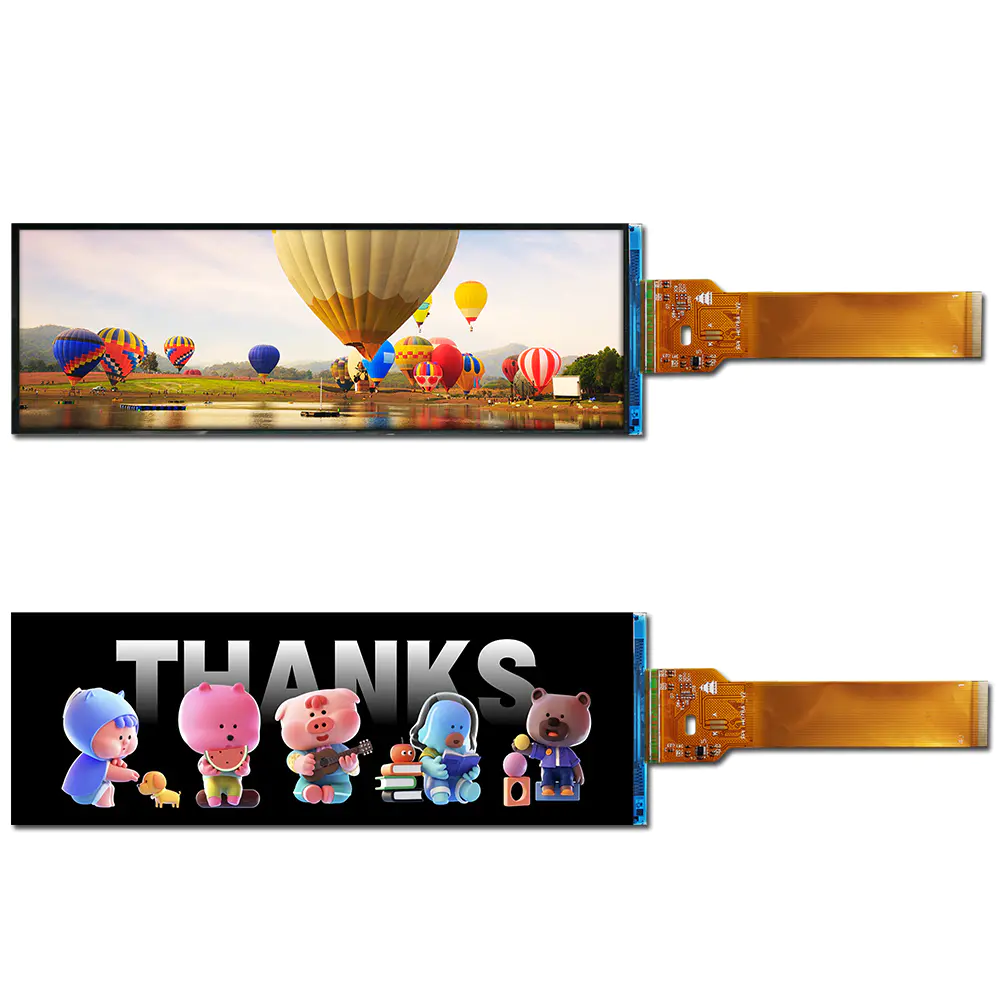

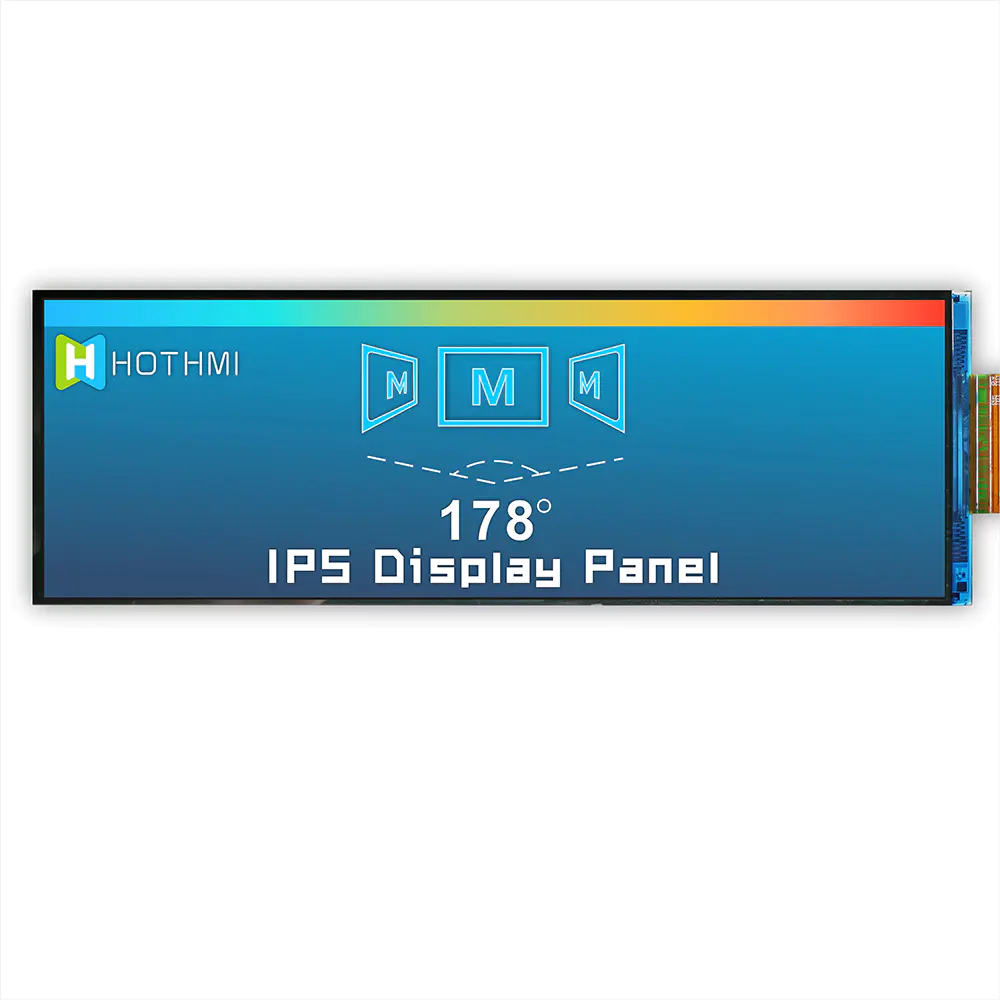

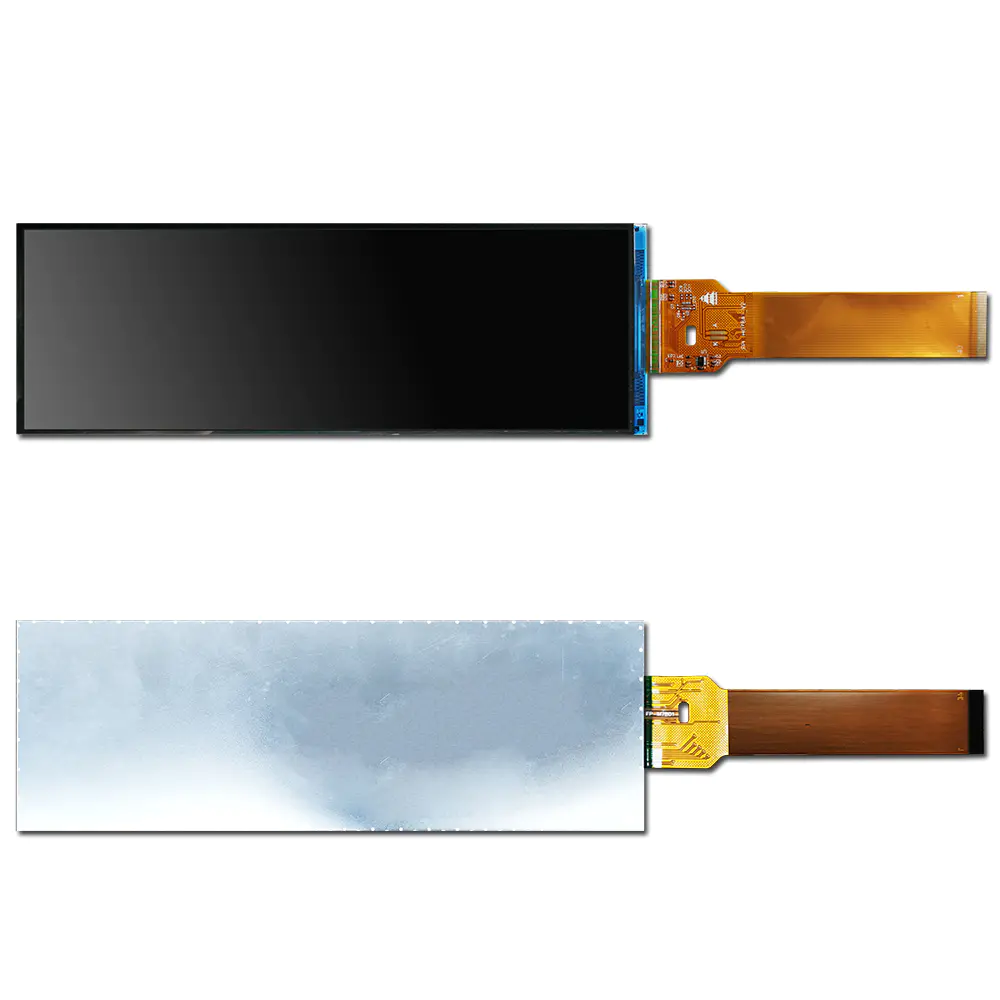

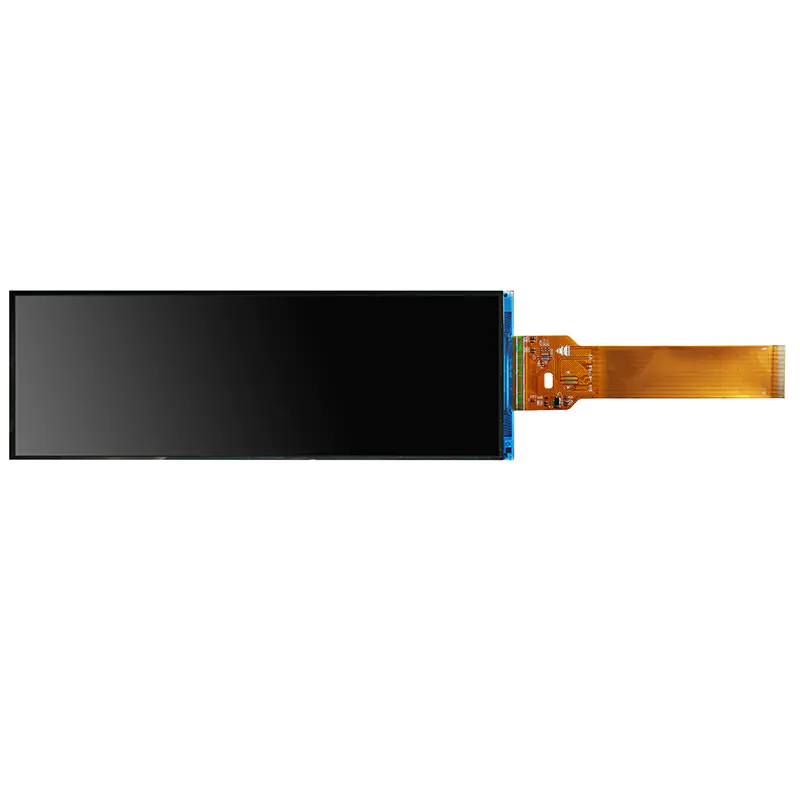

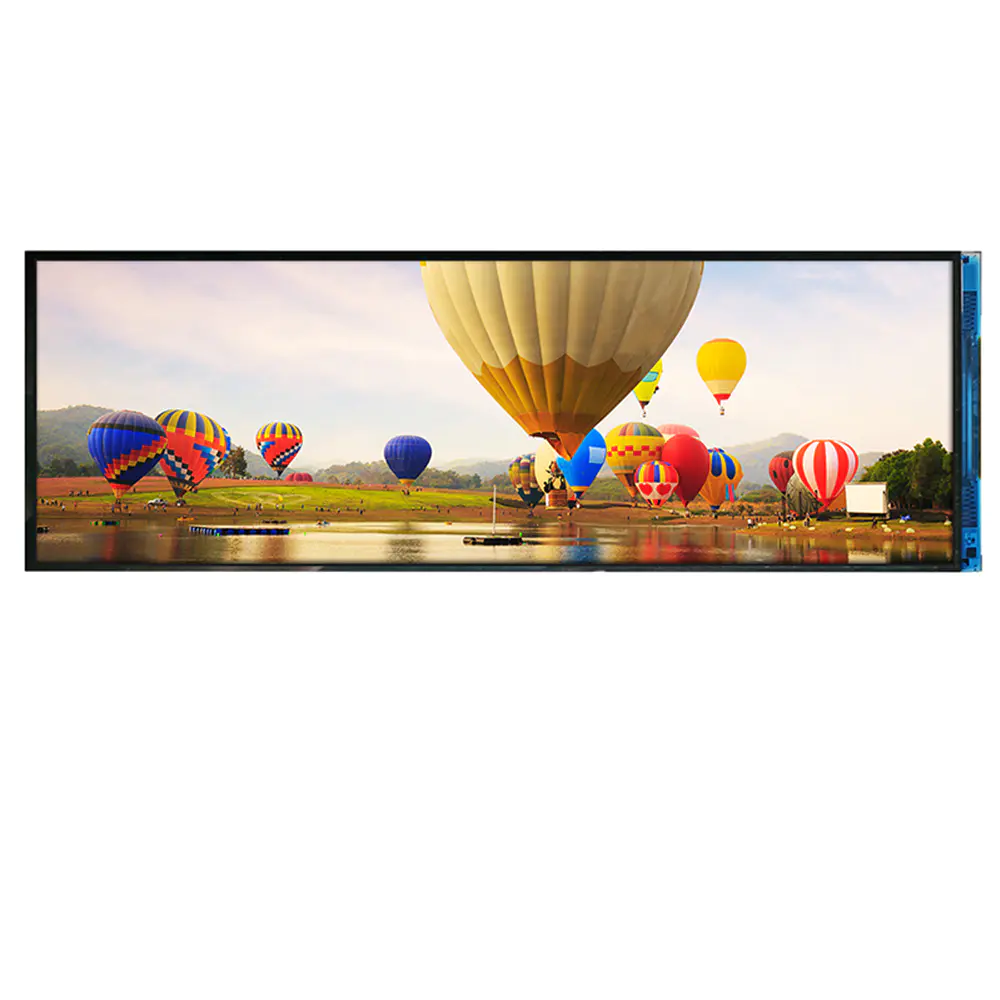

TFT-H078A1ZAISTN40 is a 7.84-inch TFT LCD module with IPS panel technology. This TFT-LCD has a resolution of 400 x 1280 pixels. The TFT-H078A1ZAISTN40 module has built-in ST7703 driver IC, supports MIPI interface, the contrast ratio is 700 (typical value), and the module brightness is 700 nits (typical value). H078A1 adopts IPS panel technology, the viewing angle is wider than TN glass, the left: 80 / right: 80 / top: 80 / bottom: 80 degrees, the color is vivid, and the high-quality picture is saturated and natural. The driving voltage of the H078A1 module is 3.3V, normal black/transmissive LCD, matte glass, and the screen aspect ratio is 16:9. The operating temperature of this module is -20°C to +70°C, and the storage temperature is -30°C to +80°C. If the customer's product application needs to use high-brightness TFT, the TFT-H078A1ZAISTN40 module can be selected, and its module brightness is 700 nits (typ.).
Model : 7.84 inch elongated TFT/resolution of 400 * 1280 / IPS/high brightness/TFT- H078A1ZAISTN40

Product type:TFT

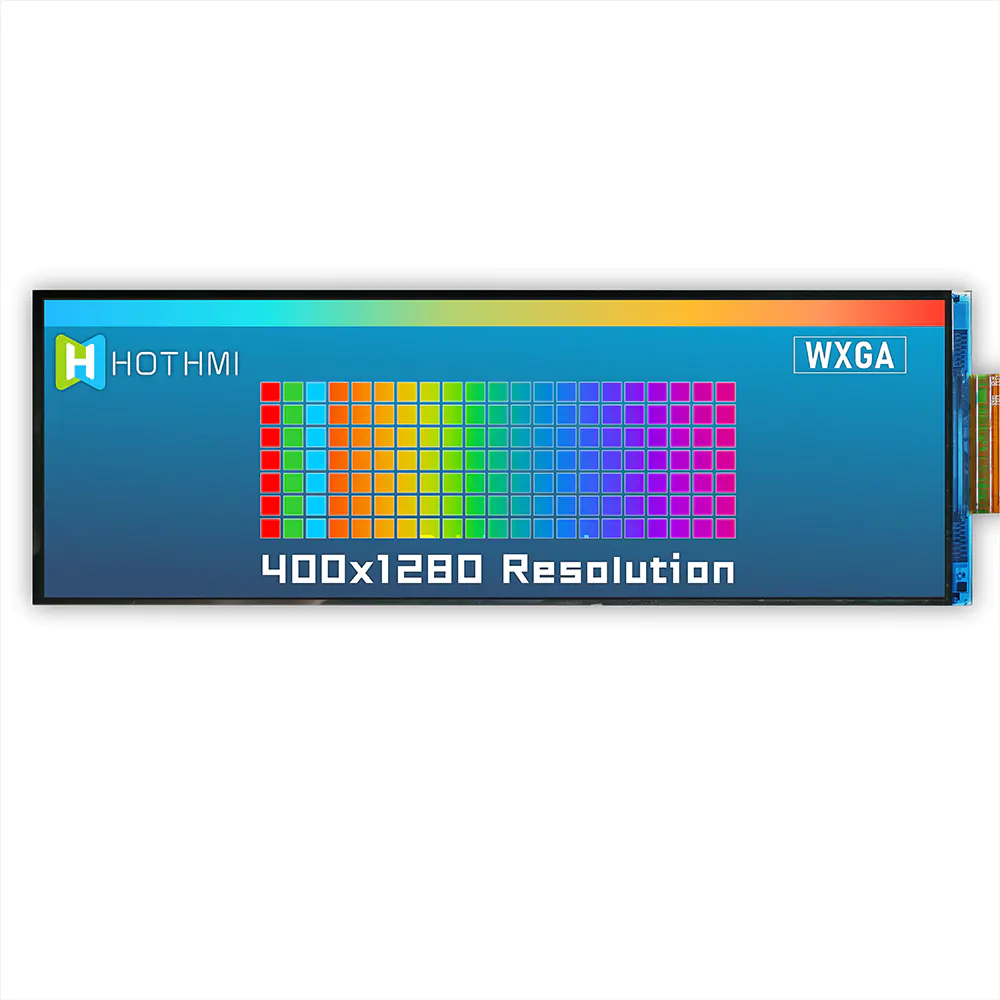

Show contents:400*1280

Outline size(mm) :201.18*65.20

Size of View Window(mm):7.84"

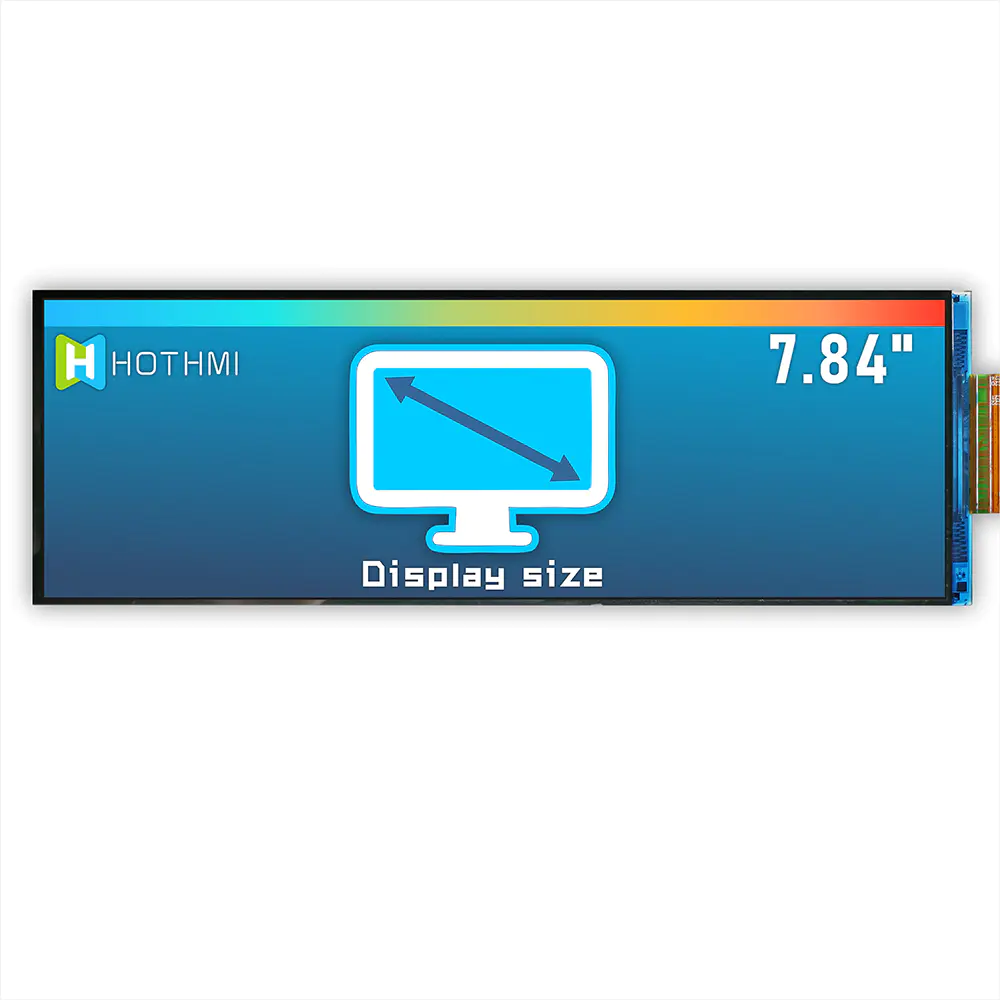

Display size(mm) :7.84"

Effective size(mm):190.08*59.40

Visual angle:Full View

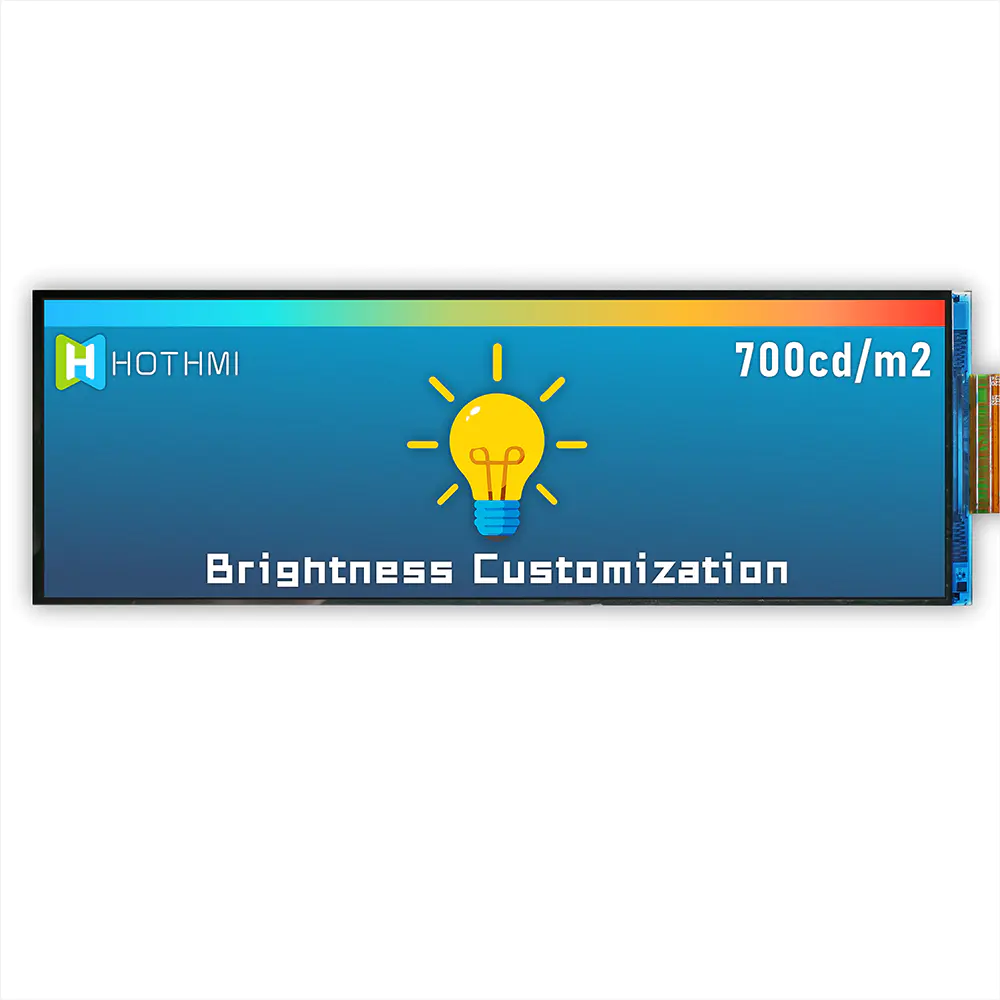

Backlight type or brightness:700

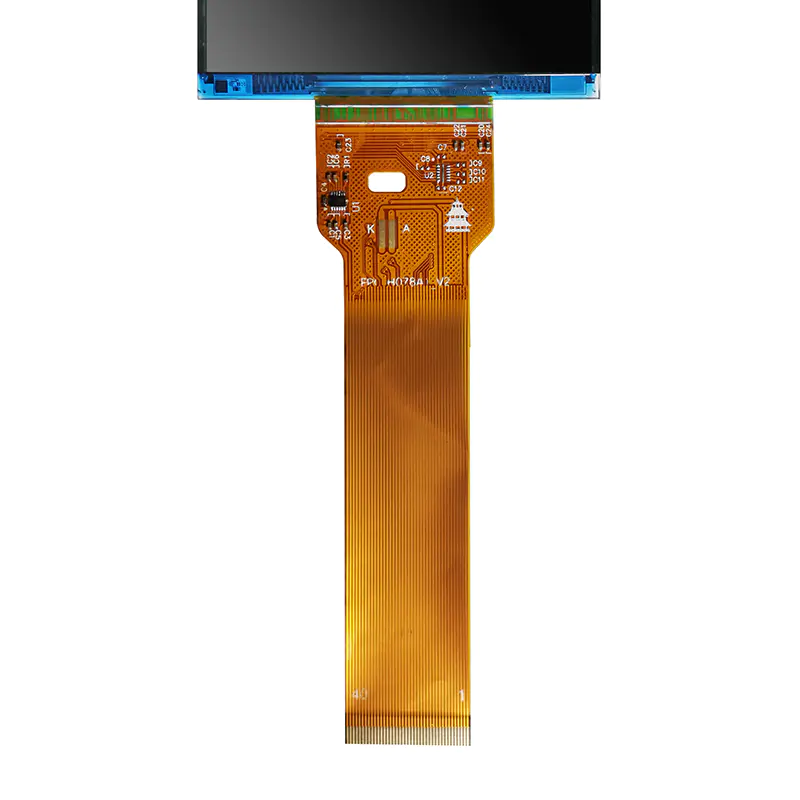

Connection PIN Number:40PIN

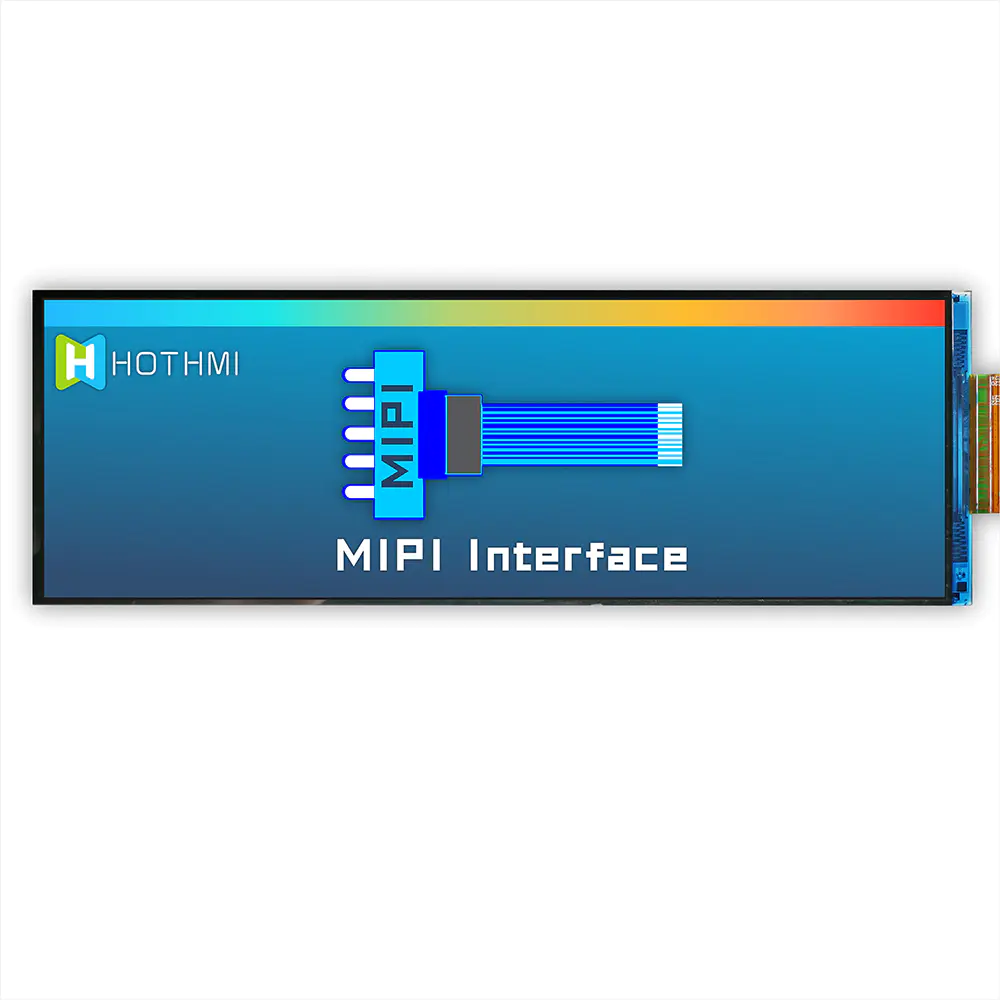

Interface mode:MIPI

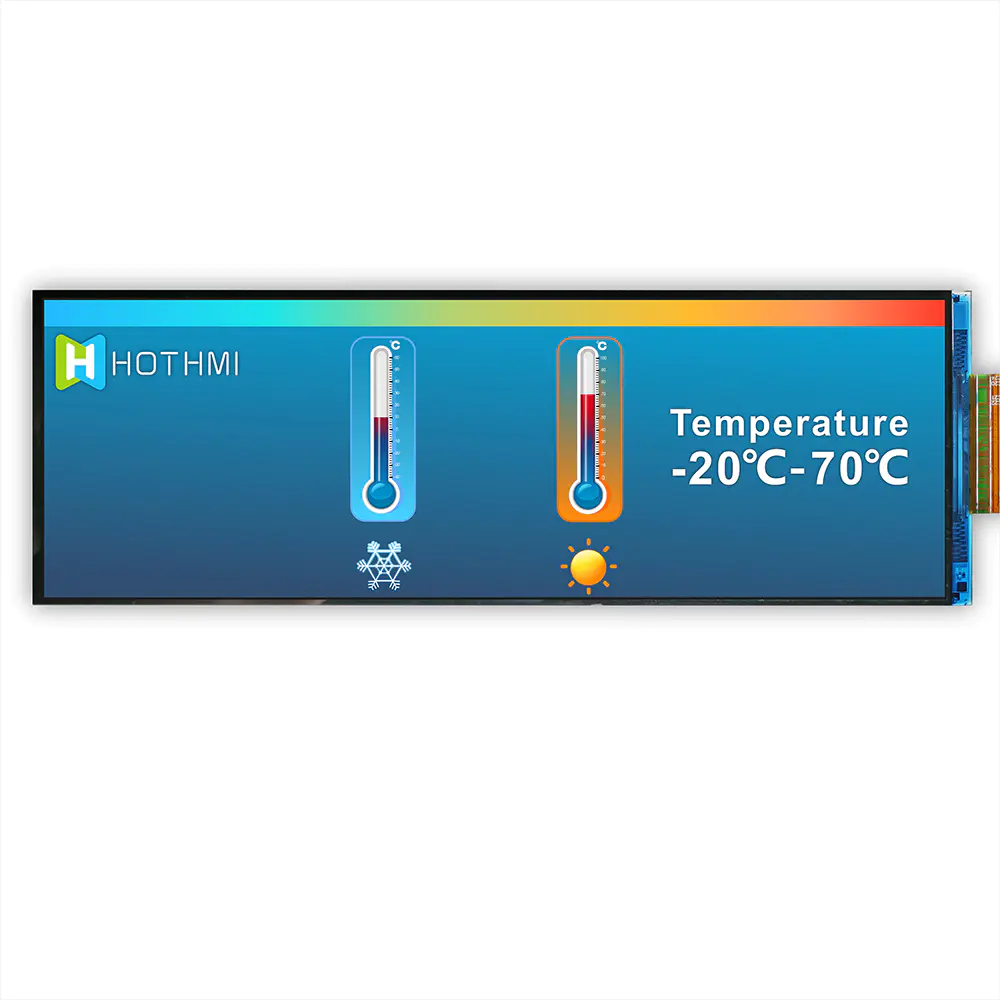

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:ST7703

CAD Drawings
