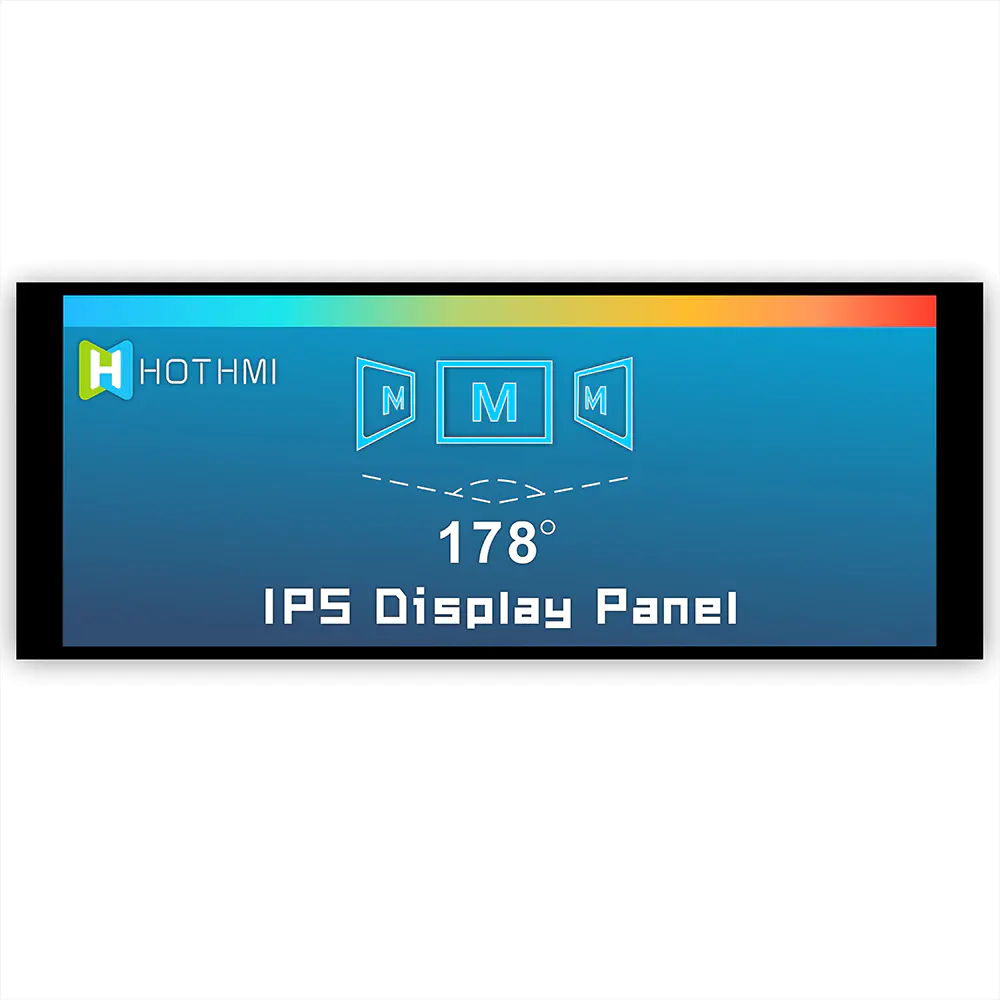

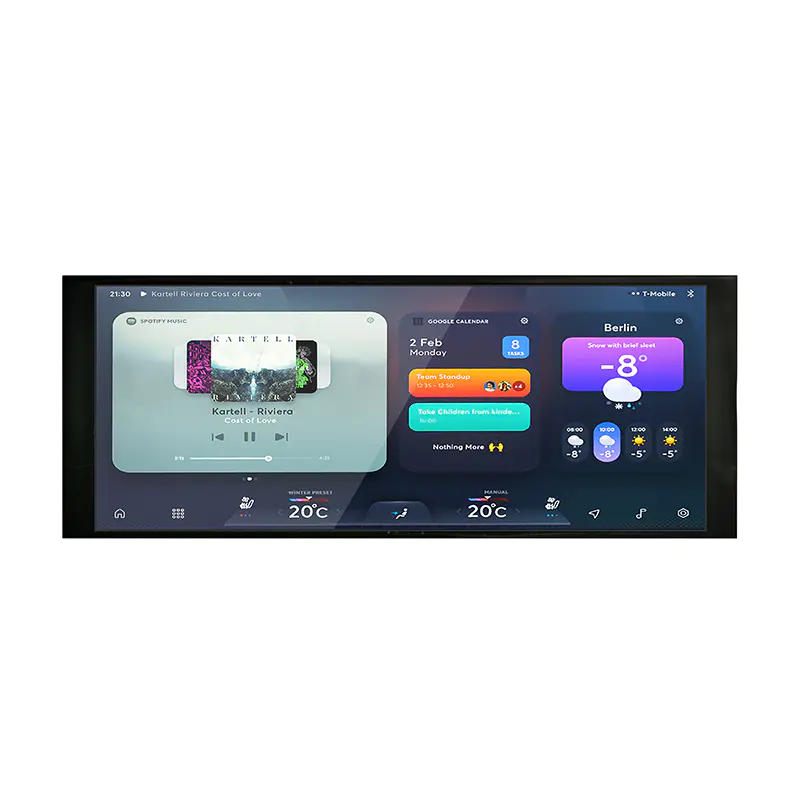

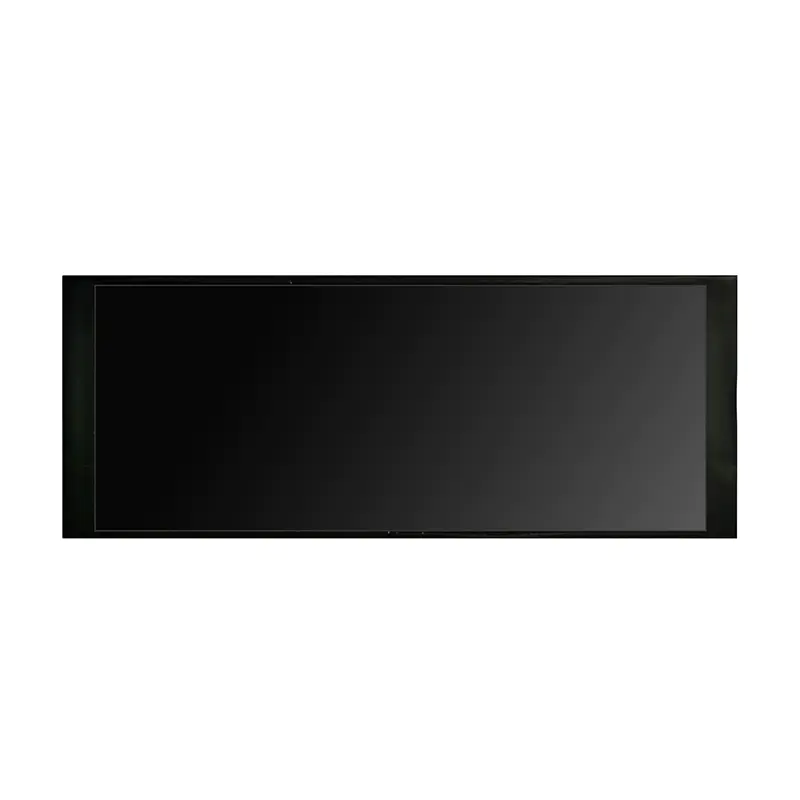

6.86 inch TFT /480*1280 resoliution/IPS/LVDS 4L interface/TFT-H068A1ZAINVKN40
$29.99
Add to wish list
Quantity
+
Product details
Model : 6.86 inch TFT /480*1280 resolution/IPS/LVDS 4L interface/TFT-H068A1ZAINVKN40

Product type:Strip TFT

Show contents:480*1280

Outline size(mm) :67.0*181.3*4.7

Size of View Window(mm):6.8"

Display size(mm) :6.8"

Effective size(mm):60.2208*160.5888

Visual angle:Full View

Backlight type or brightness:1000cd/m2

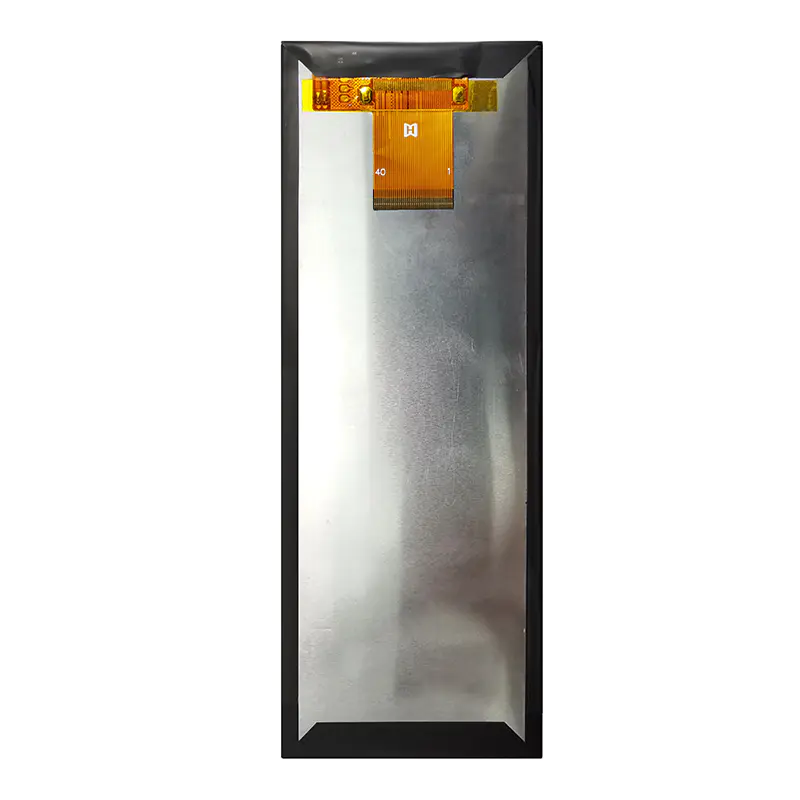

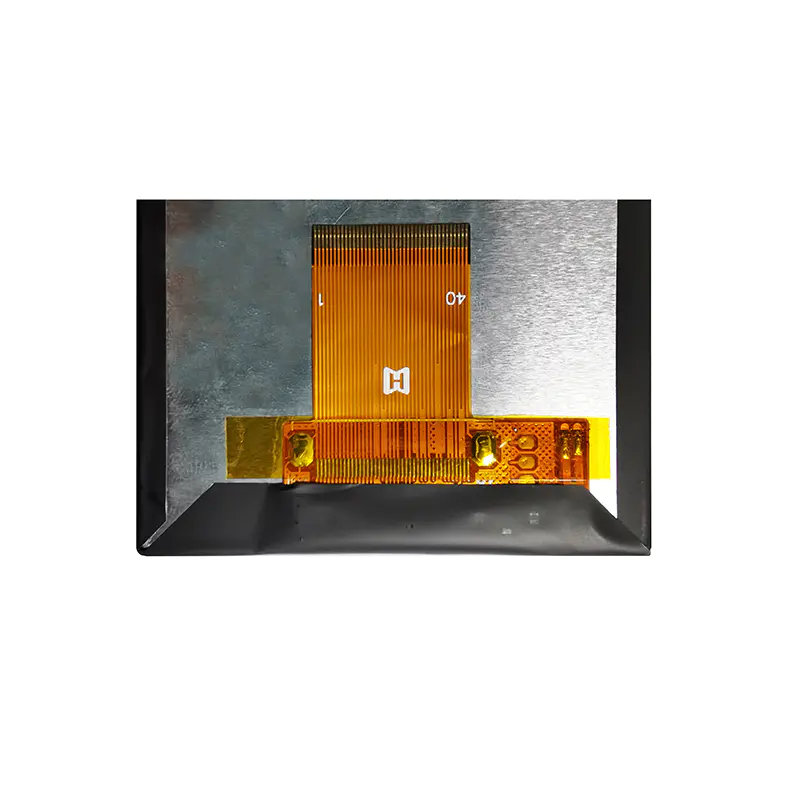

Connection PIN Number:FPC-40PIN

Interface mode:LVDS 4L

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:NV3051F1

CAD Drawings
