Product Description

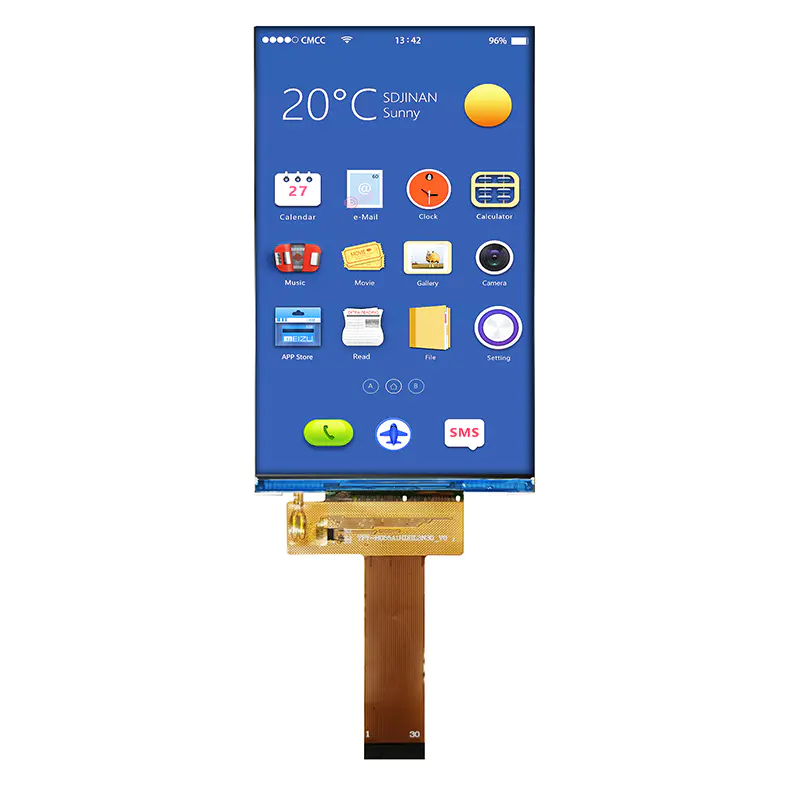

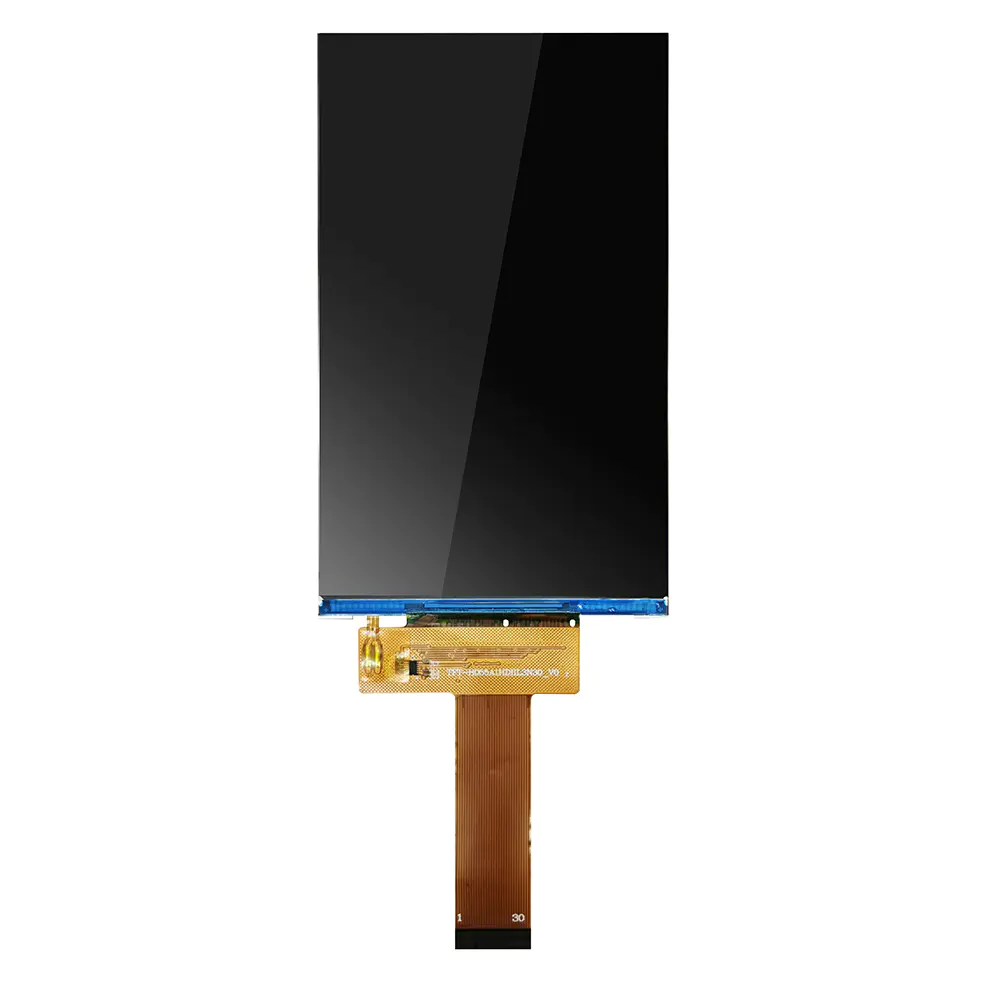

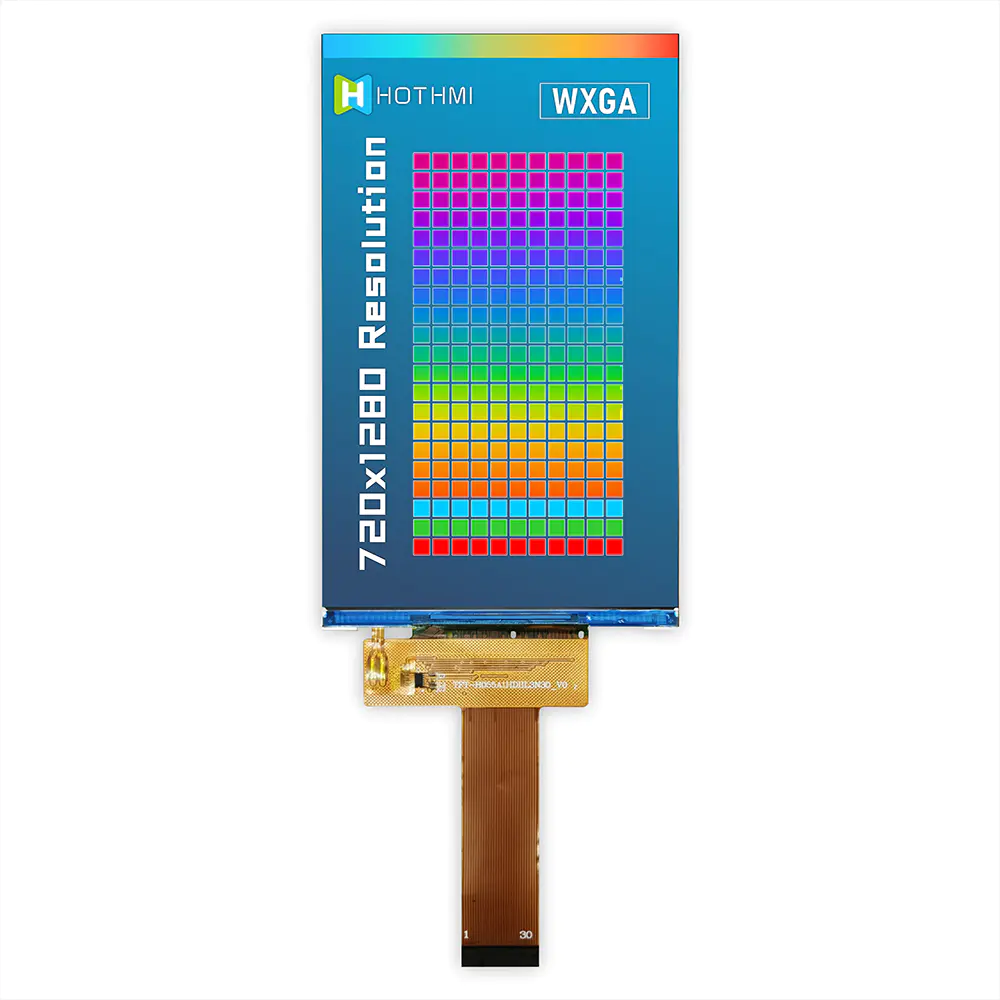

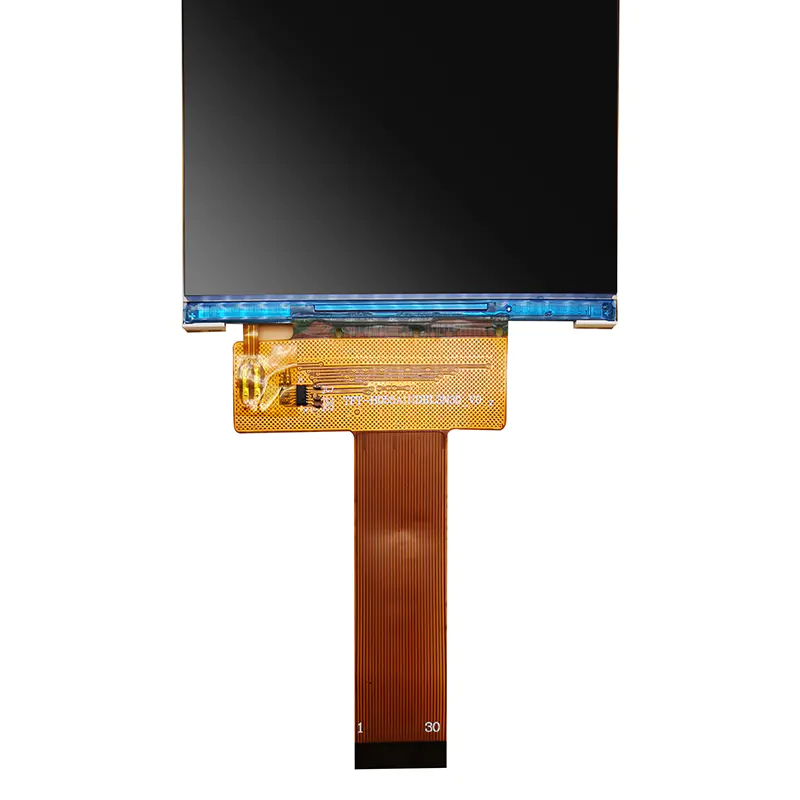

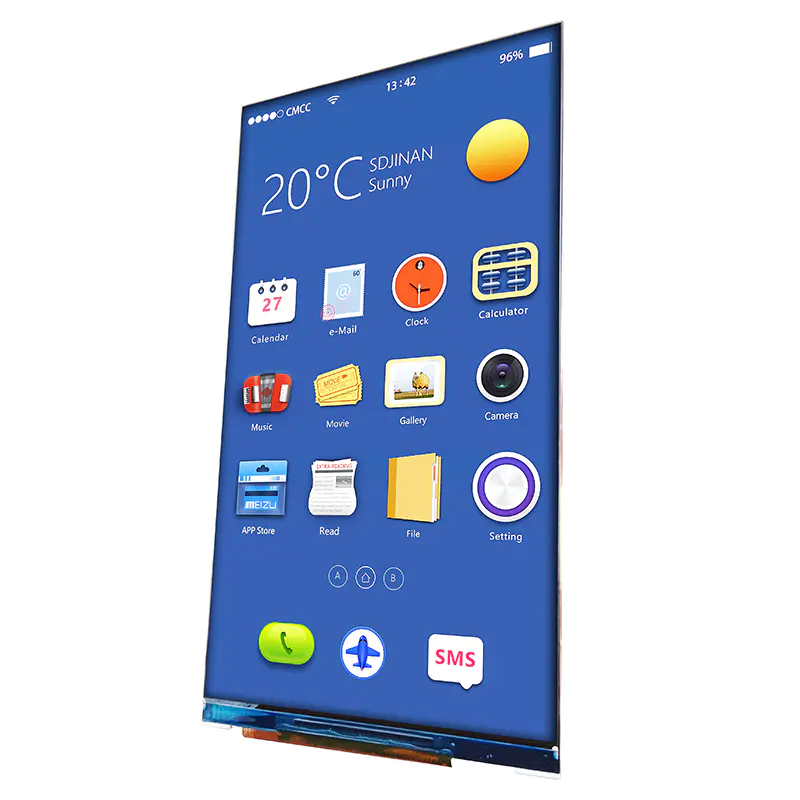

TFT-H055A1HDIIL3N30 is a 5.5-inch 720x1280 full-color HD high-definition TFT LCD module. This TFT-LCD supports MIPI DSI interface and adopts wide viewing angle IPS (In-plane Switching) panel technology. Vivid, high-quality picture with saturated naturalness. This model has an operating temperature of -20°C to +70°C and a storage temperature of –30°C to +80°C. The size of this TFT module is 67.932x120.768mm, the size of the Active area (AA area) is 71.04x129.56 mm, the module has a built-in driver IC ILI9881 (driver IC), and the working power supply voltage: 3.3V. The TFT-H055A1HDIIL3N30 module is in the straight screen mode, if you need to use the horizontal screen mode, please contact us, and we will provide relevant technical support services.
Model : 5.5 "TFT vertical screen/720 * 1280 resolution/ IPS full view/MIPI interface/ TFT-H055A1HDIIL3N30
Product type:TFT LCD
Show contents:720*1280
Outline size(mm) :71.04*129.56*1.62
Size of View Window(mm):5.5"

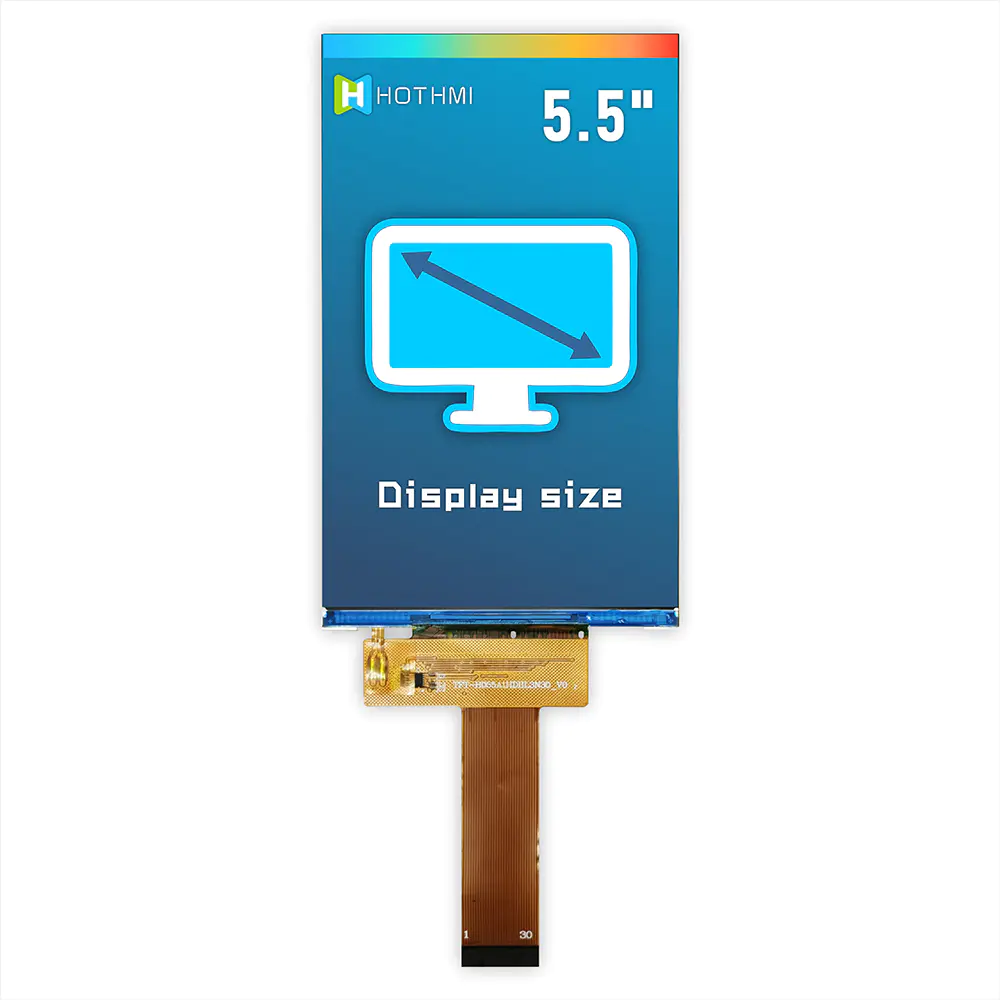

Display size(mm) :5.5"
Effective size(mm):67.93*120.76
Product application:Mobile POS terminal

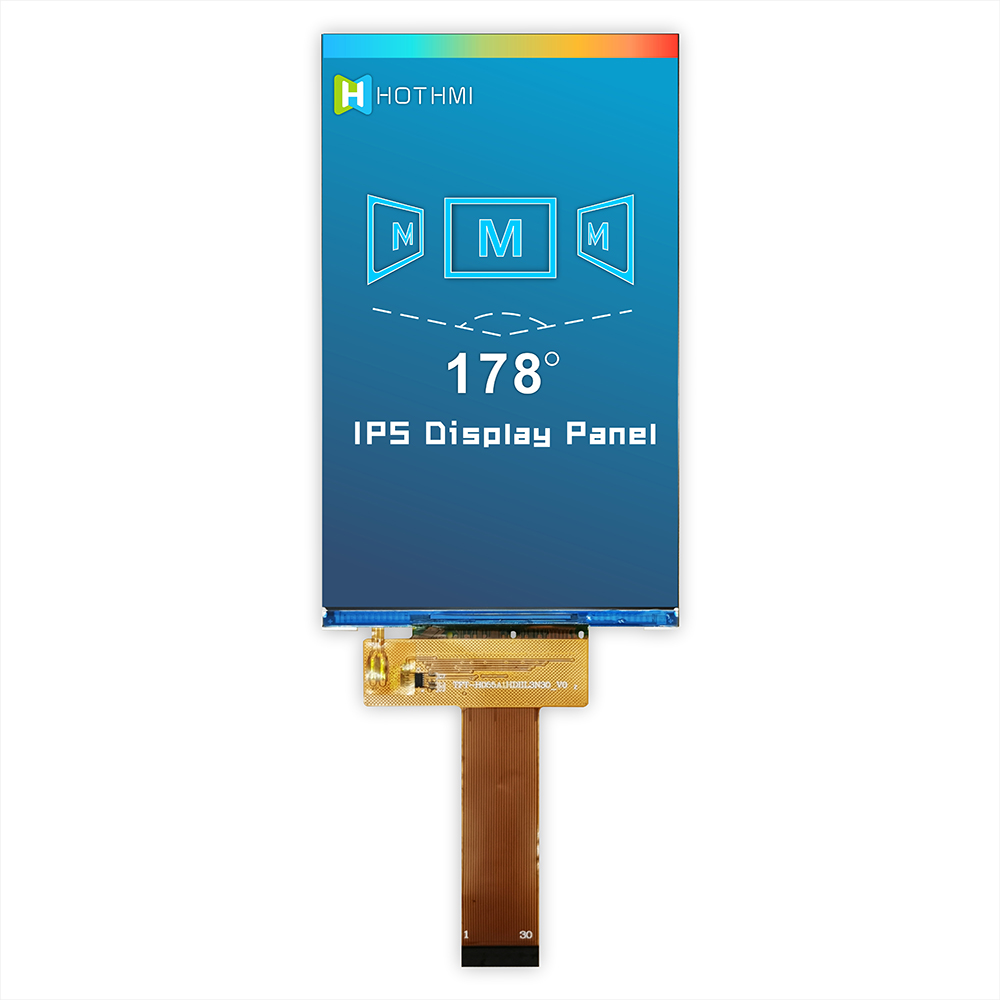

Visual angle:FULL

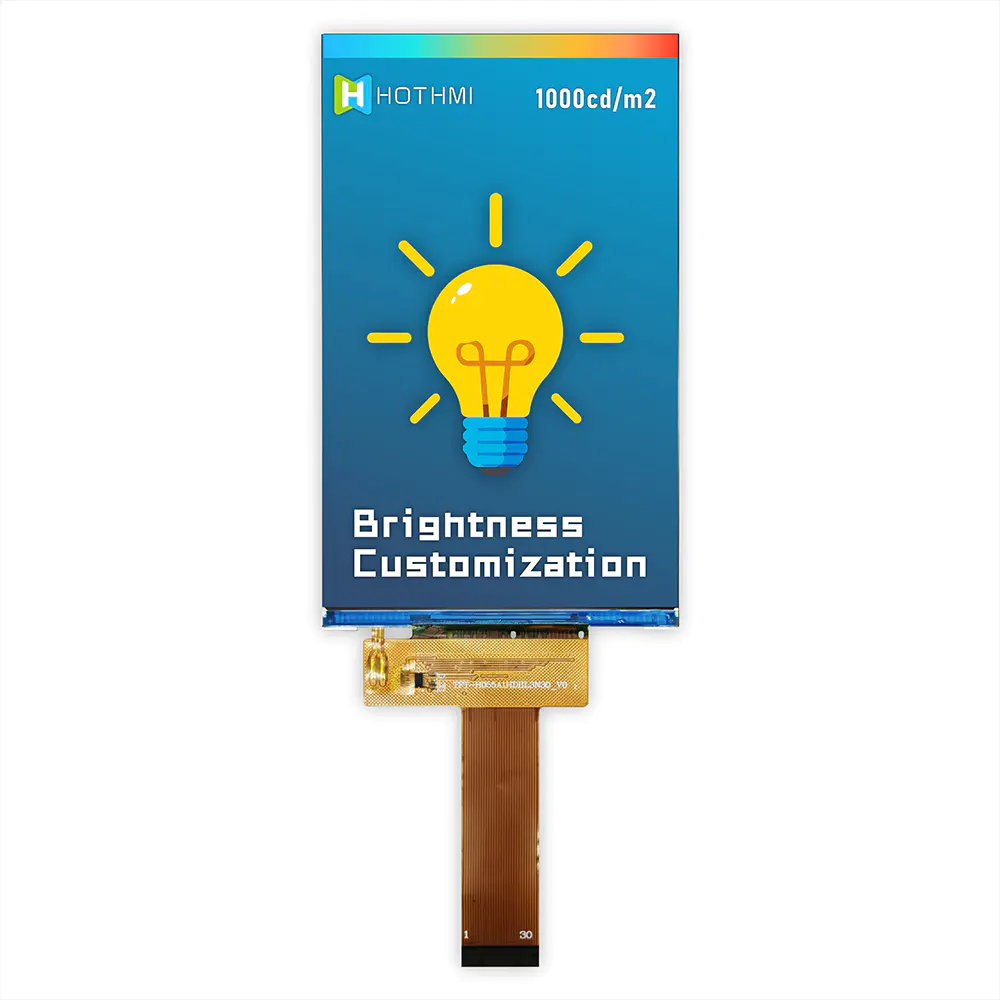

Backlight type or brightness:350
Connection PIN Number:30PIN

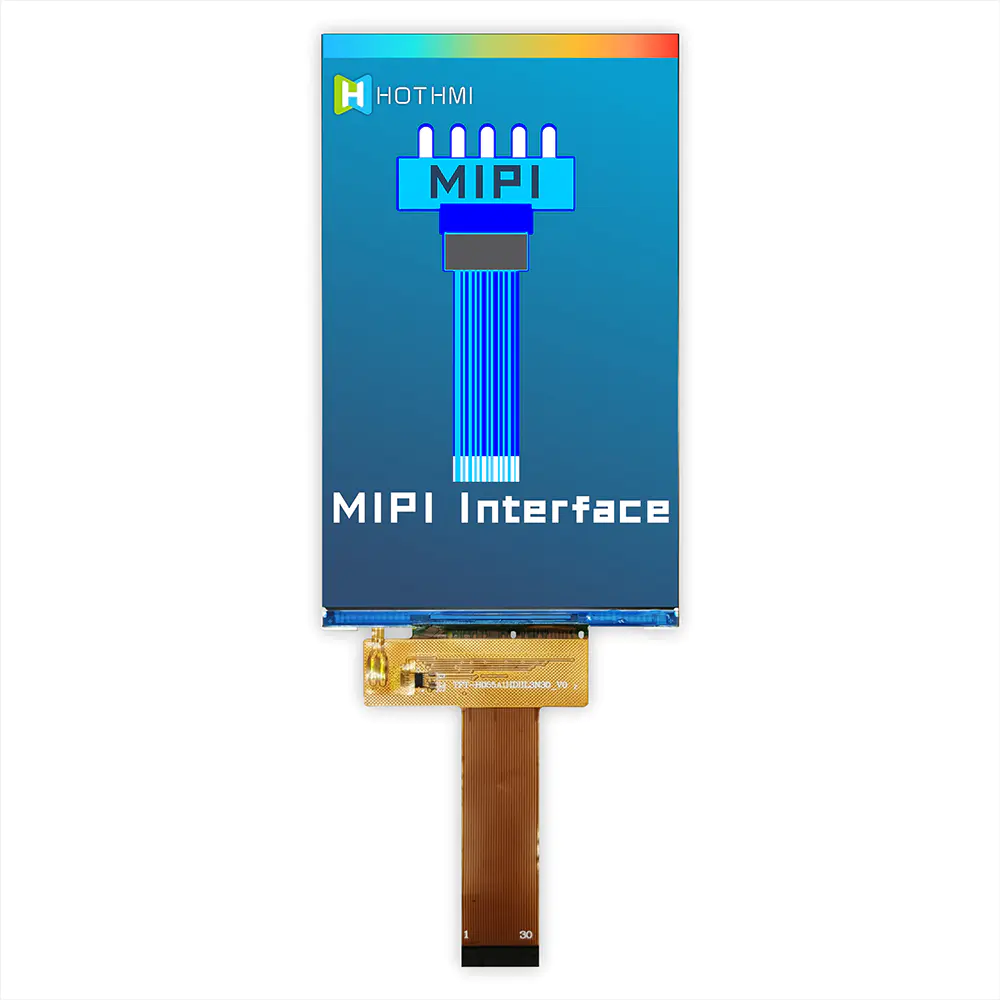

Interface mode:MIPI

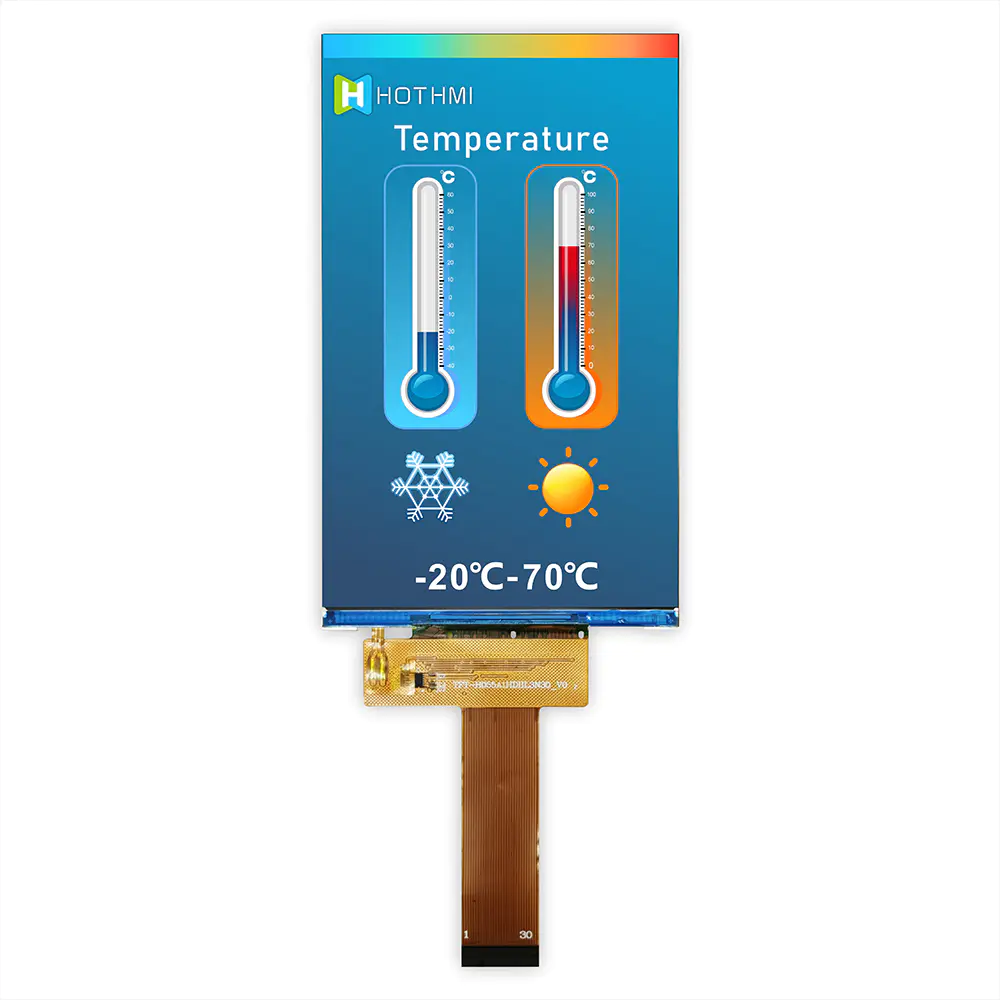

Working temperature:-20~70℃
Power supply voltage:3.0V
Driver chip model:ILI9881
CAD Drawings:
