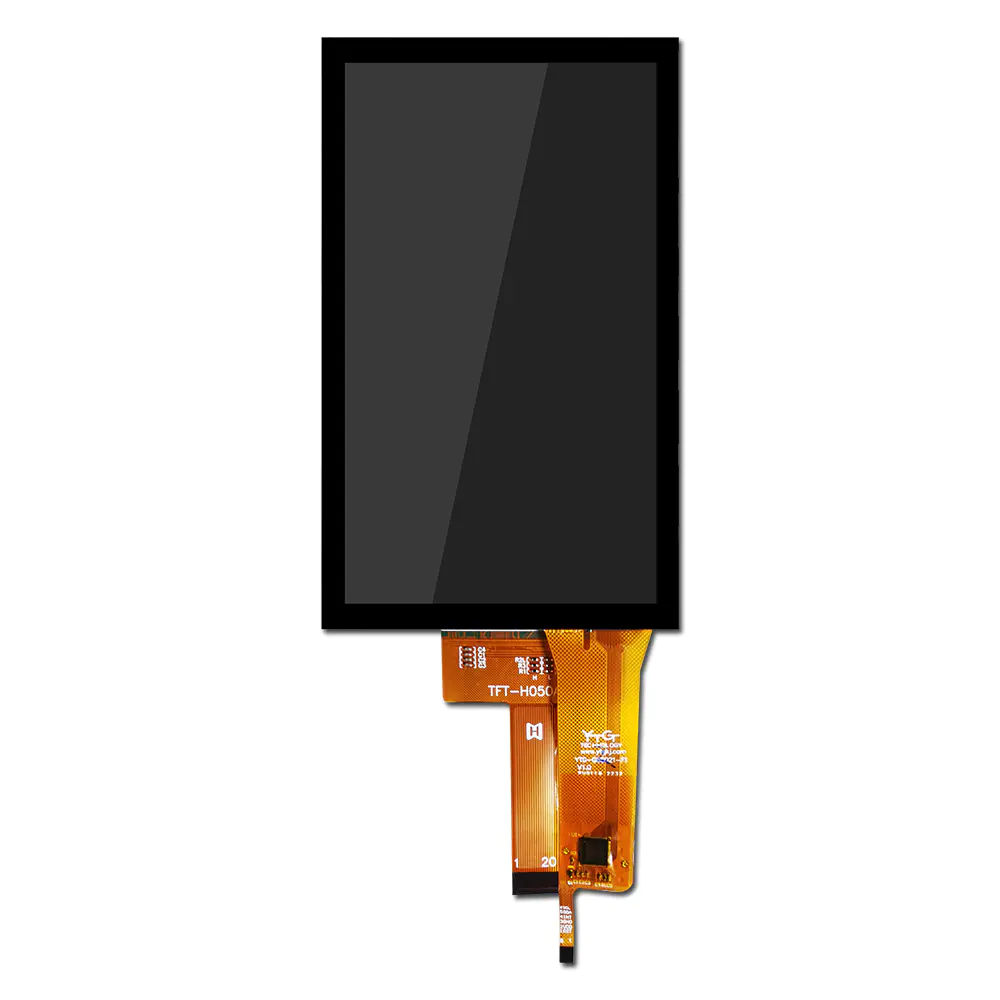

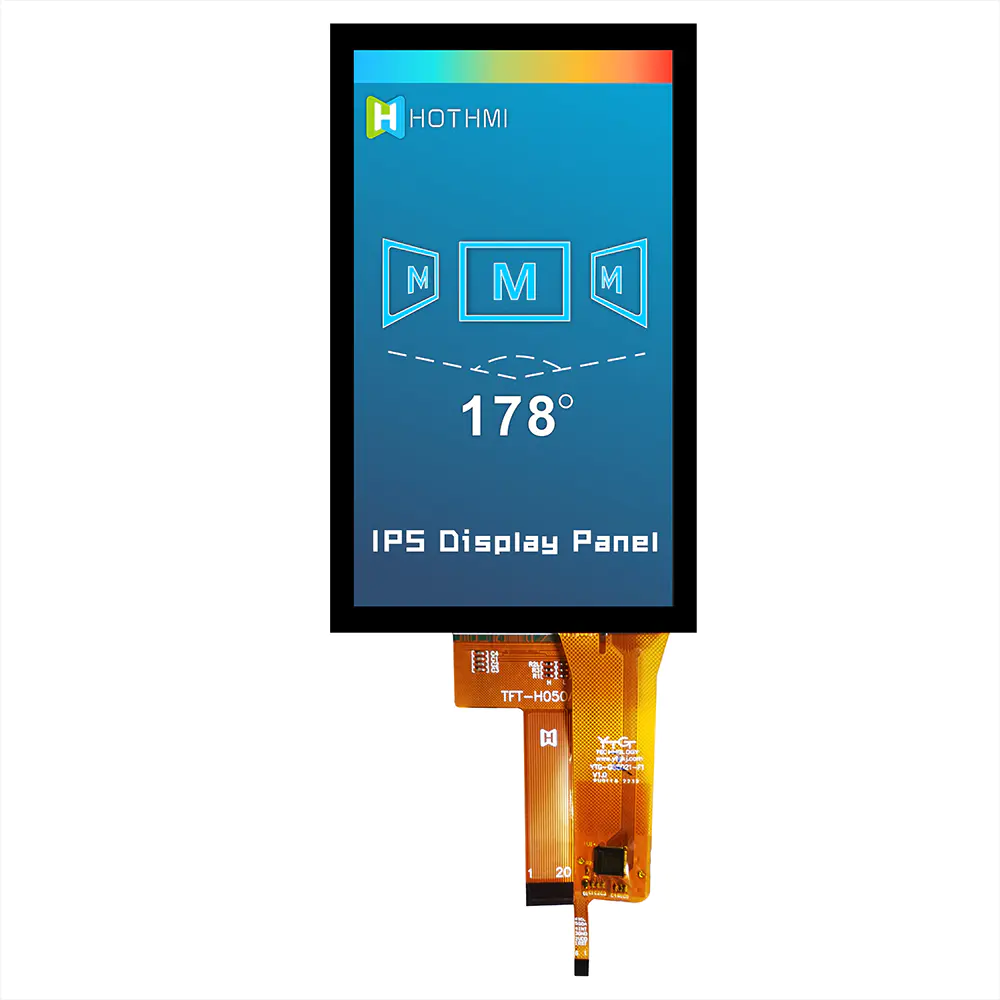

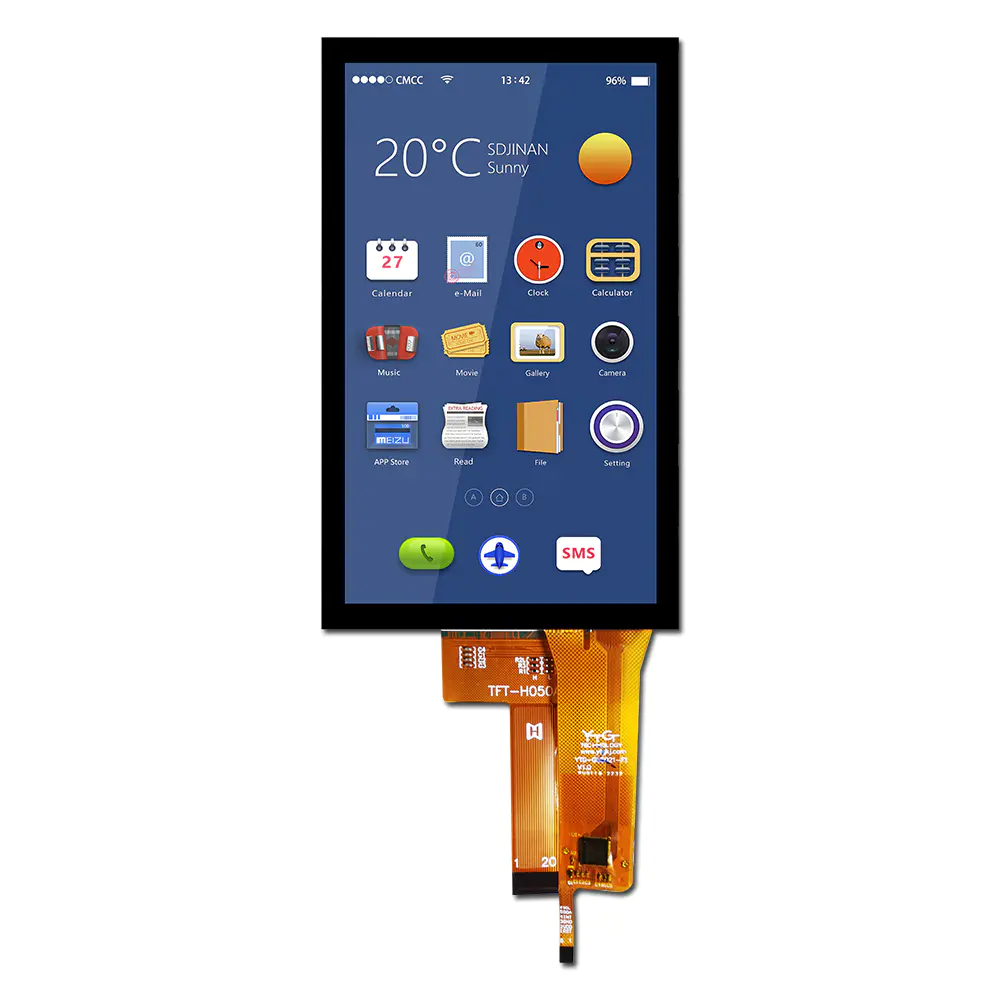

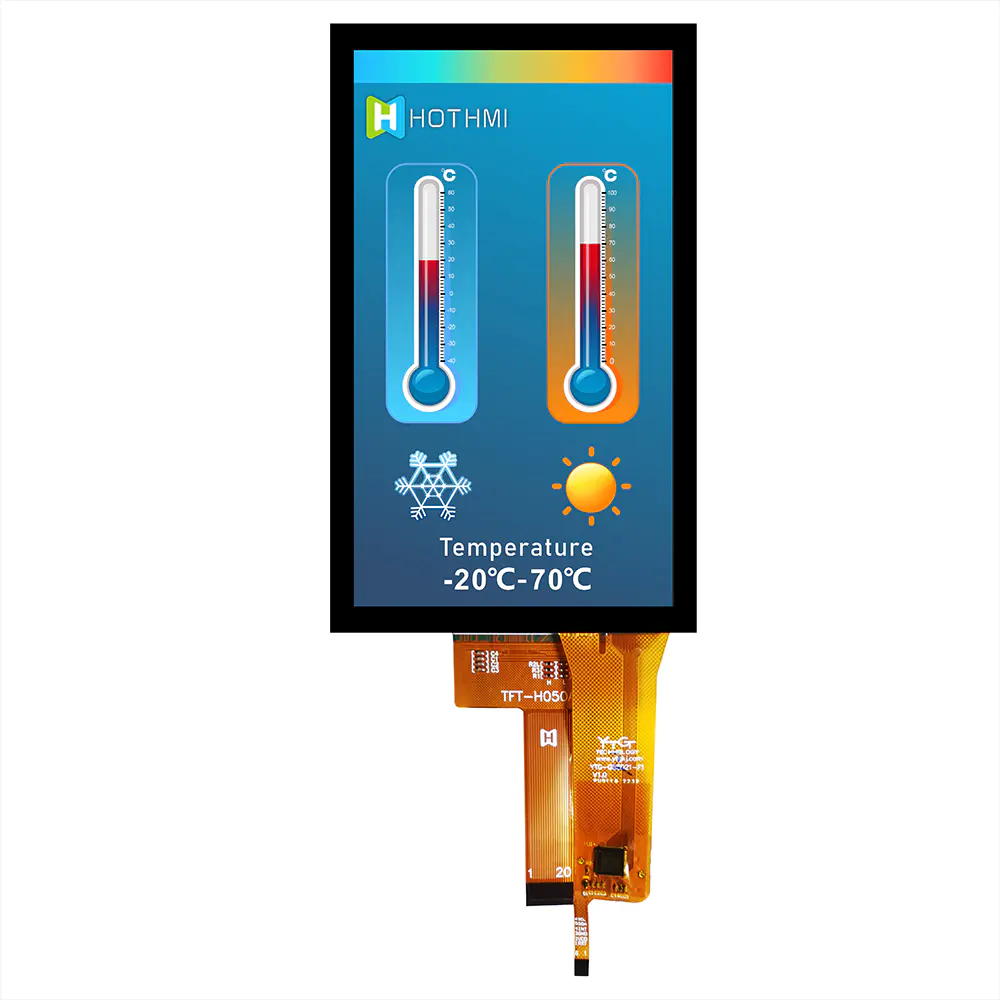

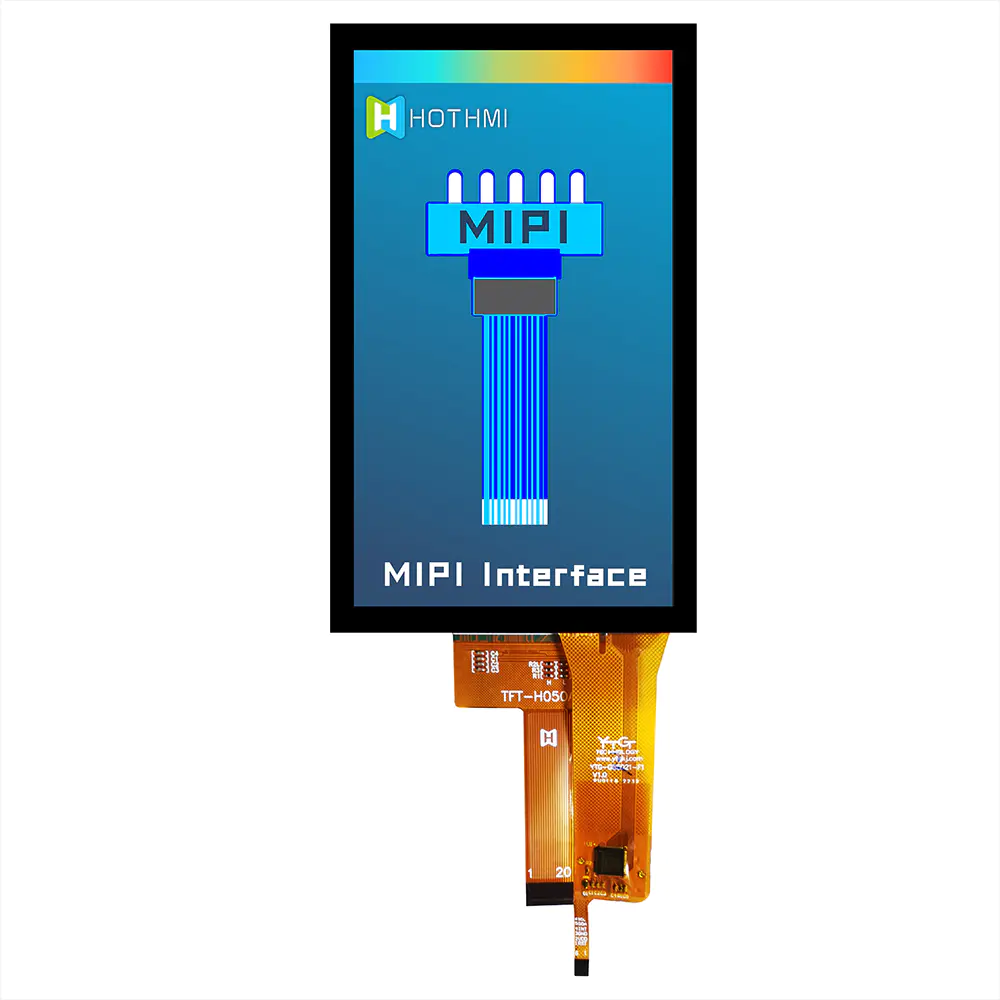

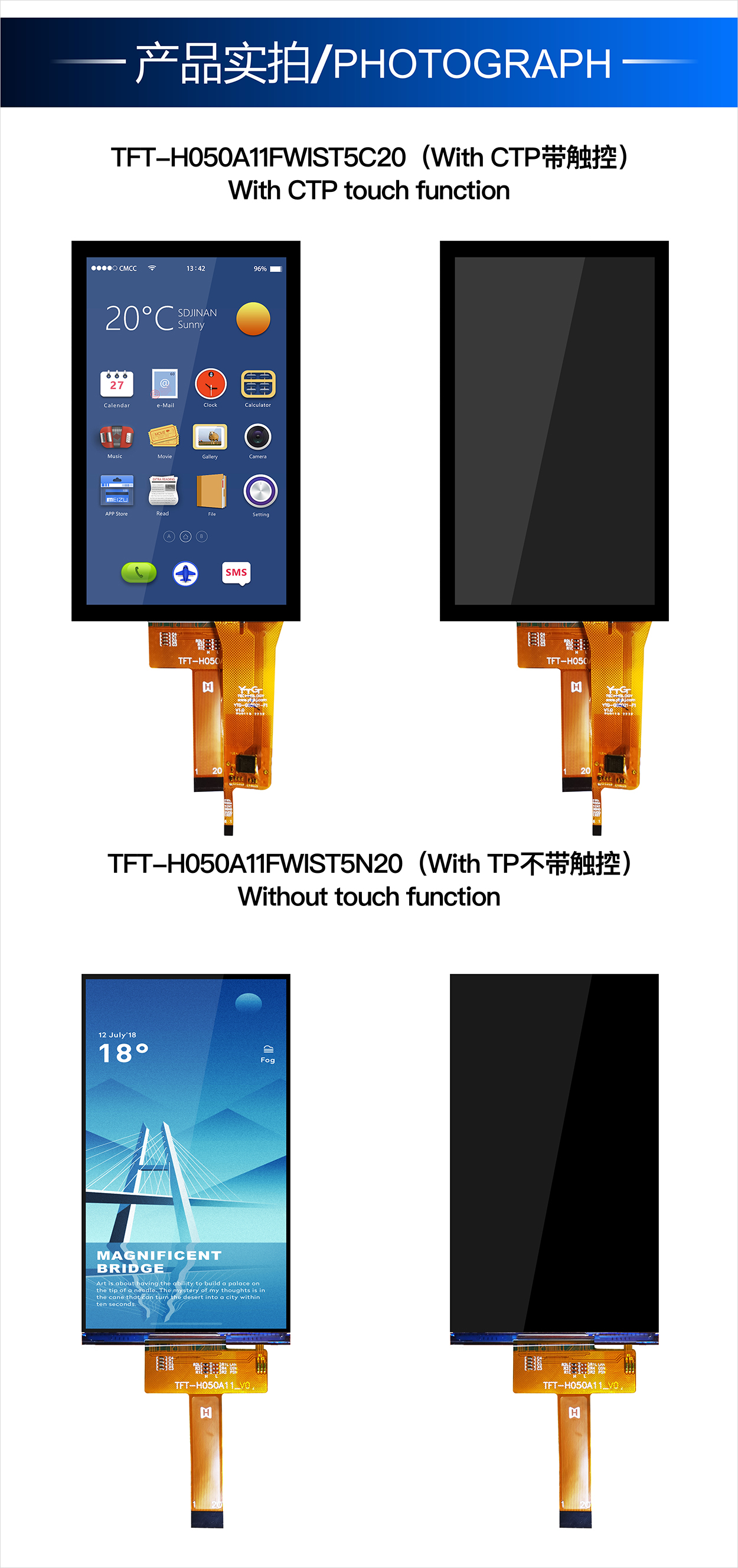

Product Description The TFT-H050A11FWIST4C20 is a 5.0 inch wide temperature IPS TFT-LCD monitor with projected capacitive touch screen with a resolution of 480x854 pixels. The module has built-in ST7701 driver IC and supports MIPI interface. TFT-H050A11FWIST4C20 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 500 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT911 IC, which supports I2C interface and multi-touch function. The H050A11 model has a projected capacitive touch panel (PCAP), but no touch panel option (TFT-H050A11FWIST5N20). The supply voltage (VCC) of the TFT-H050A11FWIST4C20 is 3.0V to 3.6V, with a typical value of 3.3V. It can work in temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

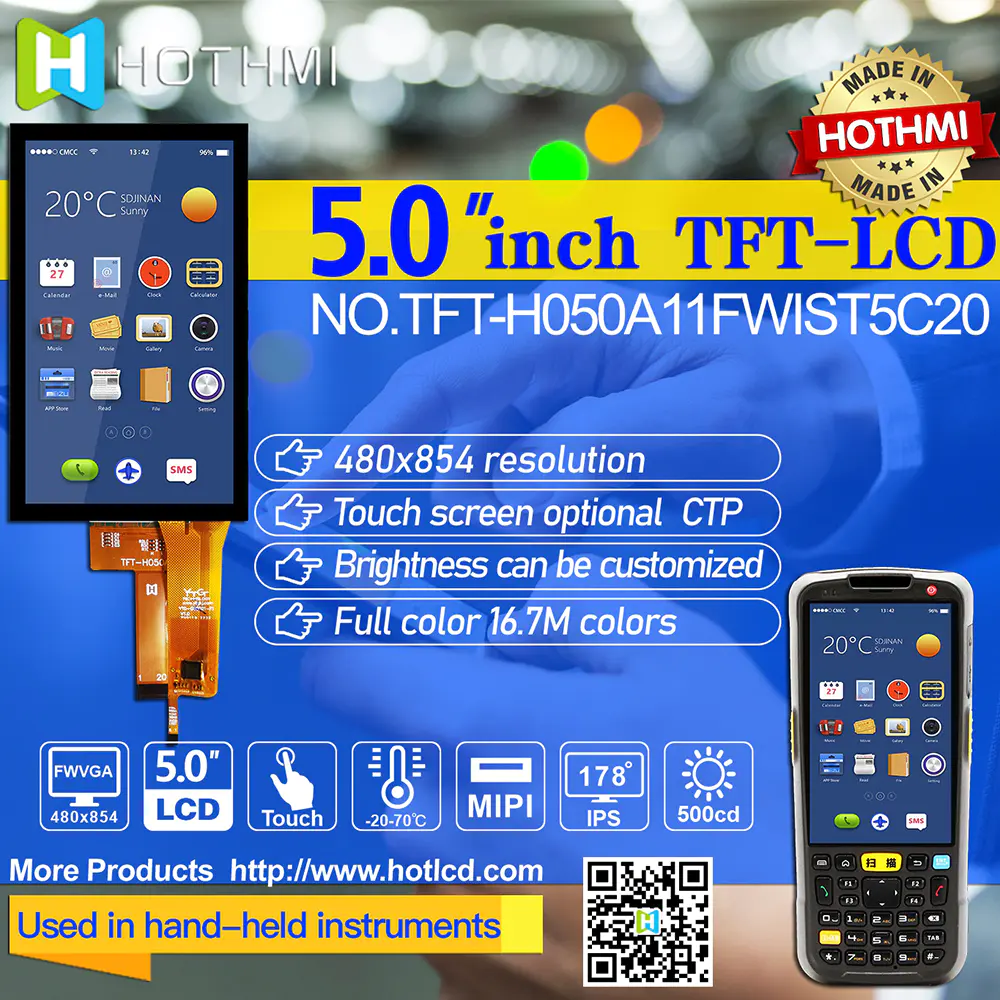

Model: 5.0 inch TFT LCD vertical screen/480*854 resolution/IPS/industrial grade/MIPI interface/TFT-H050A11FWIST4C20

Product type: TFT vertical screen

Display content: 480*854

Dimensions (mm): 72.00 * 122.245 * 4.15

Window size (mm): 5.0"

Display size (mm): 5.0"

Effective size (mm): 61.6320 * 109.6536

Product application: smart devices such as handheld instruments

Viewing angle: full viewing angle

Backlight type or brightness: 500cd/m2

Number of connection PINs: FPC-26PIN

Interface: MIPI

Working temperature: -30~80℃

Power supply voltage: 3.3V

Driver chip model: ST7701

Touch driver IC: GT911
