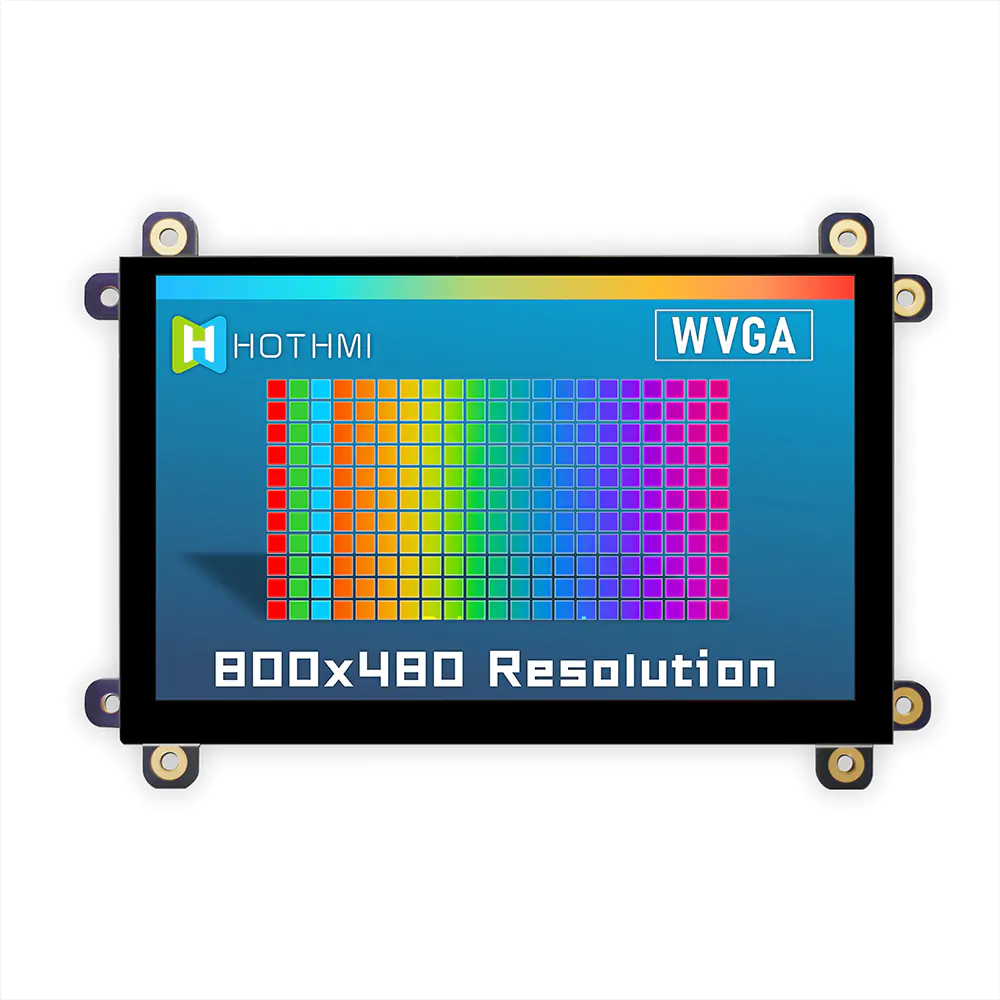

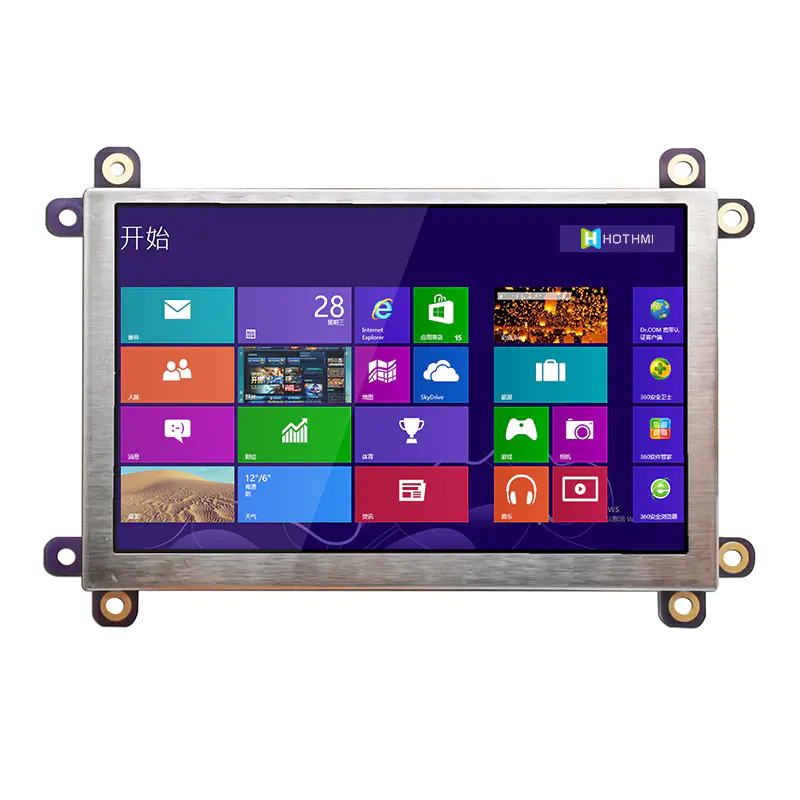

5.0 inch 800x480 resolution Premium Capacitive HDMI+VGA TFT Module
5.0 inch 800x480 resolution Premium Capacitive HDMI+VGA TFT Module
$40.99
- $47.99
Style
without USB touch
with USB capacitive touch
Quantity
–
+
Product details

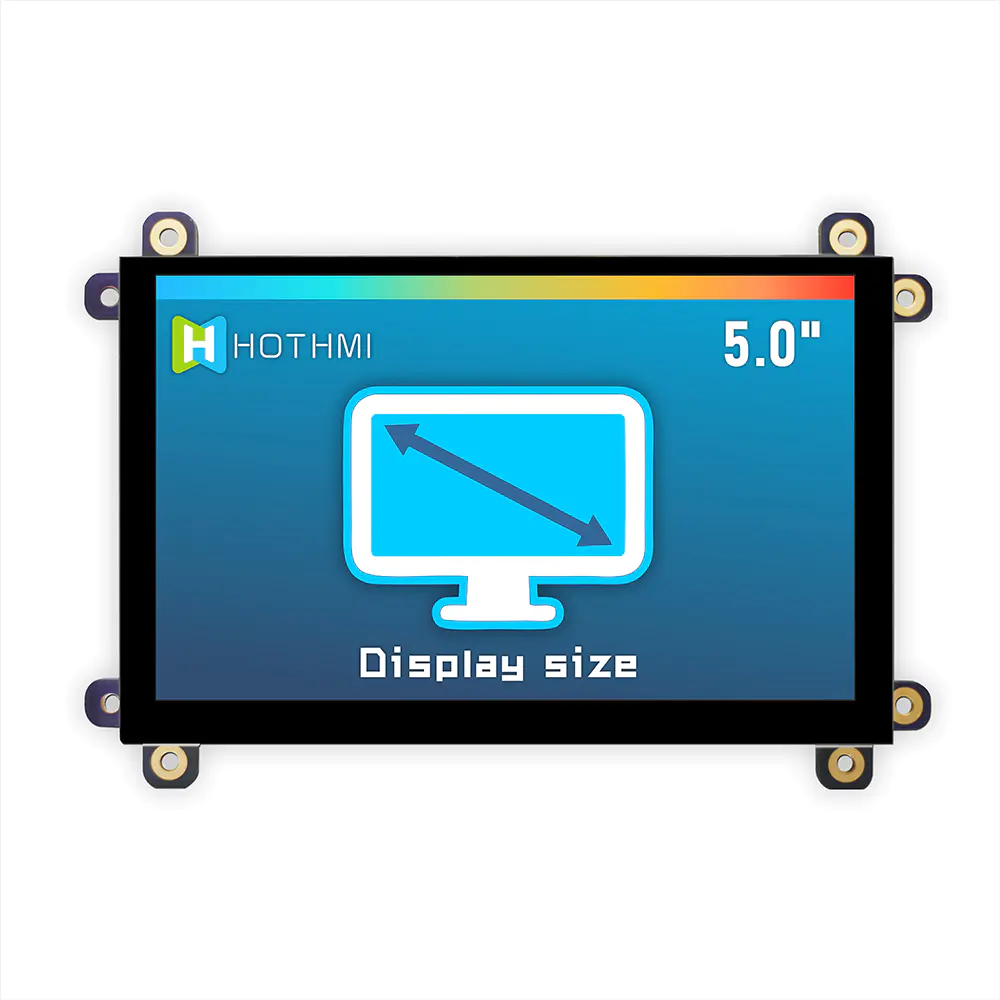

Product Description Model: 5.0 inch HDMI display+USB capacitive touch/800x480 resolution/high brightness/full viewing angle/HDMI/VGA interface/LCM-TFT050T61SVHDVUSDC

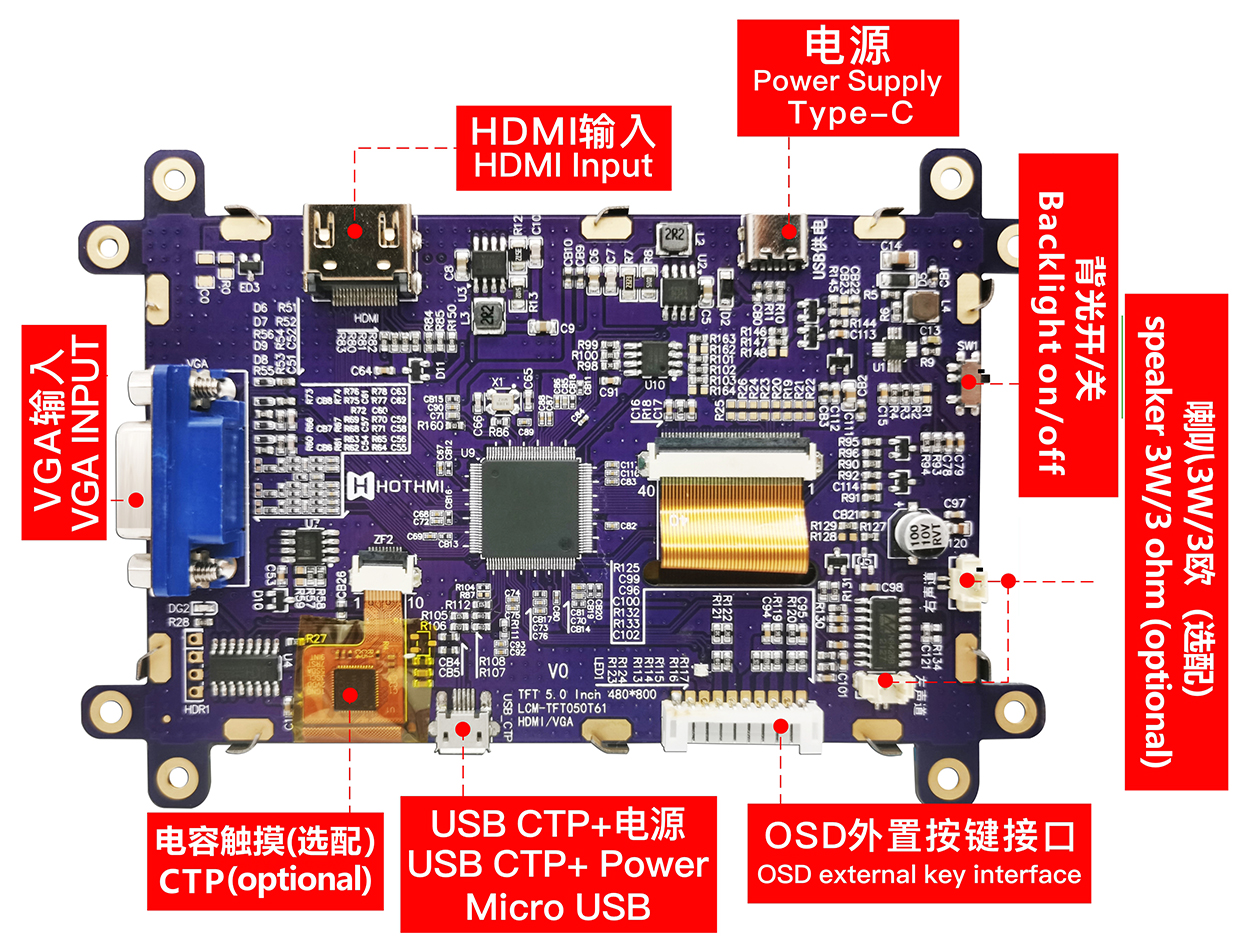

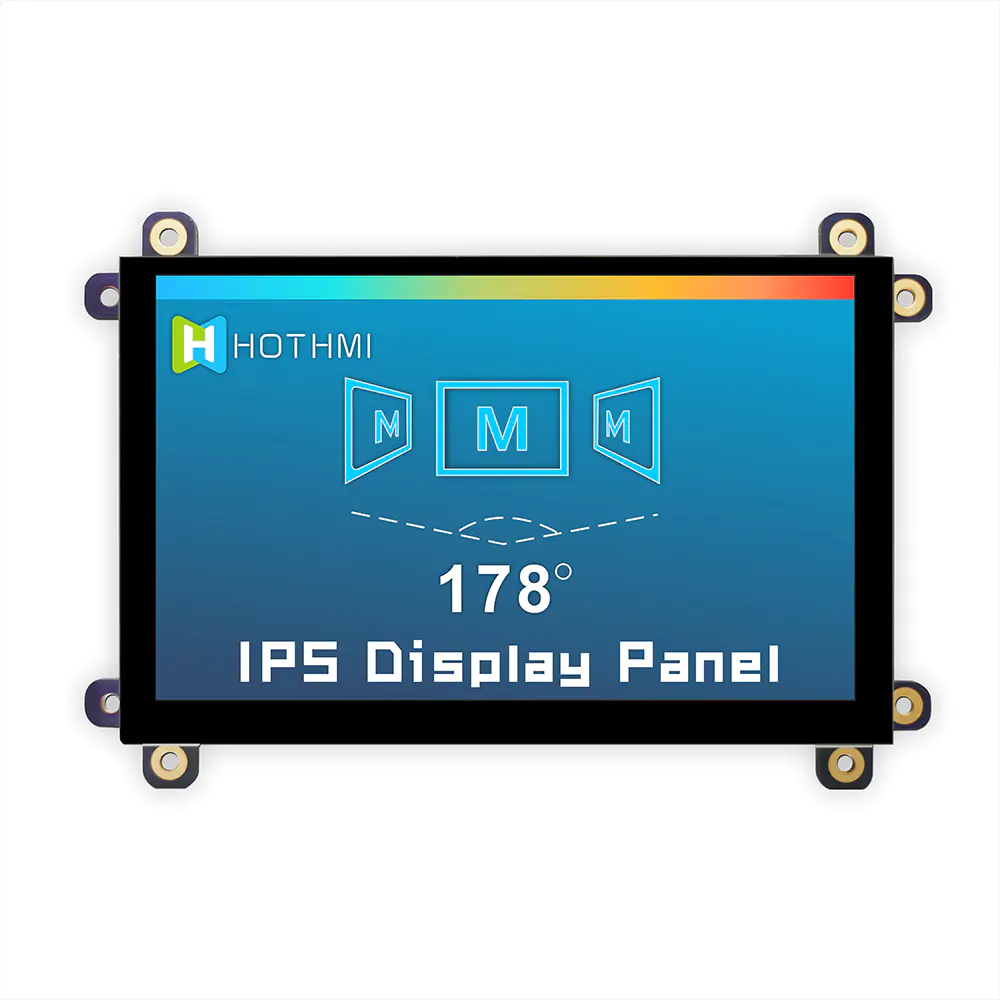

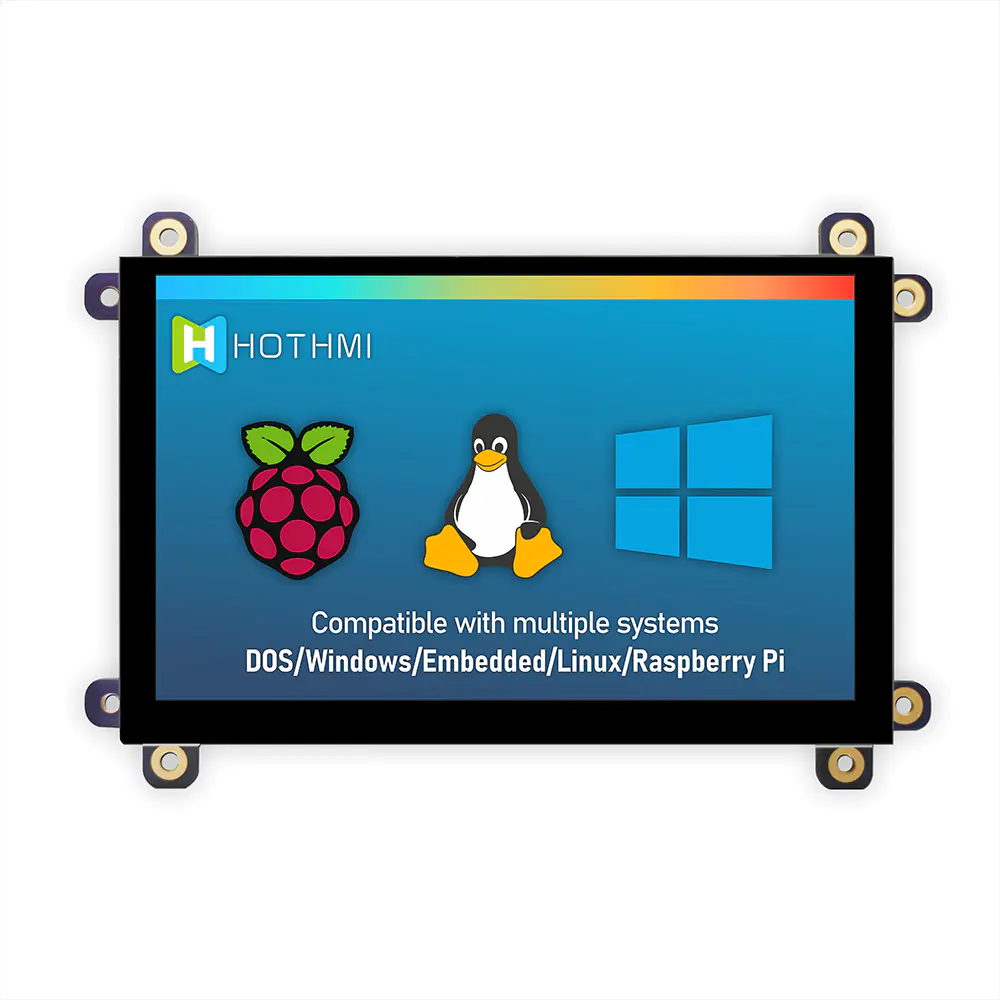

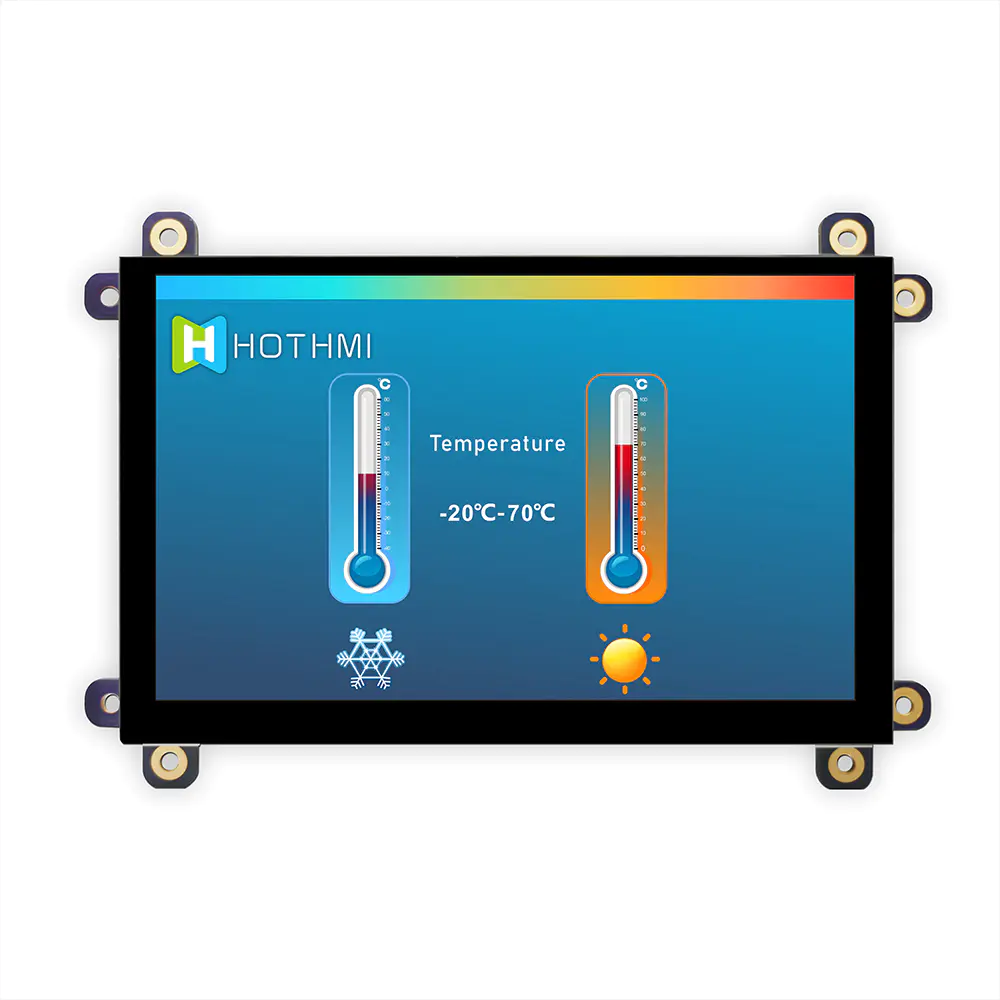

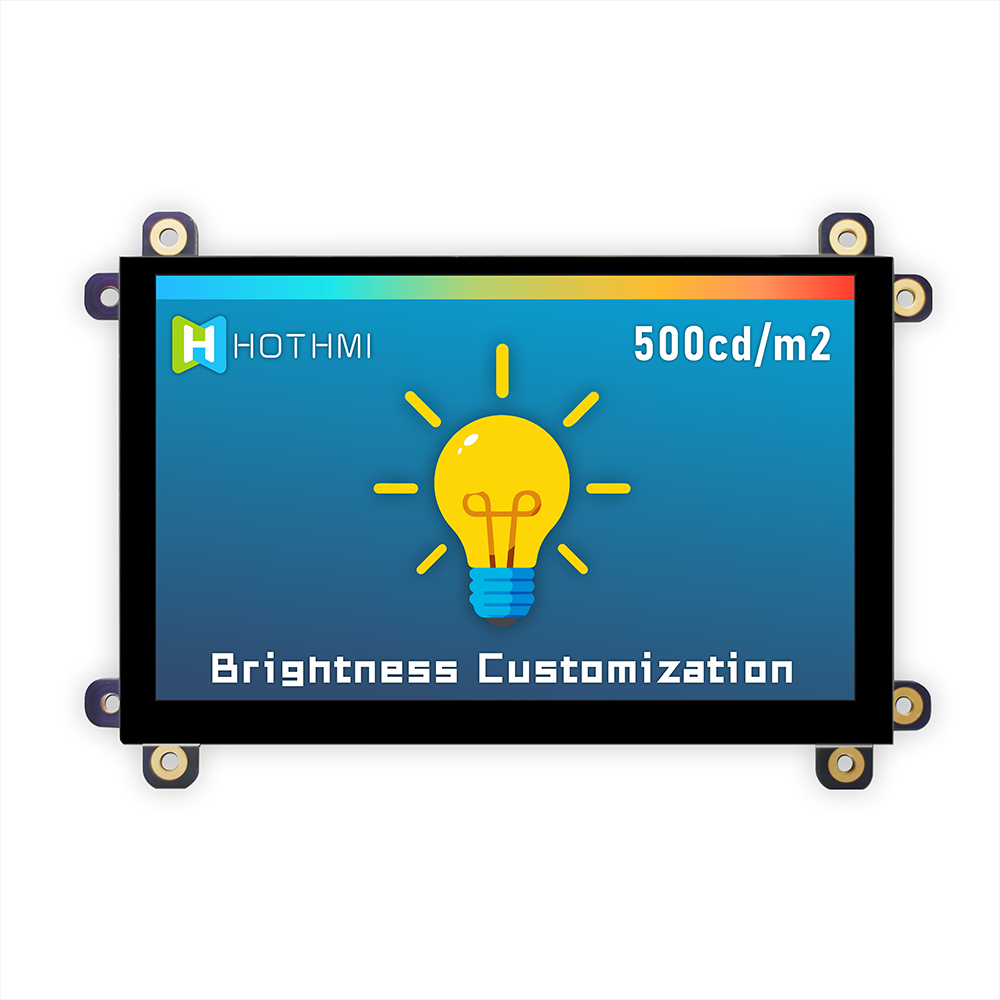

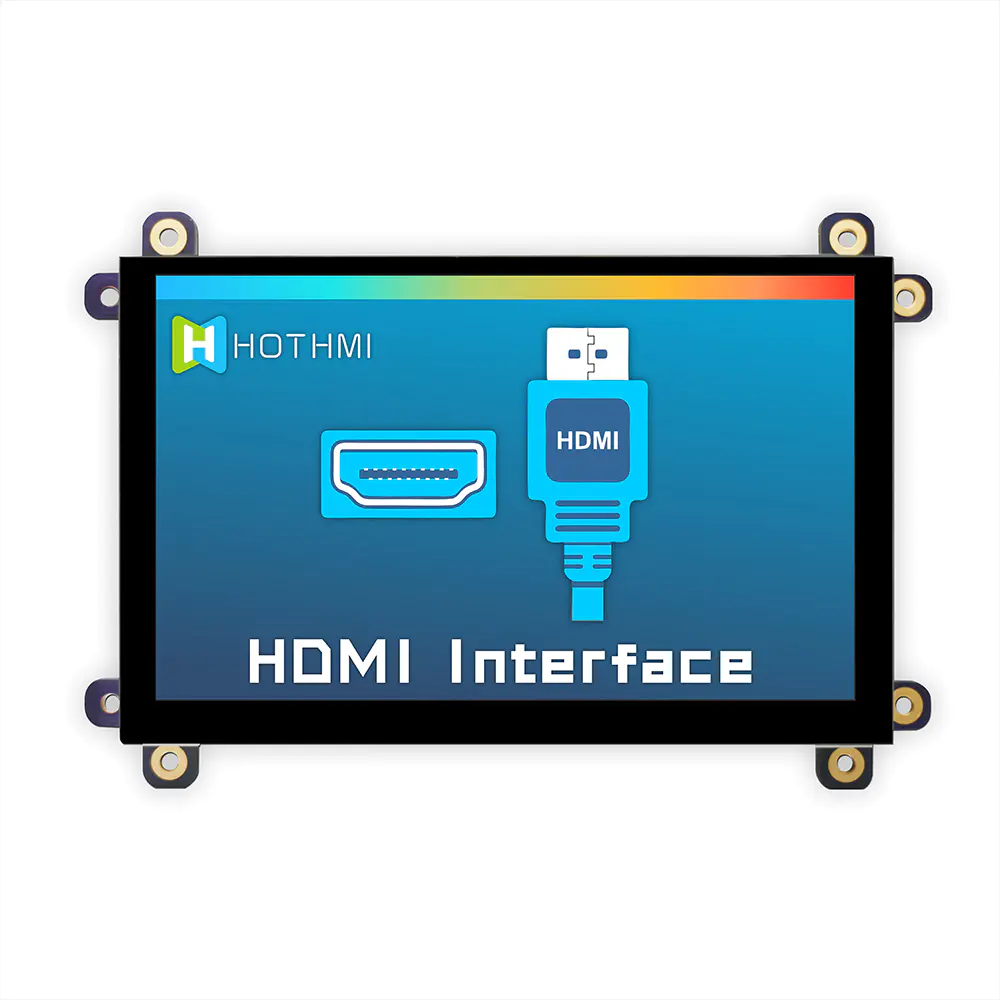

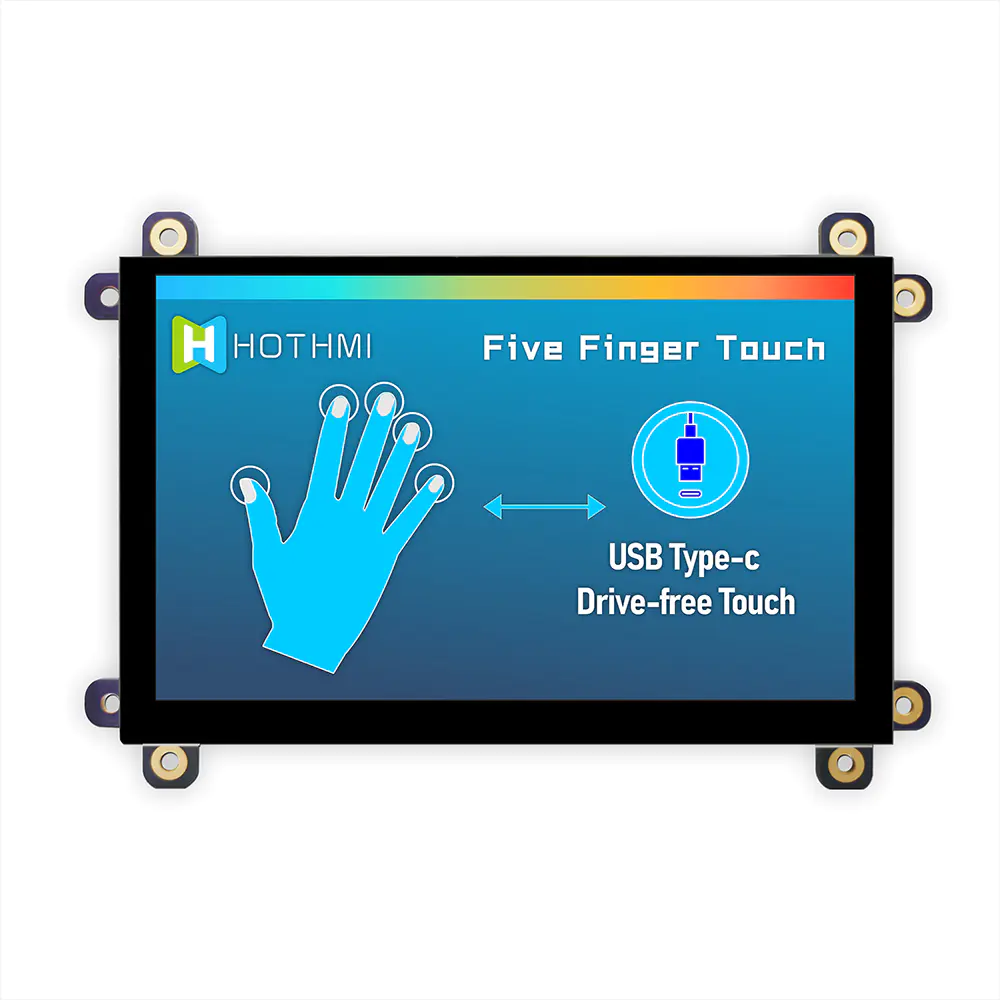

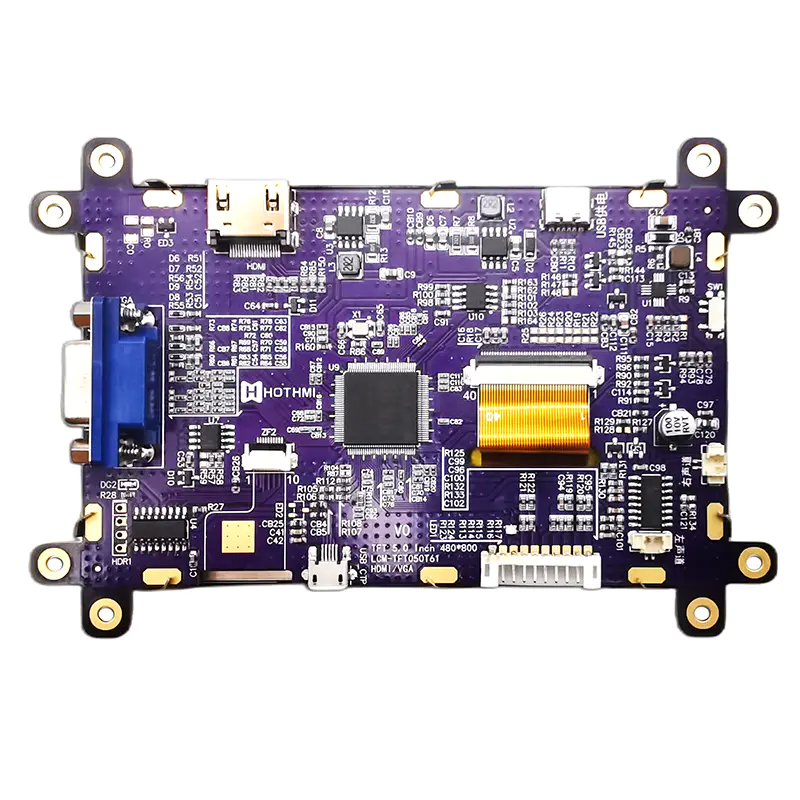

LCM-TFT050T61SVHDVUSDC is a high-brightness 5-inch IPS TFT-LCD monitor that supports HDMI signal interface. The resolution of this TFT module is WVGA 800x480. The control board of this module is designed to support HDMI signal interface (only DVI) and 40-pin GPIO interface, which makes it more convenient for developers using Raspberry Pi. LCM-TFT050T61SVHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80/down: 80/left: 80/right: 80 degrees, TFT module built-in TFP401 controller IC can support HDMI signal interface (only DVI), this module Featuring a high brightness of 500 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), the LCM-TFT050T61SVHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP) that supports one USB interface. The IC can support 1-finger/2-finger or other touch indicators. LCM-TFT050T61SVHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 5V/1A. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports embedded system with HDMI signal interface, LCM-TFT050T61SVHDVUSDC adopts 5-inch IPS TFT panel with wide viewing angle and high brightness backlight. The screen is also equipped with a high resolution of 800x480. The module responds quickly and is compatible with most development software. It is ideal for various product applications, especially human-machine interfaces or POS systems, etc.coffee machine display
Model : 5.0 inch TFT/800*480 resolution/HDMI VGA interface/LCM-TFT050T61SVHDVNSDC
Product type:TFT LCM
Show contents:800*480
Outline size(mm) :140.0*95.0*6.5
Effective size(mm):108.0*64.8
Visual angle:Full View
Backlight type or brightness:600cd/m2

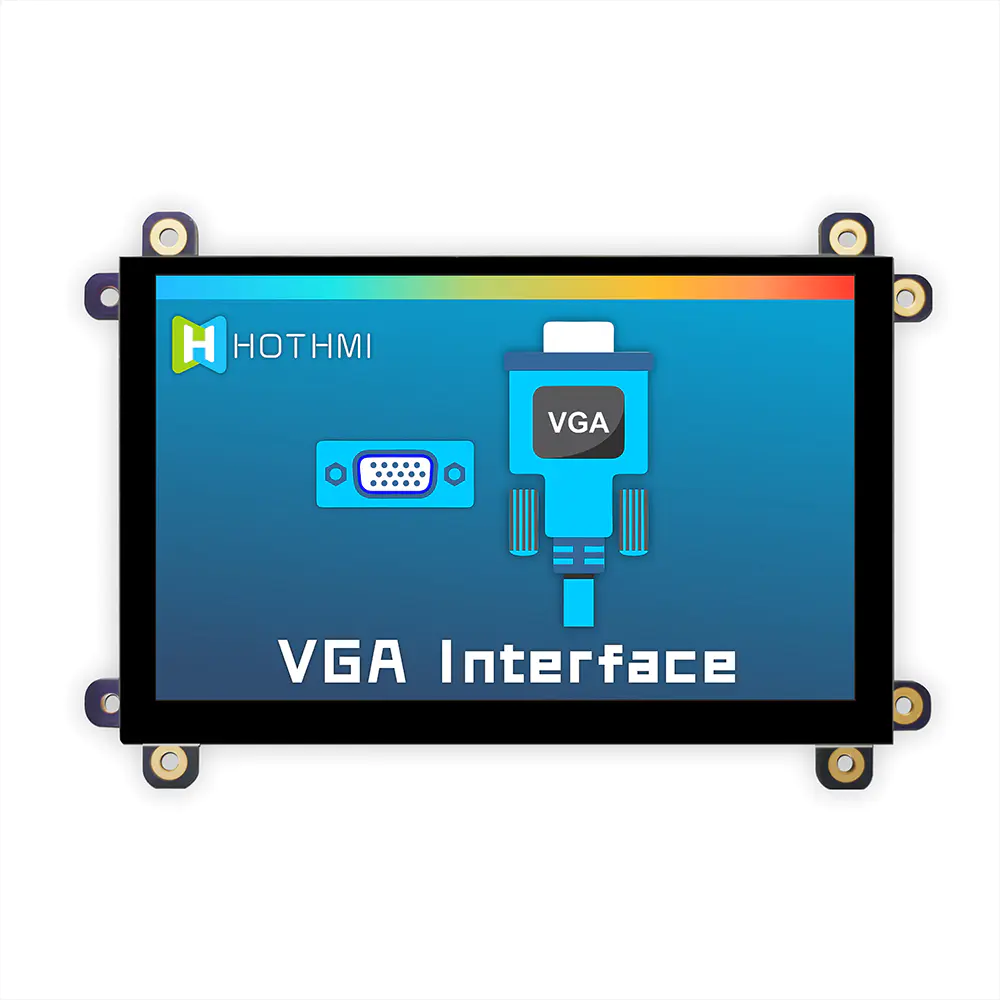

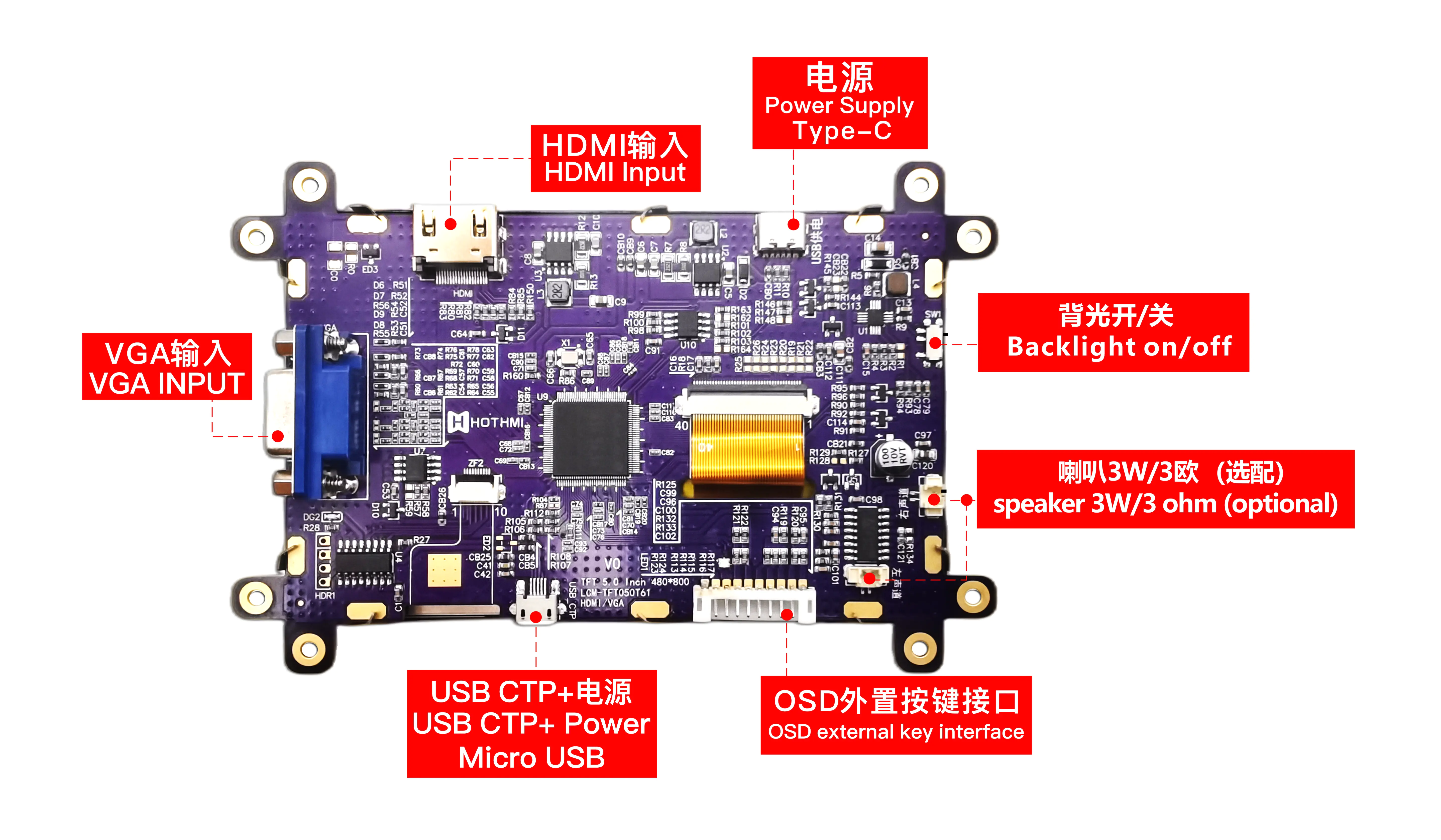

Interface mode:HDMI,VGA
Special instructions:with CTP touch
Working temperature:-30~80℃
Power supply voltage:5.0V
CAD Drawings:

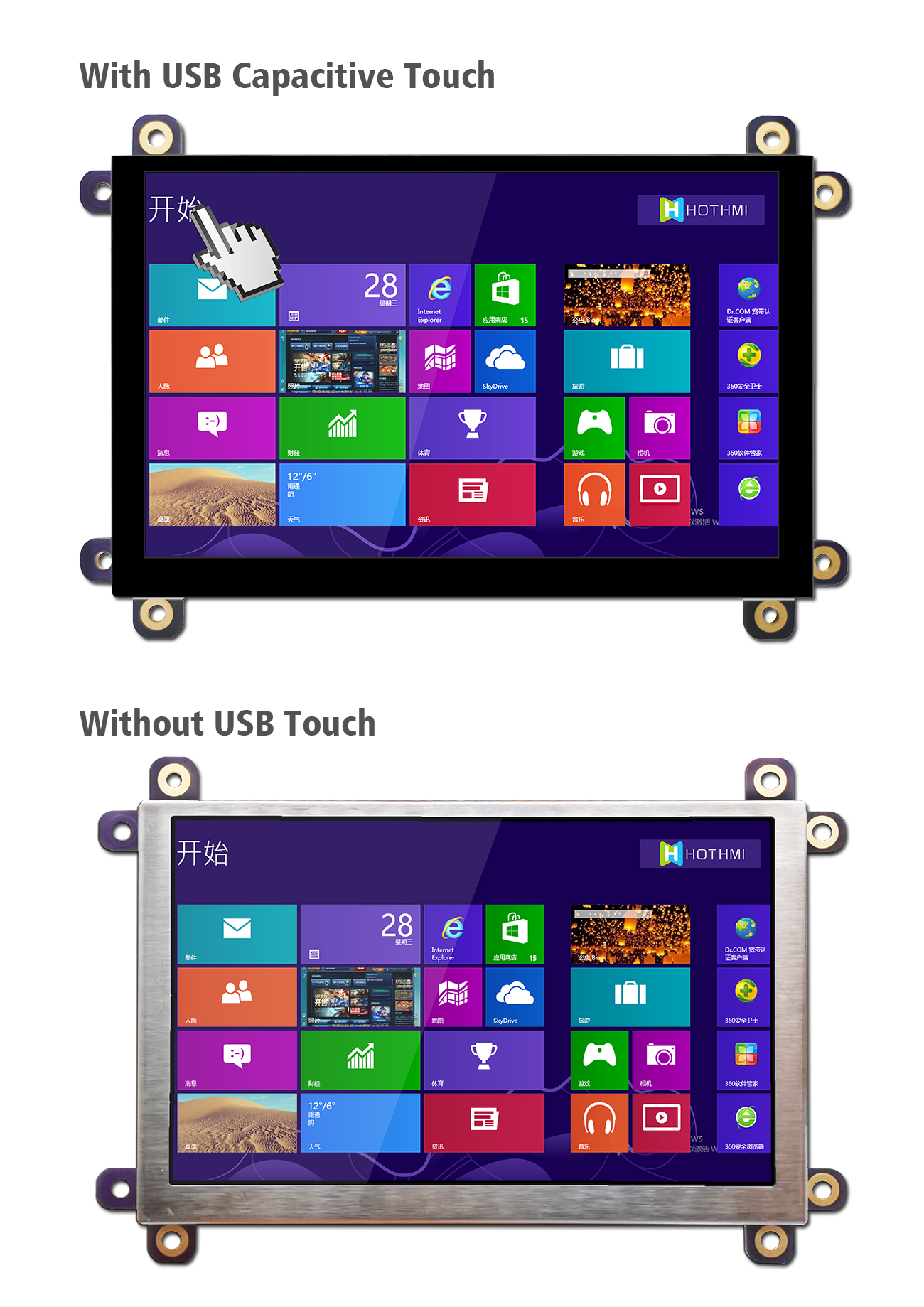

without USB touch
with USB capacitive touch
