4.3 inch TFT LVDS Interface /800*480 resolution/Full View/TFT-H043A13SVIST6N40
4.3 inch TFT LVDS Interface /800*480 resoliution/Full View/TFT-H043A13SVIST6N40
US$16.99
Add to wish list
Quantity
+
Product details

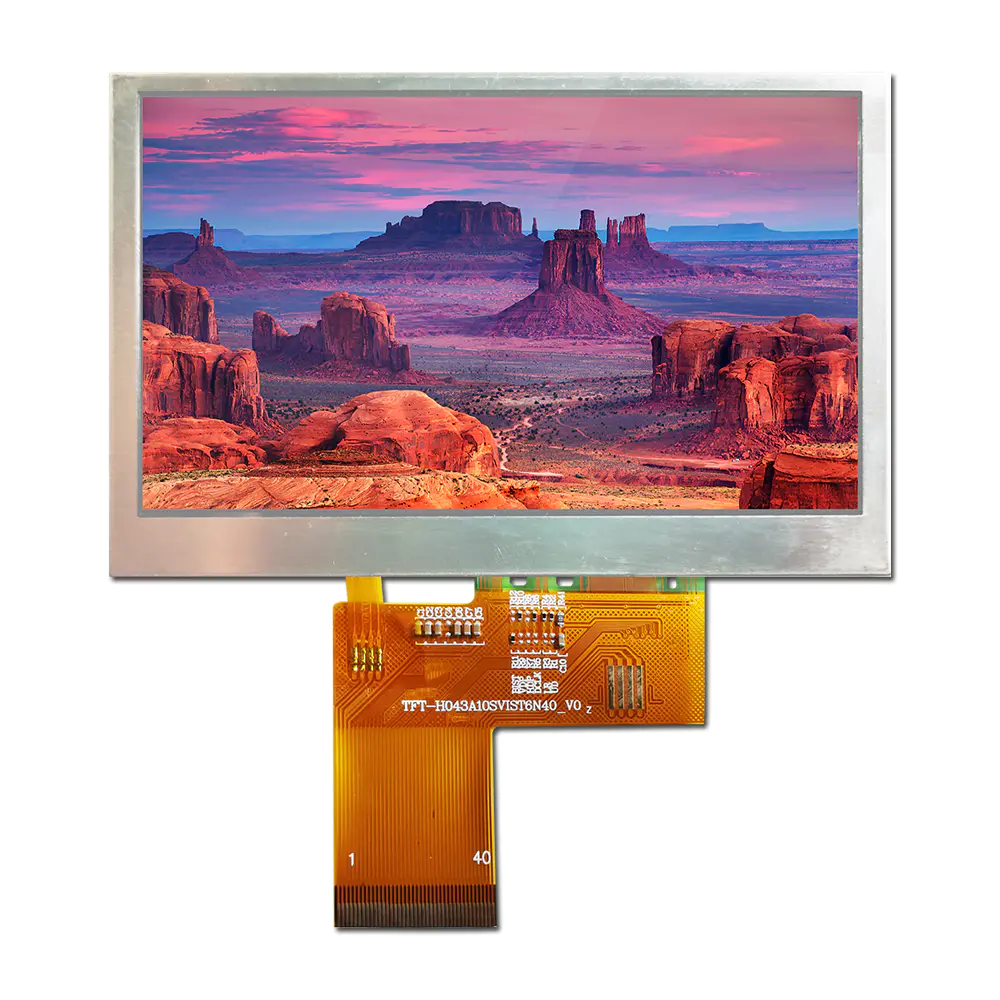

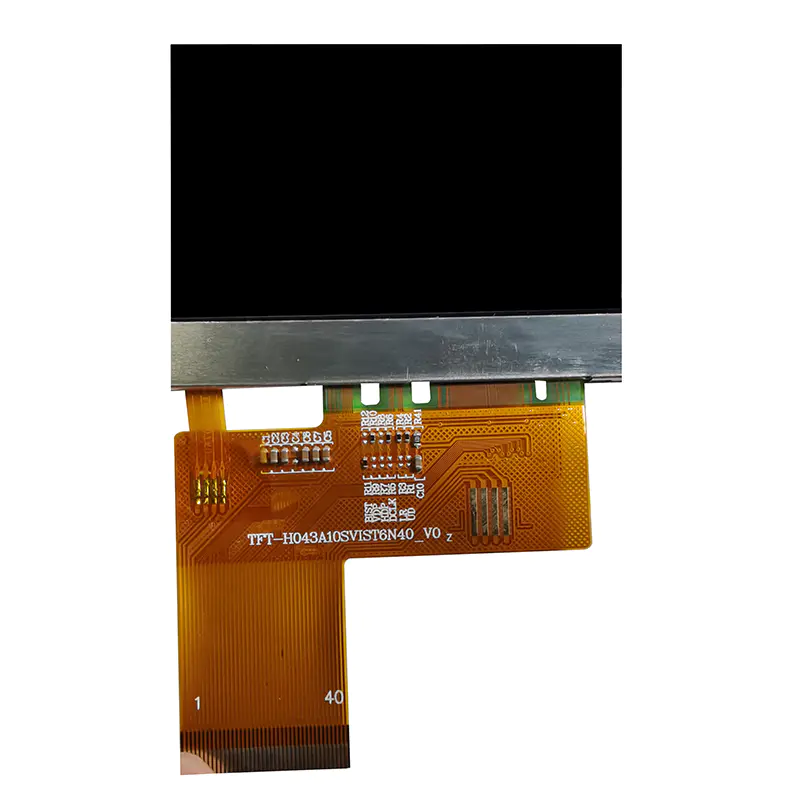

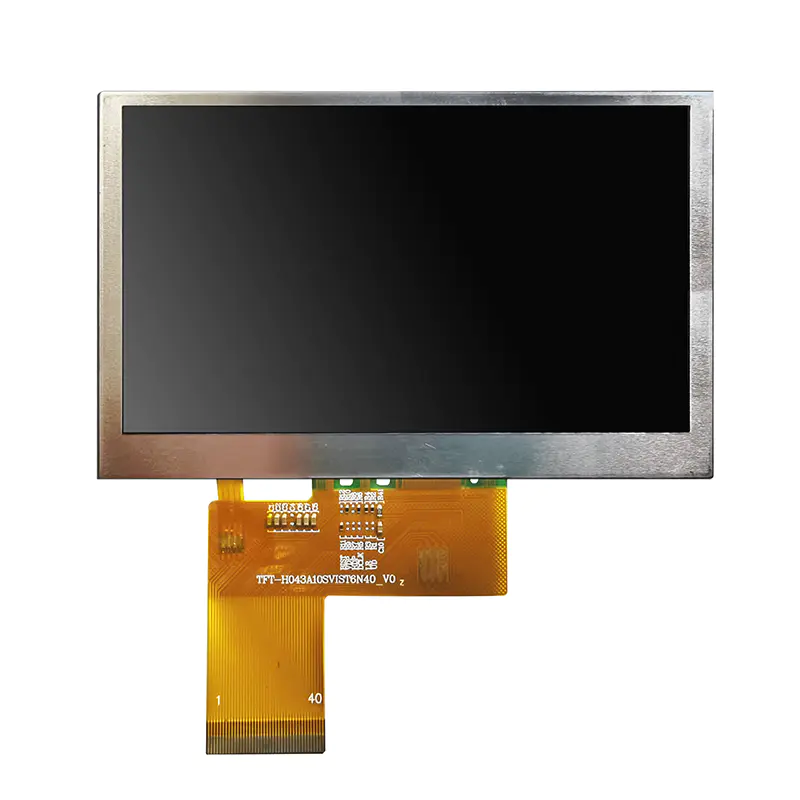

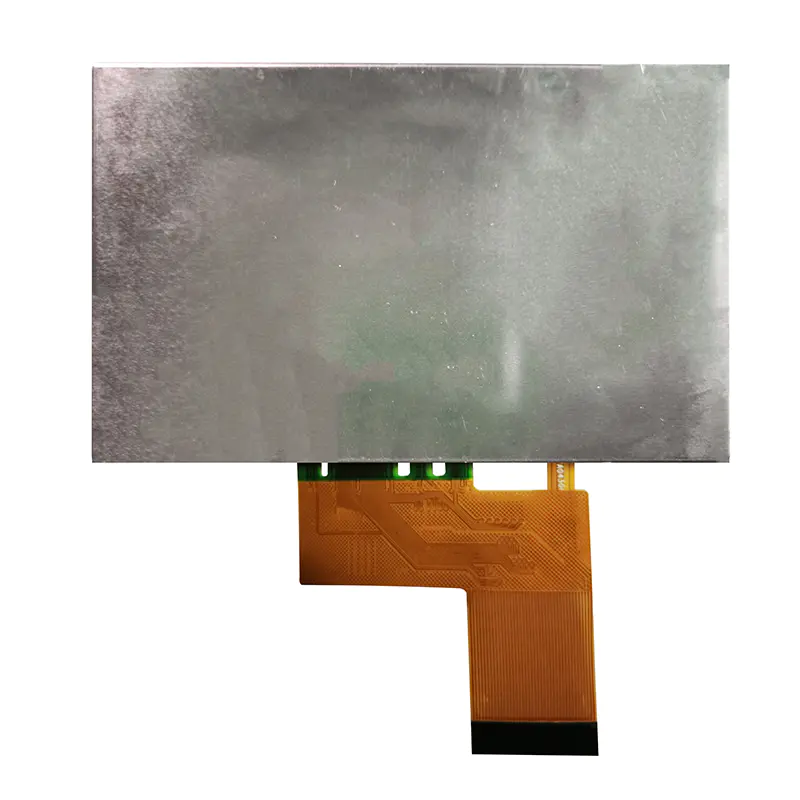

Product Description TFT-H043A13SVIST6N40 is a 4.3-inch full-color TFT LCD module with a resolution of 480x800 pixels and an aspect ratio of 2:5. The TFT module adopts ST7262 driver IC and supports LVDS interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 1000 nits (typical value). The working temperature range of the module is -40℃~+80℃, and the storage temperature range is -40℃~+80℃.
Model : 4.3 inch TFT LVDS Interface /800*480 resolution/Full View/TFT-H043A13SVIST6N40

Product type:TFT

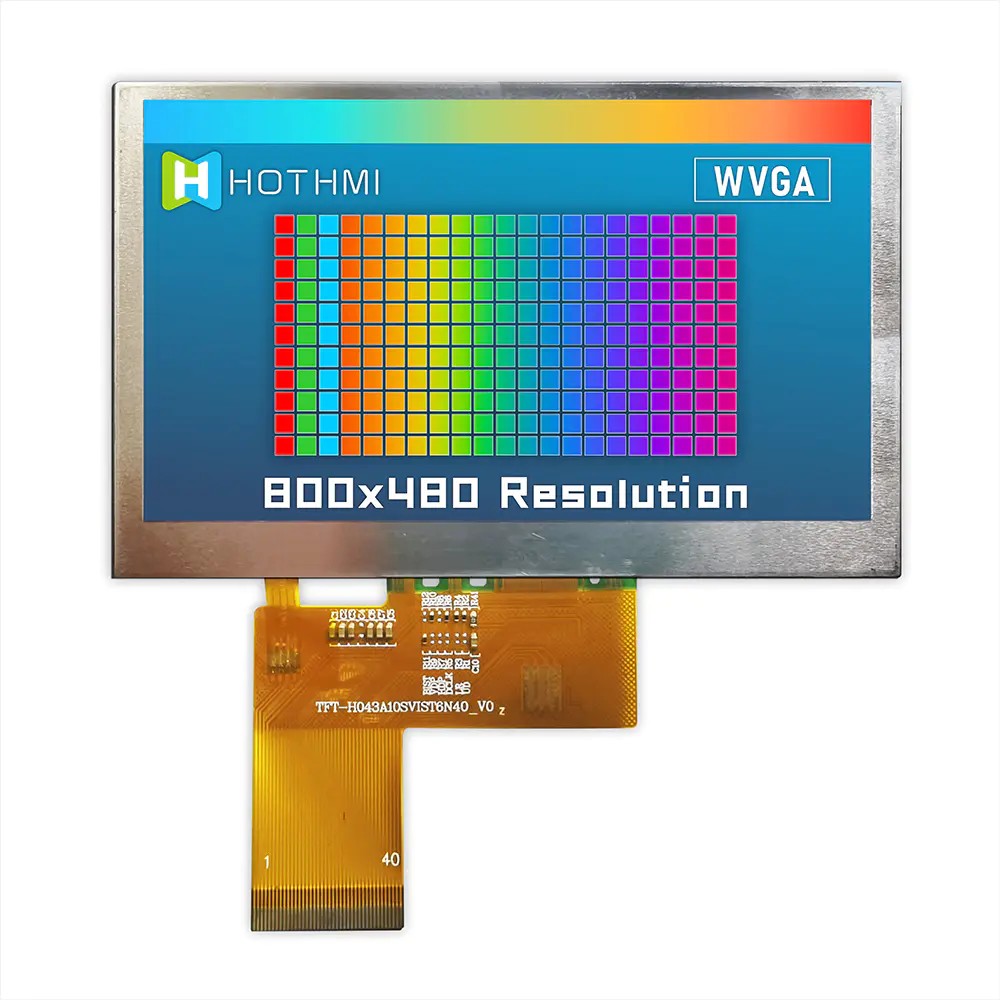

Show contents:800*480

Outline size(mm) :105.5*67.2*4.55

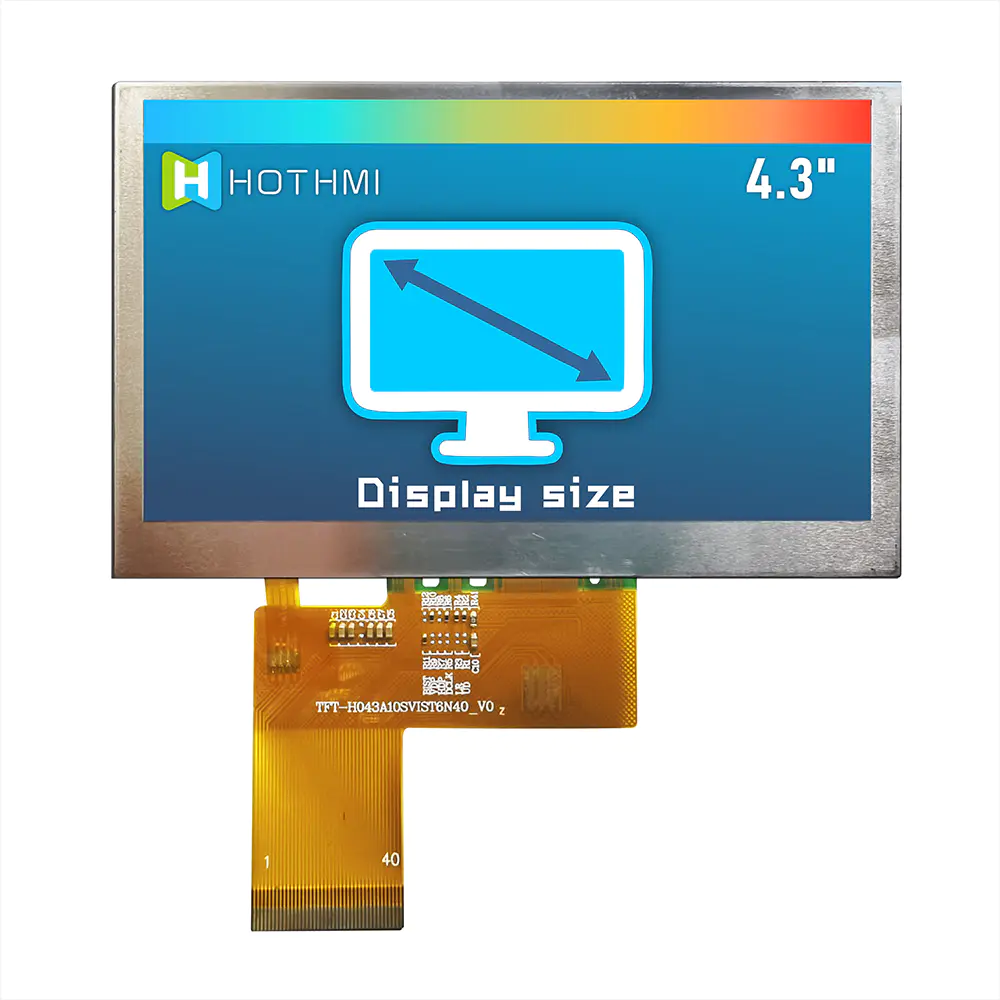

Size of View Window(mm):4.3"

Display size(mm) :4.3"

Effective size(mm):95.04*53.856

Product application:Instruments and apparatus

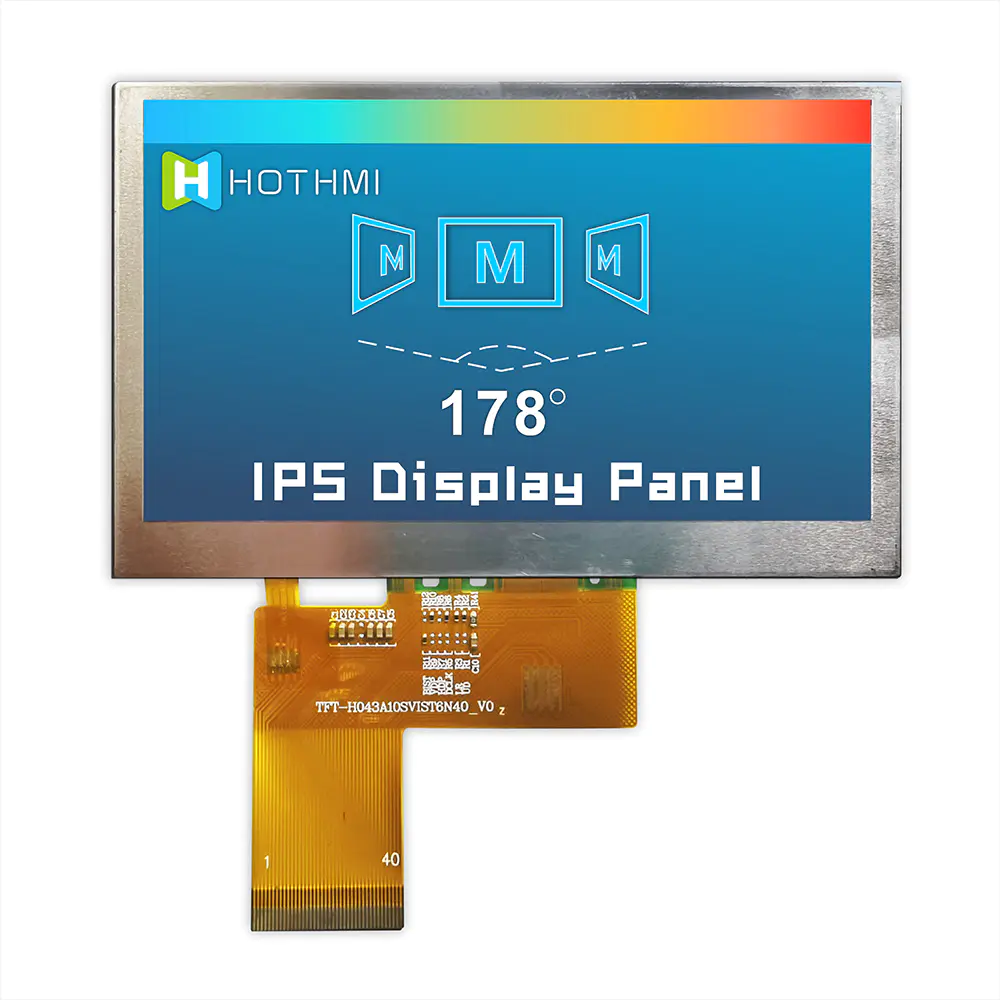

Visual angle:Full View

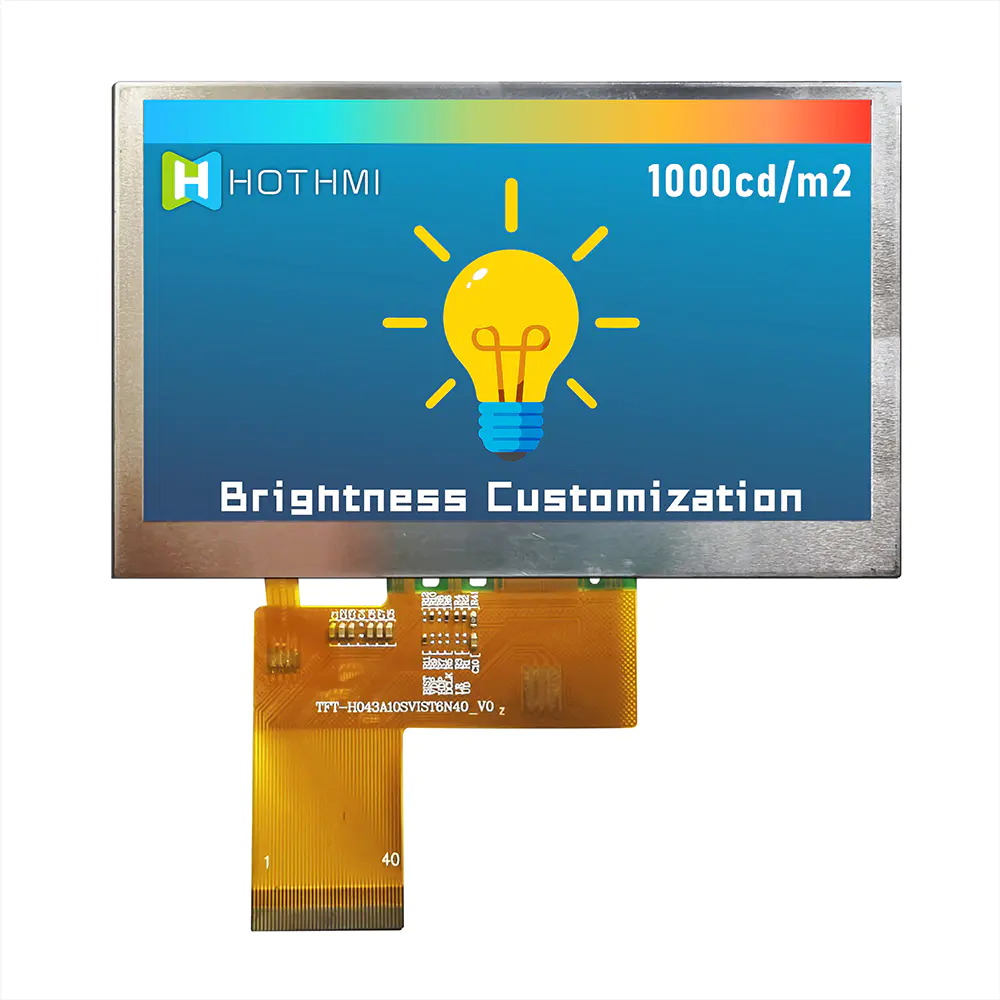

Backlight type or brightness:1000cd/m2

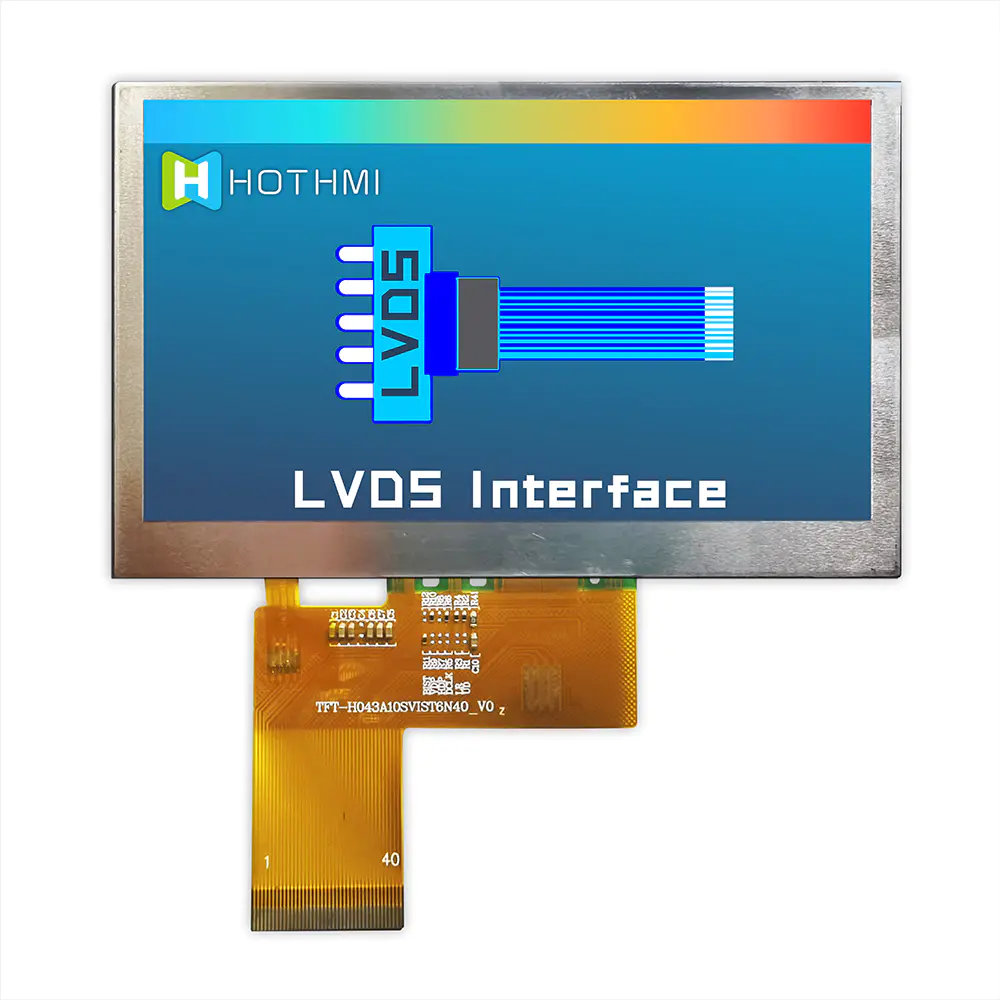

Interface mode:LVDS

Special instructions:LVDS 3L/4L

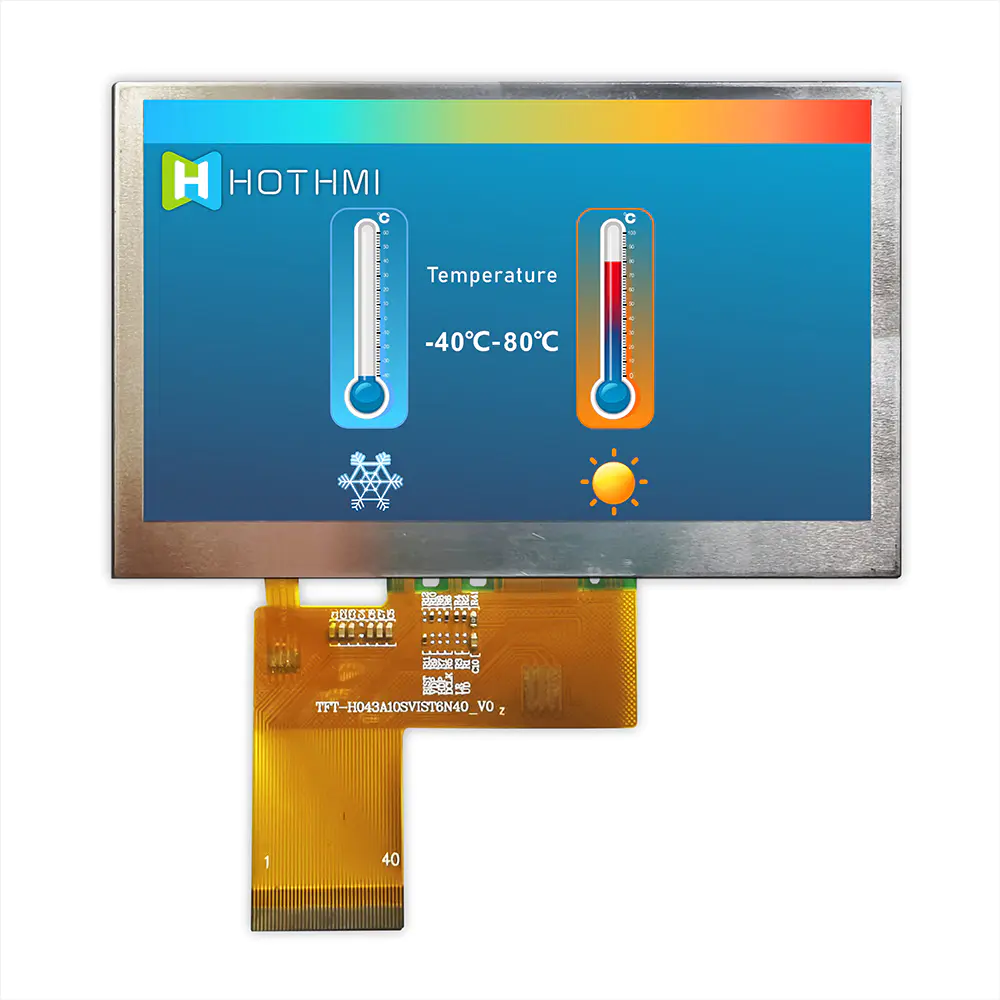

Working temperature:-40~80℃

Power supply voltage:3.3V

Driver chip model:ST7262

CAD Drawings
