4.3 inch TFT /800*480 resolution/Full view/MCU Interface/TFT-H043A12SVILT5N40
4.3 inch TFT /800*480 resoliution/Full view/MCU Interface/TFT-H043A12SVILT5N40
$0
Add to wish list
Size selection

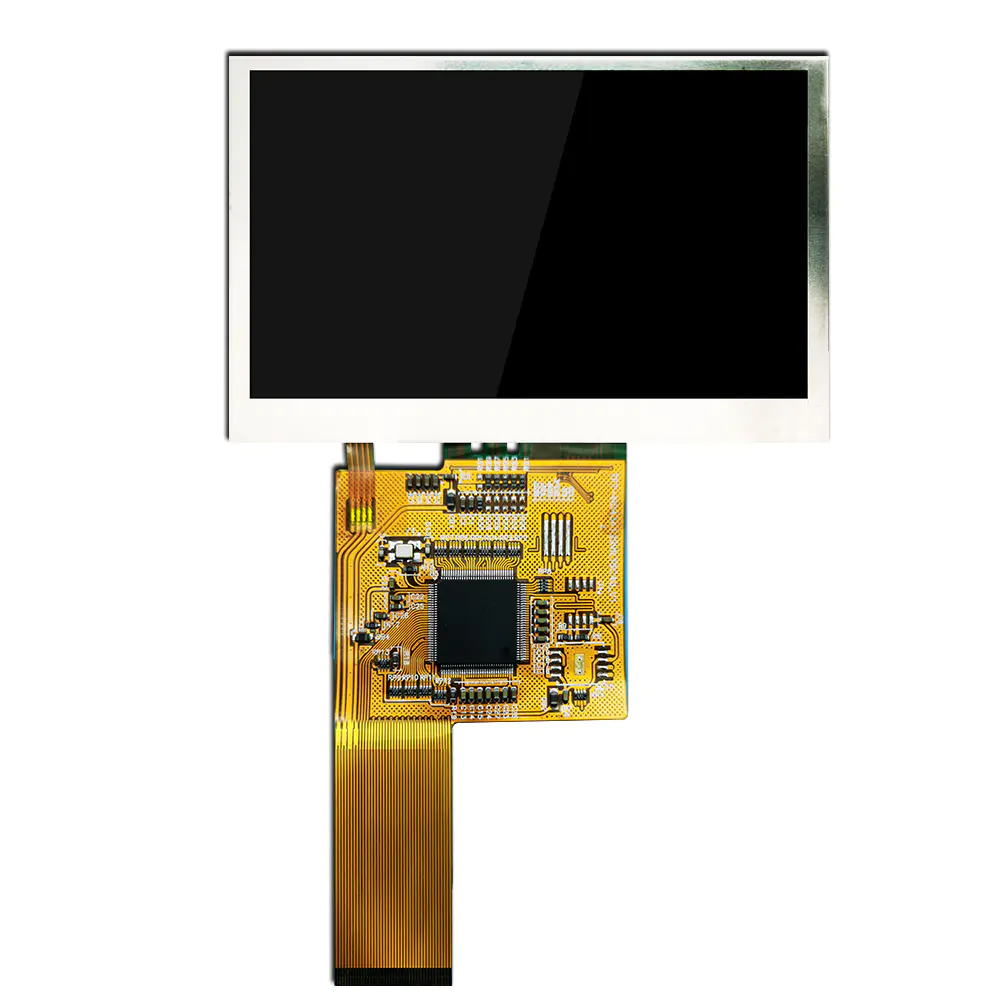

NO Touch panel
With capacitive touch panel

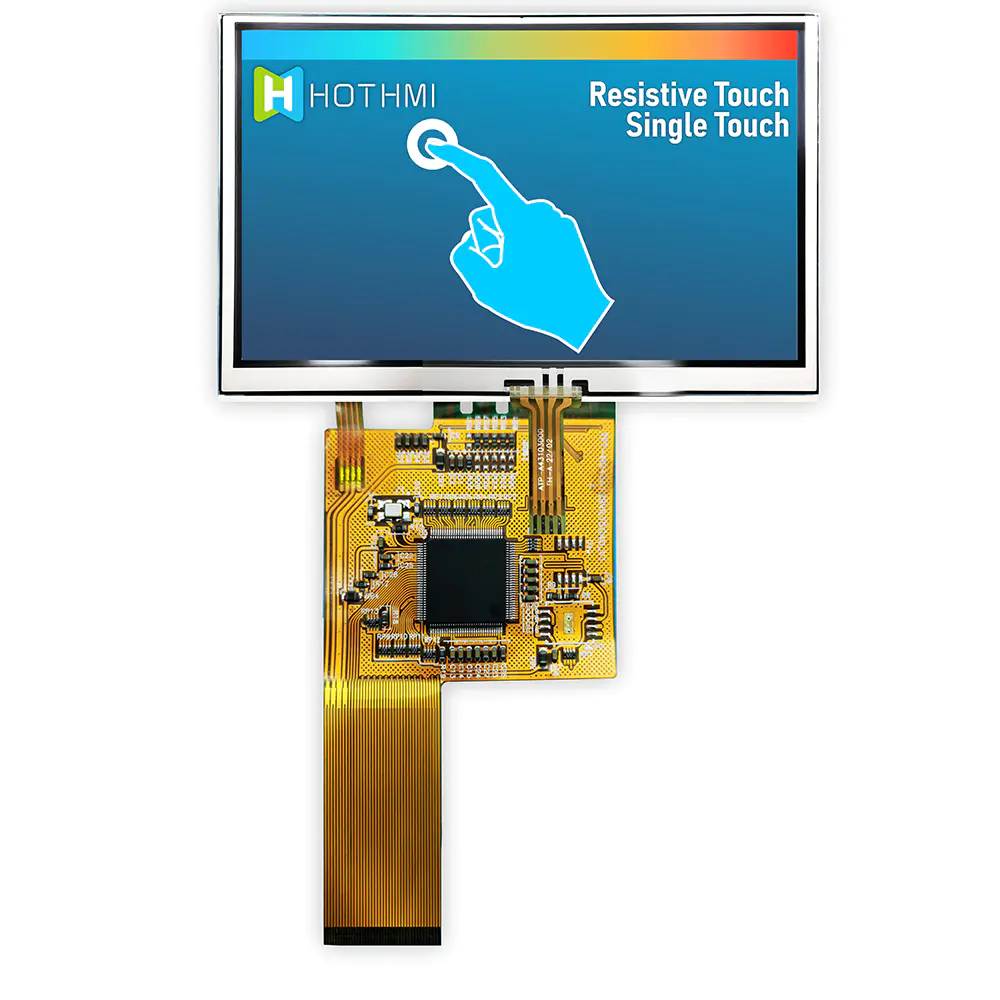

with resistive touchpad
Quantity
+
Product details
Product Description

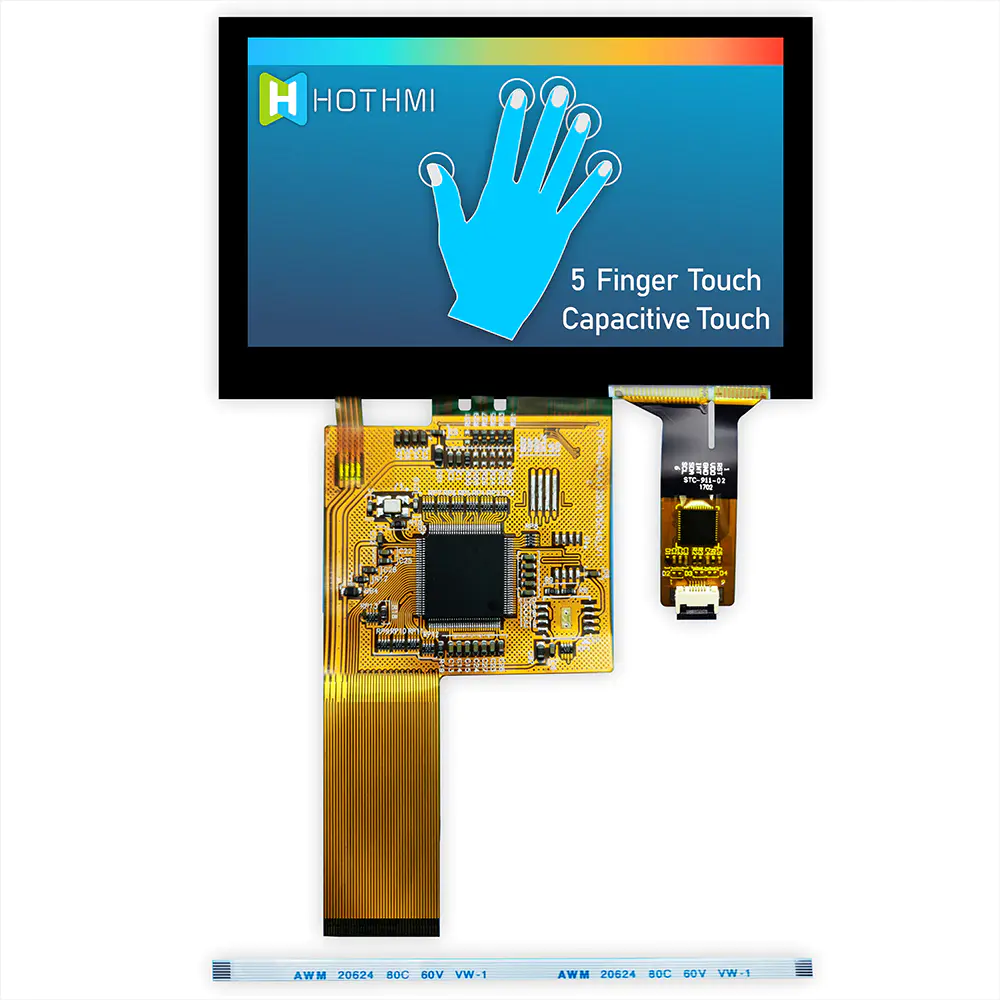

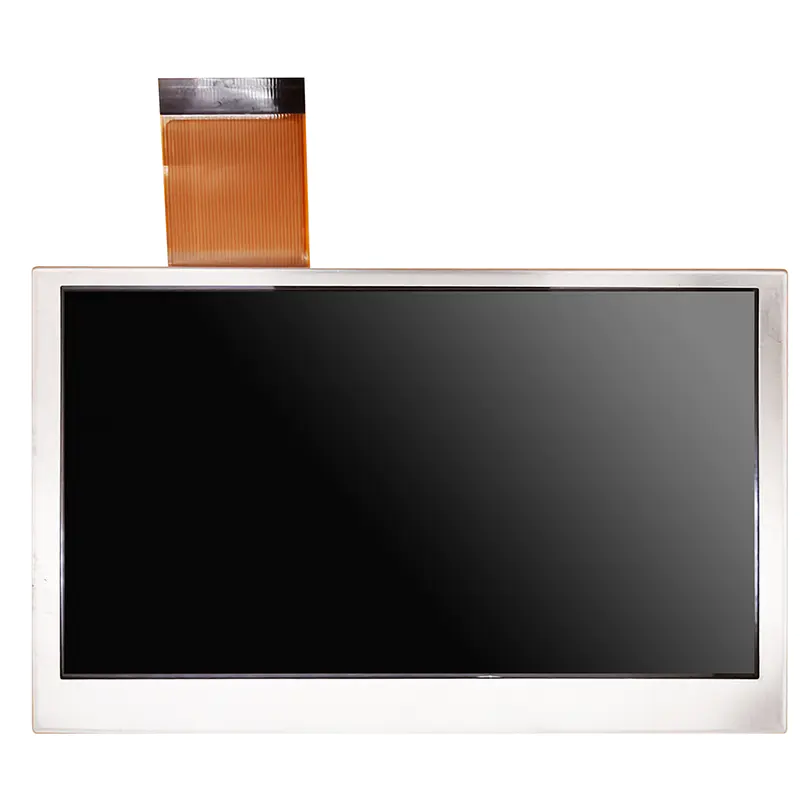

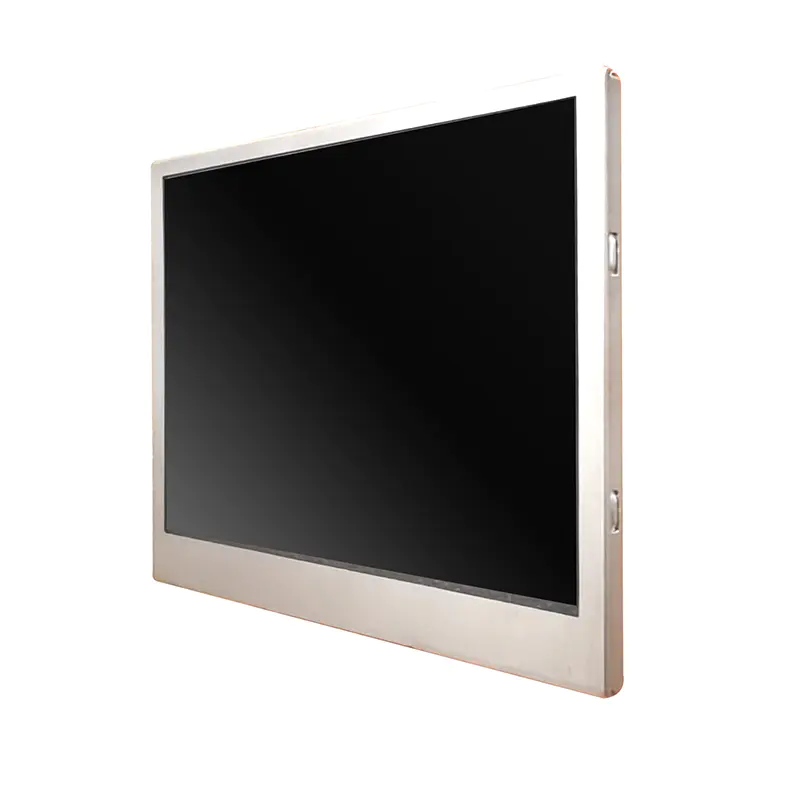

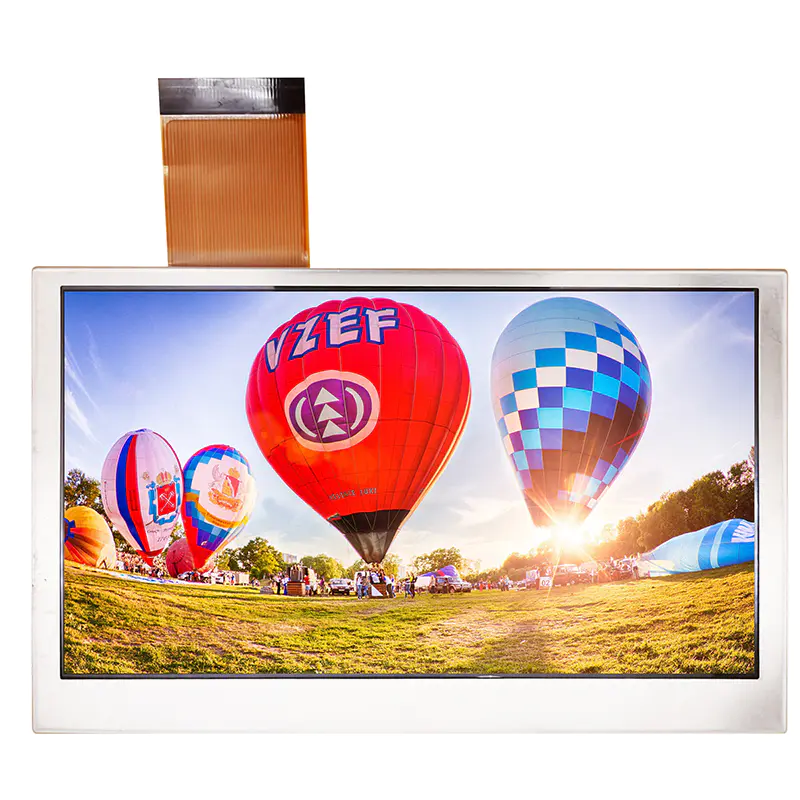

H043A12SVILT5N40 is a 4.3-inch ultra-wide temperature IPS-TFT equipped with projected capacitive touch panel (PCAP) display module with a resolution of 800x480 pixels. The module has built-in ST7262+HT7381(TFT), driver IC and supports MCU interface. H043A12SVILT5N40 adopts IPS panel technology with wide viewing angle Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees (typ); high contrast ratio 800:1 (typ), brightness 400 nits (typ), the module adopts Glossy glass with a screen aspect ratio of 16:9. This capacitive touch panel has built-in GT911 (CTP) IC, supports I2C interface, and supports multi-touch function. H043A12SVILT5N40 power supply voltage (VCC) is 3.0V to ~3.6V, typical value is 3.3V, the module operating temperature is -30℃~+80℃, and the storage temperature is -30℃~+80℃. In addition, the H043A1 model also offers a touchless option, part number H043A12SVILT5N40.
Model : 4.3 inch TFT /800*480 resolution/Full view/MCU Interface/TFT-H043A12SVILT5N40

Product type:TFT

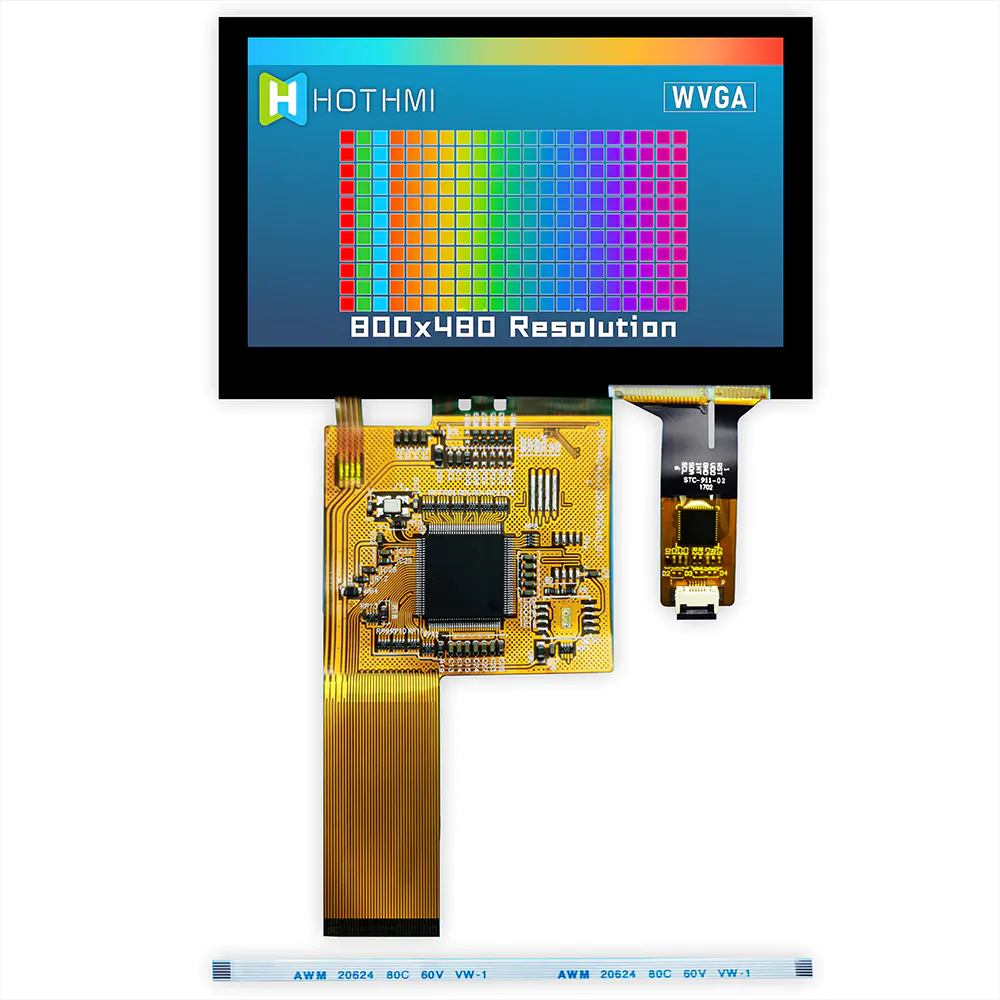

Show contents:800*480

Outline size(mm) :105.5*67.2*2.95

Size of View Window(mm):4.3"

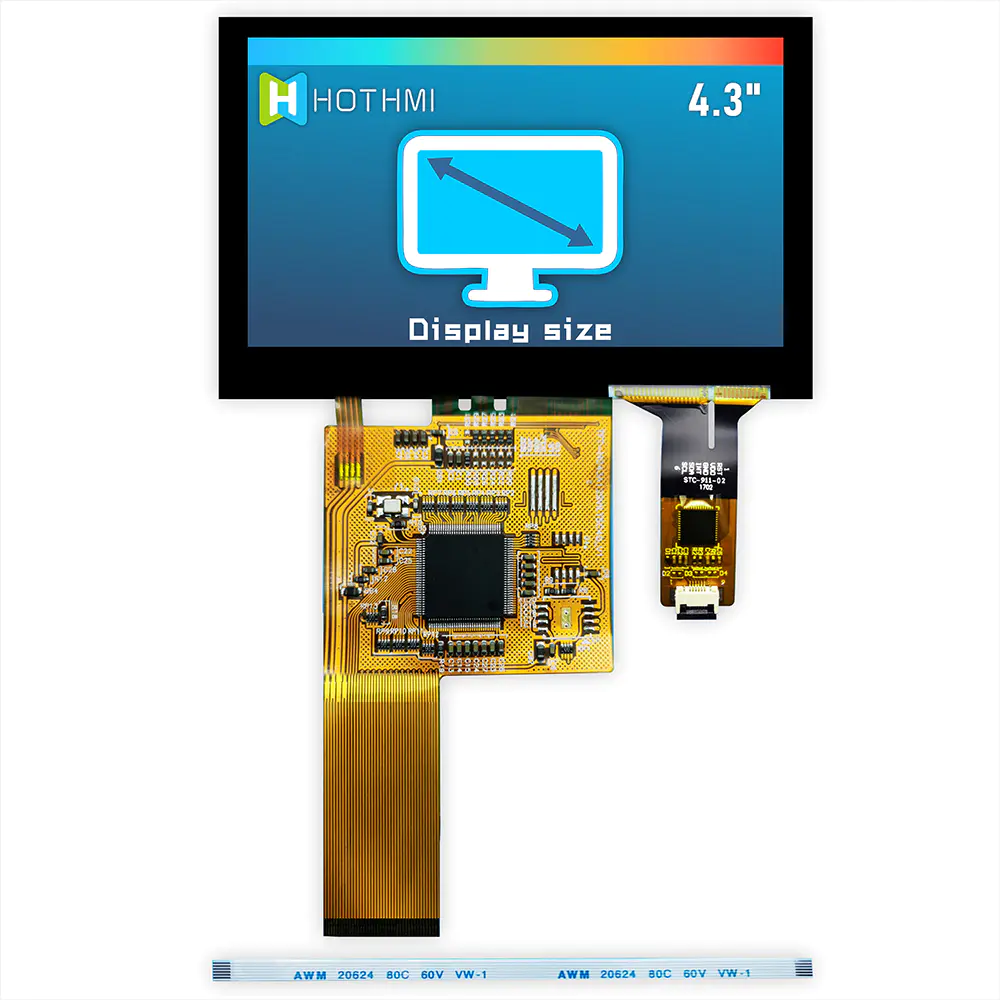

Display size(mm) :4.3"

Effective size(mm):95.040*53.856

Product application:Instruments and apparatus

Visual angle:Full View

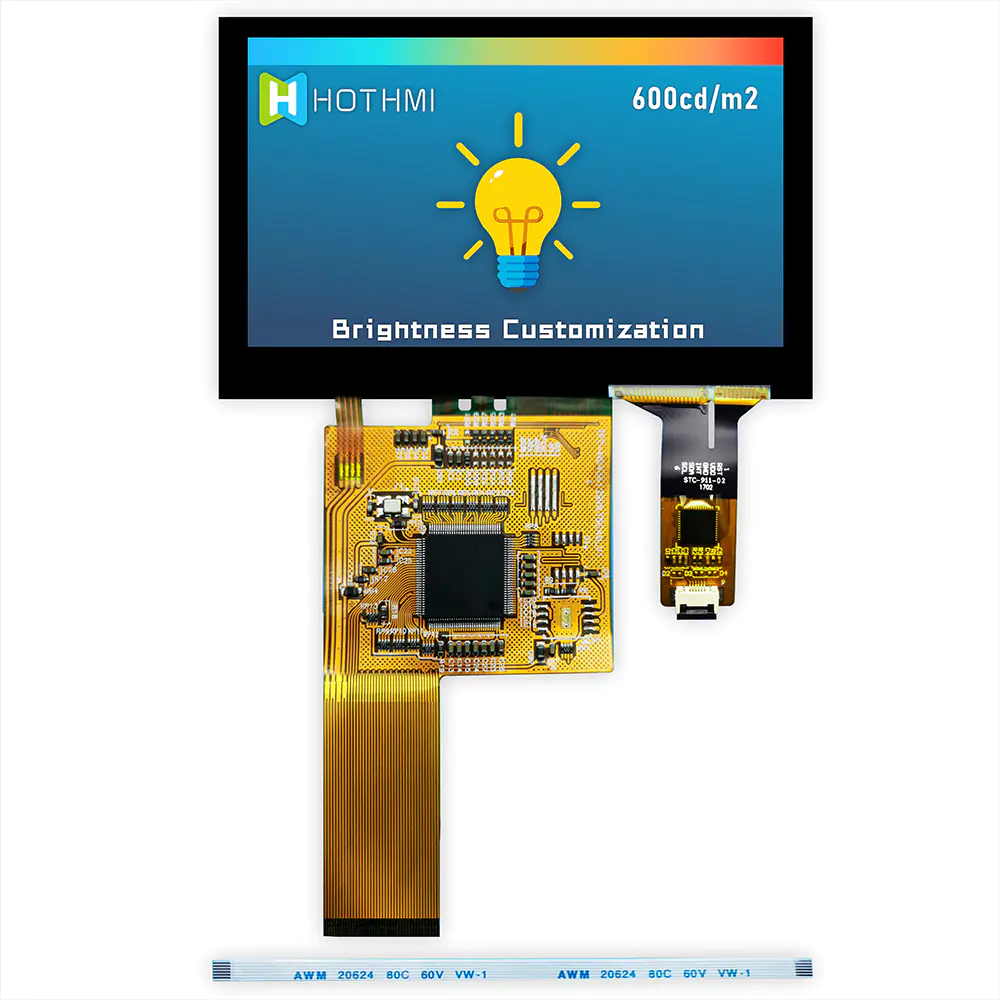

Backlight type or brightness:600cd/m2

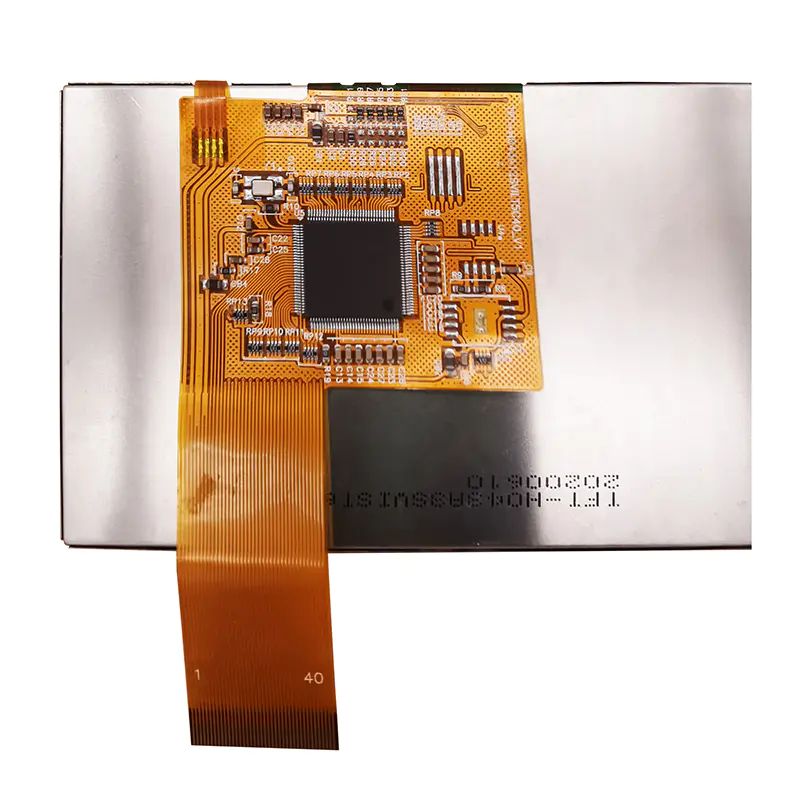

Connection PIN Number:FPC-40PIN

Interface mode:MCU 8/16 Bit

Special instructions:Can be equipped with CTP and RTP

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:ST7262

CAD Drawings
