4.3 inch TFT /480*800 resolution/Full view/RGB Interface/TFT-H043A7WVIST5N40
4.3 inch TFT /480*800 resoliution/Full view/RGB Interface/TFT-H043A7WVIST5N40
US$16.99
Add to wish list
Quantity
+
Product details

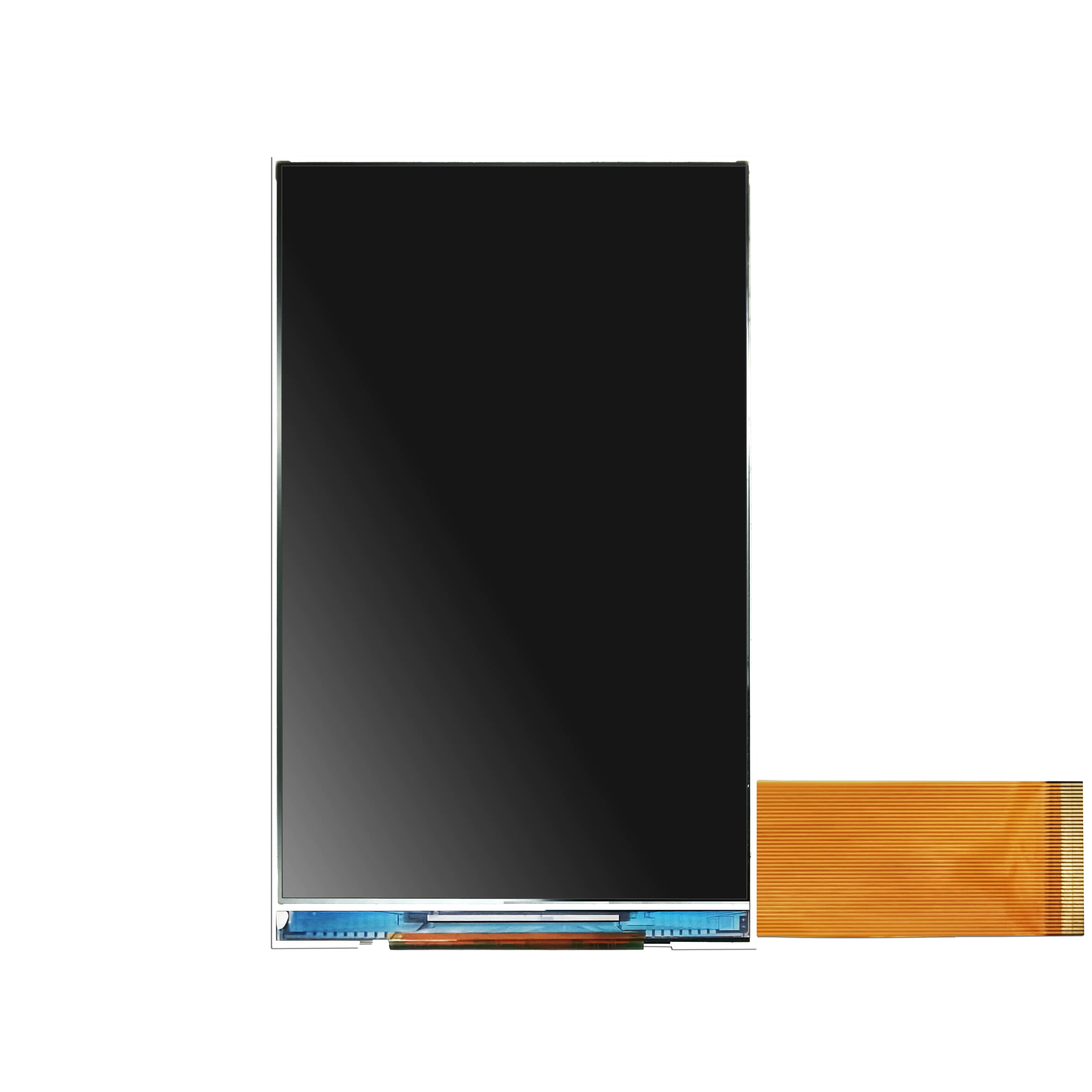

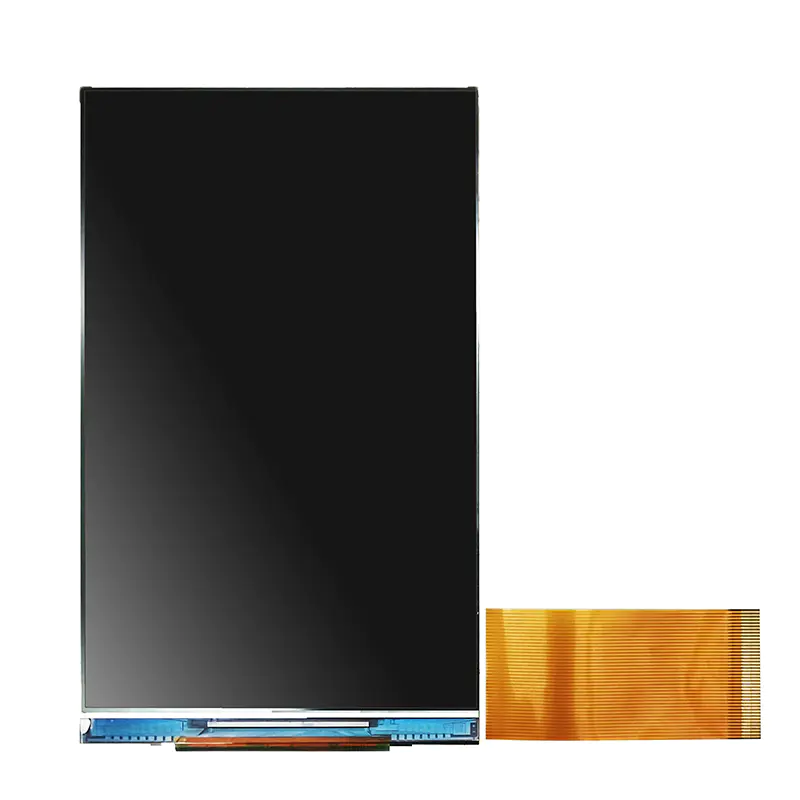

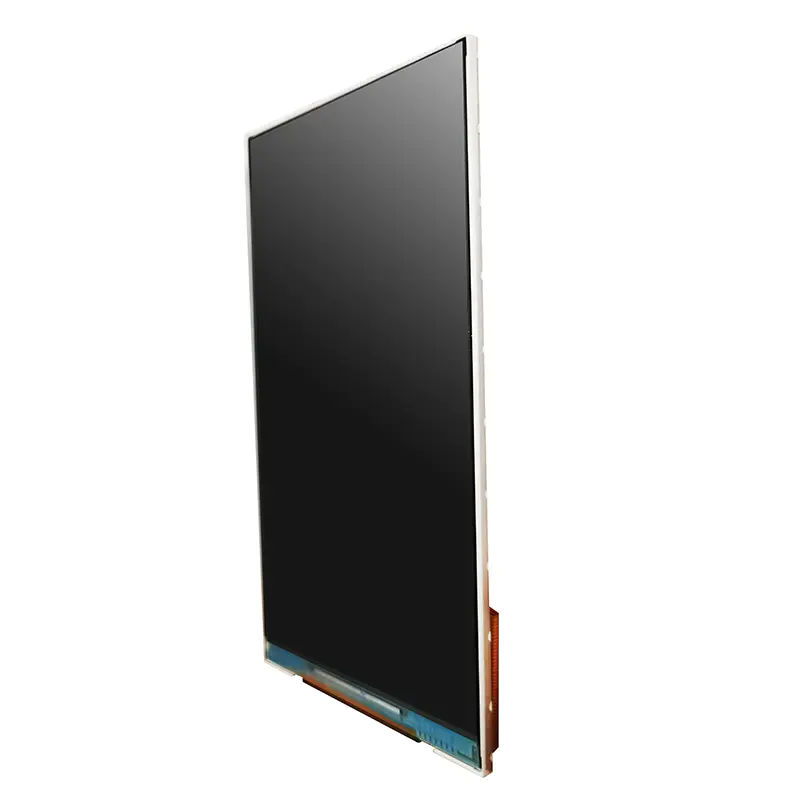

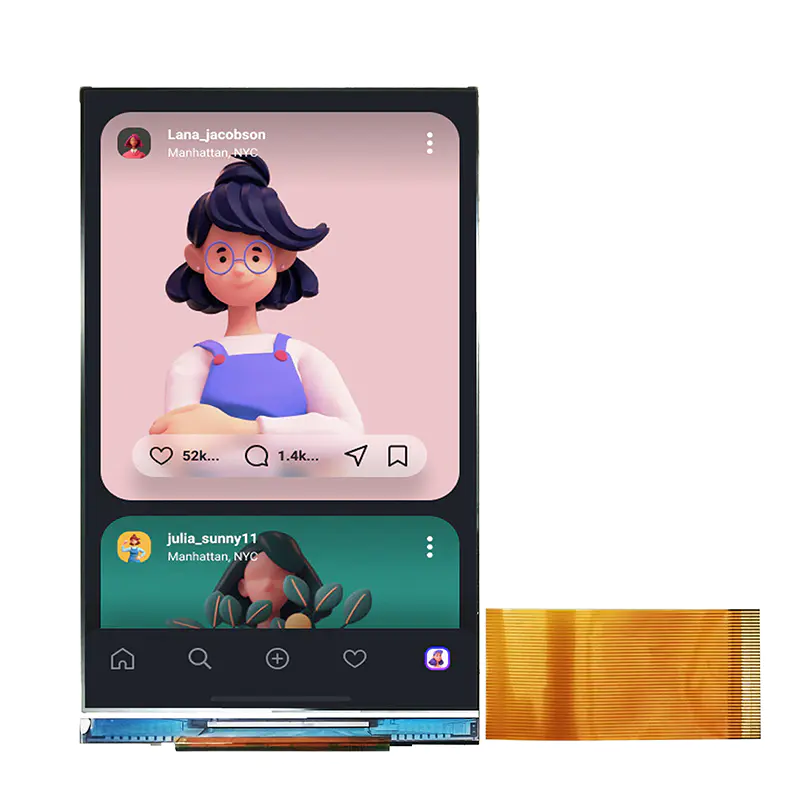

Model : 4.3 inch TFT /480*800 resolution/Full view/RGB Interface/TFT-H043A7WVIST5N40

Product type:TFT

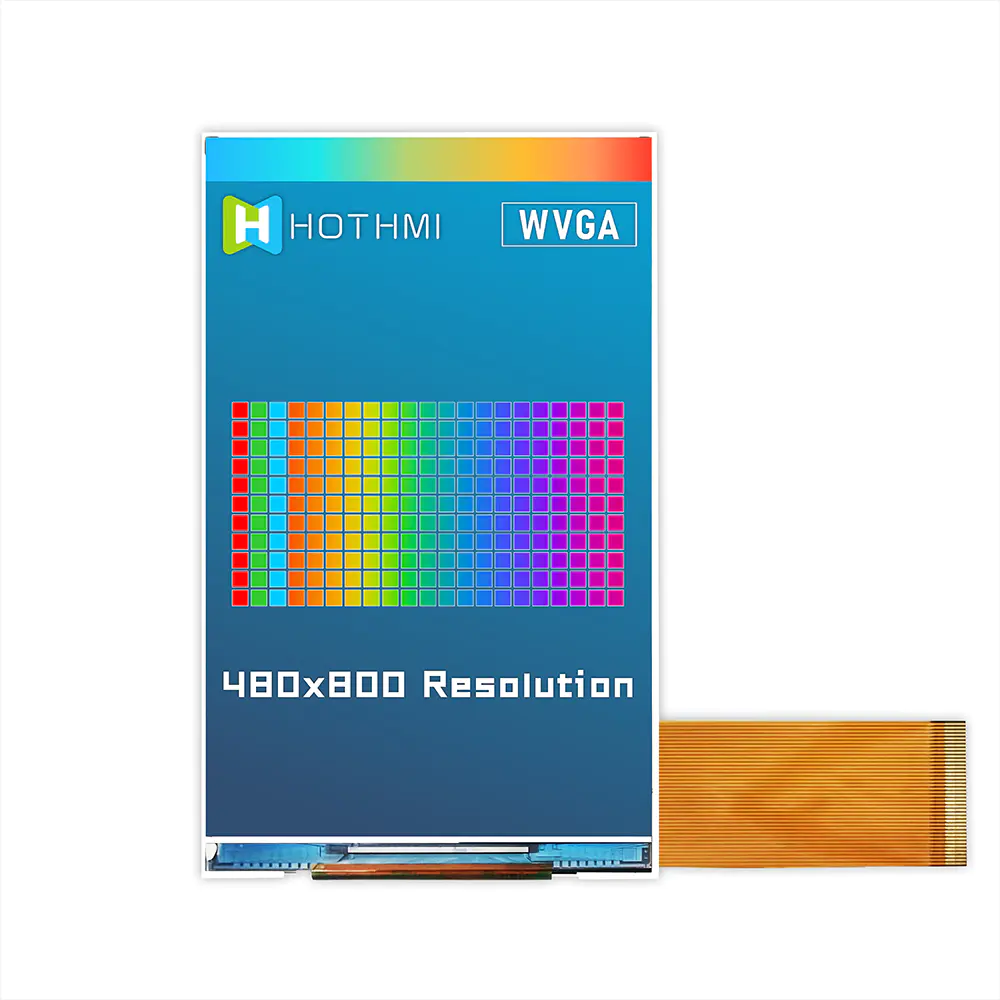

Show contents:480*800

Outline size(mm) :60.86*102.57*2.5

Size of View Window(mm):4.3"

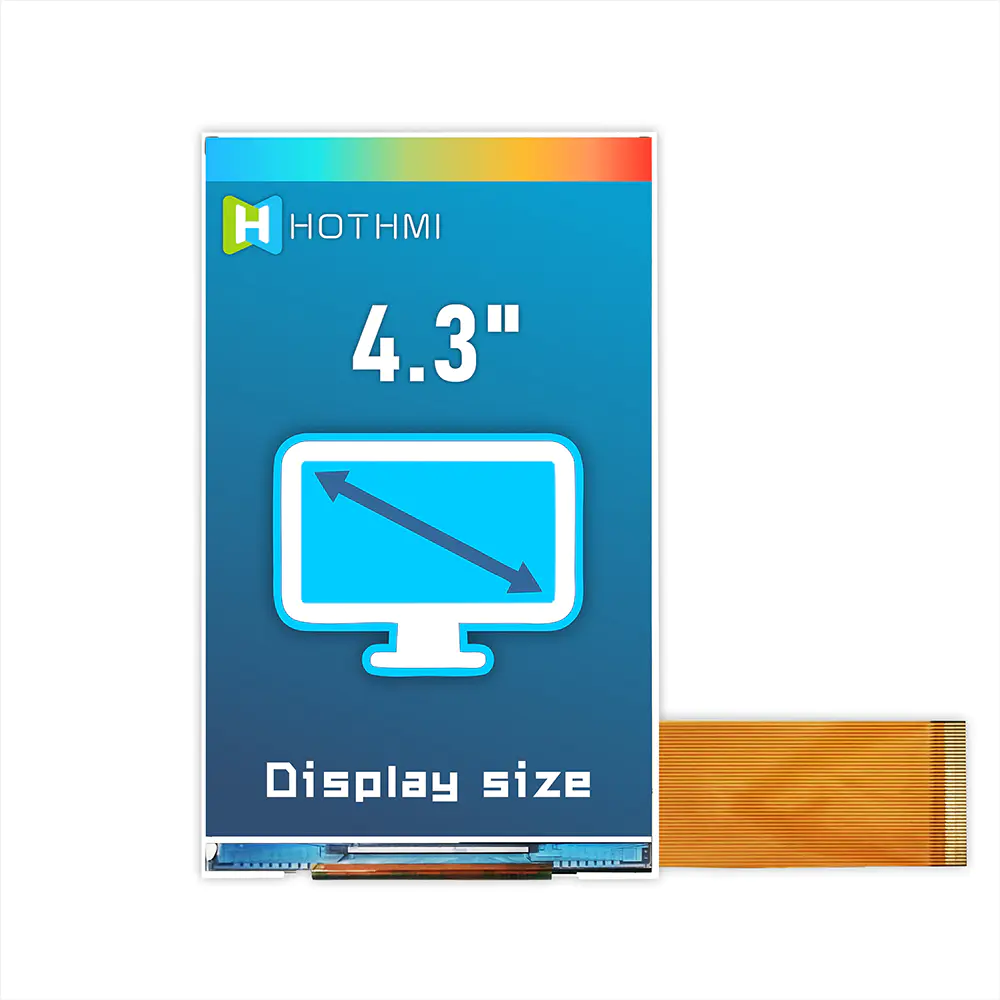

Display size(mm) :4.3"

Effective size(mm):56.16*93.6

Product application:Instruments and apparatus

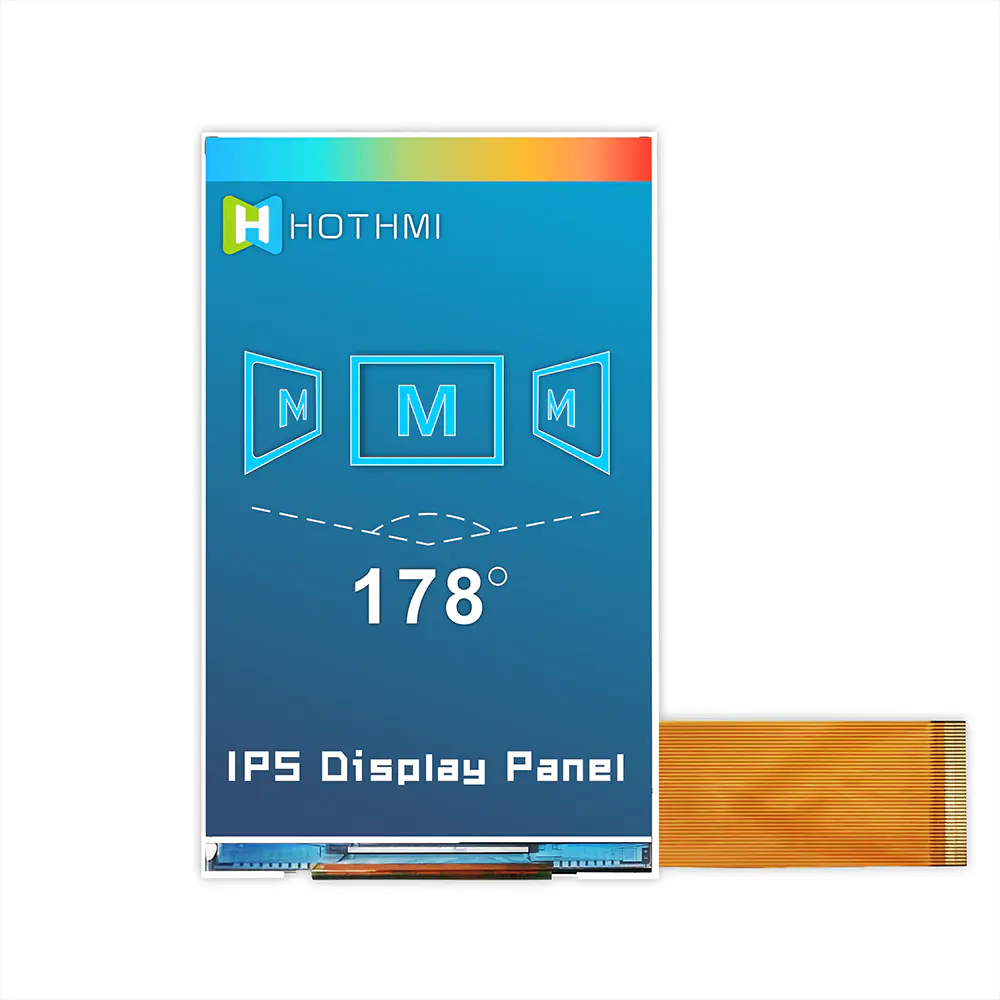

Visual angle:Full View

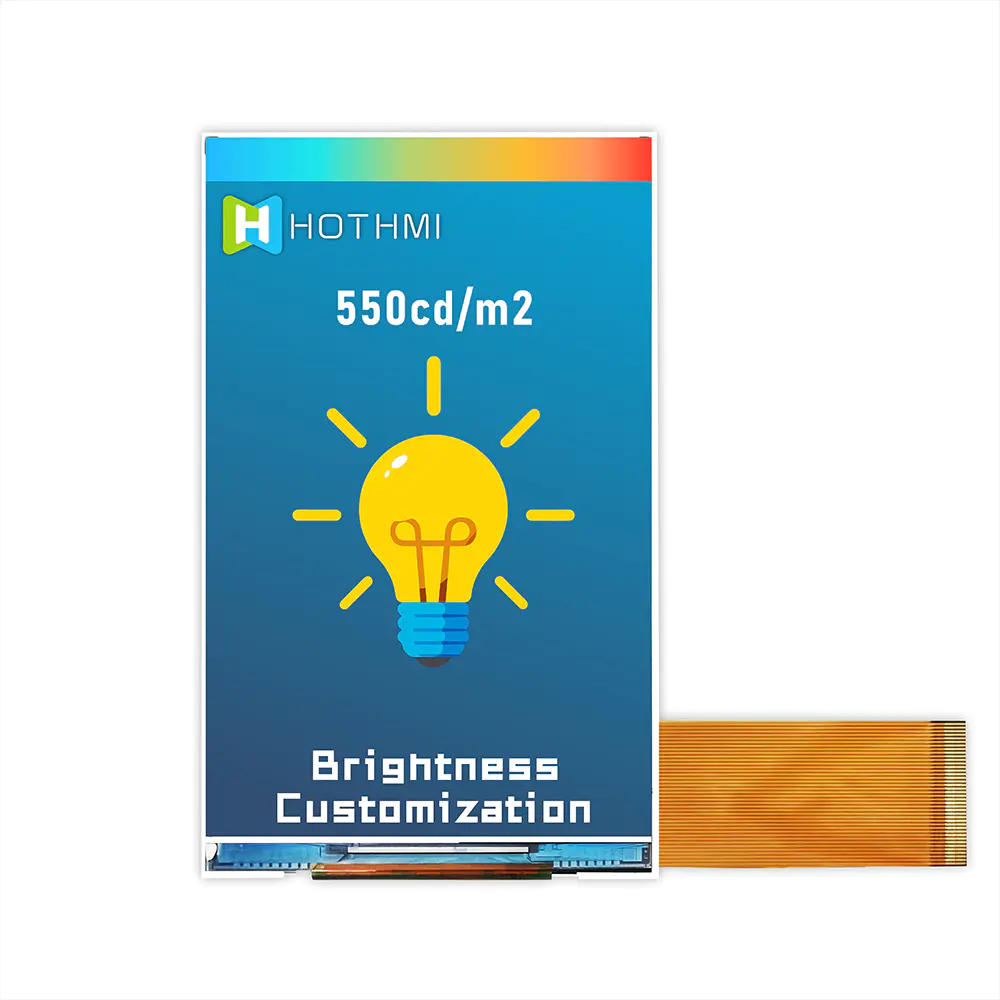

Backlight type or brightness:350-500cd/m2

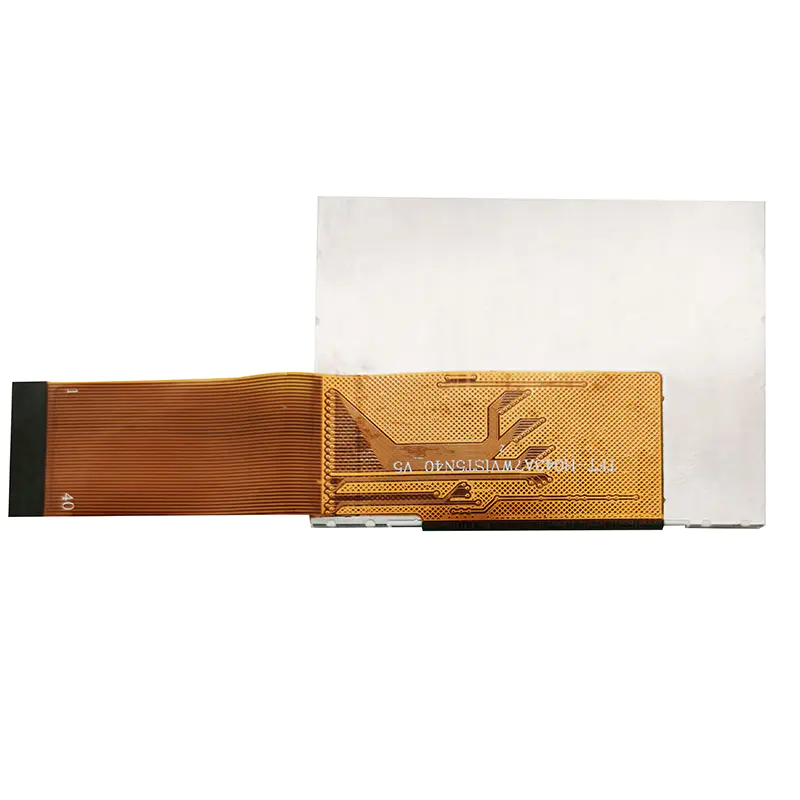

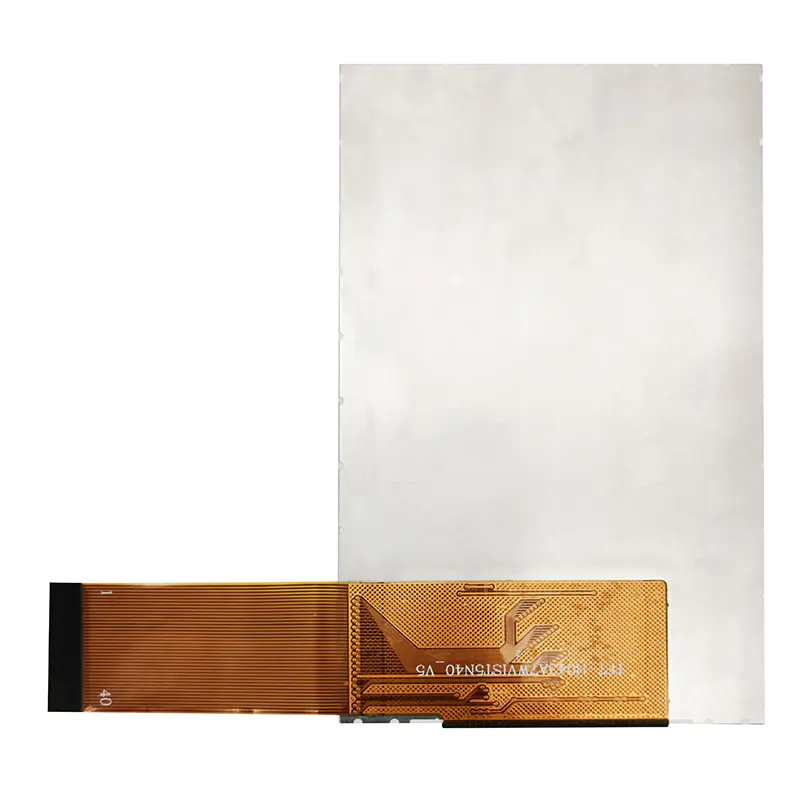

Connection PIN Number:FPC-40PIN

Interface mode:RGB

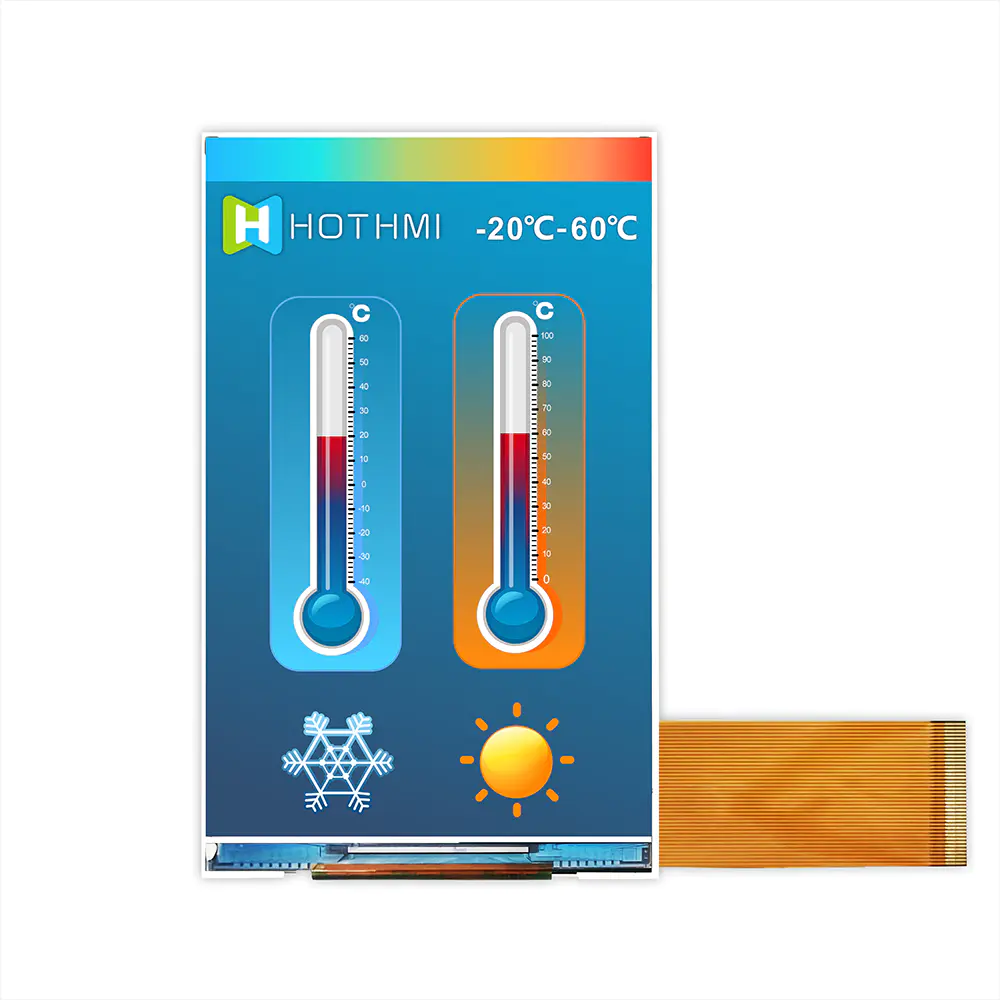

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:ST7701S

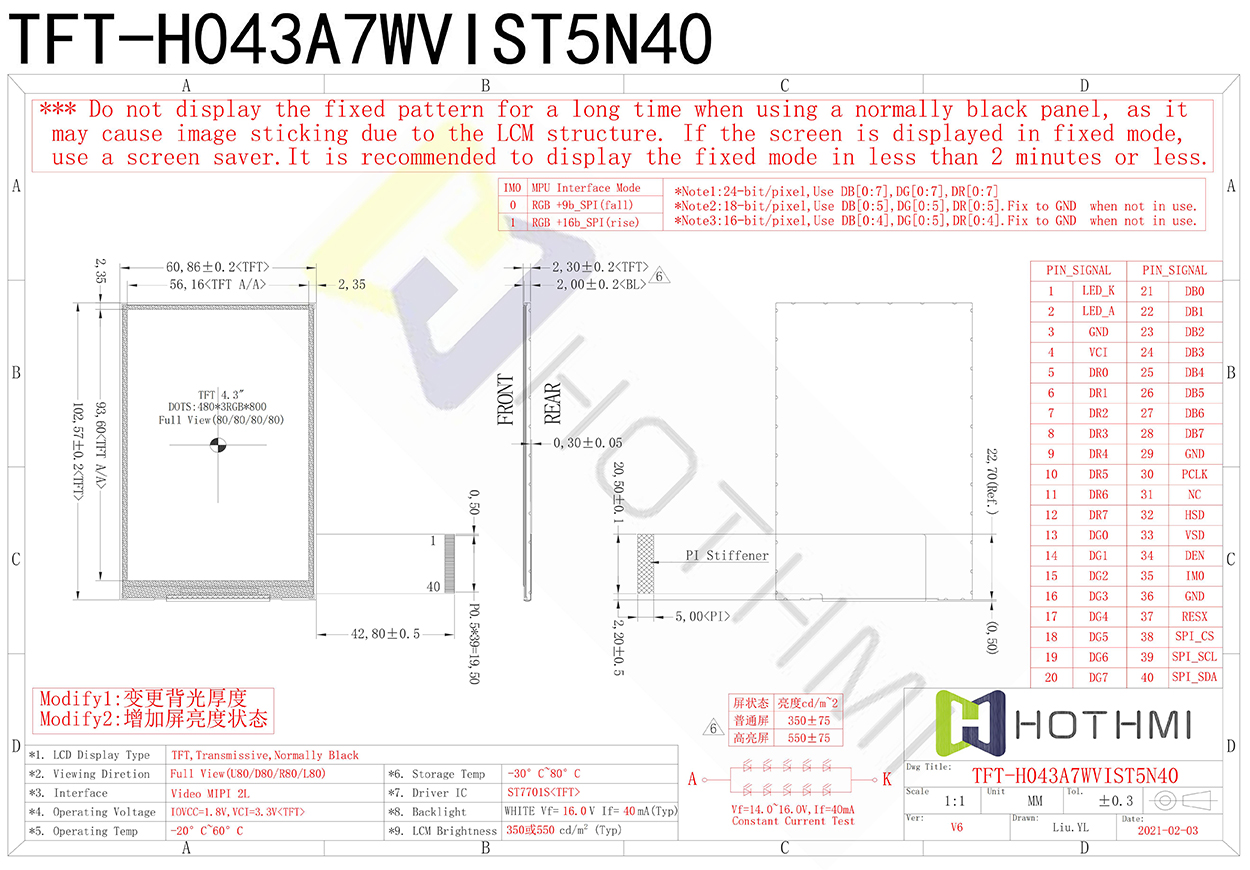

CAD Drawings
