US$16.99
-
US$21.99
Add to wish list
Specification
Quantity
+
Product details

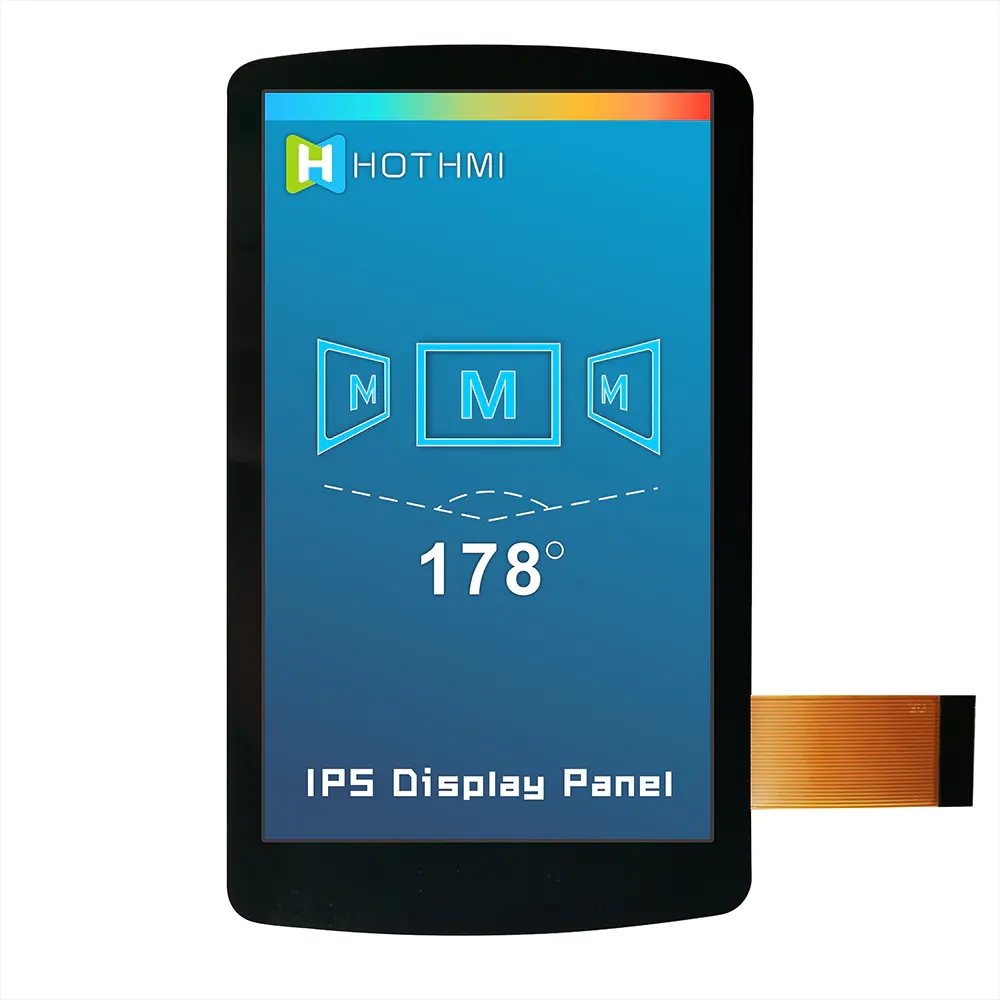

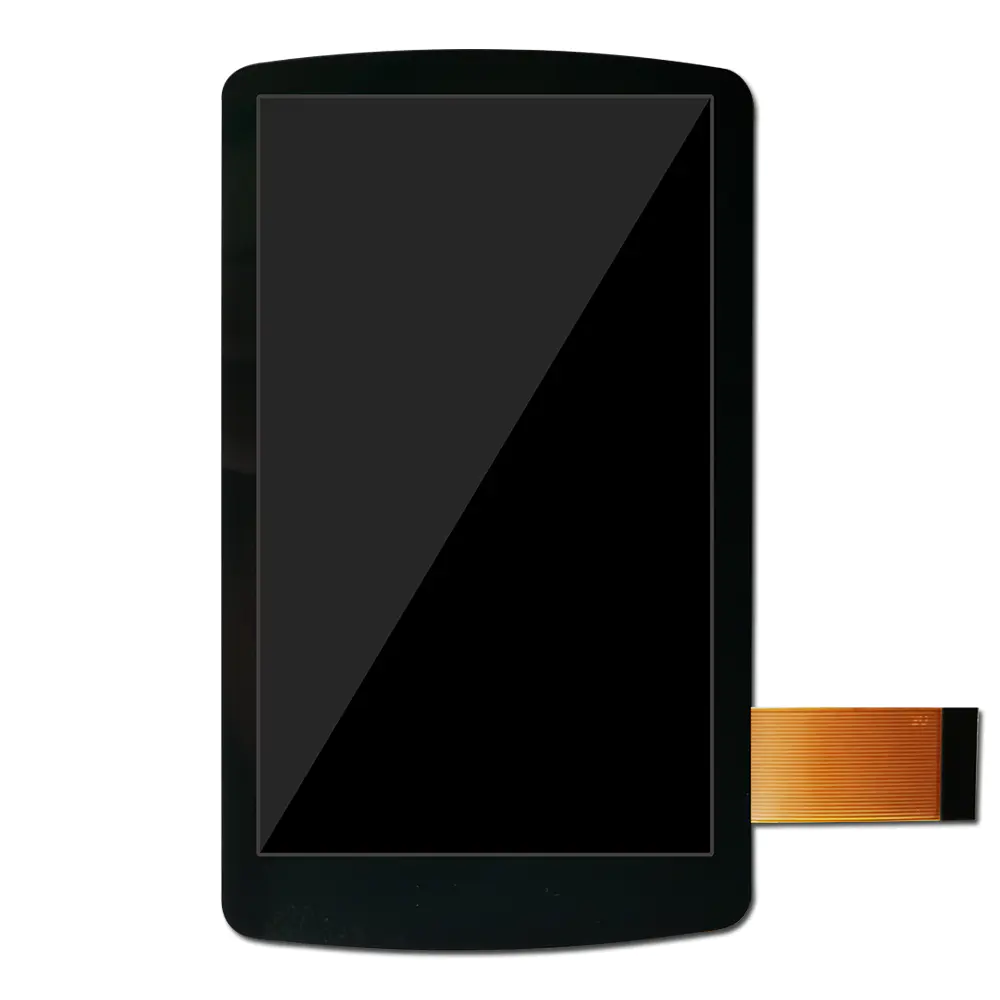

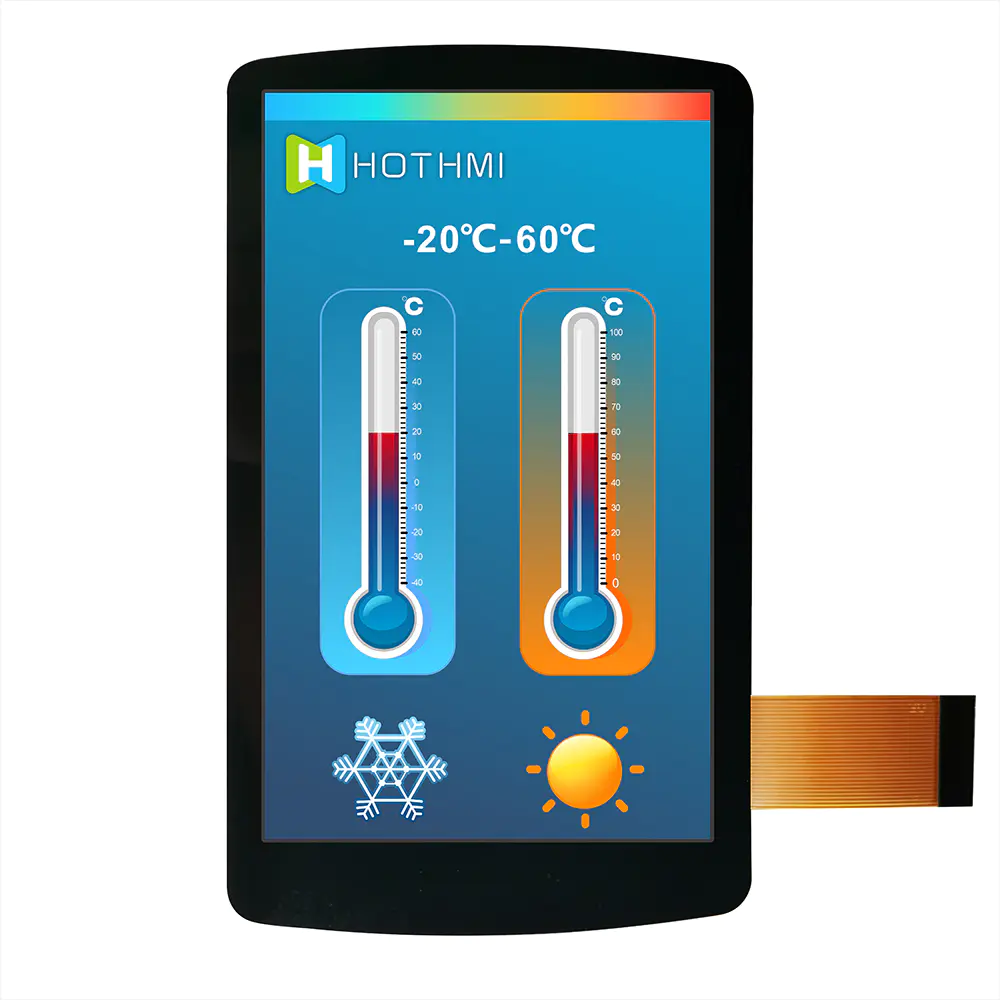

Product Description TFT-H043A8WVIST3C30 is a 4.3-inch full-color TFT LCD module with a resolution of 480x800 pixels and an aspect ratio of 2:5. The TFT module adopts ST7701S driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 300 nits (typical value). The operating temperature range of the module is -20℃~+60℃, and the storage temperature range is -30℃~+80℃.
Model : 4.3 inch TFT /480*800 resolution/Full view/MIPI Interface/Construction copy/TFT-H043A8WVIST3C30

Product type:TFT

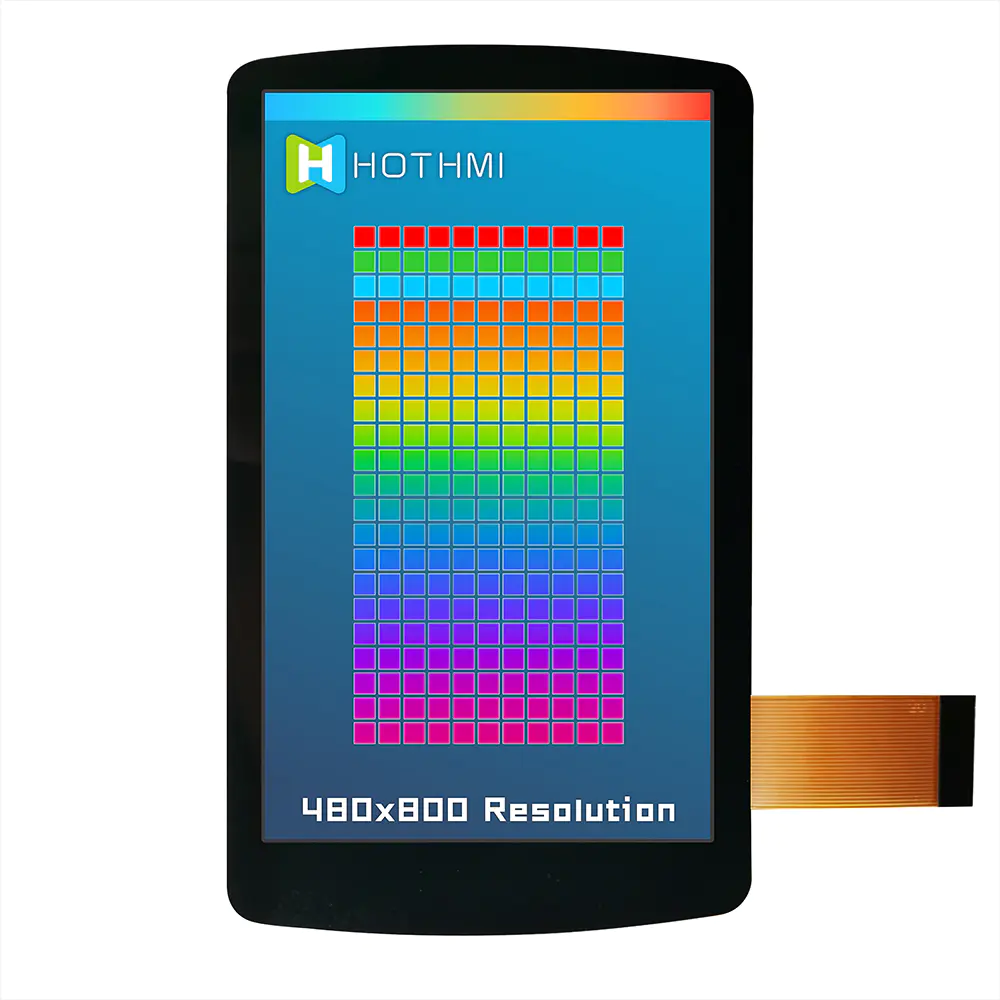

Show contents:480*800

Outline size(mm) :67.00*116.24*3.85

Size of View Window(mm):4.3"

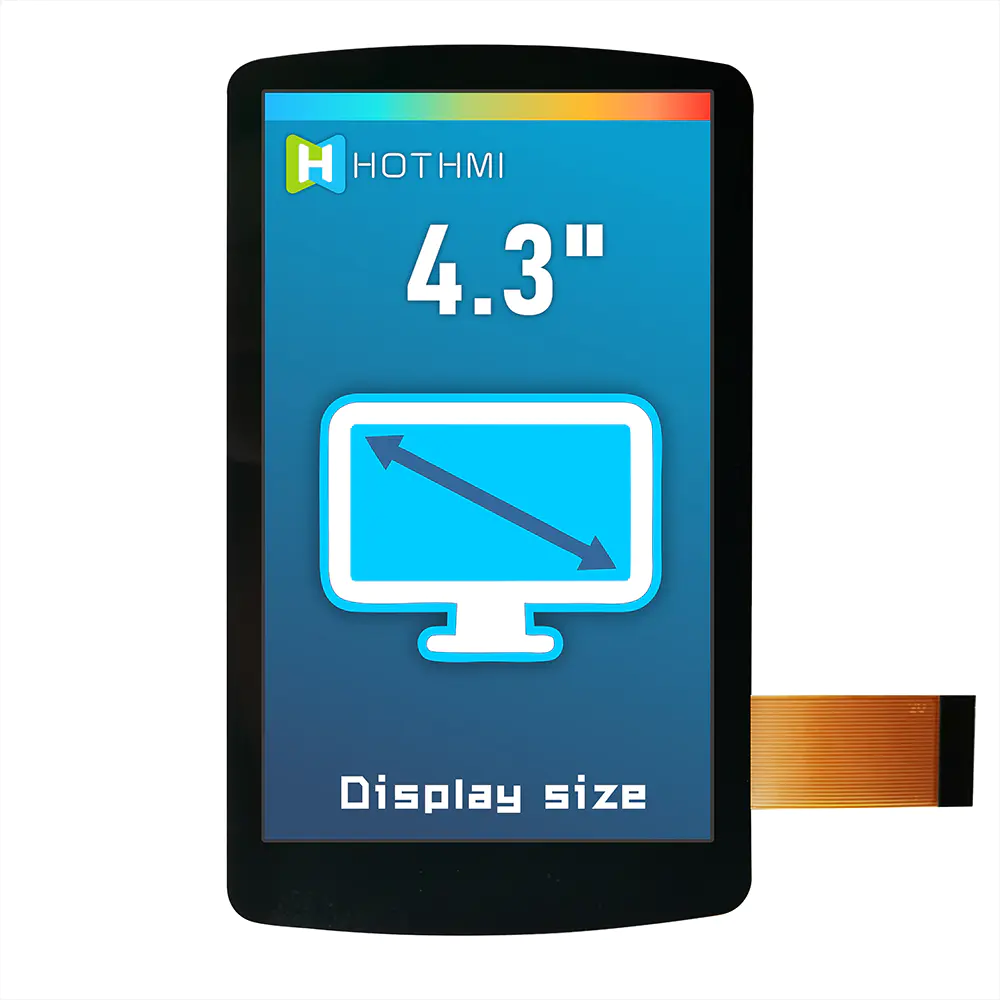

Display size(mm) :4.3"

Effective size(mm):56.16*93.60

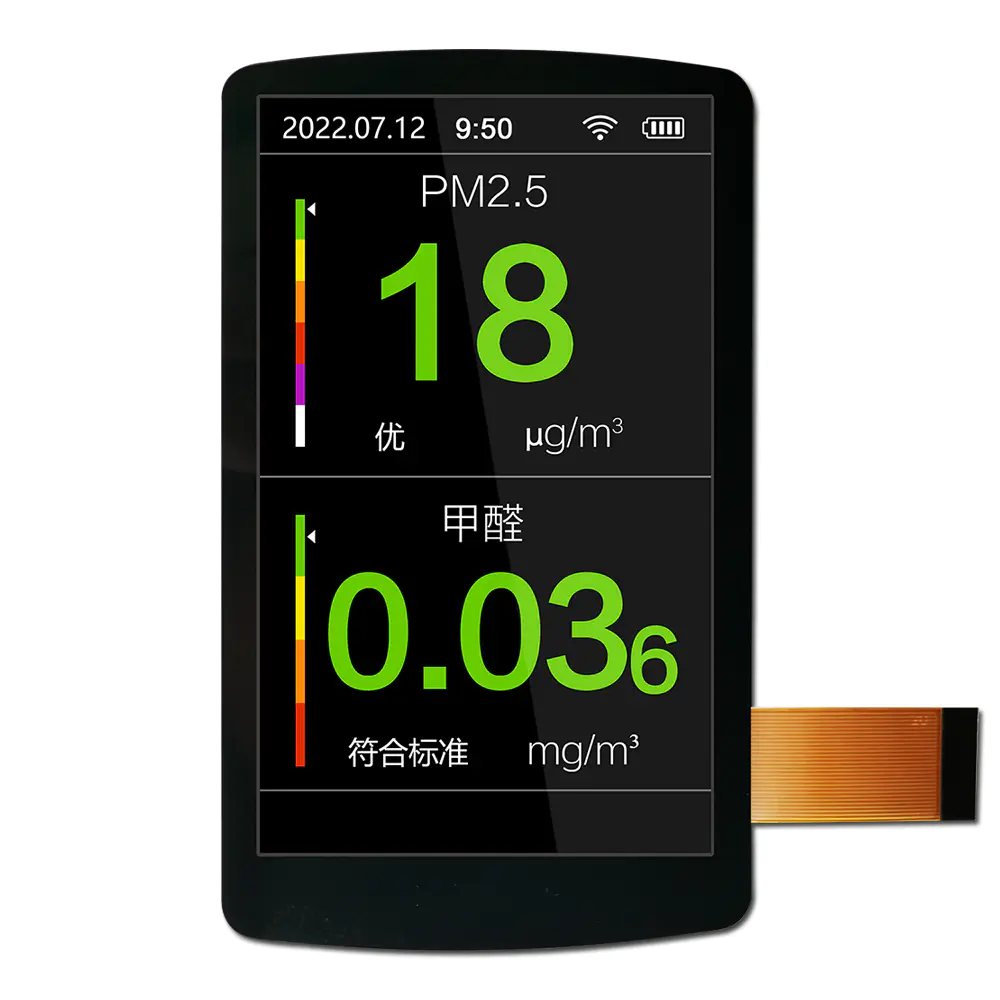

Product application:Instruments and apparatus

Visual angle:Full View

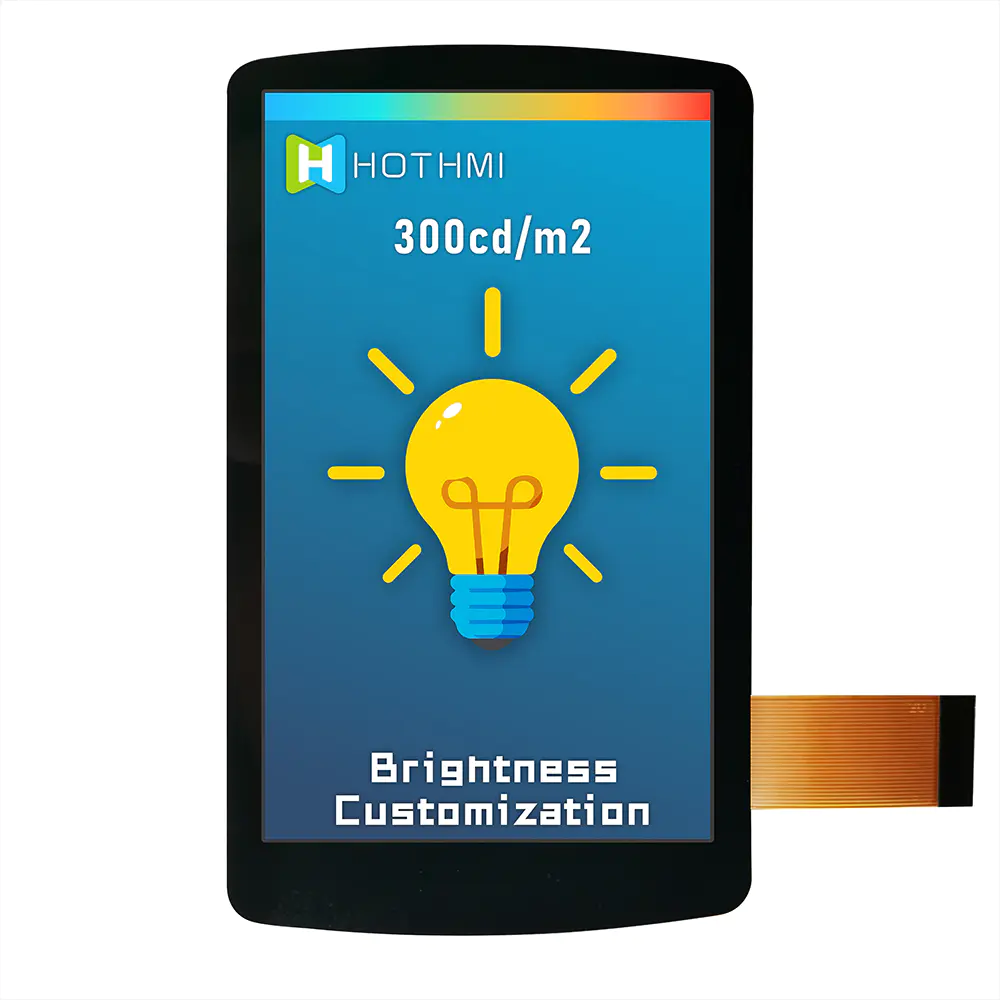

Backlight type or brightness:300cd/m2

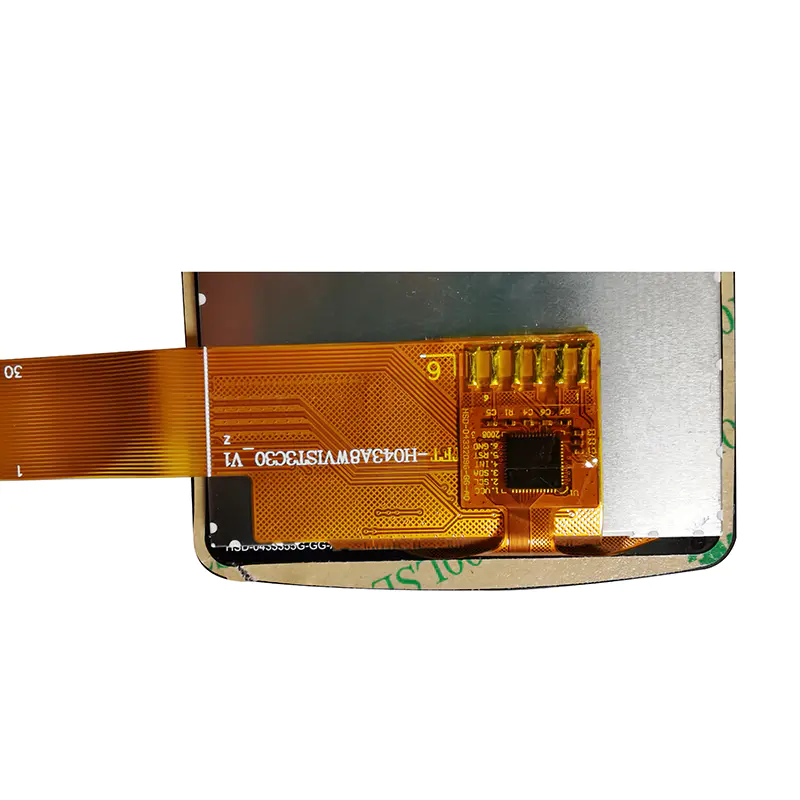

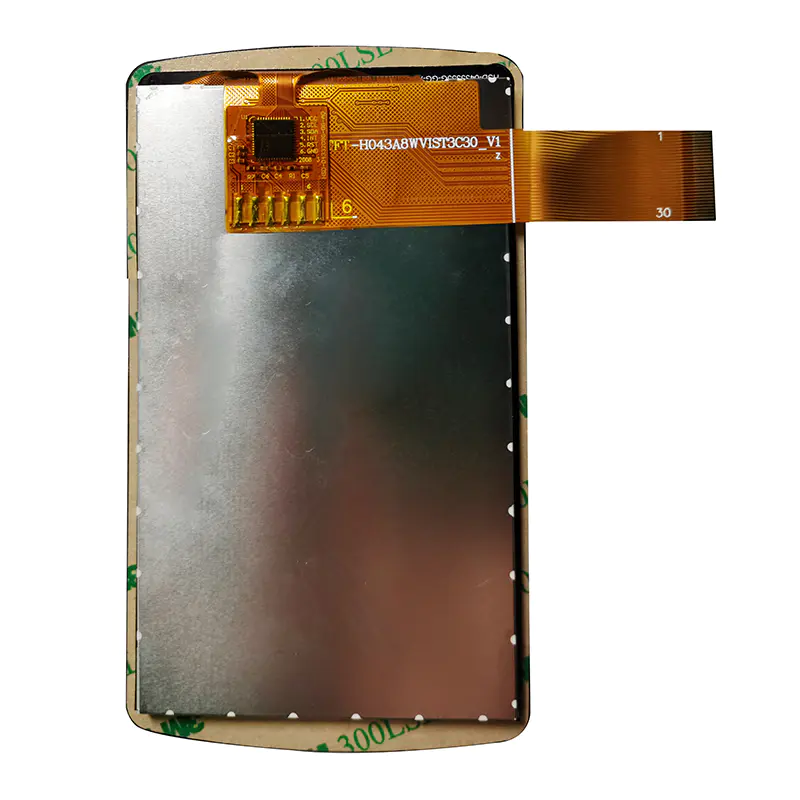

Connection PIN Number:FPC-30PIN

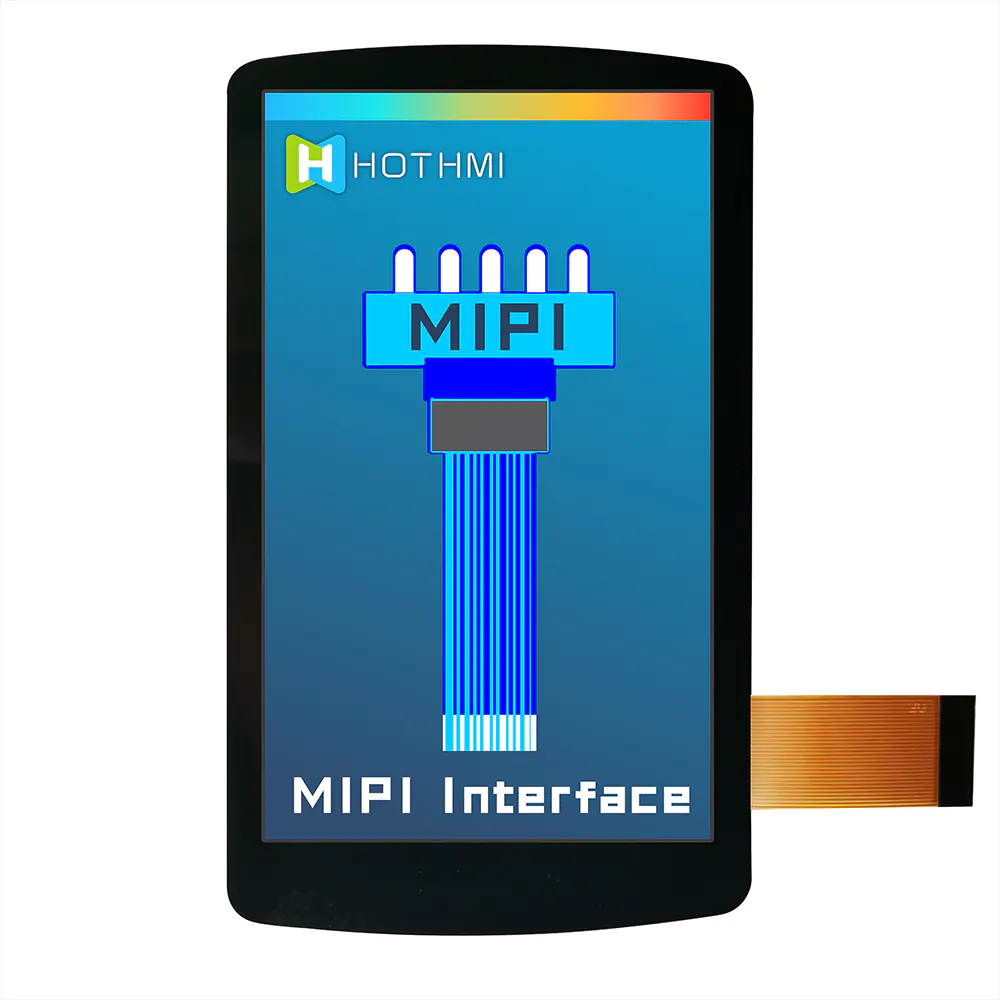

Interface mode:MIPI

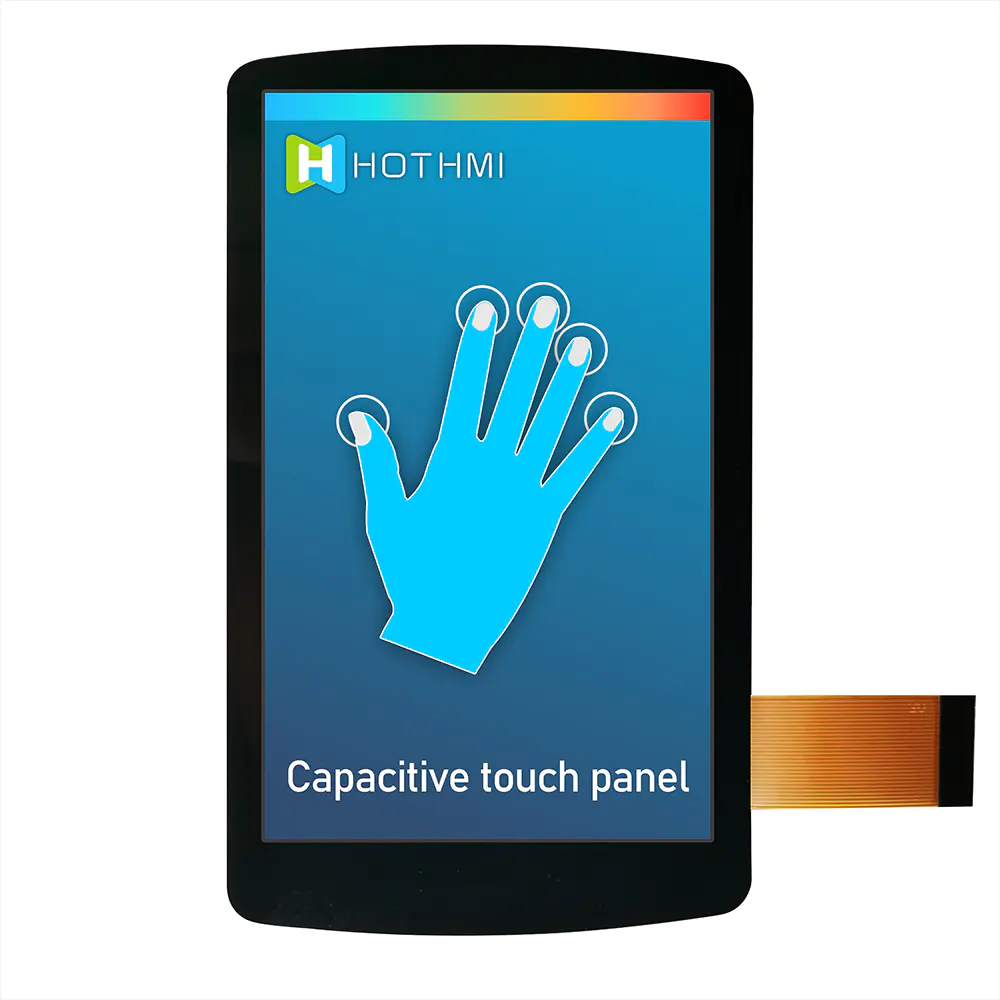

Special instructions:CTP

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:ST7701S<TFT>,GT911<CTP>


DRAWING:
