US$41.66
Add to wish list
Quantity
+
Product details
Product Description

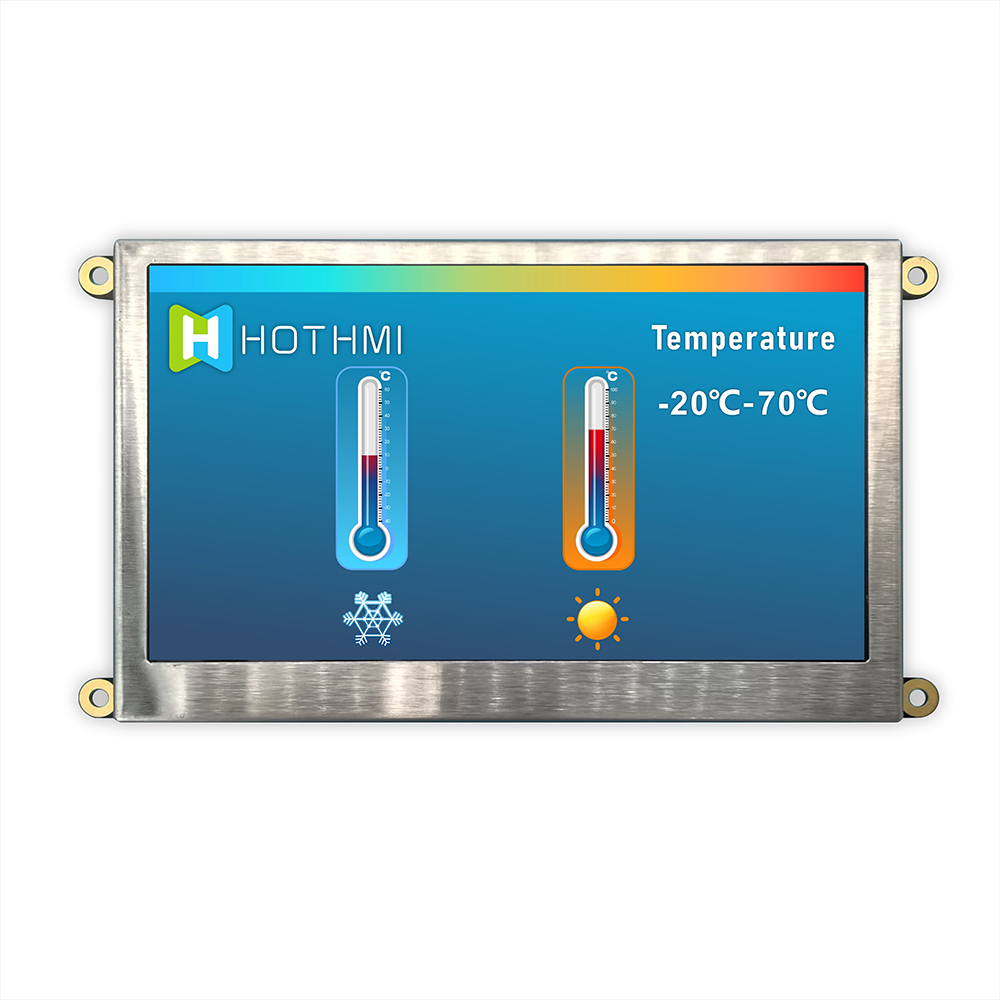

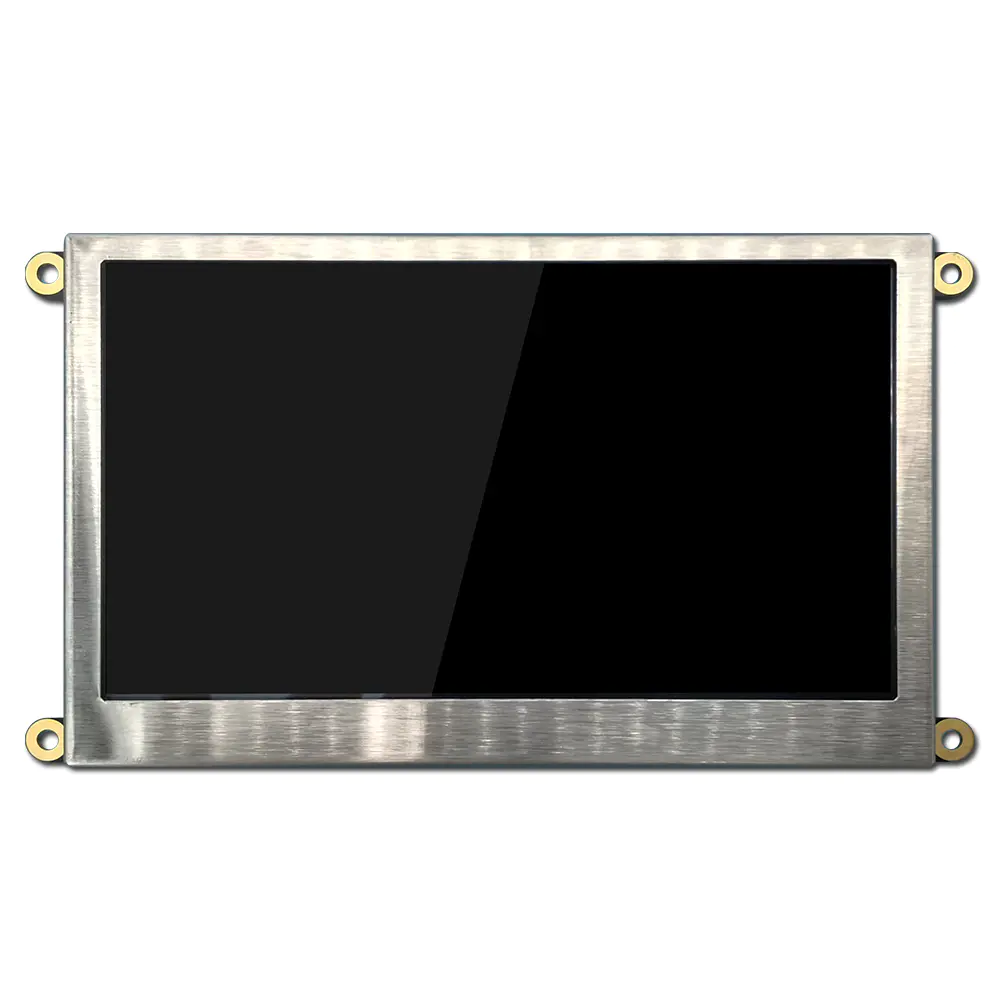

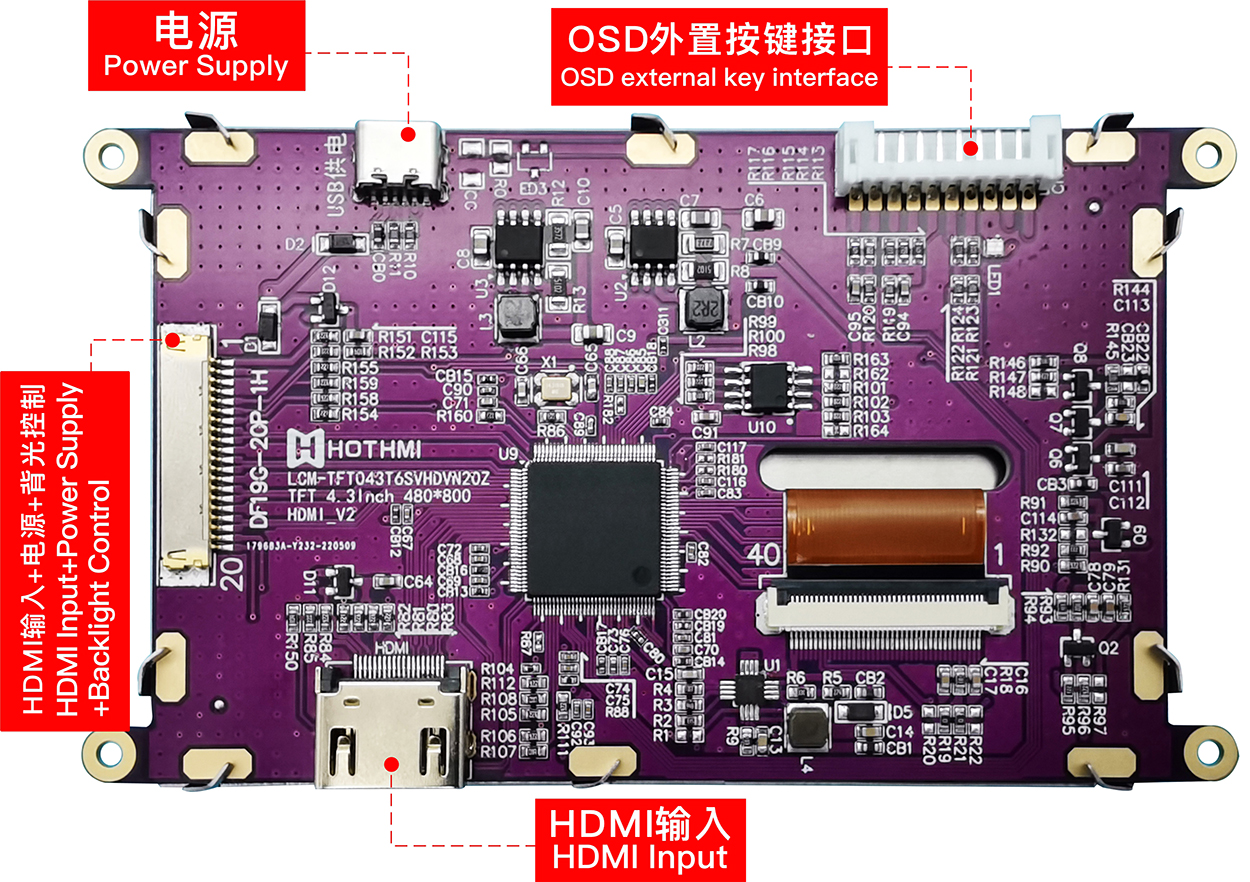

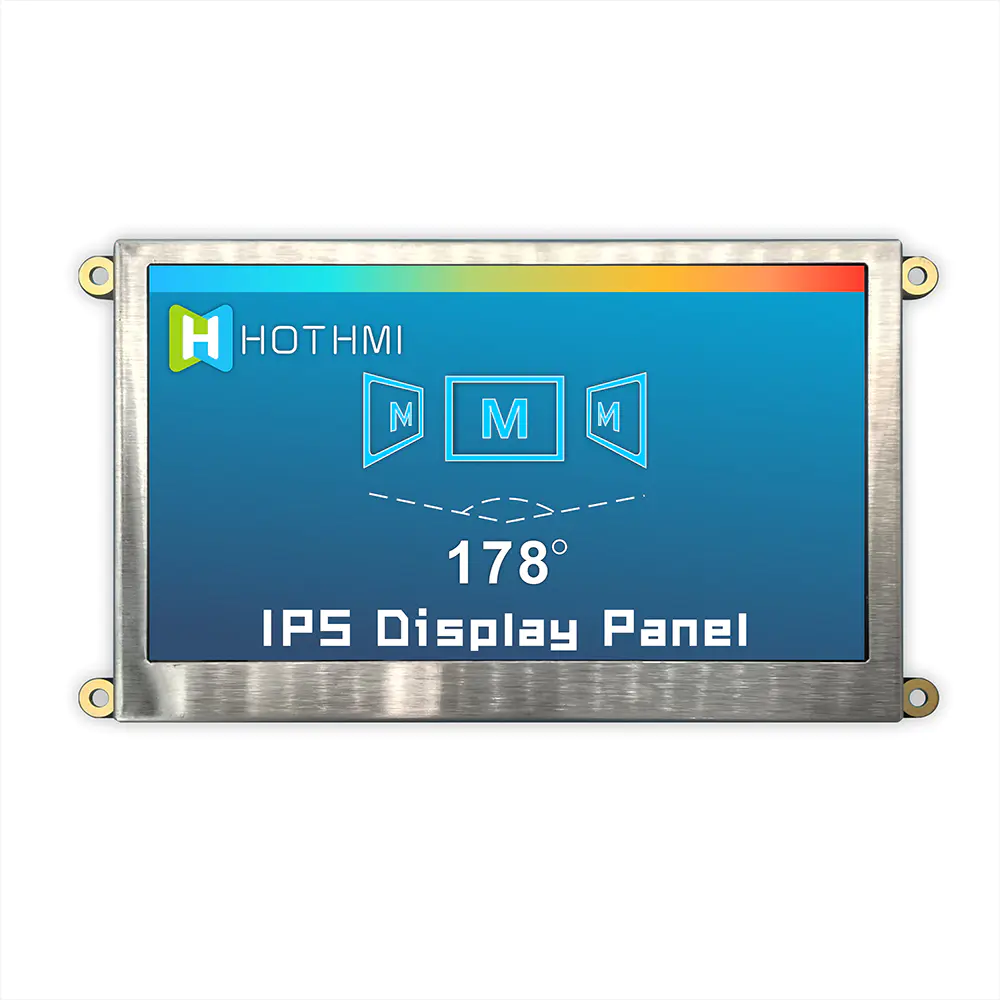

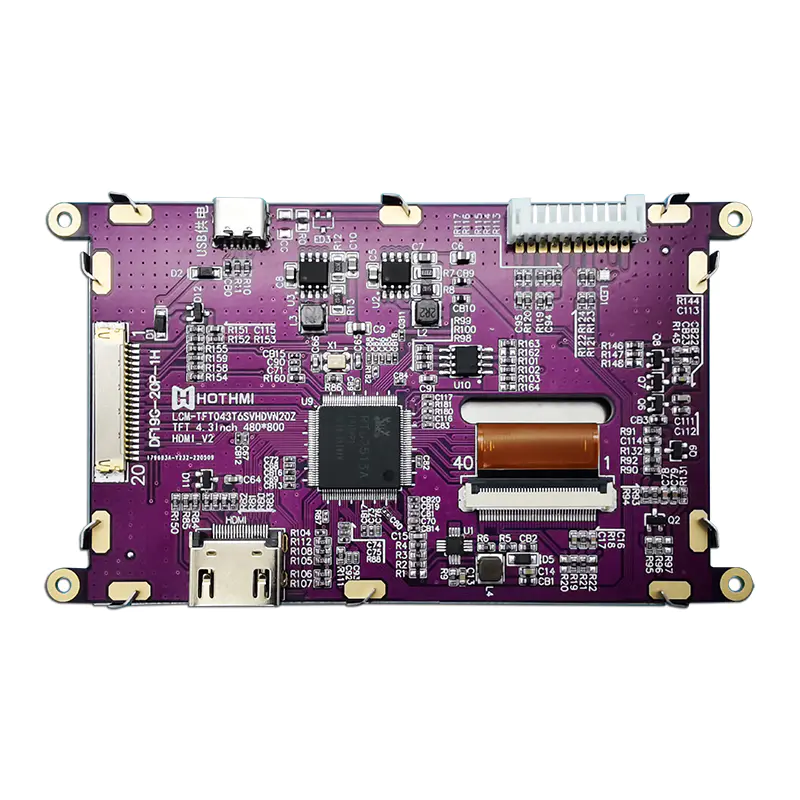

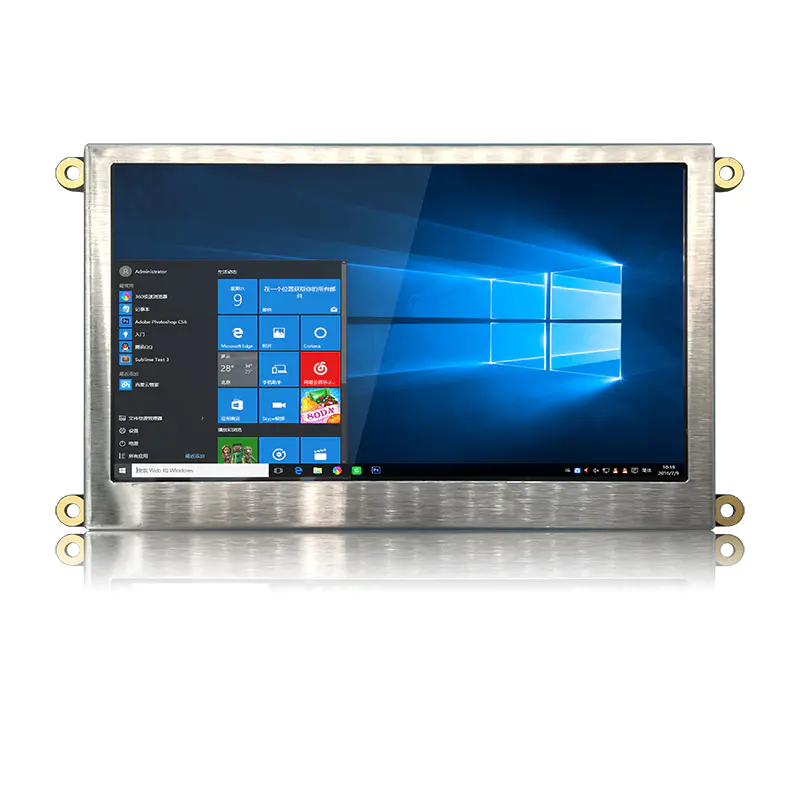

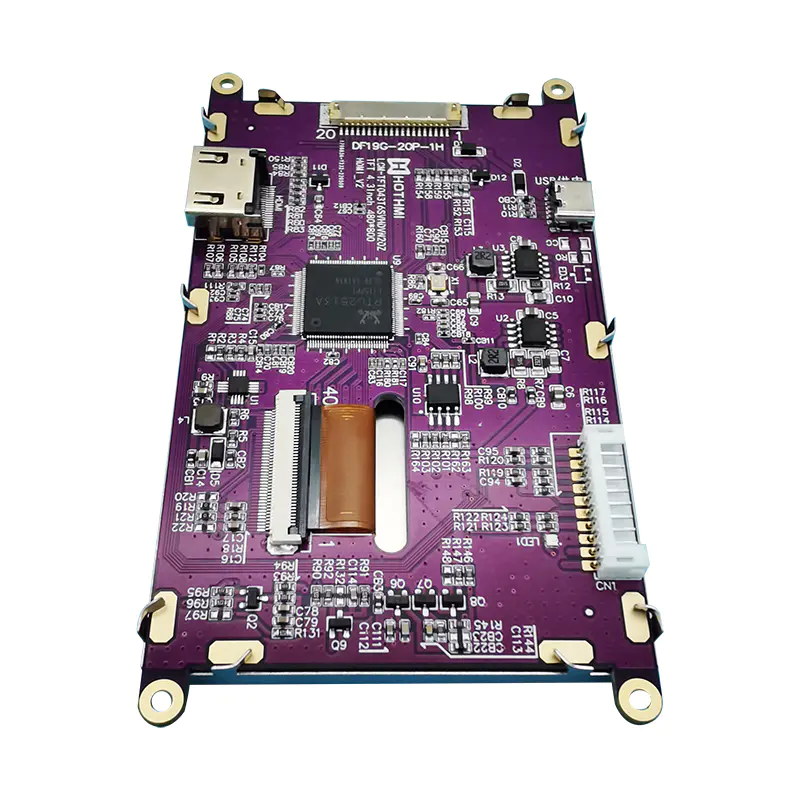

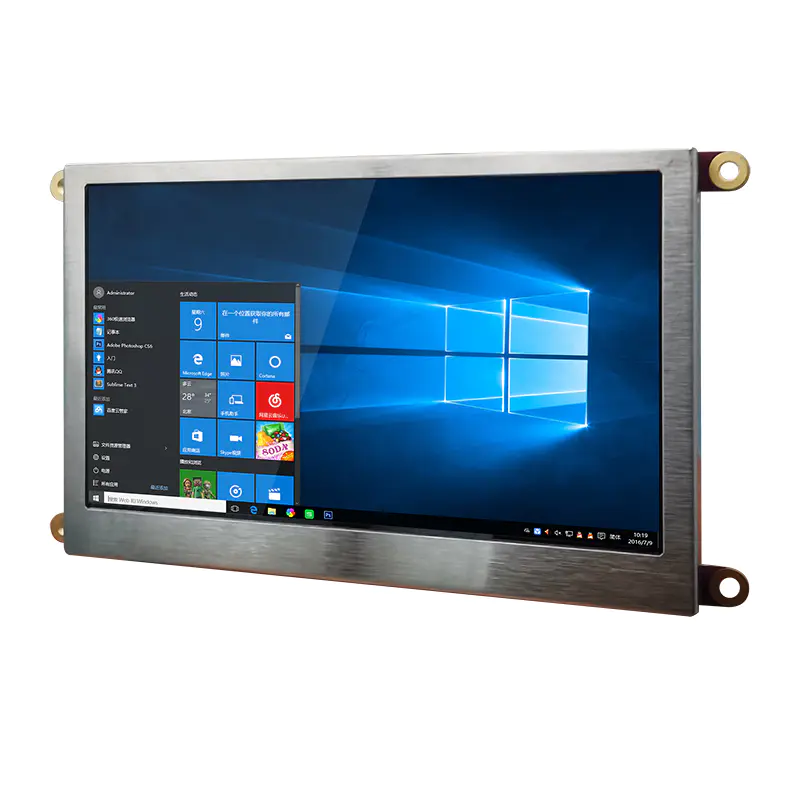

LCM-TFT043T6SVHDVN20Z is a 4.3-inch high brightness IPS TFT-LCD module with capacitive touch panel; its resolution is 800X480 pixels. The module control board is designed to support the Raspberry Pi HDMI signal interface (only DVI), and there is no built-in Extended Display Capability Identification (EDID) parameter to support the PC HDMI signal. The 40-pin GPIO connector is designed on the control board to make it more convenient for developers using Raspberry Pi, and four screw holes are designed on the module control board to facilitate customers to fix the module on the application product. . LCM-TFT043T6 HDMI series can support PWM (Pulse Width Modulation) function to control backlight brightness This module adopts IPS panel technology, which has a wide viewing angle, the typical value is up: 80 / down: 80 / left: 80 / right: 80 degrees, and has high brightness characteristics, the typical value is 800 nits The LCM (VDD) supply voltage of the TFT043T6SVHDVN20Z is 5V, using an anti-glare glass surface, an aspect ratio of 16:9, and a contrast ratio of 800:1 (typ.). Operating temperature range -30℃~+80℃, storage temperature range -30℃~+80℃.coffee machine display
Model : 4.3 inch TFT/800*480 resolution/HDMI interface/LCM-TFT043T6SVHDVN20Z

Product type:TFT LCM

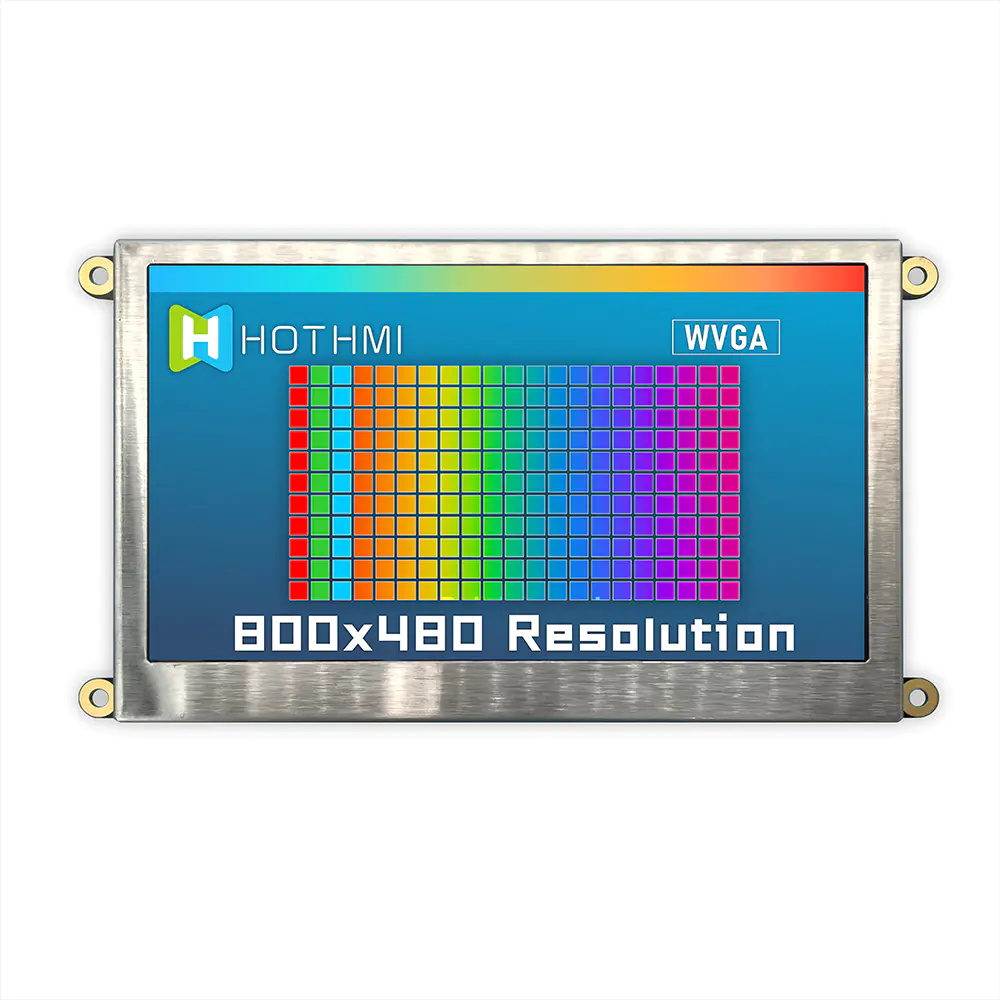

Show contents:800*480

Outline size(mm) :120*68.20*5.20

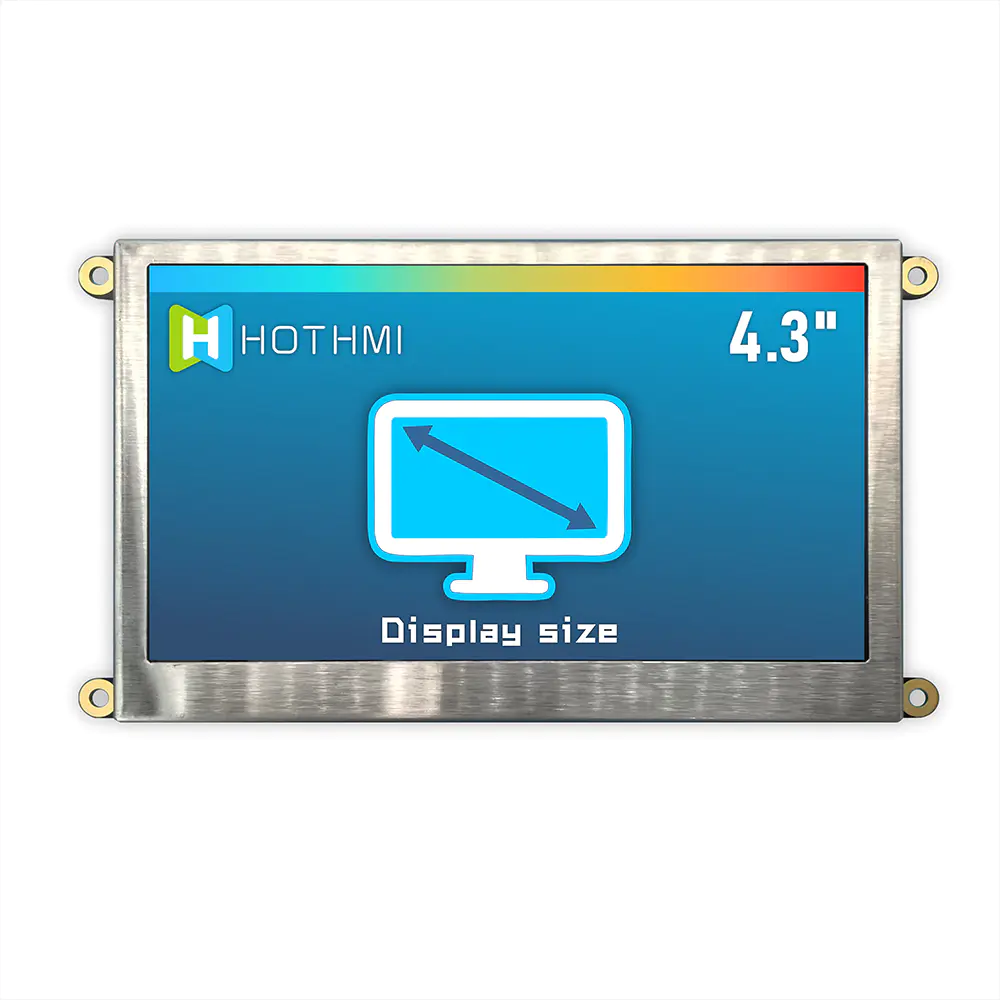

Size of View Window(mm):4.3"

Display size(mm) :4.3"

Effective size(mm):95.04*53.86

Product application:Instrumentation

Visual angle:Full View

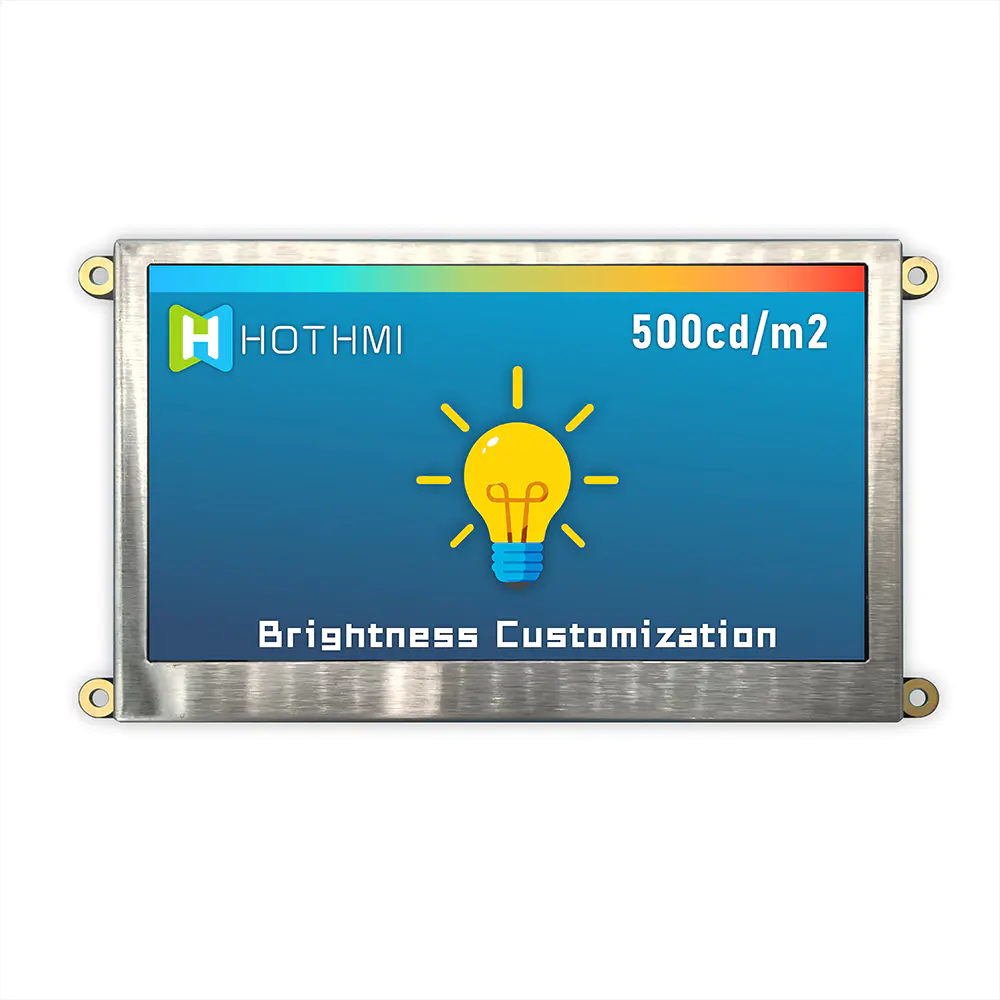

Backlight type or brightness:600cd/m2

Connection PIN Number:FPC-20PIN

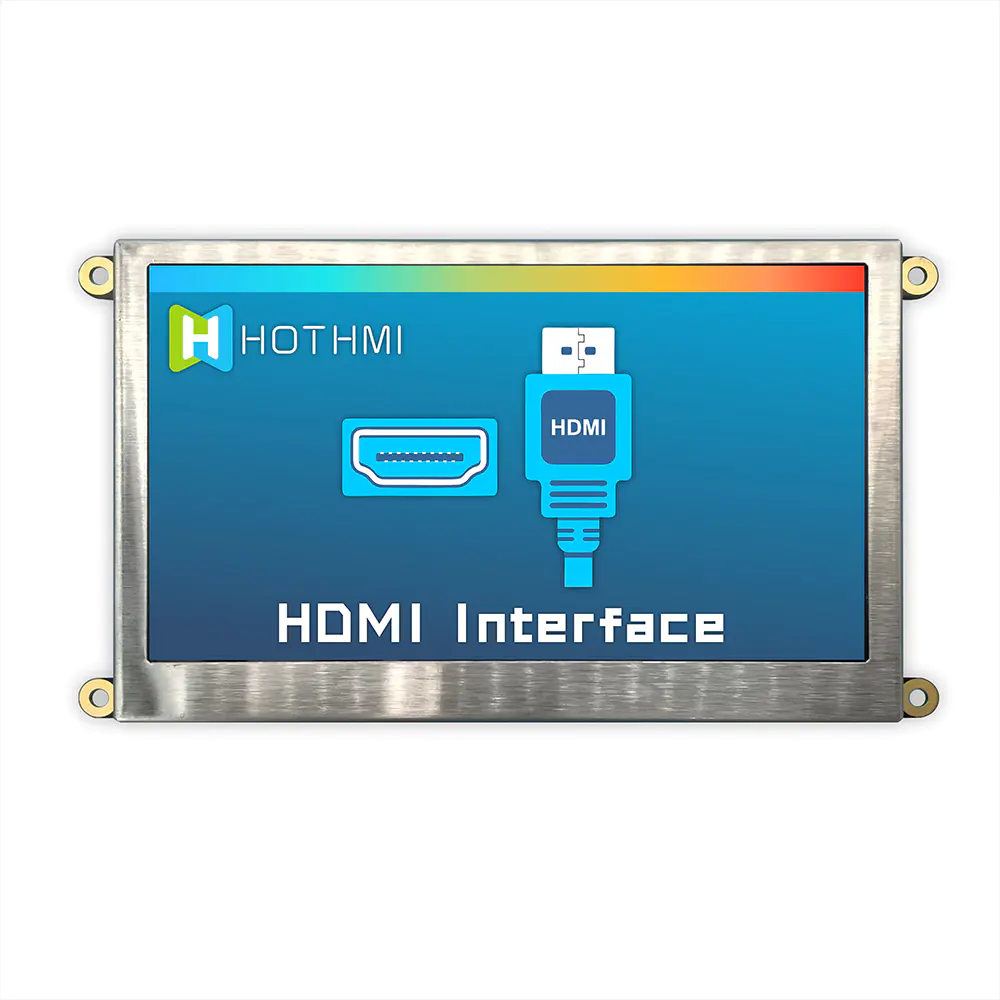

Interface mode:HDMI

Power supply voltage:5.0V

Driver chip model:T.B.D

CAD Drawings
