DESCRIPTION

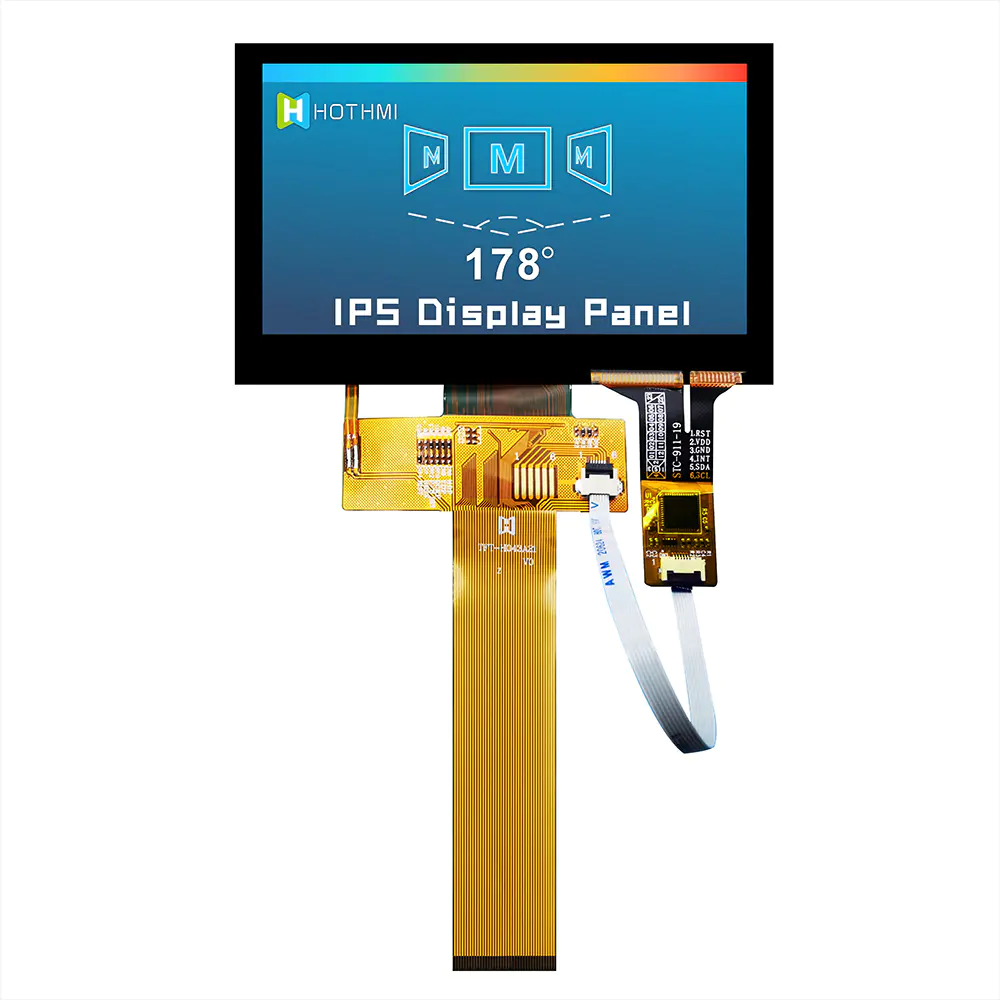

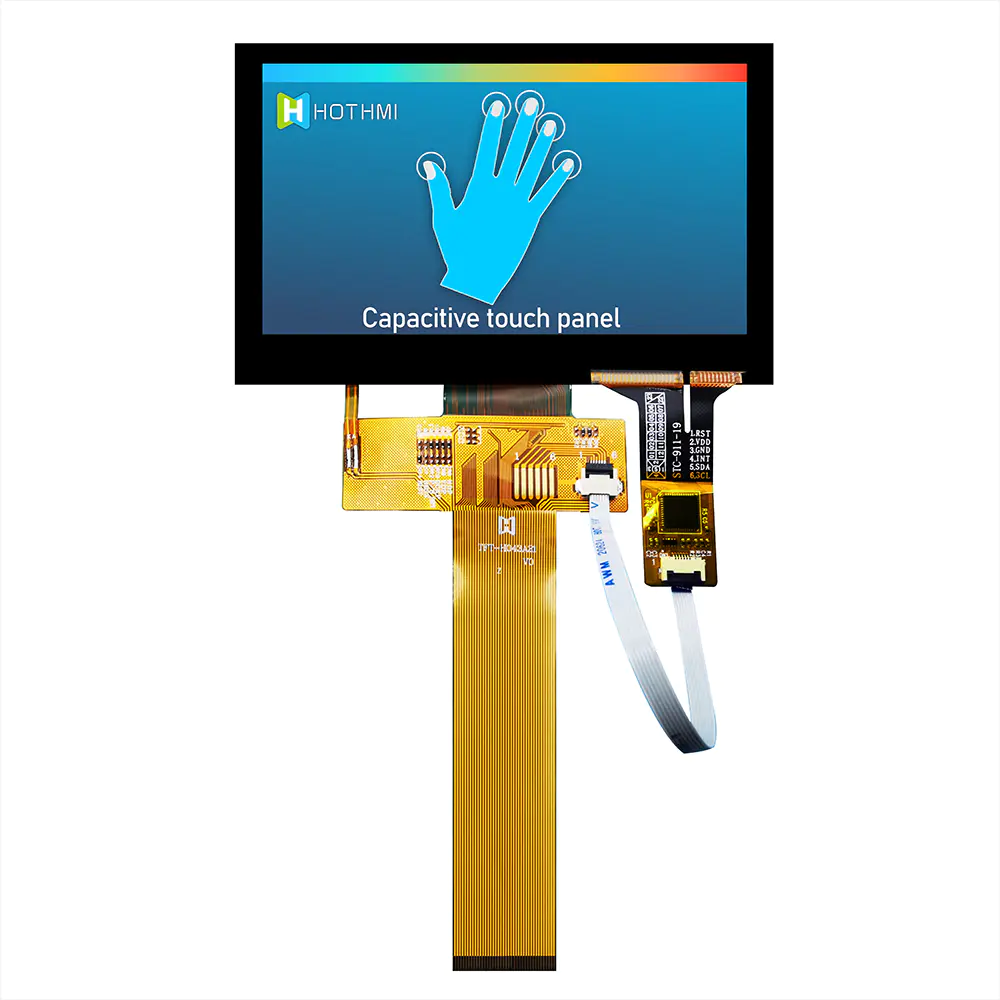

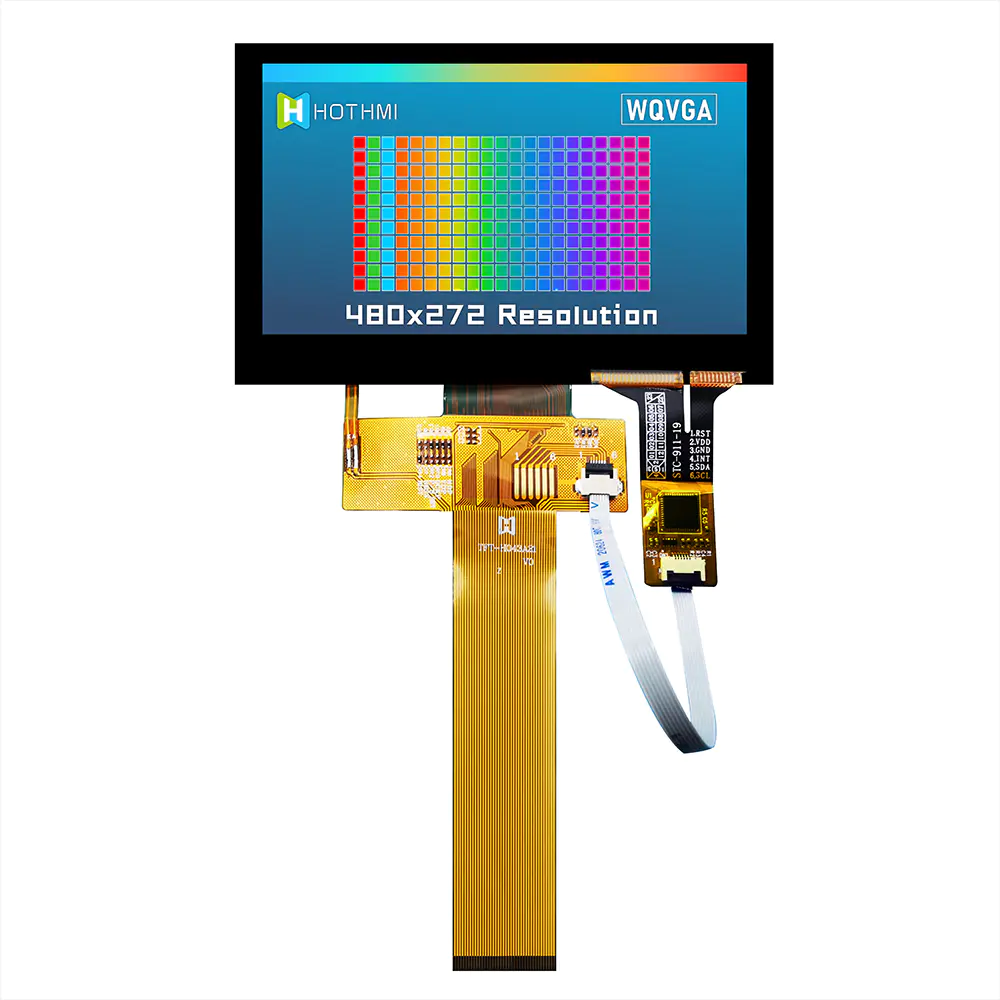

TFT-H043A21WQIST8C40 is a 4.3-inch Wide Temperature IPS TFT-LCD display with a Projected Capacitive Touch screen, made of resolution 480x272 pixels. This module is built-in with SC7283 driver ICs, and it supports 24-bit RGB interface. TFT-H043A21WQIST8C40 is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 800 nits (typical value), glare surface panel, aspect ratio 16:9. The  touch screen is built-in with GT911 IC, supporting I2C interface and multi-touch function. The H043A21 model has a projected capacitive touch panel (PCAP) and without a touch panel option (TFT-H043A21WQIST8C40).

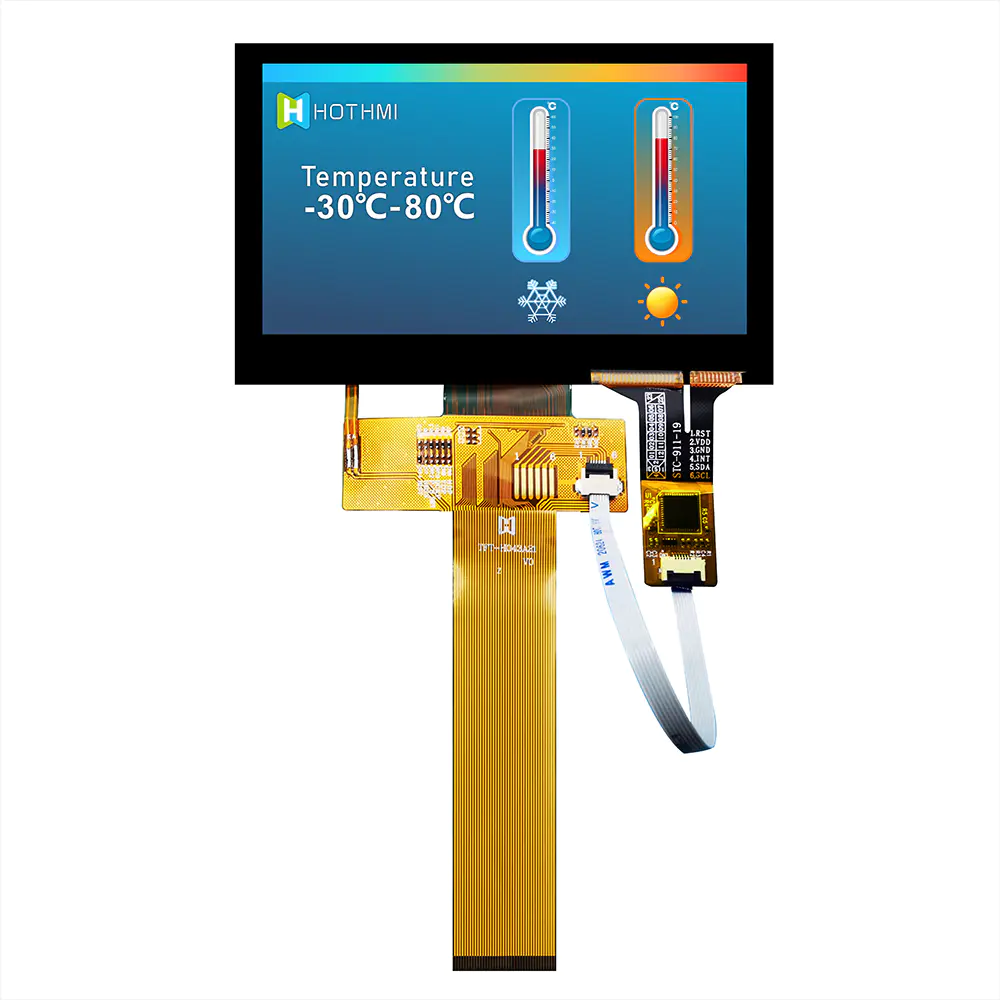

The supply voltage (VCC) of TFT-H043A21WQIST8C40 is from 3.0V to 3.6V, the typical value of 3.3V. It can be operating at temperatures from -30℃ to+ 80℃ and storage temperatures from -30℃ to +80℃.

Model : 4.3 inch TFT LCD vertical screen/480*272 resolution/IPS/industrial grade/24 bit-RGB interface/TFT-H043A21WQIST8C40

Product type：TFT vertical screen

Show contents：480*272

Outline size(mm) ：105.46*67.11*4.5

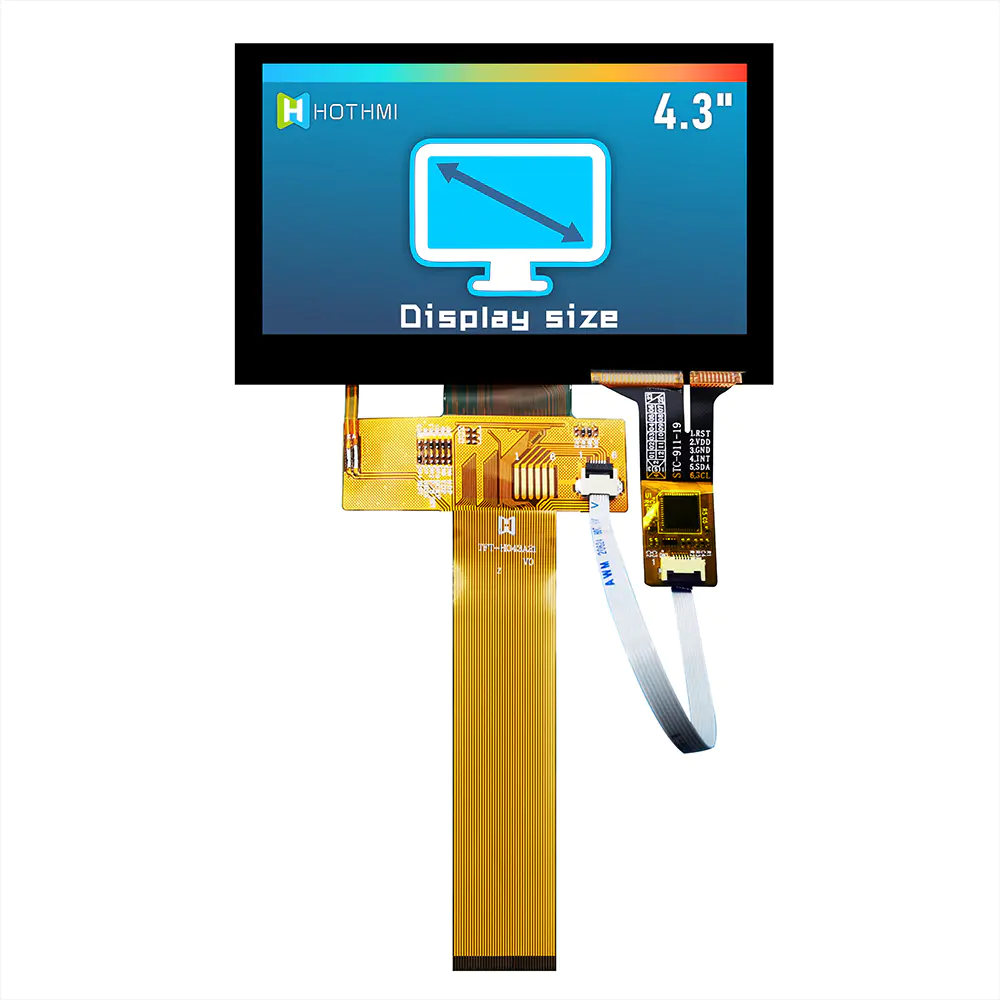

Size of View Window(mm)：4.3"

Display size(mm) ：4.3"

Effective size(mm)：95.04*53.86

Product application：Smart devices such as monitors

Visual angle：Full View

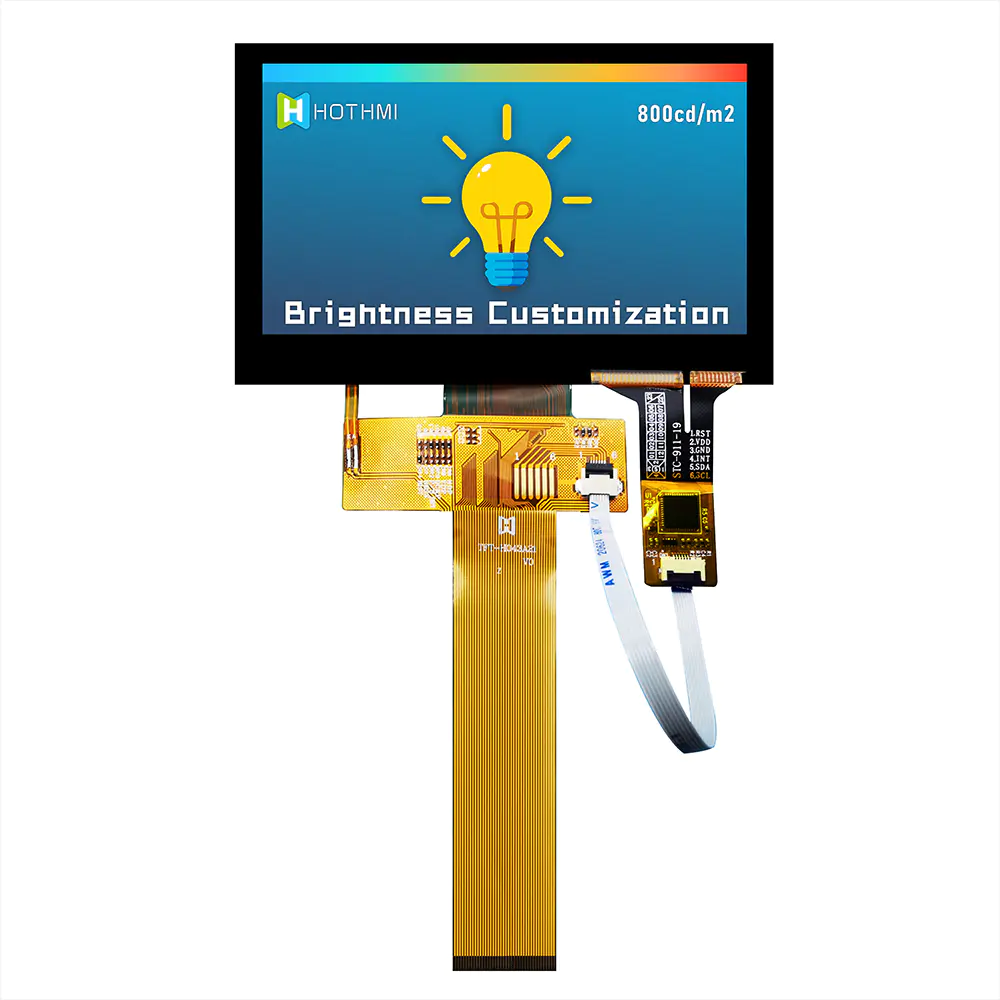

Backlight type or brightness：800cd/m2

Connection PIN Number：FPC-40PIN

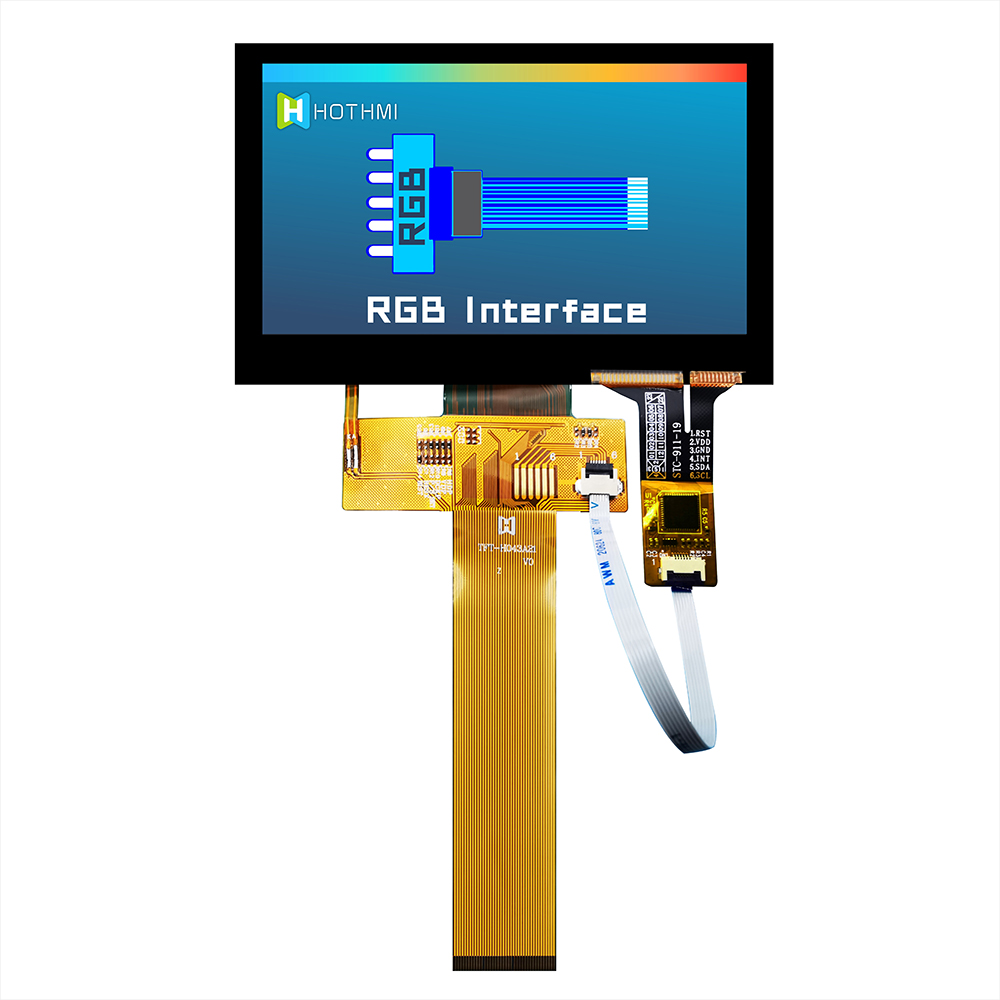

Interface mode：24bit-RGB

Working temperature：-30~80℃

Power supply voltage：3.3V

Driver chip model：SC7283

Touch driver IC：GT911
