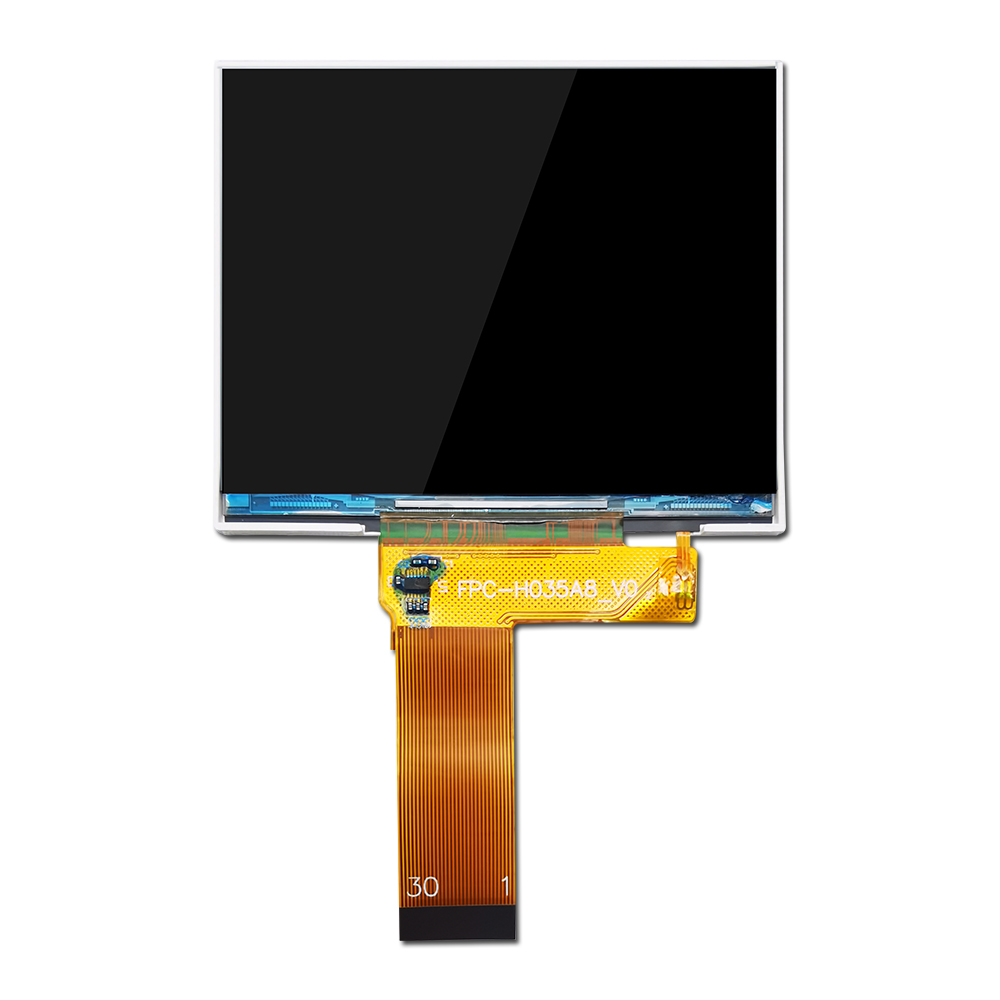

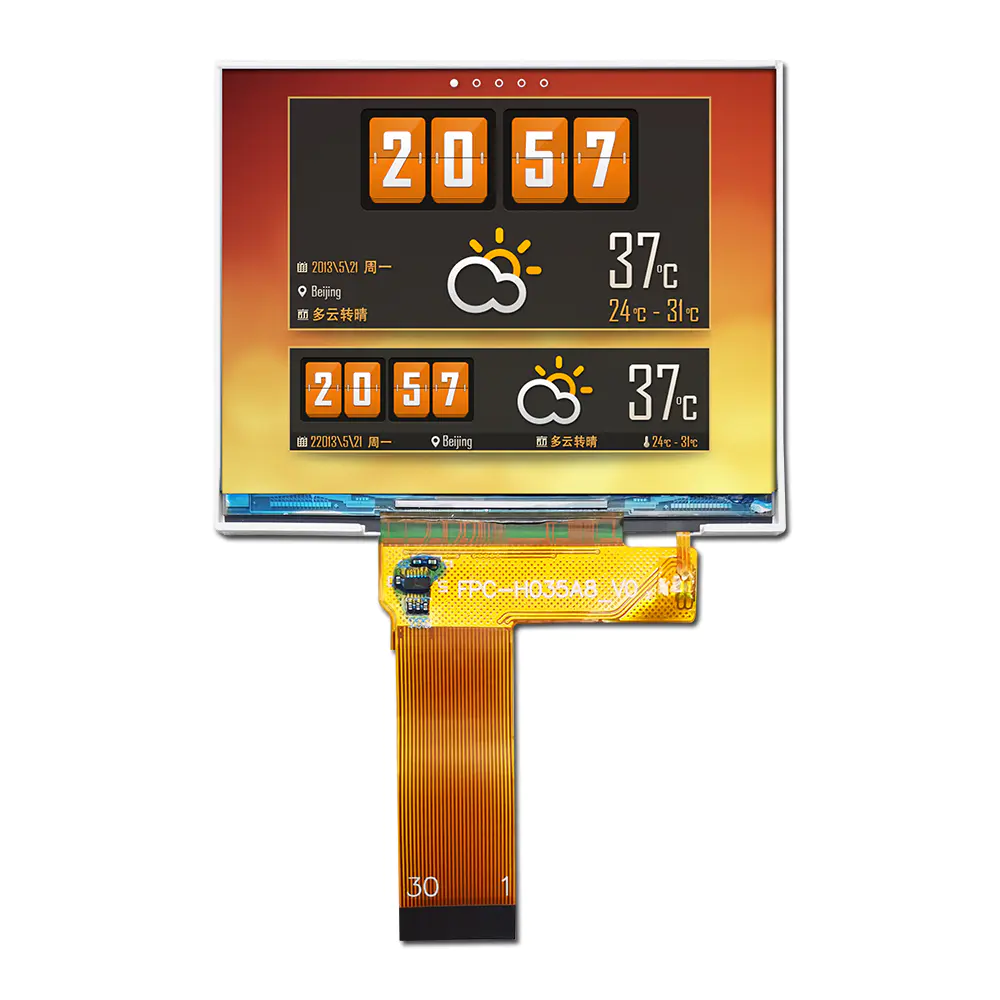

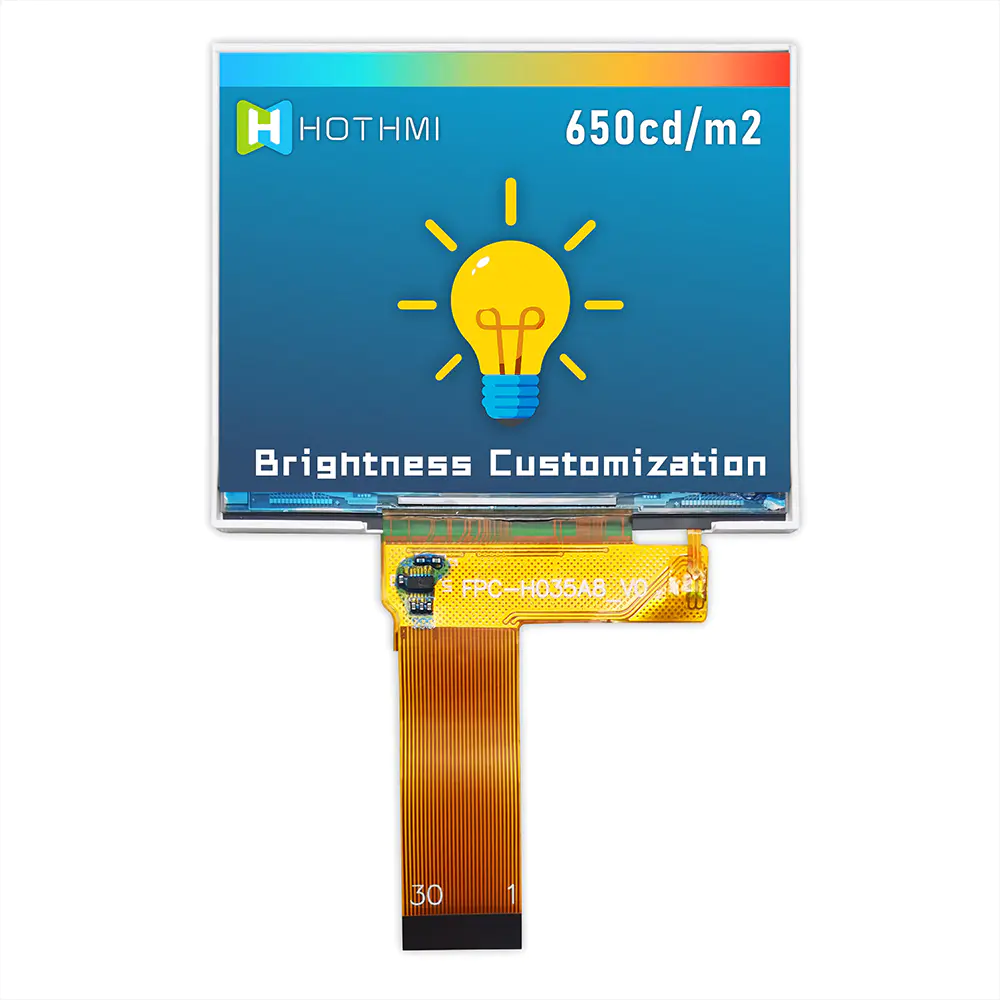

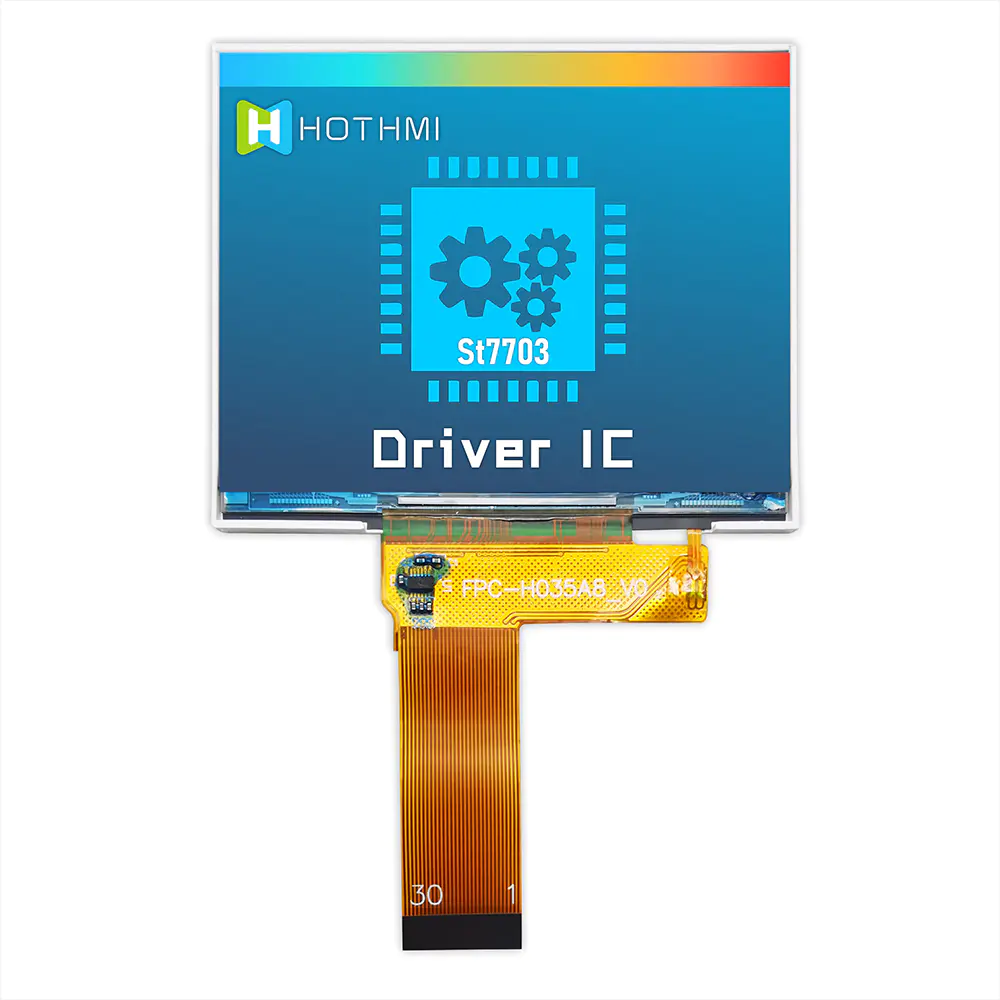

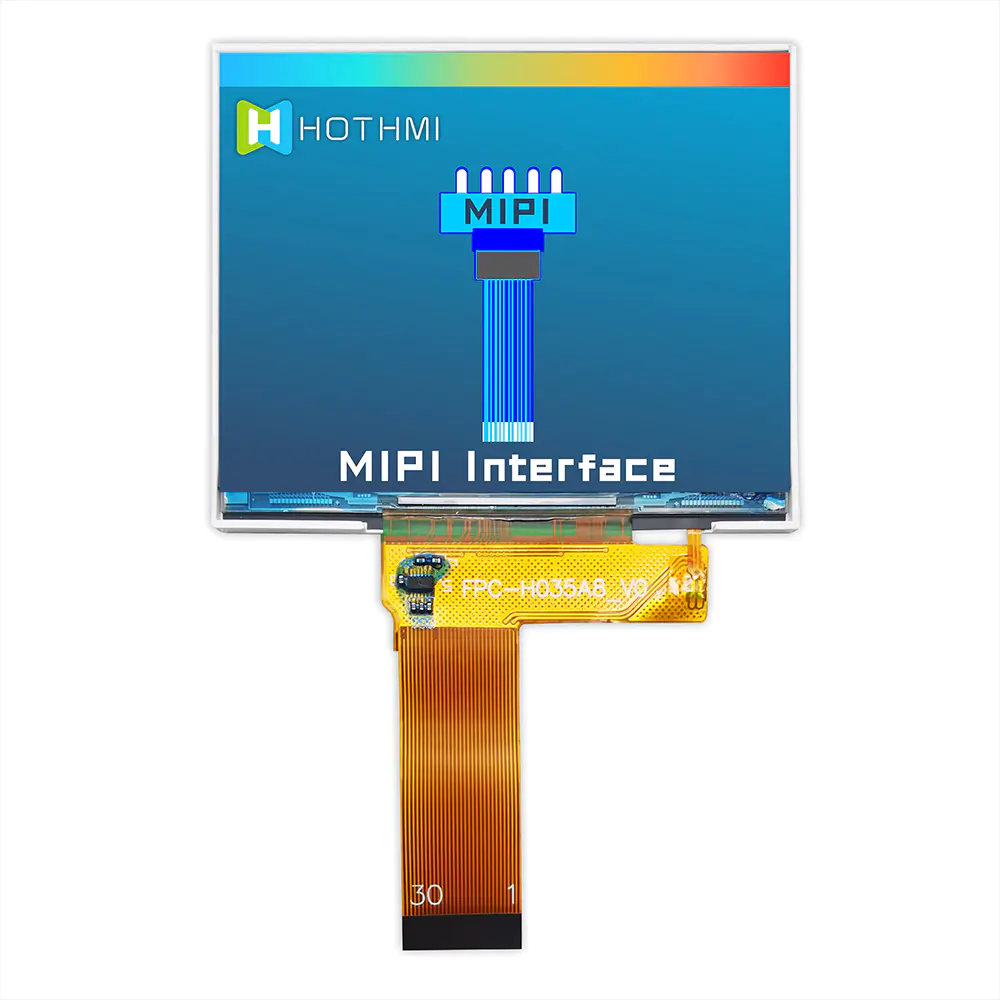

Product Description The TFT-H035A8VGIST6N30 is a 3.5-inch full-color TFT LCD module with a resolution of 640x480 pixels and an aspect ratio of 1.25:1. The TFT module adopts ST7703 driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 650 nits (typical). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
3.5 inch TFT color screen /640*480 resolution /full viewing angle IPS process /MIPI interface /TFT-H035A8VGIST6N30
Product type：TFT

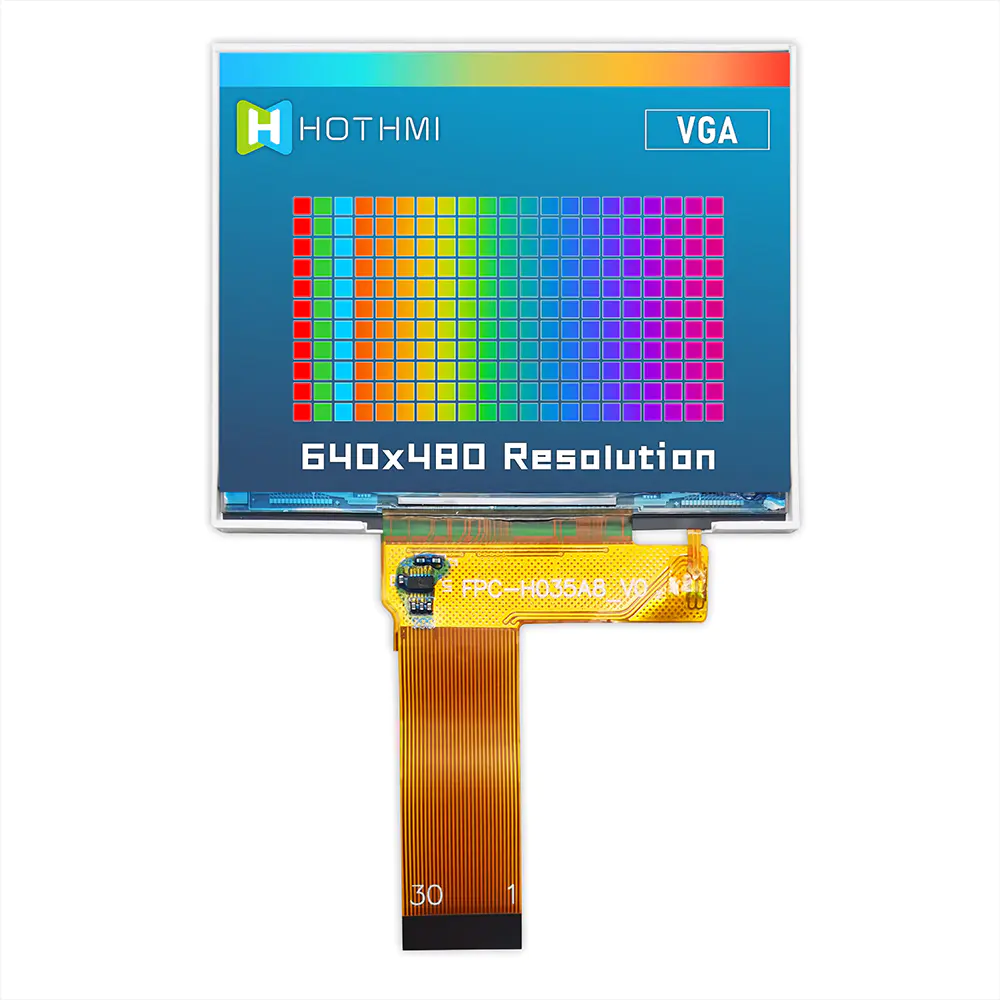

Show contents：640*480
Outline size(mm) ：74.5* 62.4* 2.37
Size of View Window(mm)：3.5"

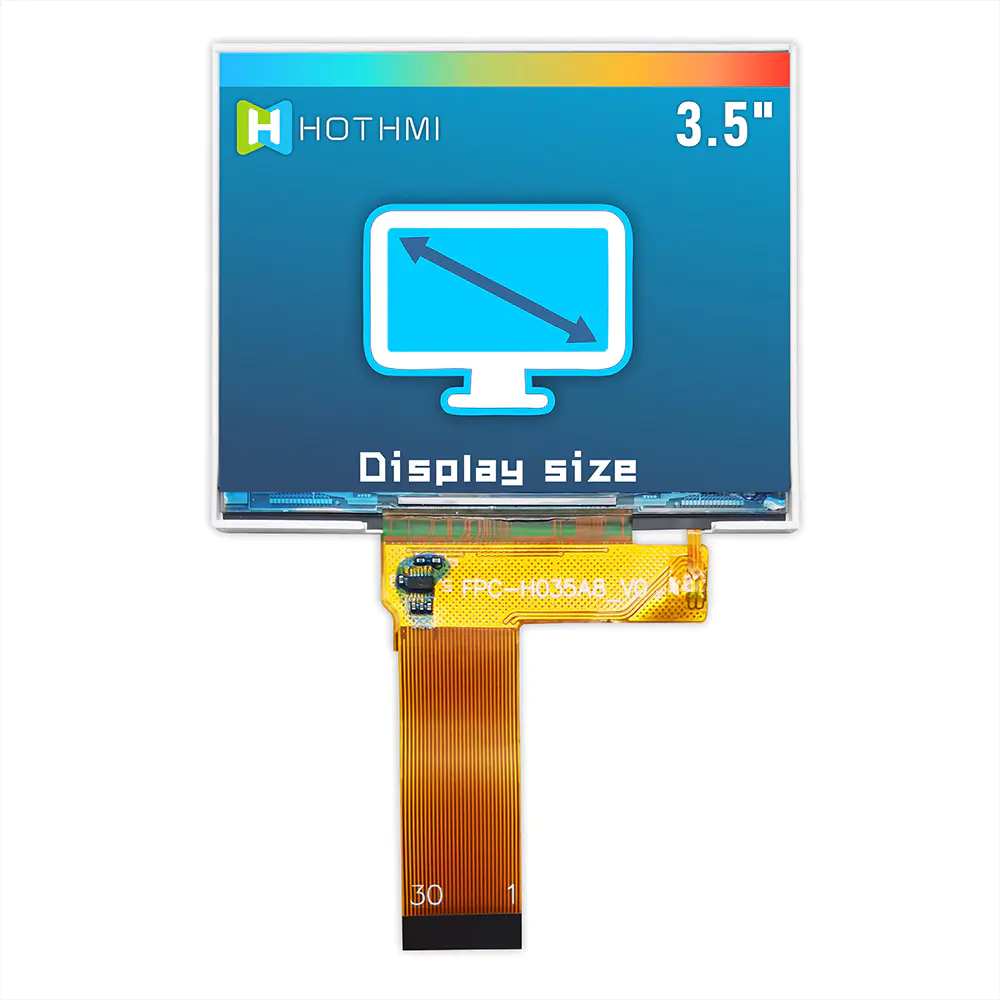

Display size(mm) ：3.5"
Effective size(mm)：70.08*52.56
Product application：Smart home appliances/industrial control/medical

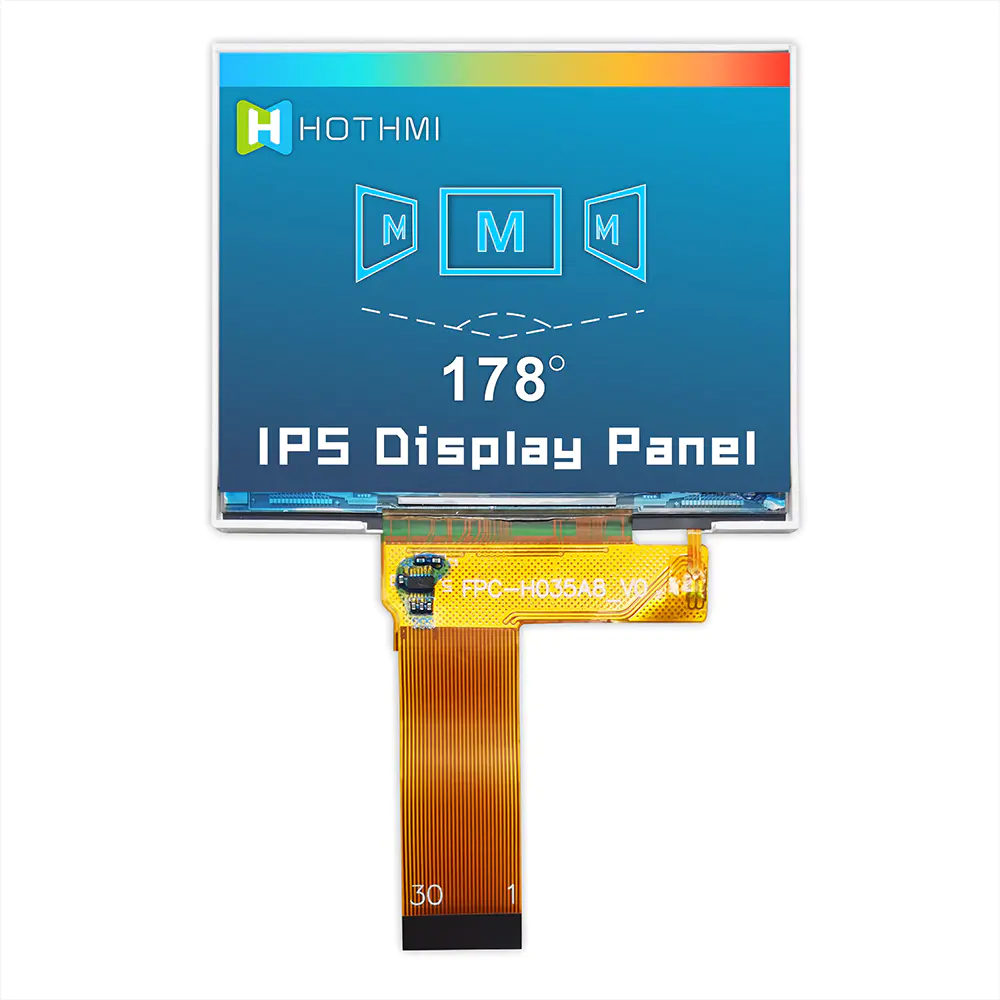

Visual angle：Full View(U80/D80/R80/L80)
Connection PIN Number：30PIN
Interface mode：MIPI

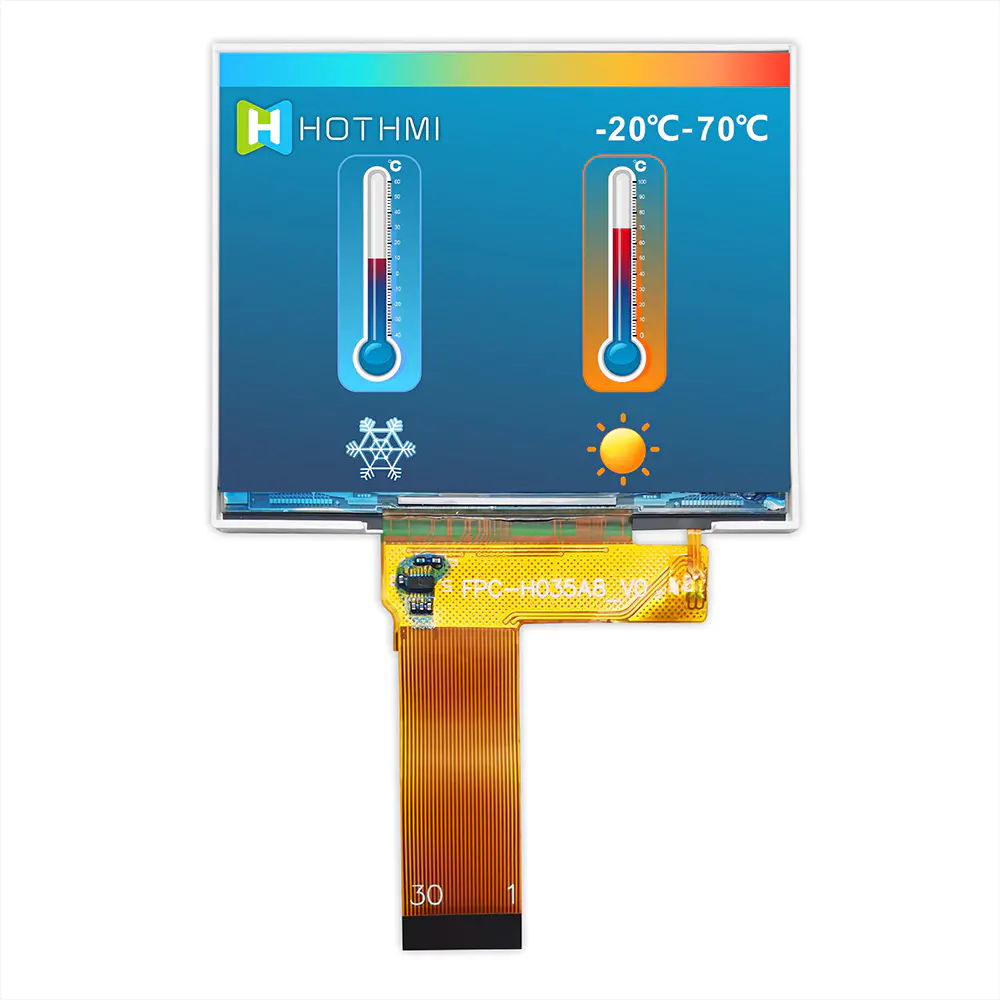

Working temperature：-20~70℃
Power supply voltage：2.8V
Driver chip model：ST7703
DRAWING
