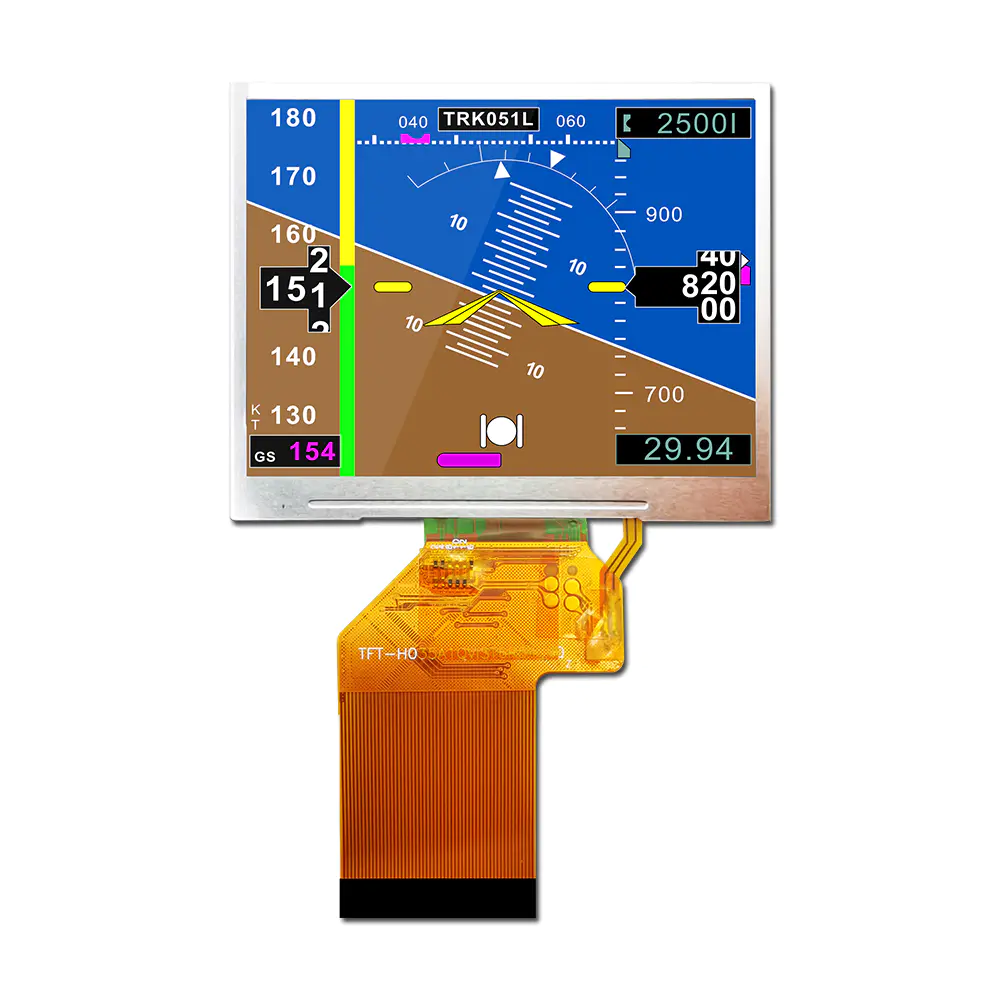

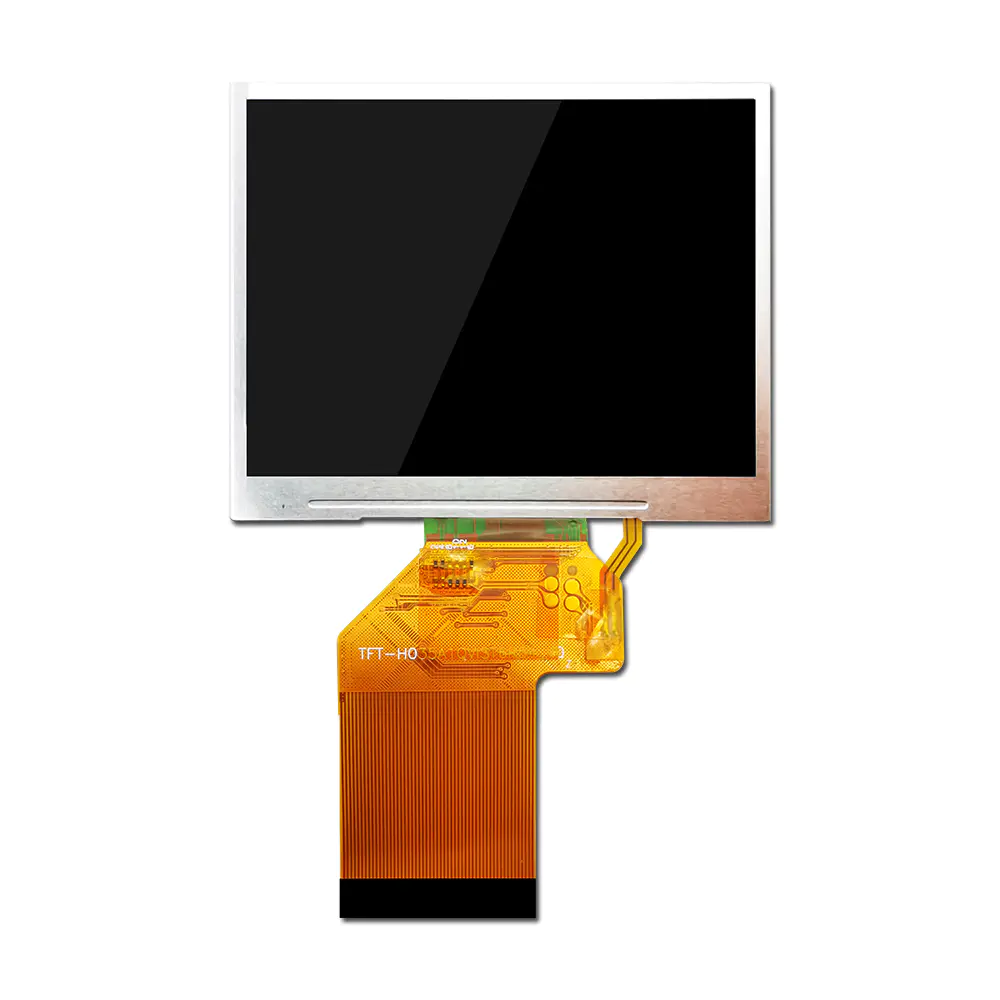

Product Description TFT-H035A1QVIST6R54 is a 3.5-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 2:3. The TFT module adopts ST7272A driver IC and supports 8/24-bit RGB with 3-wire SPI interface. Optional resistive touch screen, TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 600 nits ( typical value). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -40℃~+85℃.

3.5 inch TFT, 240x320 resolution, TFT LCD screen, COG LCD screen, Shenzhen LCM, Shenzhen LCD, LCM, LCD, LCD module, LCD screen, LCD screen, LCD module, LCD module, backlight, LCD production Manufacturer, Xinhongtai, HOTLCD, COG, MONO TFT, LCD module

3.5 inch TFT /240*320 resoliution/full viewing angle/TFT-H035A1QVIST6R54

Product type: TFT vertical screen

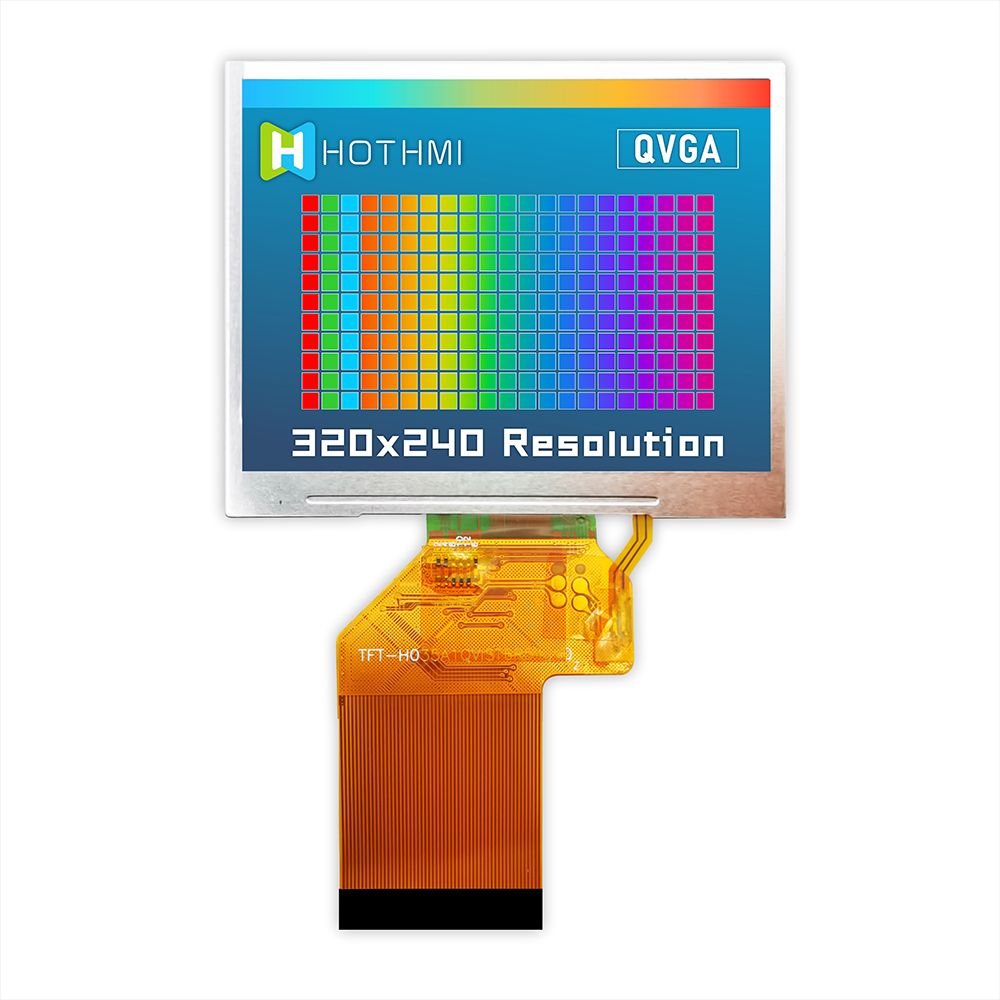

Display content: 240*320

Dimensions (mm): 76.84(H)x63.84x4.55(V)

Window size (mm): 3.5"

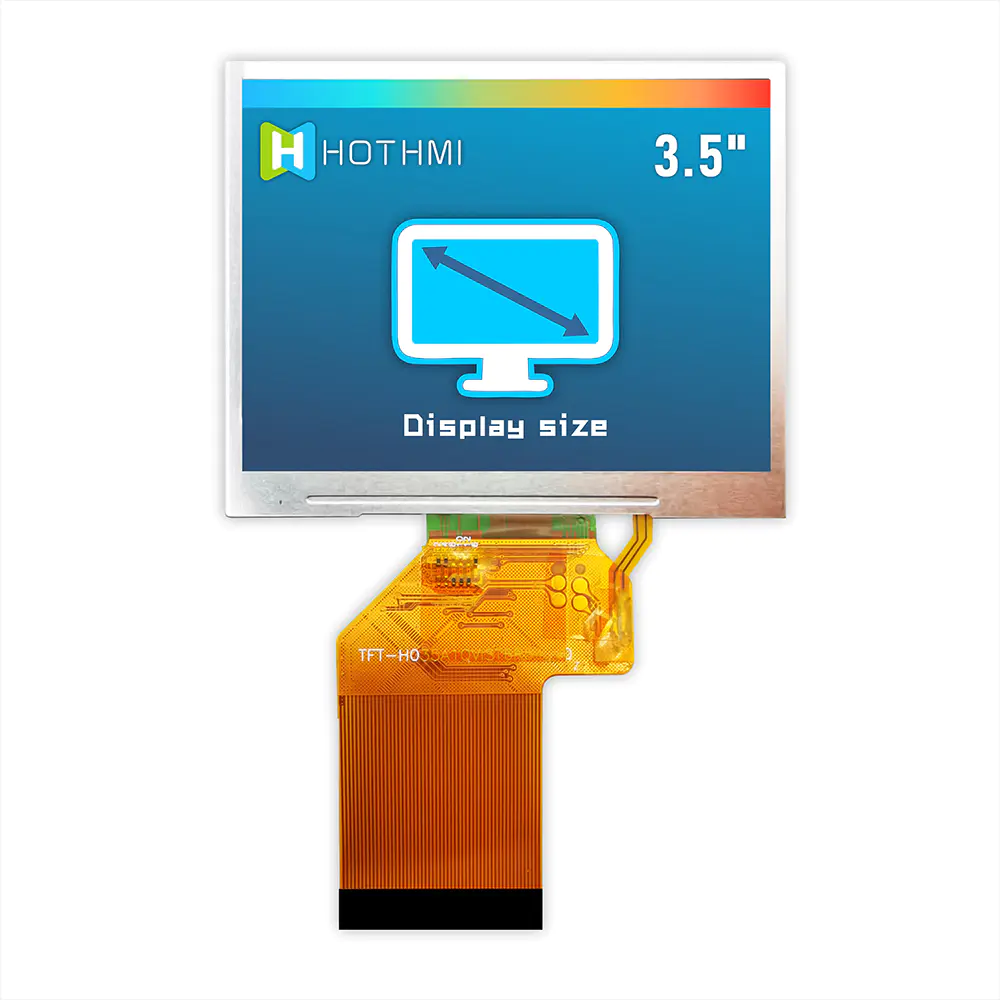

Display size (mm): 3.5"

Effective size (mm):  70.08(H) *52.56(V)

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

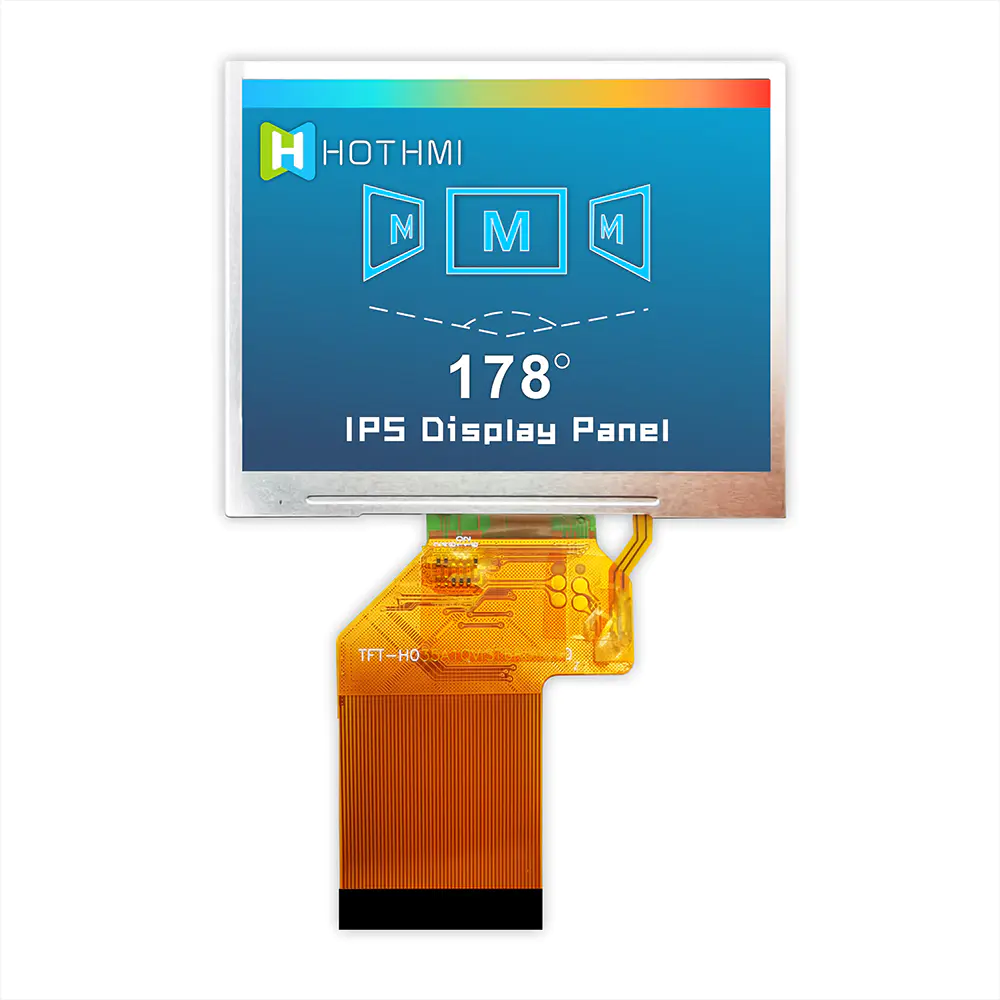

Viewing angle:full O'CLOCK

Backlight type or brightness: 600cd/m2

Number of connection PINs: FPC-54PIN

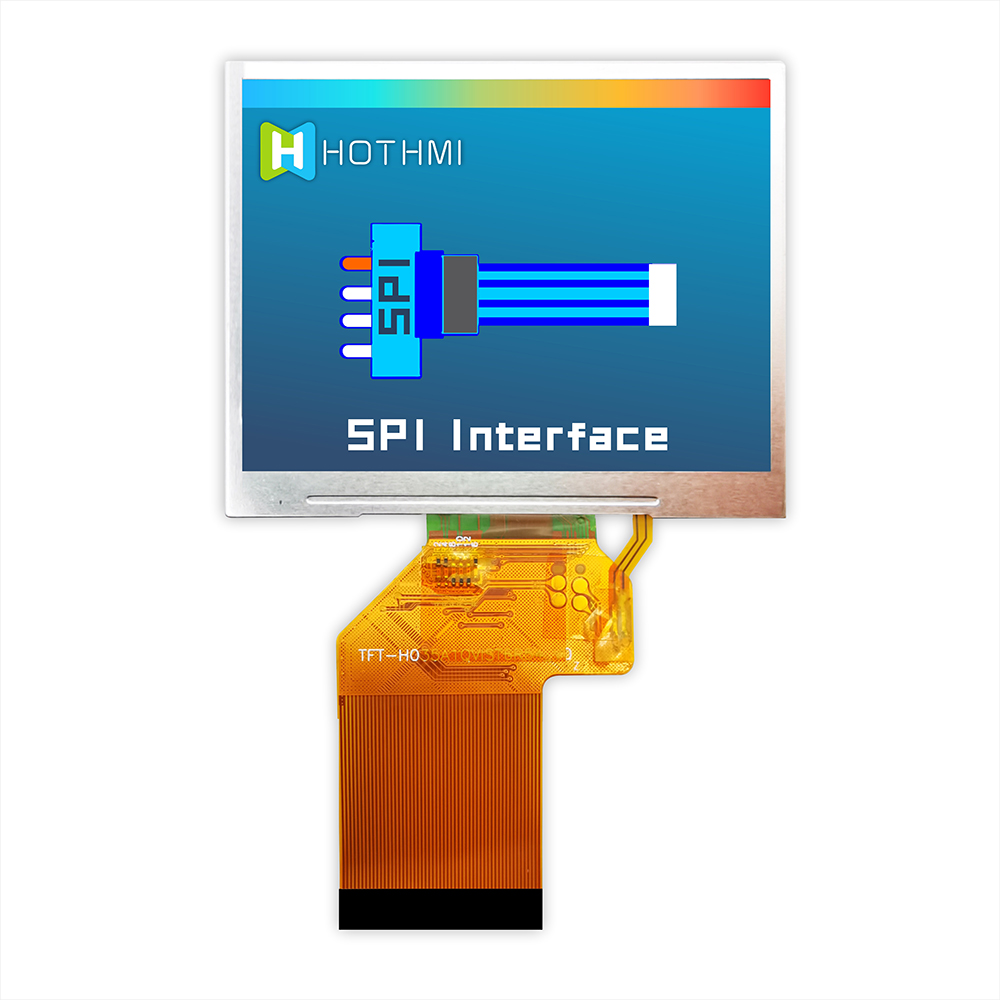

Interface:8/24-bit RGB with 3-wire SPI

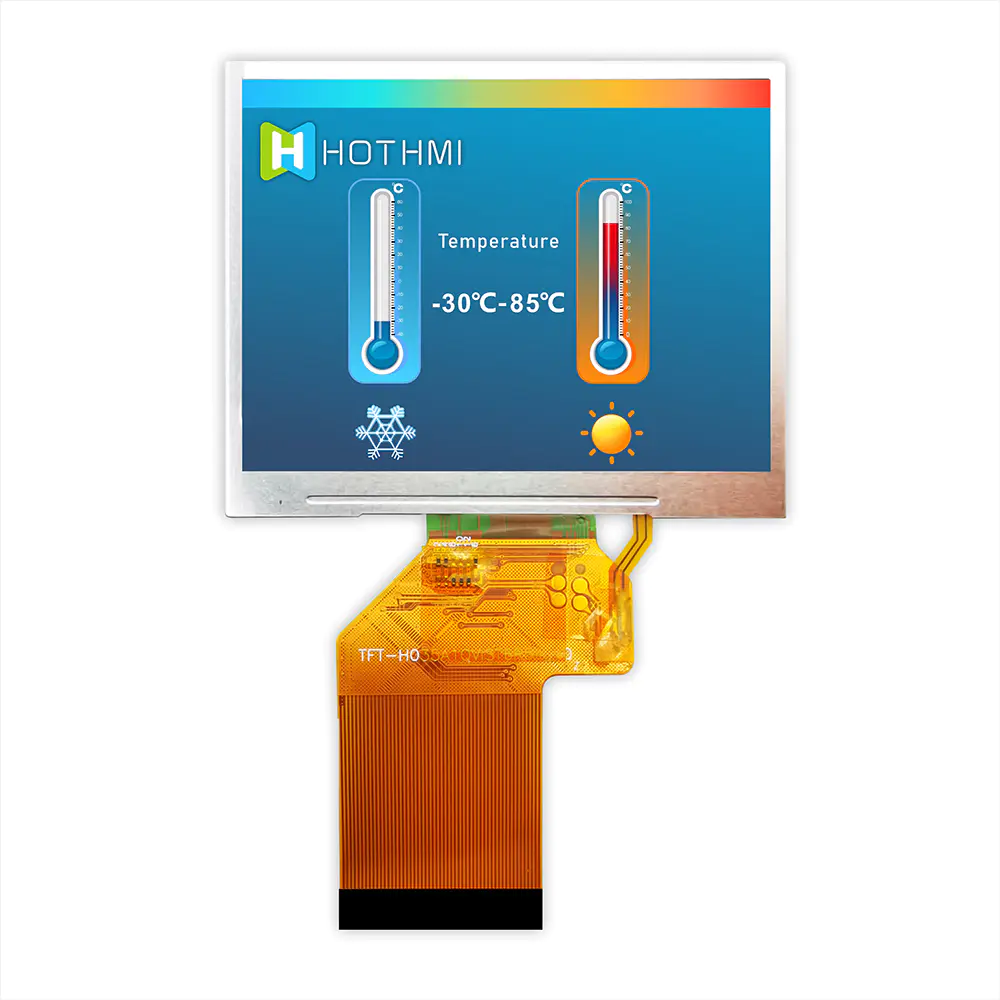

Working temperature: -30~85℃

Power supply voltage: 3.3V

Driver chip model: ST7272A

DRAWING
